Here you will find all available parts and drawings of the 'Metabo 02022001 ( ASR2025 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

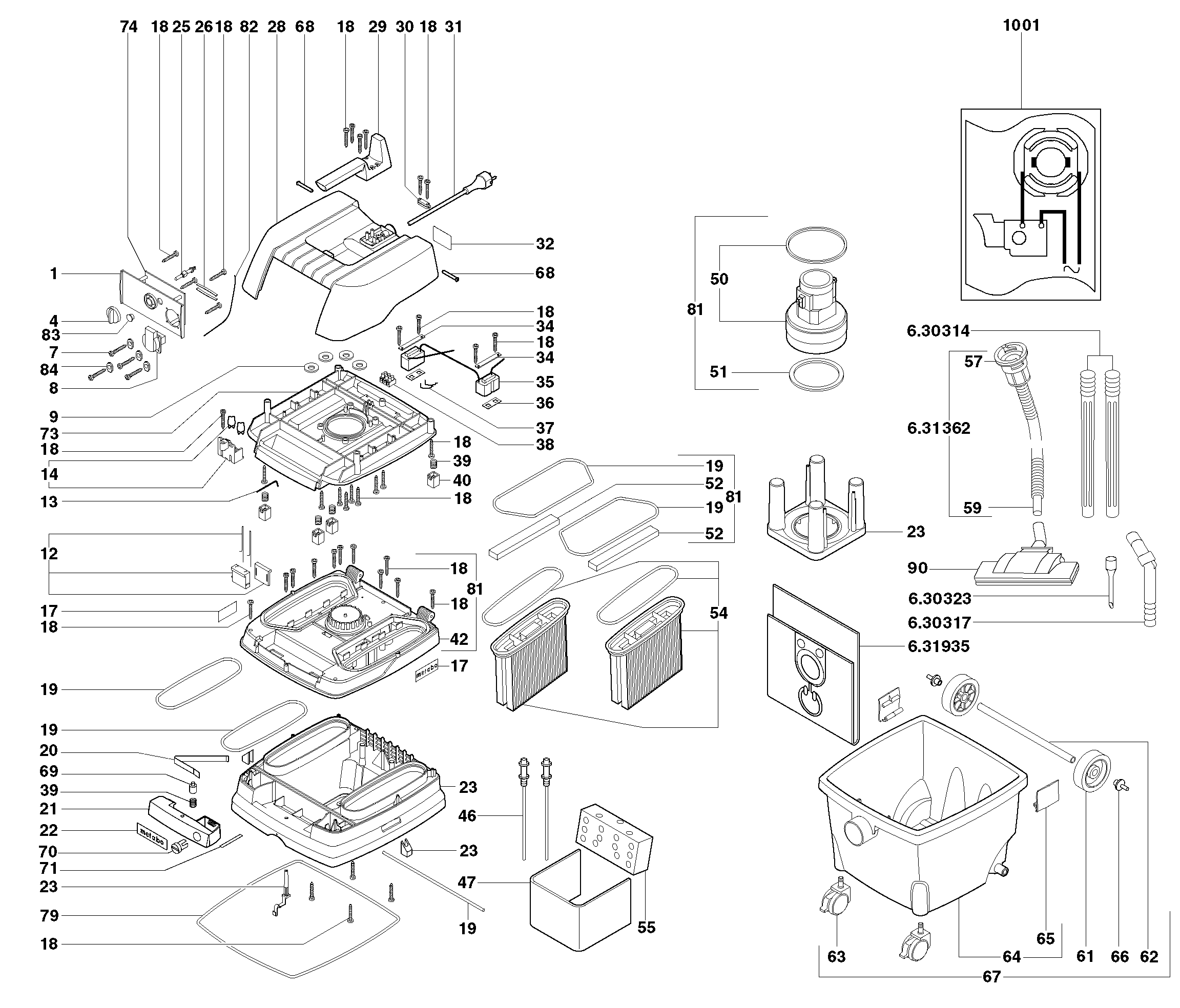

Technical drawing of model Metabo 02022001 ( ASR2025 )
Spare parts list of model Metabo 02022001 ( ASR2025 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Frontplaat | ||||
| 1 | 343392370 | 11.74 | 14.21 | |
| Schakelhendel | ||||
| 4 | 343392410 | 3.71 | 4.49 | |
| No information available, not orderable | ||||
| 7 | 141120090 | |||
| Machine contact box | ||||
| 8 | 344492340 | 24.23 | 29.32 | |
| Washer | ||||
| 9 | 341147580 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 12 | 316034210 | |||
| Contaktdraad | ||||
| 13 | 339131340 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 14 | 316034240 | |||
| No information available, not orderable | ||||
| 17 | 338116660 | |||
| Particle board screw | ||||
| 18 | 141120130 | 1.67 | 2.02 | |
| Conical nipple TI 15 | ||||
| 19 | 339012360 | 11.74 | 14.21 | |
| Flat spring | ||||
| 20 | 342002960 | 2.28 | 2.76 | |
| Latch | ||||
| 21 | 343377410 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 22 | 338116680 | |||
| Lower part complete | ||||
| 23 | 316034200 | 121.19 | 146.64 | |
| Spindle | ||||
| 25 | 341147570 | 3.02 | 3.65 | |
| Switch Spring | ||||
| 26 | 342002970 | 3.02 | 3.65 | |
| Cover | ||||
| 28 | 343377450 | 26.95 | 32.61 | |
| Handle | ||||
| 29 | 343377460 | 11.74 | 14.21 | |
| Cable clip | ||||
| 30 | 343378310 | 1.55 | 1.88 | |
| Kabel m.stekker,230V | ||||
| 31 | 344498760 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 32 | 338042480 | |||
| Retraining sheet | ||||
| 34 | 339131680 | 1.67 | 2.02 | |
| Vibration unit | ||||
| 35 | 343072340 | 134.27 | 162.47 | |
| Gasket | ||||
| 36 | 344093420 | 1.67 | 2.02 | |
| Contaktbeugel | ||||
| 37 | 339131320 | 1.55 | 1.88 | |
| Terminal Strip 3 pole | ||||
| 38 | 343050030 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 39 | 342001850 | 1.67 | 2.02 | |
| Pressure plate | ||||
| 40 | 341147560 | 1.55 | 1.88 | |
| Motor housing | ||||
| 42 | 343377390 | 48.48 | 58.66 | |
| Electrode complete | ||||
| 46 | 316037940 | 4.51 | 5.46 | |
| Geluiddemping | ||||
| 47 | 344101240 | 4.51 | 5.46 | |
| Motor-unit compl. | ||||
| 50 | 317002990 | 201.99 | 244.41 | |
| Afdichtring | ||||
| 51 | 344093030 | 8.89 | 10.76 | |
| Motor Protection Filter | ||||
| 52 | 344101280 | 3.02 | 3.65 | |
| 2 Filter cartridges, Paper | ||||
| 54 | 631933000 | 104.58 | 126.54 | |
| Geluiddemping | ||||
| 55 | 344101250 | 18.80 | 22.75 | |
| Hose connection tube rotation | ||||
| 57 | 343373980 | 12.23 | 14.80 | |
| Aansluitmof binnen-Ø 28 mm/buiten-Ø 35mm | ||||
| 59 | 630798000 | 35.23 | 42.63 | |
| Wheel | ||||
| 61 | 343377610 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 62 | 341514970 | |||
| Caster | ||||
| 63 | 341250120 | 12.23 | 14.80 | |
| Container cpl. | ||||
| 64 | 316032880 | 213.88 | 258.79 | |
| Latch | ||||
| 65 | 343377590 | 3.02 | 3.65 | |
| Plug | ||||
| 66 | 343369660 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 67 | 316032890 | |||
| Lagerstift | ||||
| 68 | 341514990 | 3.02 | 3.65 | |
| Vergrendelingsknop | ||||
| 69 | 341147590 | 3.02 | 3.65 | |
| Locking piece | ||||
| 70 | 343378320 | 3.02 | 3.65 | |
| Lock Spring | ||||
| 71 | 342021810 | 8.89 | 10.76 | |
| Draagplaat | ||||
| 73 | 343377560 | 53.86 | 65.17 | |
| Elektronische unit compl. | ||||
| 74 | 343080650 | 187.73 | 227.15 | |
| Rubberzool | ||||
| 79 | 344096390 | 7.22 | 8.74 | |
| Onderdrukslang | ||||
| 82 | 344096320 | 2.28 | 2.76 | |
| Lichtdiode | ||||
| 83 | 343072320 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 84 | 399999990 | |||
| No information available, not orderable | ||||
| 90 | 343392620 | |||
| No information available, not orderable | ||||
| 1001 | 338504390 | |||
