Here you will find all available parts and drawings of the 'Metabo 02022000 (ASR2025)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

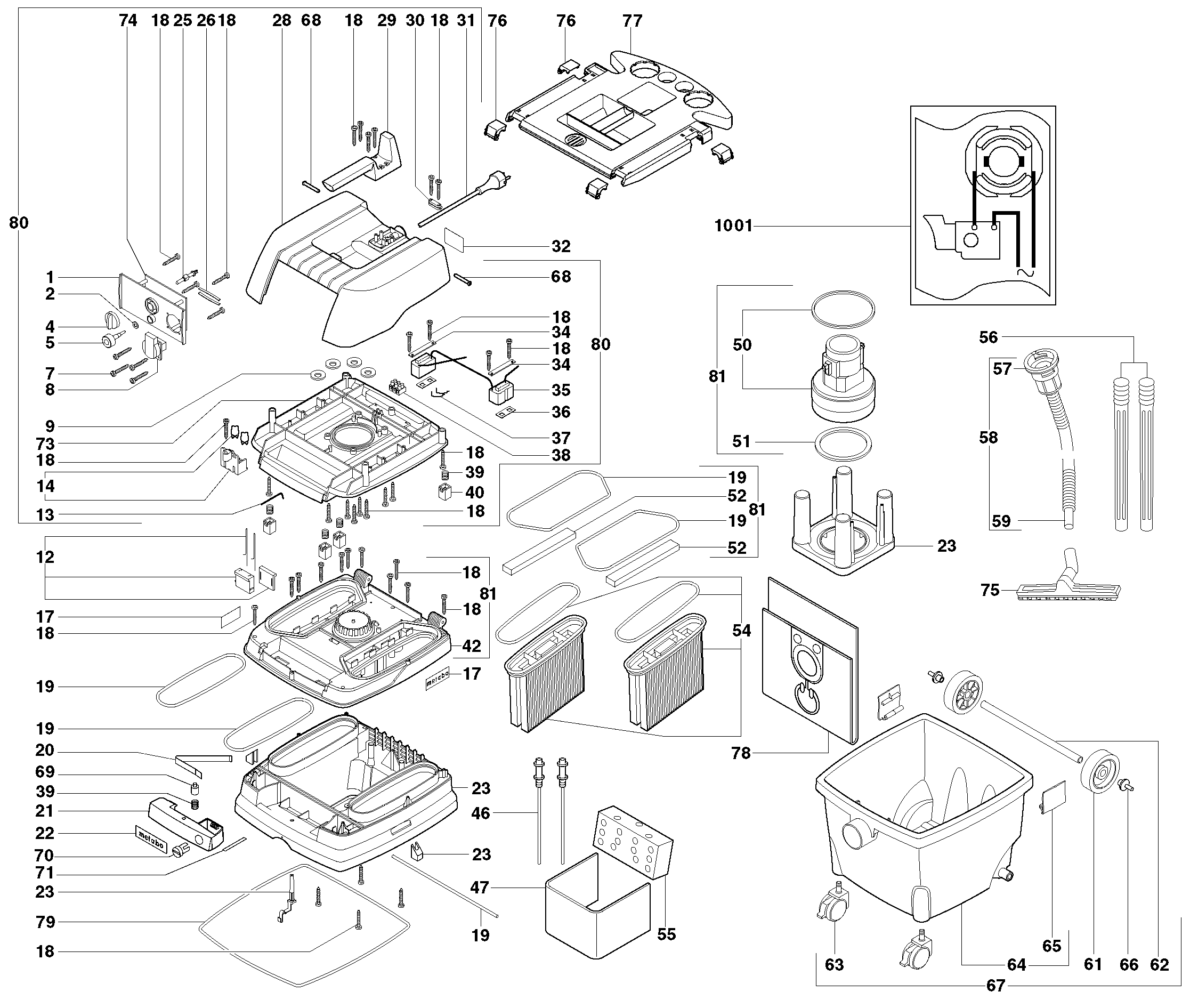

Technical drawing of model Metabo 02022000 (ASR2025)
Spare parts list of model Metabo 02022000 (ASR2025)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 343378350 | |||
| Blocking | ||||
| 2 | 339005680 | 1.79 | 2.17 | |
| Schakelhendel | ||||
| 4 | 343378370 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 5 | 343377580 | |||
| No information available, not orderable | ||||
| 7 | 141120090 | |||
| Machine contact box | ||||
| 8 | 344492340 | 27.16 | 32.86 | |
| Washer | ||||
| 9 | 341147580 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 12 | 316034210 | |||
| Contaktdraad | ||||
| 13 | 339131340 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 14 | 316034240 | |||
| No information available, not orderable | ||||
| 17 | 338116660 | |||
| Particle board screw | ||||
| 18 | 141120130 | 12.19 | 14.75 | |
| Conical nipple TI 15 | ||||
| 19 | 339012360 | 12.19 | 14.75 | |
| Flat spring | ||||
| 20 | 342002960 | 15.31 | 18.53 | |
| Latch | ||||
| 21 | 343377410 | 27.16 | 32.86 | |
| No information available, not orderable | ||||
| 22 | 338116680 | |||
| Lower part complete | ||||
| 23 | 316034200 | 117.12 | 141.72 | |
| Spindle | ||||
| 25 | 341147570 | 3.20 | 3.87 | |
| Switch Spring | ||||
| 26 | 342002970 | 3.20 | 3.87 | |
| Cover | ||||
| 28 | 343377450 | 29.97 | 36.26 | |
| Handle | ||||
| 29 | 343377460 | 12.19 | 14.75 | |
| Cable clip | ||||
| 30 | 343378310 | 1.67 | 2.02 | |
| Kabel m.stekker,230V | ||||
| 31 | 344498760 | 41.32 | 50.00 | |
| No information available, not orderable | ||||
| 32 | 338042480 | |||
| Retraining sheet | ||||
| 34 | 339131680 | 7.58 | 9.17 | |
| Vibration unit | ||||
| 35 | 343072340 | 126.62 | 153.21 | |
| Gasket | ||||
| 36 | 344093420 | 7.58 | 9.17 | |
| Contaktbeugel | ||||
| 37 | 339131320 | 1.67 | 2.02 | |
| Terminal Strip 3 pole | ||||
| 38 | 343050030 | 1.79 | 2.17 | |
| Pressure spring | ||||
| 39 | 342001850 | 7.58 | 9.17 | |
| Pressure plate | ||||
| 40 | 341147560 | 1.67 | 2.02 | |
| Motor housing | ||||
| 42 | 343377390 | 52.36 | 63.36 | |
| Electrode complete | ||||
| 46 | 316037940 | 15.31 | 18.53 | |
| Geluiddemping | ||||
| 47 | 344101240 | 4.78 | 5.78 | |
| Motor-unit compl. | ||||
| 50 | 317002990 | 169.87 | 205.54 | |
| Afdichtring | ||||
| 51 | 344093030 | 9.36 | 11.33 | |
| Motor Protection Filter | ||||
| 52 | 344101280 | 3.20 | 3.87 | |
| No information available, not orderable | ||||
| 54 | 631933000 | |||
| Geluiddemping | ||||
| 55 | 344101250 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 56 | 630314000 | |||
| Hose connection tube rotation | ||||
| 57 | 343373980 | 13.93 | 16.86 | |
| No information available, not orderable | ||||
| 58 | 631752000 | |||
| No information available, not orderable | ||||
| 59 | 630798000 | |||
| Wheel | ||||
| 61 | 343377610 | 10.82 | 13.09 | |
| No information available, not orderable | ||||
| 62 | 341514970 | |||
| Caster | ||||
| 63 | 341250120 | 13.93 | 16.86 | |
| Container cpl. | ||||
| 64 | 316032880 | 175.78 | 212.69 | |
| Latch | ||||
| 65 | 343377590 | 9.36 | 11.33 | |
| Plug | ||||
| 66 | 343369660 | 2.43 | 2.94 | |
| No information available, not orderable | ||||
| 67 | 316032890 | |||
| Lagerstift | ||||
| 68 | 341514990 | 3.20 | 3.87 | |
| Vergrendelingsknop | ||||
| 69 | 341147590 | 3.20 | 3.87 | |
| Locking piece | ||||
| 70 | 343378320 | 3.20 | 3.87 | |
| Lock Spring | ||||
| 71 | 342021810 | 9.36 | 11.33 | |
| Draagplaat | ||||
| 73 | 343377560 | 57.79 | 69.93 | |
| No information available, not orderable | ||||
| 74 | 343078310 | |||
| No information available, not orderable | ||||
| 75 | 630329000 | |||
| End cap | ||||
| 76 | 343377360 | 3.20 | 3.87 | |
| No information available, not orderable | ||||
| 77 | 343377350 | |||
| No information available, not orderable | ||||
| 78 | 631935000 | |||
| Rubberzool | ||||
| 79 | 344096390 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 80 | 316034300 | |||
| No information available, not orderable | ||||
| 1001 | 338504330 | |||
