Here you will find all available parts and drawings of the 'Metabo 02013000 ( ASA32L )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

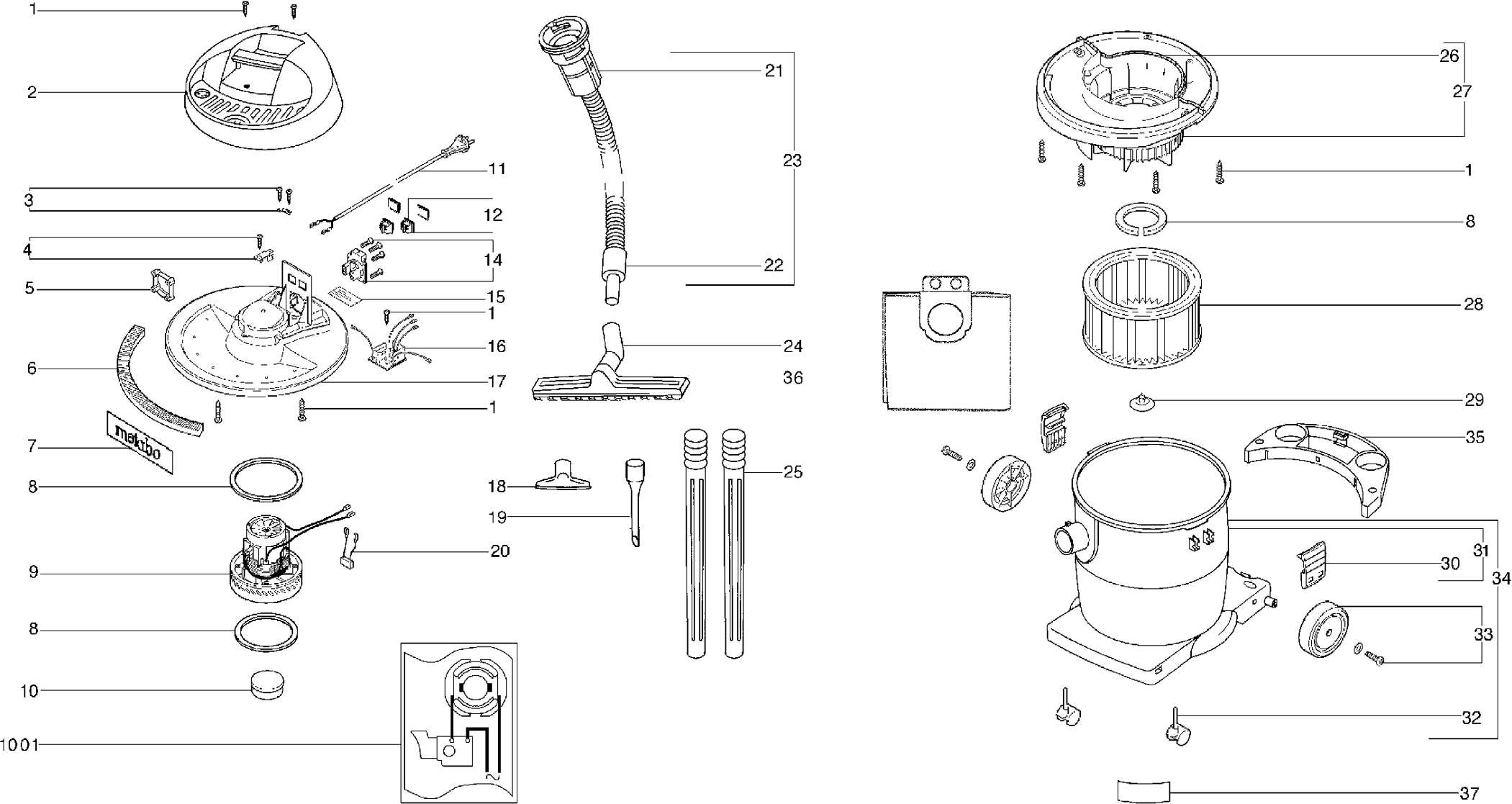

Technical drawing of model Metabo 02013000 ( ASA32L )
Spare parts list of model Metabo 02013000 ( ASA32L )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Particle board screw | ||||
| 1 | 141120130 | 1.67 | 2.02 | |
| Cap compl. | ||||
| 2 | 316028590 | 48.48 | 58.66 | |
| Cable clamp compl. | ||||
| 3 | 316028350 | 2.28 | 2.76 | |
| Connector | ||||
| 4 | 316028620 | 3.02 | 3.65 | |
| Frame | ||||
| 5 | 343373820 | 7.22 | 8.74 | |
| Sound damping | ||||
| 6 | 344095270 | 3.02 | 3.65 | |
| Metabo plaatje | ||||
| 7 | 338122080 | 3.02 | 3.65 | |
| Seal Set | ||||
| 8 | 316028360 | 8.89 | 10.76 | |
| Motor compl. | ||||
| 9 | 317002400 | 228.10 | 276.00 | |
| Float | ||||
| 10 | 341146410 | 3.02 | 3.65 | |
| Kabel m. stekker | ||||
| 11 | 344493840 | 32.27 | 39.05 | |
| Switch with cover | ||||
| 12 | 343406770 | 8.89 | 10.76 | |
| Machine-contactdoos | ||||
| 14 | 344493810 | 13.48 | 16.31 | |
| Typeplaatje | ||||
| 15 | 338059340 | 1.55 | 1.88 | |
| Switch-on automatic | ||||
| 16 | 343077110 | 67.33 | 81.47 | |
| Huis boven deel | ||||
| 17 | 343374070 | 24.23 | 29.32 | |
| Zuigmondstuk 120 mm | ||||
| 18 | 630320000 | 14.15 | 17.12 | |
| Spleetzuigmondstuk 250 mm | ||||
| 19 | 630323000 | 6.51 | 7.88 | |
| Condensator | ||||
| 20 | 343254060 | 3.71 | 4.49 | |
| Hose connection tube rotation | ||||
| 21 | 343373980 | 12.23 | 14.80 | |
| Aansluitmof binnen-Ø 28 mm/buiten-Ø 35mm | ||||
| 22 | 630798000 | 35.23 | 42.63 | |
| Zuigslang Ø-35 mm,l-3,5 m,aansl.-58/35mm | ||||
| 23 | 631362000 | 78.19 | 94.61 | |
| Zuigmondstuk +inzetstukken | ||||
| 24 | 630328000 | 42.69 | 51.65 | |
| 2 Zuigbuizen plastic | ||||
| 25 | 630314000 | 39.24 | 47.48 | |
| Rubberzool | ||||
| 26 | 344095290 | 2.28 | 2.76 | |
| Lower part of the house | ||||
| 27 | 316028600 | 48.48 | 58.66 | |
| Vouwfilter 1200/1201/1202 | ||||
| 28 | 631753000 | 31.65 | 38.30 | |
| Coupling | ||||
| 29 | 343373830 | 3.02 | 3.65 | |
| Latch | ||||
| 30 | 343373840 | 3.02 | 3.65 | |
| Container cpl. | ||||
| 31 | 316030280 | 87.60 | 106.00 | |
| Caster | ||||
| 32 | 341250110 | 5.18 | 6.27 | |
| Wiel compl. | ||||
| 33 | 316030290 | 16.25 | 19.66 | |
| Reservoir compl. | ||||
| 34 | 316030300 | 148.53 | 179.72 | |
| Buishouder | ||||
| 35 | 343375350 | 13.48 | 16.31 | |
| Vliesfilterzakken (5 st.) - 32 l | ||||
| 36 | 631665000 | 26.26 | 31.77 | |
| No information available, not orderable | ||||
| 37 | 144208680 | |||
| No information available, not orderable | ||||
| 1001 | 338505800 | |||
