Here you will find all available parts and drawings of the 'Metabo 02086000 ( ASA30LPC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

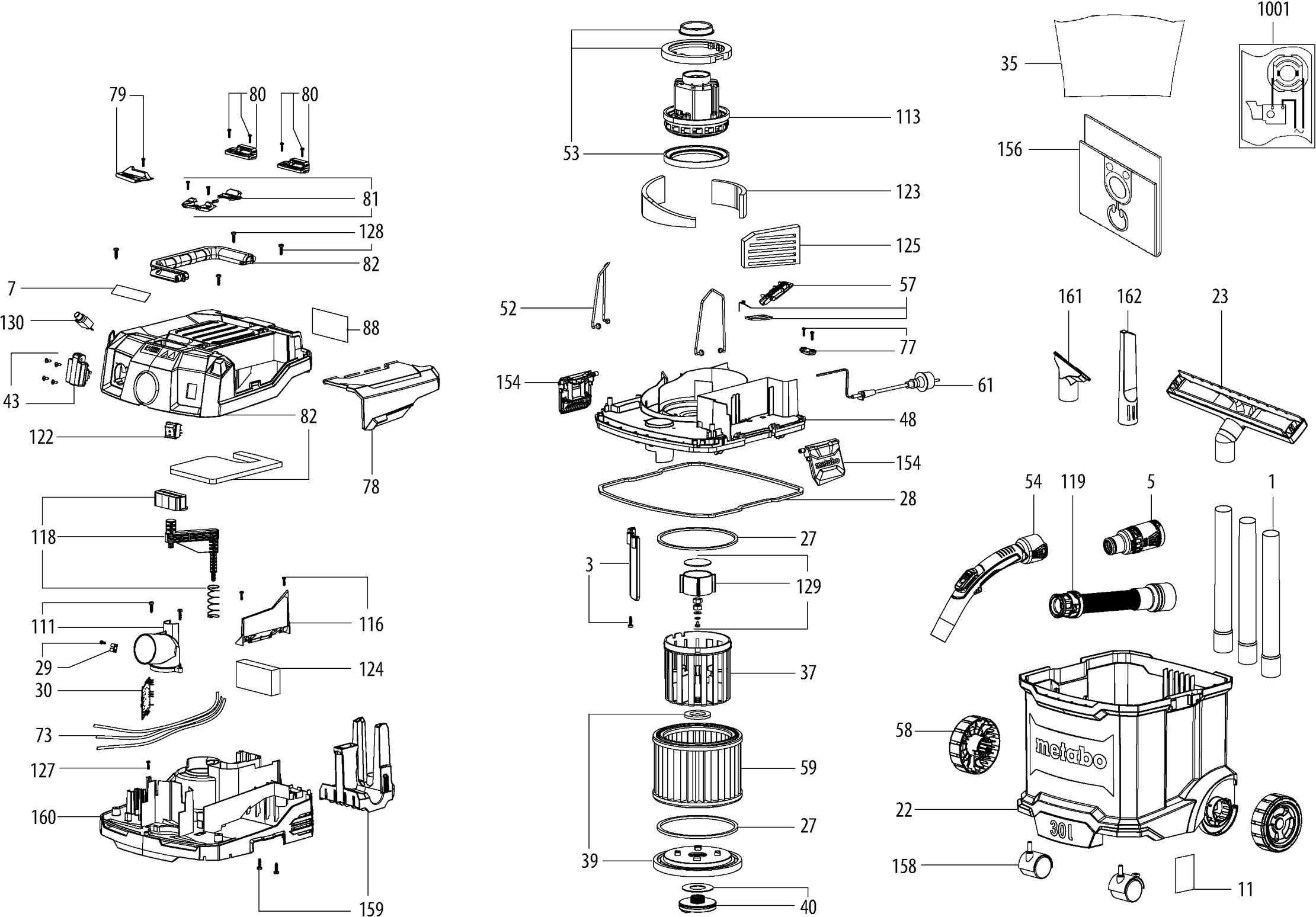

Technical drawing of model Metabo 02086000 ( ASA30LPC )
Spare parts list of model Metabo 02086000 ( ASA30LPC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Zuigbuizen -35 mm, 3 st. | ||||
| 1 | 635413000 | 26.22 | 31.73 | |
| Full Deflector | ||||
| 3 | 316077250 | 3.71 | 4.49 | |
| Aansluitmof Quick binnen 28 mm / buiten 35 mm | ||||
| 5 | 635409000 | 18.41 | 22.28 | |
| Indication Plate OPP Vac AC L | ||||
| 7 | 338136460 | 1.67 | 2.02 | |
| Indicator Plate OPP 30L Vac L-Class | ||||
| 11 | 338136510 | 1.67 | 2.02 | |
| Vloermondstuk Quick, -35 mm, 300mm | ||||
| 23 | 635416000 | 19.71 | 23.85 | |
| Adapter cpl. | ||||
| 29 | 343090660 | 3.02 | 3.65 | |
| Terminal block, AC L/M/H 230V | ||||
| 30 | 343090620 | 26.95 | 32.61 | |
| Afvalzakken PE transparent 30 Liter, 5 st. | ||||
| 35 | 635426000 | 25.40 | 30.73 | |
| Cover Complete | ||||
| 39 | 316076880 | 7.22 | 8.74 | |
| Closure Complete | ||||
| 40 | 316076900 | 5.18 | 6.27 | |
| Complete switch | ||||
| 43 | 316076920 | 8.89 | 10.76 | |
| GROUND PLATE | ||||
| 48 | 343460320 | 37.65 | 45.56 | |
| Rubber Element | ||||
| 52 | 344115200 | 3.02 | 3.65 | |
| Rubber Element | ||||
| 53 | 316076970 | 8.89 | 10.76 | |
| Handgreep adapter Quick Professionel | ||||
| 54 | 635407000 | 26.22 | 31.73 | |
| Complete lever | ||||
| 57 | 316076980 | 4.51 | 5.46 | |
| Filter M-klasse | ||||
| 59 | 635419000 | 19.71 | 23.85 | |
| Auto Cable L HO5VV-F 3G1.5mm2 complete | ||||
| 61 | 316077000 | 37.65 | 45.56 | |
| AC Car Wiring Harness | ||||
| 73 | 316077130 | 16.25 | 19.66 | |
| Complete Cable Mounting | ||||
| 77 | 316077150 | 3.02 | 3.65 | |
| Complete Connector | ||||
| 79 | 316077170 | 3.71 | 4.49 | |
| Complete Connector | ||||
| 80 | 316077180 | 3.71 | 4.49 | |
| Complete Connector | ||||
| 81 | 316077190 | 5.18 | 6.27 | |
| Type plate HK 85 EB 230V | ||||
| 88 | 338080470 | 1.67 | 2.02 | |
| Air intake (anti-static) full | ||||
| 111 | 316077340 | 5.87 | 7.10 | |
| Motor,AC 230V | ||||
| 113 | 317005470 | 60.59 | 73.31 | |
| Down Holder cpl. | ||||
| 116 | 343460380 | 3.71 | 4.49 | |
| Zuigslang Quick -32mm,L-4,0 m | ||||
| 119 | 635405000 | 39.42 | 47.70 | |
| AC /DC Switch 3 | ||||
| 122 | 343460400 | 8.89 | 10.76 | |
| Foam | ||||
| 123 | 344115210 | 5.87 | 7.10 | |
| Complete Foam | ||||
| 124 | 344115220 | 4.51 | 5.46 | |
| Foam | ||||
| 125 | 344115230 | 4.51 | 5.46 | |
| Screw bag complete | ||||
| 128 | 316077400 | 3.02 | 3.65 | |
| Driver Complete | ||||
| 129 | 316077410 | 5.87 | 7.10 | |
| Vliesfilterzakken 20/30 Liter, 5 st. | ||||
| 156 | 635424000 | 26.22 | 31.73 | |
| Mounting cpl. | ||||
| 159 | 316077430 | 8.89 | 10.76 | |
| Intermediate plate L | ||||
| 160 | 343460430 | 32.27 | 39.05 | |
| Zuigmondstuk 120 mm | ||||
| 161 | 630320000 | 14.15 | 17.12 | |
| Spleetzuigmondstuk 250 mm | ||||
| 162 | 630323000 | 6.51 | 7.88 | |
