Here you will find all available parts and drawings of the 'Metabo 00467000 ( AHS18-65V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

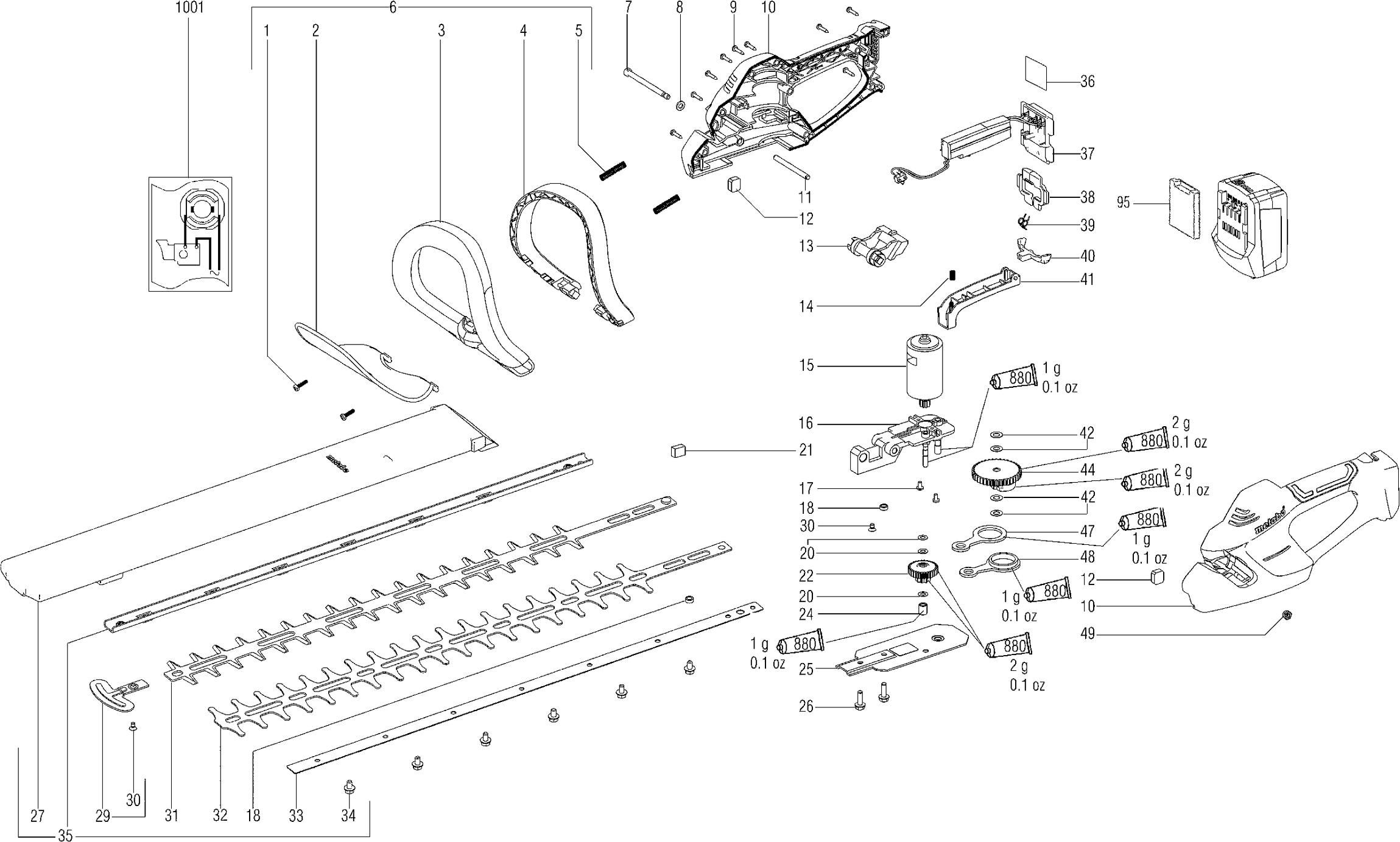

Technical drawing of model Metabo 00467000 ( AHS18-65V )
Spare parts list of model Metabo 00467000 ( AHS18-65V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap. fill. h. screw | ||||
| 1 | 141118730 | 1.55 | 1.88 | |
| Handbescherming | ||||
| 2 | 343399930 | 5.18 | 6.27 | |
| Beugelgreep | ||||
| 3 | 343395350 | 13.48 | 16.31 | |
| Schakelbeugel | ||||
| 4 | 343395360 | 7.22 | 8.74 | |
| Pressure spring | ||||
| 5 | 342001180 | 1.55 | 1.88 | |
| Beugelgreep | ||||
| 6 | 316048490 | 32.27 | 39.05 | |
| Alignment Screw | ||||
| 7 | 341704290 | 1.55 | 1.88 | |
| Washer | ||||
| 8 | 141151940 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 9 | 141113180 | 1.55 | 1.88 | |
| 2-part housing, with rubber | ||||
| 10 | 343399640 | 43.15 | 52.21 | |
| Pressure pin | ||||
| 11 | 341055110 | 1.55 | 1.88 | |
| Sealing felt | ||||
| 12 | 344070660 | 1.55 | 1.88 | |
| Schakelvork | ||||
| 13 | 343399630 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 14 | 342002440 | 1.55 | 1.88 | |
| Motor,18v | ||||
| 15 | 317004300 | 187.73 | 227.15 | |
| Lagerbrug compl. | ||||
| 16 | 316048500 | 48.48 | 58.66 | |
| Fillister head screw | ||||
| 17 | 141119850 | 1.55 | 1.88 | |
| Afstandsbus | ||||
| 18 | 341060030 | 1.67 | 2.02 | |
| Washer | ||||
| 20 | 141152070 | 1.55 | 1.88 | |
| Schuimrubber | ||||
| 21 | 344099060 | 1.55 | 1.88 | |
| Tandwiel compl. | ||||
| 22 | 316047800 | 18.80 | 22.75 | |
| Afstandshuls | ||||
| 24 | 341013140 | 1.67 | 2.02 | |
| Cover | ||||
| 25 | 339134890 | 12.23 | 14.80 | |
| Hex thread forming screw | ||||
| 26 | 141119780 | 1.67 | 2.02 | |
| Opbergkoker | ||||
| 27 | 343391520 | 10.38 | 12.56 | |
| Collision protection | ||||
| 29 | 316027170 | 12.23 | 14.80 | |
| Platverzonken schroef | ||||
| 30 | 141121710 | 1.55 | 1.88 | |
| OBERMESSER VOLLST. | ||||
| 31 | 344163000 | 43.15 | 52.21 | |
| Complete Lower Blade | ||||
| 32 | 344163800 | 21.64 | 26.18 | |
| Pressure strip | ||||
| 33 | 339135030 | 8.89 | 10.76 | |
| Hex thread forming screw | ||||
| 34 | 141120210 | 1.55 | 1.88 | |
| Mes compl. | ||||
| 35 | 316054650 | 128.32 | 155.27 | |
| Type plate HK 85 EB 230V | ||||
| 36 | 338072270 | 1.67 | 2.02 | |
| Elektro.unit,18V | ||||
| 37 | 343084030 | 113.82 | 137.72 | |
| Schakelschuif | ||||
| 38 | 343394790 | 1.55 | 1.88 | |
| Passerveer | ||||
| 39 | 342022460 | 1.55 | 1.88 | |
| Pressure plate | ||||
| 40 | 343394770 | 1.55 | 1.88 | |
| Schakelaardrukker | ||||
| 41 | 343399620 | 2.28 | 2.76 | |
| Washer | ||||
| 42 | 141152400 | 1.55 | 1.88 | |
| Tandwiel compl. | ||||
| 44 | 316055480 | 21.64 | 26.18 | |
| Drijfstang | ||||
| 47 | 339132380 | 5.87 | 7.10 | |
| Drijfstang | ||||
| 48 | 339132370 | 5.87 | 7.10 | |
| Hexagon safety nut | ||||
| 49 | 141130650 | 1.67 | 2.02 | |
| Grease | ||||
| 880 | 136011850 | 80.81 | 97.78 | |
| No information available, not orderable | ||||
| 1001 | 338505410 | |||
