Here you will find all available parts and drawings of the 'Metabo 29006000 (AFKORTZAGEN-ONDERSTELKSU401)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

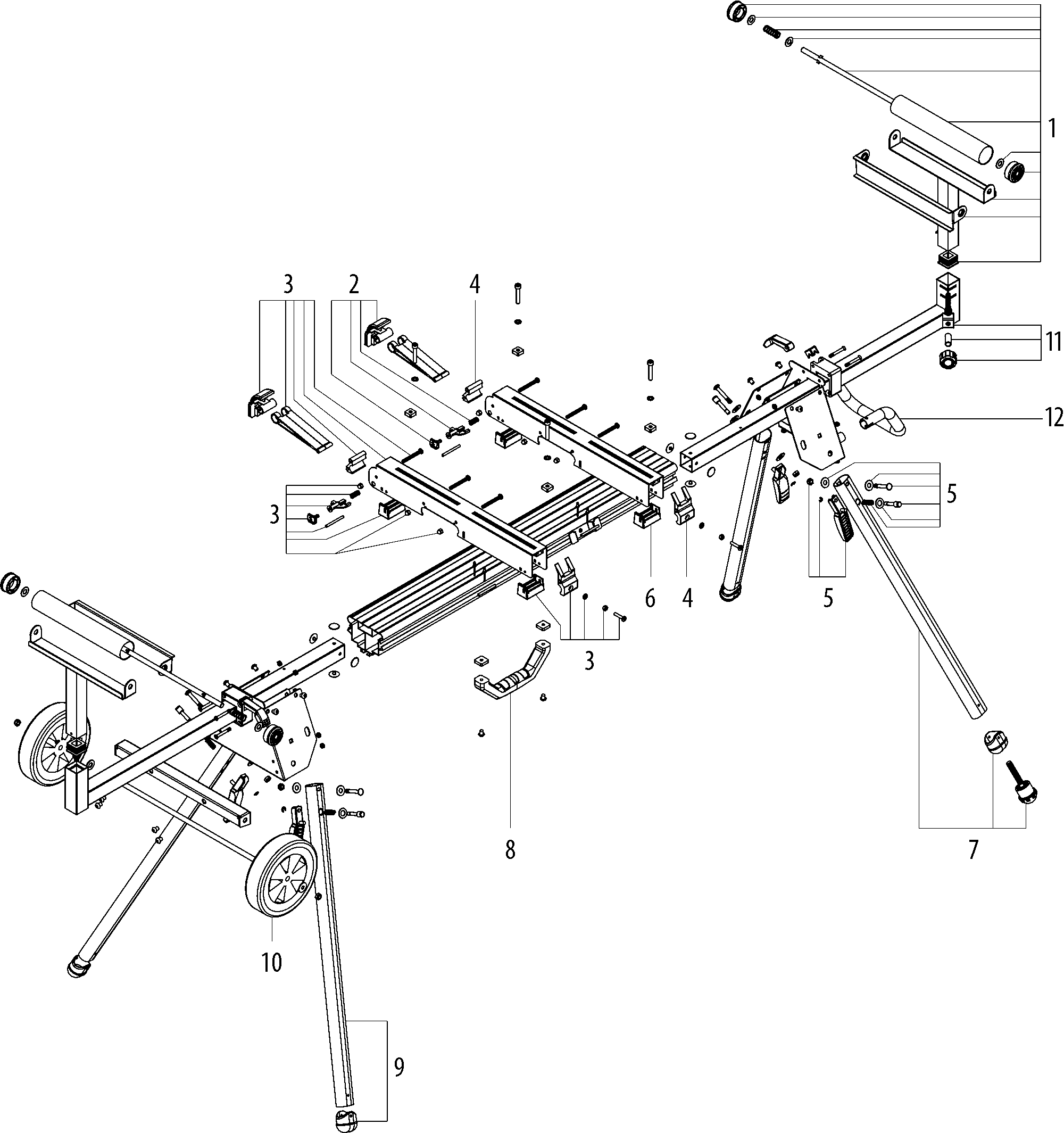

Technical drawing of model Metabo 29006000 (AFKORTZAGEN-ONDERSTELKSU401)
Spare parts list of model Metabo 29006000 (AFKORTZAGEN-ONDERSTELKSU401)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Werkstuksteun compl. | ||||
| 1 | 316094990 | 43.15 | 52.21 | |
| Vergrendeling | ||||
| 2 | 343443630 | 12.23 | 14.80 | |
| CARRIER | ||||
| 3 | 341166440 | 48.48 | 58.66 | |
| Spanstuk compl. | ||||
| 4 | 316095000 | 7.22 | 8.74 | |
| BLOKKERING cpl. | ||||
| 5 | 316095010 | 13.48 | 16.31 | |
| Support | ||||
| 6 | 343443640 | 5.18 | 6.27 | |
| Adjustable foot complete. | ||||
| 7 | 316095020 | 26.95 | 32.61 | |
| Carry Handle | ||||
| 8 | 343443650 | 13.48 | 16.31 | |
| Long foot complete. | ||||
| 9 | 316095030 | 24.23 | 29.32 | |
| Wheel | ||||
| 10 | 343443660 | 24.23 | 29.32 | |
| Complete clamp | ||||
| 11 | 316067050 | 5.18 | 6.27 | |
| Handle (f. transport) | ||||
| 12 | 341117700 | 18.80 | 22.75 | |
| Set of screws | ||||
| 13 | 316071030 | 12.23 | 14.80 | |
