Here you will find all available parts and drawings of the 'Makita VR002C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

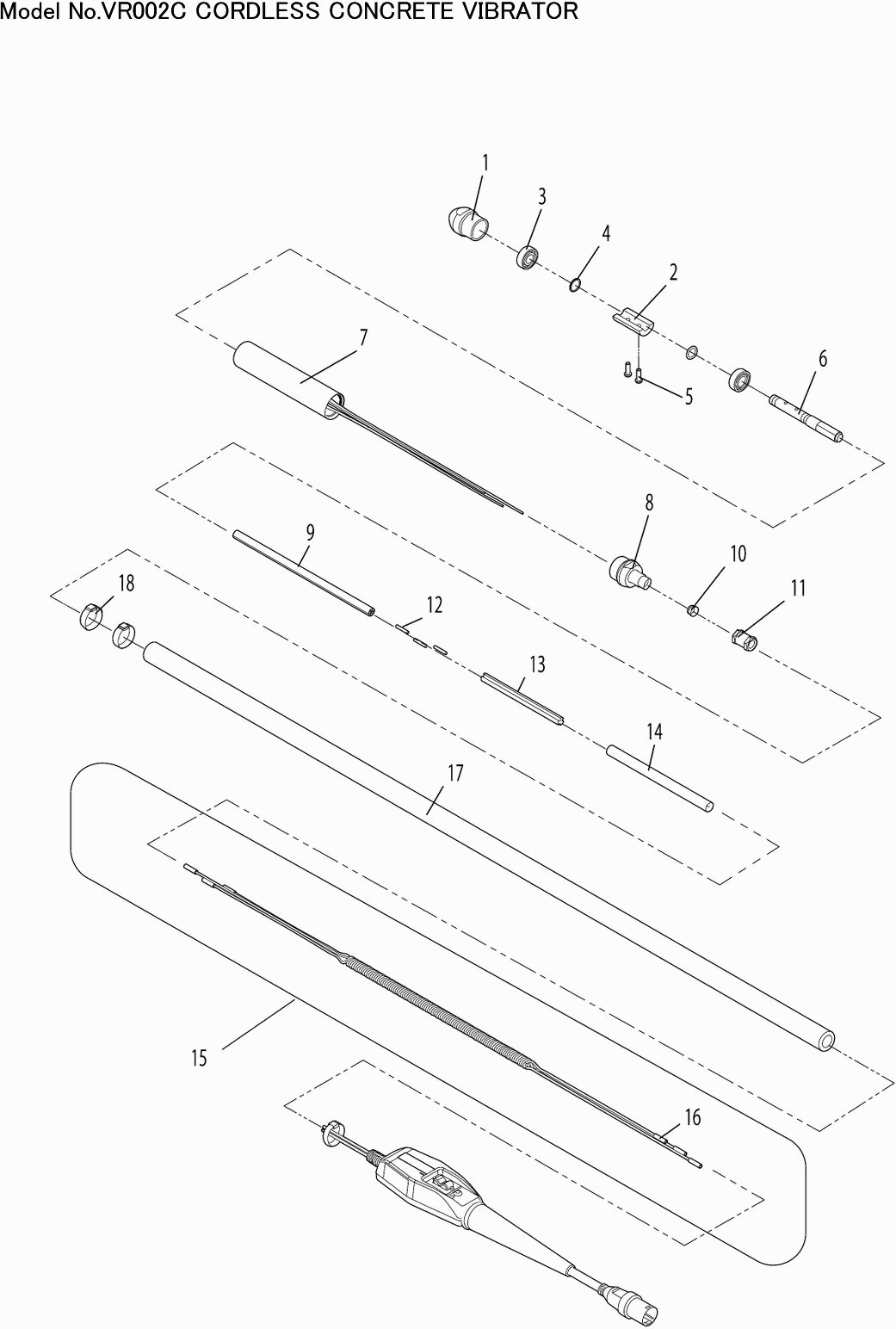

Technical drawing of model Makita VR002C
Spare parts list of model Makita VR002C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER CAP VR001/2C | ||||
| 001 | HA00000310 | 140.80 | 170.37 | |
| COUNTERWEIGHT VR001C/2C | ||||
| 002 | HA00000311 | 184.80 | 223.61 | |
| BALL BEARING 6202JR2 VR001C/2C | ||||
| 003 | HA00000312 | 24.20 | 29.28 | |
| WASHER 15.5 MM VR001C/2/3/4C | ||||
| 004 | HA00000313 | 2.40 | 2.90 | |
| HEX SOCKET BOLT M6X20 MM VR001C/2C | ||||
| 005 | HA00000314 | 1.20 | 1.45 | |
| ARMATURE VR001C/2C | ||||
| 006 | HA00000315 | 1010.90 | 1223.19 | |
| MOTOR ASSEMBLY VR001C/2C | ||||
| 007 | HA00000316 | 1325.50 | 1603.86 | |
| HOSE CONNECTION VR001C/2C | ||||
| 008 | HA00000317 | 147.40 | 178.35 | |
| HOSE 30X6.5 MM VR001C/2/3/4C | ||||
| 009 | HA00000318 | 10.80 | 13.07 | |
| RUBBER SEALING RING 13 MM VR001C/2/3/4C | ||||
| 010 | HA00000319 | 7.20 | 8.71 | |
| HOSE ADAPTER VR001C/2/3/4C | ||||
| 011 | HA00000320 | 29.70 | 35.94 | |
| HEAT-SHRINK TUBING 1/8X30 VR001C # | ||||
| 012 | HA00000321 | 1.80 | 2.18 | |
| CABLE GUIDE VR001C/2/3/4C | ||||
| 013 | HA00000322 | 15.40 | 18.63 | |
| HEAT-SHRINK TUBING 15X220 VR001C/2/3/4C | ||||
| 014 | HA00000323 | 7.20 | 8.71 | |
| CONNECTION CABLE 3M VR002C | ||||
| 015 | HA00000361 | 165.00 | 199.65 | |
| CRIMP CONNECTOR VR001C | ||||
| 016 | HA00000325 | 2.40 | 2.90 | |
| HOES TBV TRILNAALD M20X33X3000MM | ||||
| 017 | HA00000362 | 235.00 | 284.35 | |
| HOSE CLAMP M38 VR001C/2/3/4C | ||||
| 018 | HA00000327 | 7.20 | 8.71 | |
| INVERTER UNIT VR001C/2/3/4C | ||||
| 019 | HA00000328 | 123.20 | 149.07 | |
| LENS COVER VR001C/2/3/4C | ||||
| 020 | HA00000329 | 19.80 | 23.96 | |
| LED CIRCUIT VR001C/2/3/4C | ||||
| 021 | HA00000330 | 37.40 | 45.25 | |
| MACHINE SCREW M3X6MM VR001C/2/4C | ||||
| 022 | HA00000331 | 1.20 | 1.45 | |
| SWITCH VR001C/2/3/4C | ||||
| 023 | HA00000332 | 18.70 | 22.63 | |
| SWITCH COVER VR001C/2/3/4C | ||||
| 024 | HA00000333 | 13.20 | 15.97 | |
| SWITCH PLATE VR001C/2/3/4C | ||||
| 025 | HA00000334 | 8.40 | 10.16 | |
| MACHINE SCREW M3X12MM VR001C/2/3C | ||||
| 026 | HA00000335 | 1.00 | 1.21 | |
| CIRCUIT VR001C/2/3/4C | ||||
| 027 | HA00000336 | 943.80 | 1142.00 | |
| FUSE VR001C/2/3/4C | ||||
| 028 | HA00000337 | 25.30 | 30.61 | |
| HEX HEAD SCREW M5X12MM VR001C/2/3/4C | ||||
| 029 | HA00000338 | 1.00 | 1.21 | |
| SPRING WASHER 5MM VR001C/2/3/4C | ||||
| 030 | HA00000079 | 1.00 | 1.21 | |
| LOCK NUT M5 VR001C/2/3/4C | ||||
| 031 | HA00000339 | 1.00 | 1.21 | |
| CABLE LUG 6MM VR001C # | ||||
| 032 | HA00000340 | 1.80 | 2.18 | |
| INSULATION SHEET B VR001C/2/3/4C | ||||
| 033 | HA00000341 | 10.80 | 13.07 | |
| CABLE END VR001C/2/3/4C | ||||
| 034 | HA00000342 | 2.40 | 2.90 | |
| HARNESS BOARD VR001C/2/3/4C | ||||
| 035 | HA00000343 | 66.00 | 79.86 | |
| CABLE ASSEMBLY VR001C/2/3/4C | ||||
| 036 | HA00000344 | 248.60 | 300.81 | |
| CABLE CLAMP VR001C/2/3/4C | ||||
| 037 | HA00000346 | 3.60 | 4.36 | |
| MACHINE SCREW M4X10MM VR001C/2/4C | ||||
| 038 | HA00000347 | 1.00 | 1.21 | |
| CRIMP SLEEVE CE-8 VR001C/2/3/4C | ||||
| 039 | HA00000348 | 1.20 | 1.45 | |
| CABLE TIE 200MM VR001C # | ||||
| 040 | HA00000349 | 1.00 | 1.21 | |
| INSULATION SHEET VR001C/2/3/4C | ||||
| 041 | HA00000350 | 3.60 | 4.36 | |
| RUBBER WASHER 15MM VR001C/2/3/4C | ||||
| 042 | HA00000351 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 042-1 | HA00000382 | |||
| WASHER 15.5 MM VR001C/2/3/4C | ||||
| 043 | HA00000313 | 2.40 | 2.90 | |
| COMPRESSION NUT M15.5 VR001C/2/3/4C | ||||
| 044 | HA00000352 | 8.40 | 10.16 | |
| CABLE GUIDE VR001C/2/3/4C | ||||
| 045 | HA00000353 | 37.40 | 45.25 | |
| INVERTER COVER VR001C/2/3/4C | ||||
| 046 | HA00000354 | 62.70 | 75.87 | |
| GASKET VR001C/2/3/4C | ||||
| 047 | HA00000355 | 12.10 | 14.64 | |
| BOLT M5X20MM VR001C/2/3/4C | ||||
| 048 | HA00000356 | 1.00 | 1.21 | |
| COMPRESSION RING VR001C/2/3/4C | ||||
| 049 | HA00000357 | 8.40 | 10.16 | |
| WARNING LABEL VR001 | ||||
| 050 | HA00000358 | 7.20 | 8.71 | |
| MAKITA LABEL VR001 | ||||
| 051 | HA00000359 | 7.20 | 8.71 | |
| CRIMP SLEEVE CE-1 VR001C/2/3/4C | ||||
| 053 | HA00000345 | 2.40 | 2.90 | |
