Here you will find all available parts and drawings of the 'Makita VC3211M'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

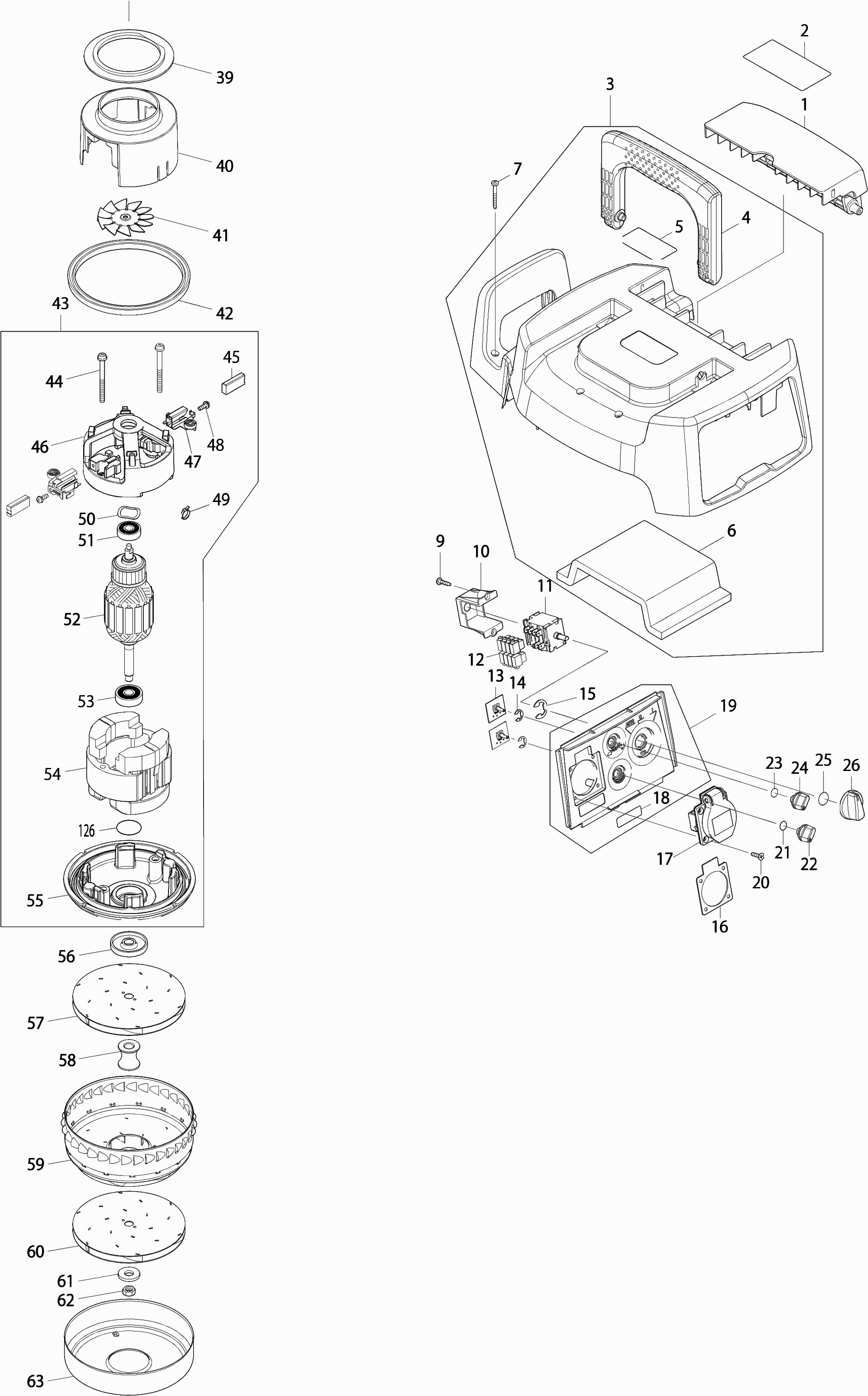

Technical drawing of model Makita VC3211M
Spare parts list of model Makita VC3211M
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover | ||||
| 001 | 452451-7 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 002 | 800W80-2 | |||
| Upper cap | ||||
| 003 | 141915-3 | 40.56 | 49.08 | |
| Handle | ||||
| 004 | 451340-3 | 6.38 | 7.72 | |
| Warning Label | ||||
| 005 | 891977-8 | 2.71 | 3.28 | |
| Buffer | ||||
| 006 | 423456-4 | 9.24 | 11.18 | |
| Screw 4x35 | ||||
| 007 | 266351-3 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 009 | 265A48-7 | 0.83 | 1.00 | |
| SWITCH HOLDER | ||||
| 010 | 451343-7 | 0.83 | 1.00 | |
| Switch | ||||
| 011 | 650659-9 | 15.60 | 18.88 | |
| No information available, not orderable | ||||
| 012 | 686023-8 | |||
| Speed control circuit | ||||
| 013 | 620185-2 | 12.22 | 14.79 | |
| Stopring E-7 | ||||
| 014 | 961013-5 | 0.83 | 1.00 | |
| Lock Ring E12 | ||||
| 015 | 961062-2 | 0.83 | 1.00 | |
| Sponge rubber for switch | ||||
| 016 | 685740-7 | 0.83 | 1.00 | |
| Socket Vc2510L A | ||||
| 017 | 655123-5 | 5.06 | 6.12 | |
| No information available, not orderable | ||||
| 018 | 800W82-8 | |||
| Switch mounting plate | ||||
| 019 | 141912-9 | 33.35 | 40.35 | |
| Tap screw 4x16 | ||||
| 020 | 266630-9 | 0.83 | 1.00 | |
| O-ring 9 | ||||
| 021 | 213054-0 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 022 | 451344-5 | 0.83 | 1.00 | |
| O-ring 9 | ||||
| 023 | 213054-0 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 024 | 451344-5 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 025 | 213176-6 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 026 | 451342-9 | 0.83 | 1.00 | |
| Filter | ||||
| 027 | 423450-6 | 3.28 | 3.97 | |
| Controller | ||||
| 028 | 620467-2 | 300.16 | 363.19 | |
| Power cord 3x1.5x5mtr Ra | ||||
| 029 | 695350-2 | 31.37 | 37.96 | |
| No information available, not orderable | ||||
| 030 | 265999-8 | |||
| Clamp Bracket | ||||
| 031 | 687149-9 | 0.83 | 1.00 | |
| Line filter | ||||
| 032 | 688131-1 | 0.83 | 1.00 | |
| Line filter | ||||
| 033 | 688131-1 | 0.83 | 1.00 | |
| Buzzer circuit | ||||
| 034 | 620186-0 | 12.22 | 14.79 | |
| Screw 4x35 | ||||
| 035 | 266351-3 | 0.83 | 1.00 | |
| Cable grommet | ||||
| 036 | 682575-7 | 0.83 | 1.00 | |
| Distributor | ||||
| 037 | 141917-9 | 30.69 | 37.13 | |
| Gasket | ||||
| 038 | 423462-9 | 1.00 | 1.21 | |
| Seal ring | ||||
| 039 | 423279-0 | 2.48 | 3.00 | |
| Motor cover | ||||
| 040 | 451338-0 | 2.02 | 2.44 | |
| Fan 62 | ||||
| 041 | 241512-6 | 1.46 | 1.77 | |
| Plastic Washer 12 | ||||
| 042 | 424228-0 | 3.28 | 3.97 | |
| Motor cpl | ||||
| 043 | 125876-5 | 99.33 | 120.19 | |
| Screw M5x60 | ||||
| 044 | 911283-6 | 0.83 | 1.00 | |
| Koolborstelset Cb-173 A | ||||
| 045 | 195489-6 | 8.21 | 9.93 | |
| Brush/bearing holder | ||||
| 046 | 452106-4 | 7.57 | 9.16 | |
| Brush Holder | ||||
| 047 | 643610-6 | 2.10 | 2.54 | |
| Screw 4x12 | ||||
| 048 | 911116-5 | 0.83 | 1.00 | |
| Hose Band | ||||
| 049 | 687010-0 | 0.83 | 1.00 | |
| Washer 18 | ||||
| 050 | 253946-1 | 1.00 | 1.21 | |
| Ball bearing 629ddw | ||||
| 051 | 211092-6 | 4.45 | 5.38 | |
| Armature Compl. | ||||
| 052 | 517849-6 | 36.08 | 43.66 | |
| Ball bearing 6200dw | ||||
| 053 | 211087-9 | 7.22 | 8.74 | |
| Field | ||||
| 054 | 526204-1 | 32.15 | 38.90 | |
| Plug | ||||
| 054A | 654304-8 | 1.18 | 1.43 | |
| Base plate Vc2510L A | ||||
| 055 | 454480-6 | 10.50 | 12.70 | |
| Flange Vc2510l | ||||
| 056 | 316795-8 | 2.02 | 2.44 | |
| Fan 125 | ||||
| 057 | 241910-4 | 3.11 | 3.76 | |
| Spacer Vc2510l | ||||
| 058 | 325747-8 | 1.67 | 2.02 | |
| Return Wine | ||||
| 059 | 346114-4 | 5.30 | 6.41 | |
| Fan 125 | ||||
| 060 | 241910-4 | 3.11 | 3.76 | |
| Washer 10 | ||||
| 061 | 316799-0 | 0.83 | 1.00 | |
| Hex nut M8 | ||||
| 062 | 931403-6 | 0.83 | 1.00 | |
| Fan Protection | ||||
| 063 | 346115-2 | 2.48 | 3.00 | |
| Support ring | ||||
| 064 | 424229-8 | 2.71 | 3.28 | |
| Damping Ring | ||||
| 065 | 423451-4 | 5.06 | 6.12 | |
| Vent Pipe | ||||
| 066 | 684900-8 | 1.20 | 1.45 | |
| Clamp | ||||
| 067 | 421468-1 | 0.83 | 1.00 | |
| Spacer | ||||
| 068 | 141916-1 | 41.77 | 50.54 | |
| Valve seal | ||||
| 069 | 423455-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 070 | 814D82-8 | |||
| Screw 4x35 | ||||
| 071 | 266351-3 | 0.83 | 1.00 | |
| Dc Motor | ||||
| 072 | 629981-5 | 7.57 | 9.16 | |
| Gear Cover | ||||
| 073 | 454207-4 | 3.72 | 4.50 | |
| Screw 3x6 | ||||
| 074 | 911003-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 075 | 267067-3 | 0.83 | 1.00 | |
| Gear 15 | ||||
| 076 | 226283-6 | 0.83 | 1.00 | |
| Gear 9 | ||||
| 077 | 153228-0 | 10.50 | 12.70 | |
| Gear 15 | ||||
| 078 | 226284-4 | 2.10 | 2.54 | |
| Internal gear 42 | ||||
| 079 | 226285-2 | 15.60 | 18.88 | |
| Ball Bearing 6805llb | ||||
| 081 | 211375-4 | 12.65 | 15.31 | |
| 34mm Washer | ||||
| 082 | 267464-3 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 083 | 135554-9 | 5.71 | 6.91 | |
| Rubber Ring | ||||
| 084 | 424543-2 | 15.65 | 18.94 | |
| Protective Shield | ||||
| 085 | 454209-0 | 11.34 | 13.72 | |
| Washer | ||||
| 085 | 424544-0 | 2.02 | 2.44 | |
| Lock Ring S-20 | ||||
| 086 | 961060-6 | 0.83 | 1.00 | |
| Washer 20 | ||||
| 087 | 267041-1 | 0.83 | 1.00 | |
| O-ring 20 | ||||
| 088 | 213304-3 | 0.83 | 1.00 | |
| Cam | ||||
| 089 | 454208-2 | 3.12 | 3.78 | |
| Valve | ||||
| 090 | 141919-5 | 2.71 | 3.28 | |
| Valve | ||||
| 091 | 141918-7 | 2.71 | 3.28 | |
| Cable harness | ||||
| 092 | 632A68-0 | 1.67 | 2.02 | |
| Inner shield | ||||
| 093 | 454204-0 | 32.15 | 38.90 | |
| Screw 4x35 | ||||
| 094 | 266351-3 | 0.83 | 1.00 | |
| Screw 4x35 | ||||
| 096 | 266351-3 | 0.83 | 1.00 | |
| Compression Spring 32mm | ||||
| 097 | 234273-5 | 0.83 | 1.00 | |
| Blocking Plate | ||||
| 098 | 454215-5 | 3.72 | 4.50 | |
| Lock Lever | ||||
| 099 | 454214-7 | 3.72 | 4.50 | |
| Hinge pin 4mm | ||||
| 100 | 268292-9 | 0.83 | 1.00 | |
| Tapping Screw 4x28 | ||||
| 101 | 266257-5 | 0.83 | 1.00 | |
| Holder Plate | ||||
| 102 | 417587-9 | 6.38 | 7.72 | |
| CONNECTION SLEEVE | ||||
| 103 | 451455-6 | 1.24 | 1.50 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 104 | 266385-6 | 0.83 | 1.00 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 105 | 266385-6 | 0.83 | 1.00 | |
| Hook | ||||
| 106 | 168537-4 | 10.50 | 12.70 | |
| Carry Hook | ||||
| 107 | 451545-5 | 1.20 | 1.45 | |
| Container | ||||
| 108 | 188824-5 | 127.34 | 154.08 | |
| Rubber Ring | ||||
| 109 | 424346-4 | 3.97 | 4.80 | |
| Screw 4x12 | ||||
| 110 | 911116-5 | 0.83 | 1.00 | |
| Holder Plate | ||||
| 111 | 451546-3 | 3.54 | 4.28 | |
| O-ring 56 | ||||
| 112 | 213655-4 | 1.67 | 2.02 | |
| Hose adapter Vc2510L | ||||
| 113 | 451454-8 | 5.30 | 6.41 | |
| Screw 4x6 | ||||
| 114 | 911103-4 | 0.83 | 1.00 | |
| Earth Conductor | ||||
| 115 | 649150-2 | 2.71 | 3.28 | |
| Stop ring | ||||
| 116 | 424270-1 | 10.52 | 12.73 | |
| Wheel cover cap | ||||
| 117 | 451643-5 | 1.39 | 1.68 | |
| Lock Ring S-20 | ||||
| 118 | 961060-6 | 0.83 | 1.00 | |
| Washer 20 | ||||
| 119 | 267299-2 | 0.83 | 1.00 | |
| Wheel | ||||
| 120 | 451642-7 | 21.08 | 25.51 | |
| Connecting Tube | ||||
| 121 | 331888-0 | 3.54 | 4.28 | |
| Wheel 75mm | ||||
| 122 | 168547-1 | 10.52 | 12.73 | |
| Fijnstoffilter stofzuiger | ||||
| 123 | 141875-9 | 20.00 | 24.20 | |
| Demper Vc3211M | ||||
| 124 | 423452-2 | 4.00 | 4.84 | |
| Prefilter | ||||
| 125 | 196253-8 | 15.00 | 18.15 | |
| O-ring 30 | ||||
| 126 | 213406-5 | 1.18 | 1.43 | |
