Here you will find all available parts and drawings of the 'Makita VC3012M'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

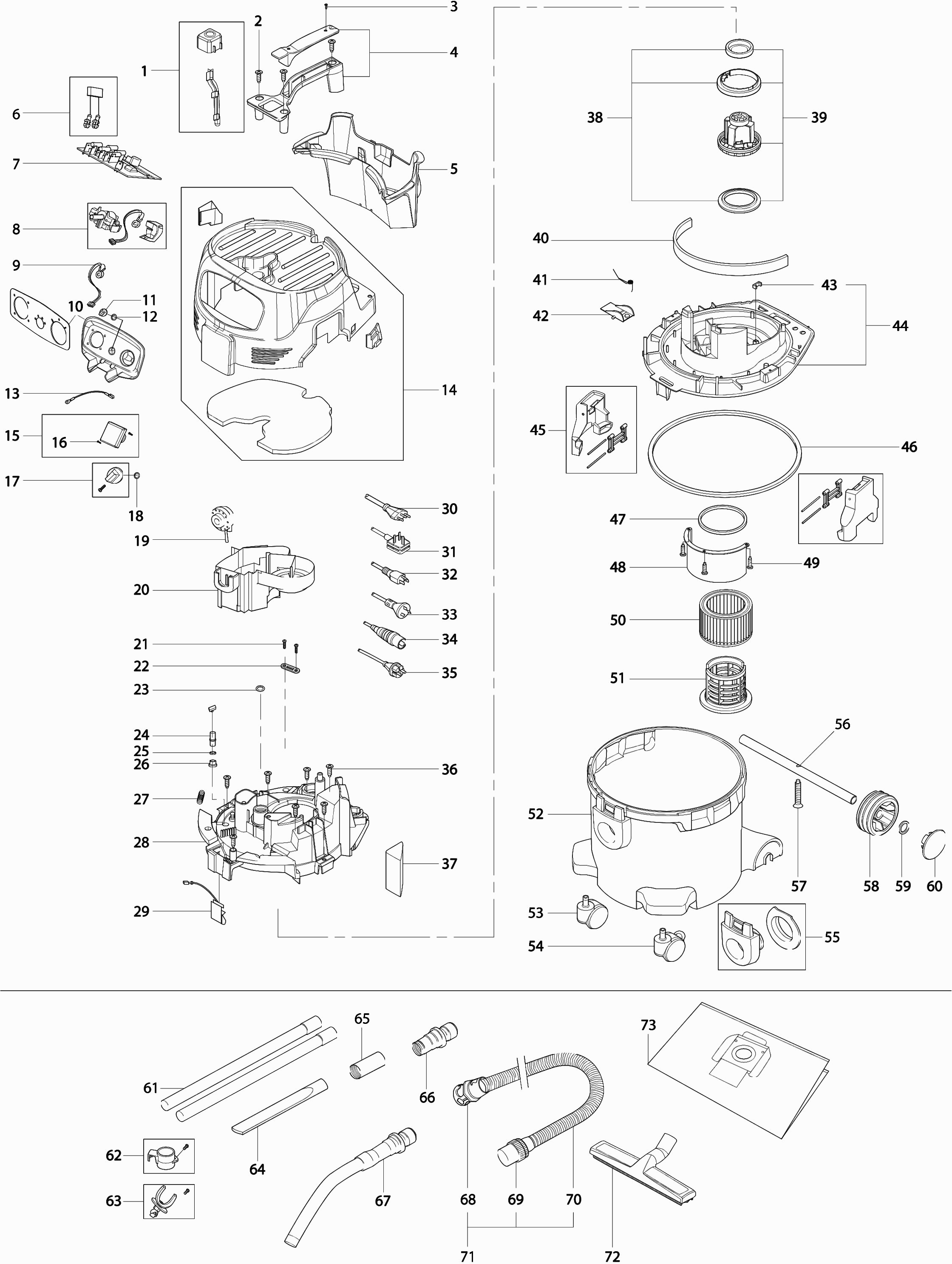

Technical drawing of model Makita VC3012M
Spare parts list of model Makita VC3012M
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Filter cleaning button | ||||
| 001 | W107417282 | 13.20 | 15.97 | |
| Screw 5x18mm | ||||
| 002 | W302004029 | 7.20 | 8.71 | |
| Screw 3,5x18mm | ||||
| 003 | W302004032 | 6.00 | 7.26 | |
| Handle | ||||
| 004 | W302004019 | 39.60 | 47.92 | |
| STORAGE TRAY VC3012L | ||||
| 005 | W302004026 | 22.00 | 26.62 | |
| Capacitor 0,1uf | ||||
| 006 | W107404542 | 17.60 | 21.30 | |
| Circuit | ||||
| 007 | W107400491 | 247.50 | 299.48 | |
| Circuit | ||||
| 007-1 | W107418425 | 247.50 | 299.48 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | W107413449 | 59.40 | 71.87 | |
| Resistor meter | ||||
| 009 | W302000429 | 34.10 | 41.26 | |
| Resistance meter kit | ||||
| 009 | W107415024 | 13.20 | 15.97 | |
| Rotary knob ABB OHYS2AJ | ||||
| 010 | W107418011 | 34.10 | 41.26 | |
| Rotary knob ABB OHYS2AJ | ||||
| 011 | W107400575 | 35.20 | 42.59 | |
| O-Ring 21x1.5 | ||||
| 012 | W107400576 | 16.50 | 19.96 | |
| Wire 1 x150 gr/ye | ||||
| 013 | W107400264 | 14.30 | 17.30 | |
| Makita Lid | ||||
| 014 | W107417284 | 78.10 | 94.50 | |
| SOCKET + FACE PLATE VC2010L P | ||||
| 015 | W107421225 | 59.00 | 71.39 | |
| No information available, not orderable | ||||
| 015-1 | W107421255 | |||
| Screw 3,5x18mm | ||||
| 016 | W302004032 | 6.00 | 7.26 | |
| Rotary knob ABB OHYS2AJ | ||||
| 017 | W909100222 | 7.20 | 8.71 | |
| Gasket | ||||
| 018 | W9868 | 4.80 | 5.81 | |
| Buzzer Vc3012M | ||||
| 019 | W107416958 | 28.60 | 34.61 | |
| Airflow | ||||
| 020 | W302004015 | 23.10 | 27.95 | |
| Screw 3,5x18mm | ||||
| 021 | W302004032 | 6.00 | 7.26 | |
| Carrying cord | ||||
| 022 | W302004030 | 9.60 | 11.62 | |
| O-ring 25 | ||||
| 023 | W302004061 | 8.40 | 10.16 | |
| FLOW SENSOR VC3012M | ||||
| 024 | W107416952 | 99.00 | 119.79 | |
| Rubber Ring | ||||
| 025 | W55416 | 4.80 | 5.81 | |
| Hose clamp IAS 3 | ||||
| 026 | W107400578 | 11.00 | 13.31 | |
| Distributor | ||||
| 027 | W302004031 | 13.20 | 15.97 | |
| Upper house | ||||
| 028 | W302004009 | 52.80 | 63.89 | |
| Contact Spring | ||||
| 029 | W302004023 | 17.60 | 21.30 | |
| Power cord 3x1.5 7.5mtr 446L A | ||||
| 035 | W107400573 | 63.80 | 77.20 | |
| Screw 5x18mm | ||||
| 036 | W302004029 | 7.20 | 8.71 | |
| Insulation plate (sound) | ||||
| 037 | W302004045 | 19.80 | 23.96 | |
| Motor Bearing Ring | ||||
| 038 | W302003385 | 28.60 | 34.61 | |
| Motor 1200w 230v | ||||
| 039 | W302003384 | 139.70 | 169.04 | |
| Insulating Plate | ||||
| 040 | W302004010 | 13.20 | 15.97 | |
| Spring | ||||
| 041 | W909100083 | 3.60 | 4.36 | |
| SHUTTER | ||||
| 042 | W302000344 | 6.00 | 7.26 | |
| Cap | ||||
| 043 | W107401937 | 13.20 | 15.97 | |
| Base Plate | ||||
| 044 | W302004007 | 78.10 | 94.50 | |
| Container clamp | ||||
| 045 | W107400301 | 26.40 | 31.94 | |
| Gasket for container | ||||
| 046 | W107400056 | 17.60 | 21.30 | |
| Filter gasket | ||||
| 047 | W302000460 | 10.80 | 13.07 | |
| HEATSHIELD | ||||
| 048 | W302004016 | 22.00 | 26.62 | |
| Screw 5x18mm | ||||
| 049 | W302004029 | 7.20 | 8.71 | |
| FIJNSTOFFILTER STOFZUIGER | ||||
| 050 | P-70219 | 23.00 | 27.83 | |
| Filter box | ||||
| 051 | W107402646 | 26.40 | 31.94 | |
| Catch container | ||||
| 052 | W107417285 | 88.00 | 106.48 | |
| Swivel wheel 446L A | ||||
| 053 | W107415105 | 13.20 | 15.97 | |
| Swivel wheel with brake 50mm | ||||
| 054 | W302000557 | 22.00 | 26.62 | |
| Connection for vacuum hose | ||||
| 055 | W107402742 | 20.90 | 25.29 | |
| Wheel axle | ||||
| 056 | W302004022 | 22.00 | 26.62 | |
| Screw 5x35 | ||||
| 057 | W107400063 | 6.00 | 7.26 | |
| Rear wheel | ||||
| 058 | W302000465 | 10.80 | 13.07 | |
| Rivet | ||||
| 059 | W47302 | 4.80 | 5.81 | |
| Plastic plug CT MINI ET-BG | ||||
| 060 | W107417286 | 4.80 | 5.81 | |
| ZUIGBUIS SET RVS | ||||
| 061 | P-70437 | 29.00 | 35.09 | |
| ZUIGBUIS OPHANGHAAK | ||||
| 062 | W302004027 | 6.00 | 7.26 | |
| ZUIGBUISHOUDER | ||||
| 063 | W302004018 | 7.00 | 8.47 | |
| KIERZUIGMOND LANG ZWART | ||||
| 064 | W6084 | 6.00 | 7.26 | |
| SLANGADAPTER 35/25MM RIBBED [MACHINE] | ||||
| 066 | P-70378 | 17.00 | 20.57 | |
| HANDGREEP ZUIGBUIS RVS | ||||
| 067 | P-70346 | 23.00 | 27.83 | |
| SLANGADAPTER 32MM QS MACHINE | ||||
| 068 | W46947 | 34.00 | 41.14 | |
| SLANGADAPTER 32/58MM | ||||
| 069 | W30928 | 13.00 | 15.73 | |
| No information available, not orderable | ||||
| 070 | W107417287 | |||
| STOFZUIGERSLANG 32X4000MM | ||||
| 071 | P-84084 | 54.00 | 65.34 | |
| SLANGADAPTER 32MM QS [MACHINE] | ||||
| 071A | W107417866 | 19.00 | 22.99 | |
| VLOERZUIGMOND HARDE VLOER | ||||
| 072 | P-81789 | 14.00 | 16.94 | |
| FIJNSTOFFILTER STOFZUIGER | ||||
| 073 | P-70219 | 23.00 | 27.83 | |
