Here you will find all available parts and drawings of the 'Makita VC3012L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

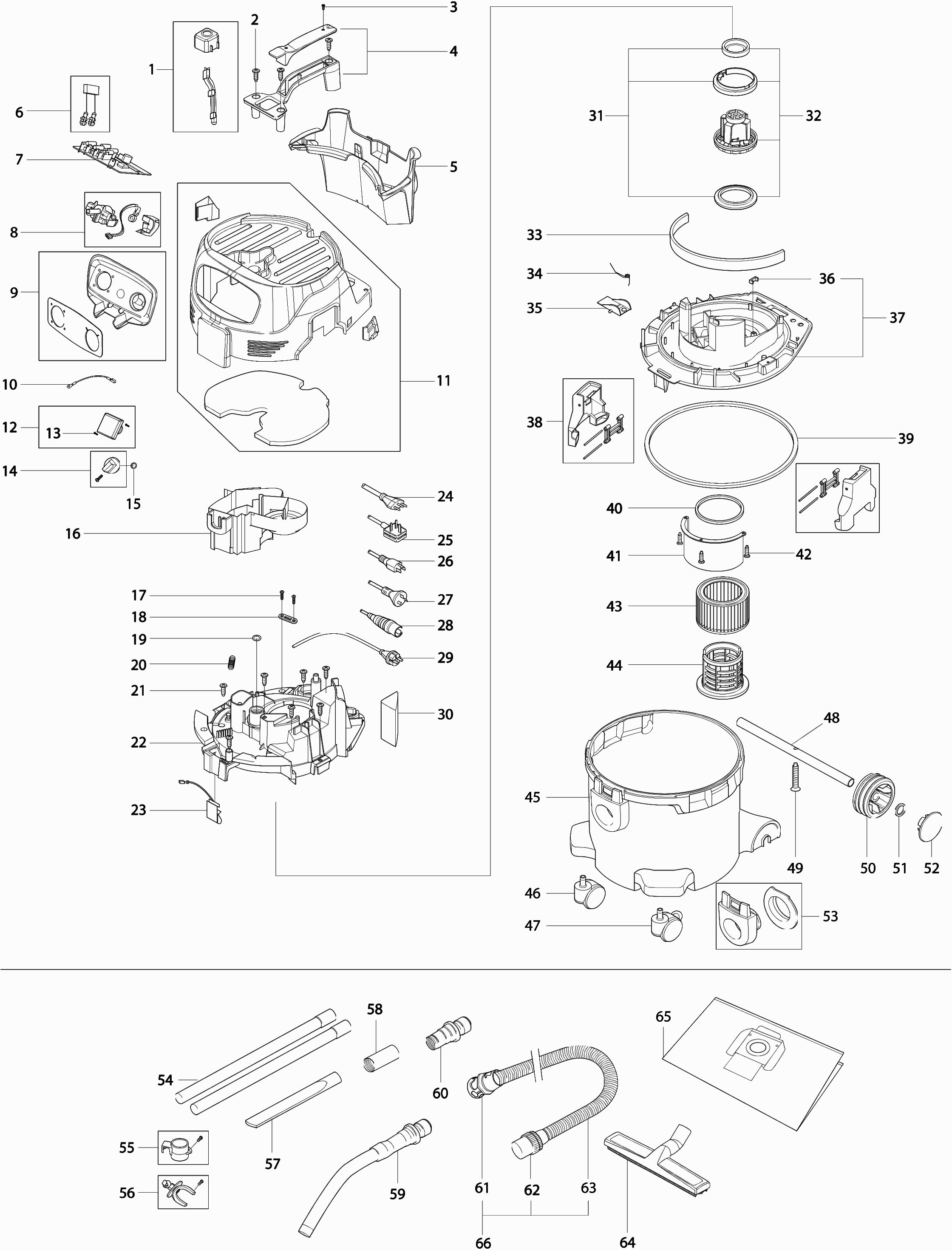

Technical drawing of model Makita VC3012L
Spare parts list of model Makita VC3012L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Filter cleaning button | ||||
| 001 | W107417282 | 13.20 | 15.97 | |
| Screw 5x18mm | ||||
| 002 | W302004029 | 7.20 | 8.71 | |
| Screw 3,5x18mm | ||||
| 003 | W302004032 | 6.00 | 7.26 | |
| Handle | ||||
| 004 | W302004019 | 39.60 | 47.92 | |
| OPBERGBAKJE VC3012L | ||||
| 005 | W302004026 | 22.00 | 26.62 | |
| Capacitor 0,1uf | ||||
| 006 | W107404542 | 17.60 | 21.30 | |
| Switch "a+u" | ||||
| 007 | W107413467 | 52.80 | 63.89 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | W107413449 | 59.40 | 71.87 | |
| Rotary knob ABB OHYS2AJ | ||||
| 009 | W107417283 | 30.80 | 37.27 | |
| Wire 1 x150 gr/ye | ||||
| 010 | W107400264 | 14.30 | 17.30 | |
| Makita Lid | ||||
| 011 | W107417284 | 78.10 | 94.50 | |
| SOCKET + FACE PLATE VC2010L P | ||||
| 012 | W107421225 | 59.00 | 71.39 | |
| No information available, not orderable | ||||
| 012-1 | W107421255 | |||
| Screw 3,5x18mm | ||||
| 013 | W302004032 | 6.00 | 7.26 | |
| Rotary knob ABB OHYS2AJ | ||||
| 014 | W909100222 | 7.20 | 8.71 | |
| Gasket | ||||
| 015 | W9868 | 4.80 | 5.81 | |
| Airflow | ||||
| 016 | W302004015 | 23.10 | 27.95 | |
| Screw 3,5x18mm | ||||
| 017 | W302004032 | 6.00 | 7.26 | |
| Carrying cord | ||||
| 018 | W302004030 | 9.60 | 11.62 | |
| O-ring 25 | ||||
| 019 | W302004061 | 8.40 | 10.16 | |
| Distributor | ||||
| 020 | W302004031 | 13.20 | 15.97 | |
| Screw 5x18mm | ||||
| 021 | W302004029 | 7.20 | 8.71 | |
| Upper house | ||||
| 022 | W302004009 | 52.80 | 63.89 | |
| Contact Spring | ||||
| 023 | W302004023 | 17.60 | 21.30 | |
| Power cord 3x1.5 7.5mtr 446L A | ||||
| 029 | W107400573 | 63.80 | 77.20 | |
| Insulation plate (sound) | ||||
| 030 | W302004045 | 19.80 | 23.96 | |
| Motor Bearing Ring | ||||
| 031 | W302003385 | 28.60 | 34.61 | |
| Motor 1200w 230v | ||||
| 032 | W302003384 | 139.70 | 169.04 | |
| Insulating Plate | ||||
| 033 | W302004010 | 13.20 | 15.97 | |
| Spring | ||||
| 034 | W909100083 | 3.60 | 4.36 | |
| SHUTTER | ||||
| 035 | W302000344 | 6.00 | 7.26 | |
| Cap | ||||
| 036 | W107401937 | 13.20 | 15.97 | |
| Base Plate | ||||
| 037 | W302004007 | 78.10 | 94.50 | |
| Container clamp | ||||
| 038 | W107400301 | 26.40 | 31.94 | |
| Gasket for container | ||||
| 039 | W107400056 | 17.60 | 21.30 | |
| Filter gasket | ||||
| 040 | W302000460 | 10.80 | 13.07 | |
| HEATSHIELD | ||||
| 041 | W302004016 | 22.00 | 26.62 | |
| Screw 5x18mm | ||||
| 042 | W302004029 | 7.20 | 8.71 | |
| FIJNSTOFFILTER STOFZUIGER | ||||
| 043 | P-70219 | 23.00 | 27.83 | |
| Filter box | ||||
| 044 | W107402646 | 26.40 | 31.94 | |
| Catch container | ||||
| 045 | W107417285 | 88.00 | 106.48 | |
| Swivel wheel 446L A | ||||
| 046 | W107415105 | 13.20 | 15.97 | |
| Swivel wheel with brake 50mm | ||||
| 047 | W302000557 | 22.00 | 26.62 | |
| Wheel axle | ||||
| 048 | W302004022 | 22.00 | 26.62 | |
| Screw 5x35 | ||||
| 049 | W107400063 | 6.00 | 7.26 | |
| Rear wheel | ||||
| 050 | W302000465 | 10.80 | 13.07 | |
| Rivet | ||||
| 051 | W47302 | 4.80 | 5.81 | |
| Plastic plug CT MINI ET-BG | ||||
| 052 | W107417286 | 4.80 | 5.81 | |
| Connection for vacuum hose | ||||
| 053 | W107402742 | 20.90 | 25.29 | |
| ZUIGBUIS SET RVS | ||||
| 054 | P-70437 | 29.00 | 35.09 | |
| ZUIGBUIS OPHANGHAAK | ||||
| 055 | W302004027 | 6.00 | 7.26 | |
| ZUIGBUISHOUDER | ||||
| 056 | W302004018 | 7.00 | 8.47 | |
| KIERZUIGMOND LANG ZWART | ||||
| 057 | W6084 | 6.00 | 7.26 | |
| SLANGADAPTER 45/38MM [MACHINE] | ||||
| 058 | W107418688 | 19.00 | 22.99 | |
| HANDGREEP ZUIGBUIS RVS | ||||
| 059 | P-70346 | 23.00 | 27.83 | |
| SLANGADAPTER 35/25MM RIBBED [MACHINE] | ||||
| 060 | P-70378 | 17.00 | 20.57 | |
| SLANGADAPTER 32MM QS MACHINE | ||||
| 061 | W46947 | 34.00 | 41.14 | |
| SLANGADAPTER 32/58MM | ||||
| 062 | W30928 | 13.00 | 15.73 | |
| STOFZUIGERSLANG 32X4000MM | ||||
| 063 | P-84084 | 54.00 | 65.34 | |
| VLOERZUIGMOND HARDE VLOER | ||||
| 064 | P-81789 | 14.00 | 16.94 | |
| FIJNSTOFFILTER STOFZUIGER | ||||
| 065 | P-70219 | 23.00 | 27.83 | |
| STOFZUIGERSLANG 32X4000MM | ||||
| 066 | P-84084 | 54.00 | 65.34 | |
| SLANGADAPTER 32MM QS [MACHINE] | ||||
| 066A | W107417866 | 19.00 | 22.99 | |
