Here you will find all available parts and drawings of the 'Makita VC2010L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

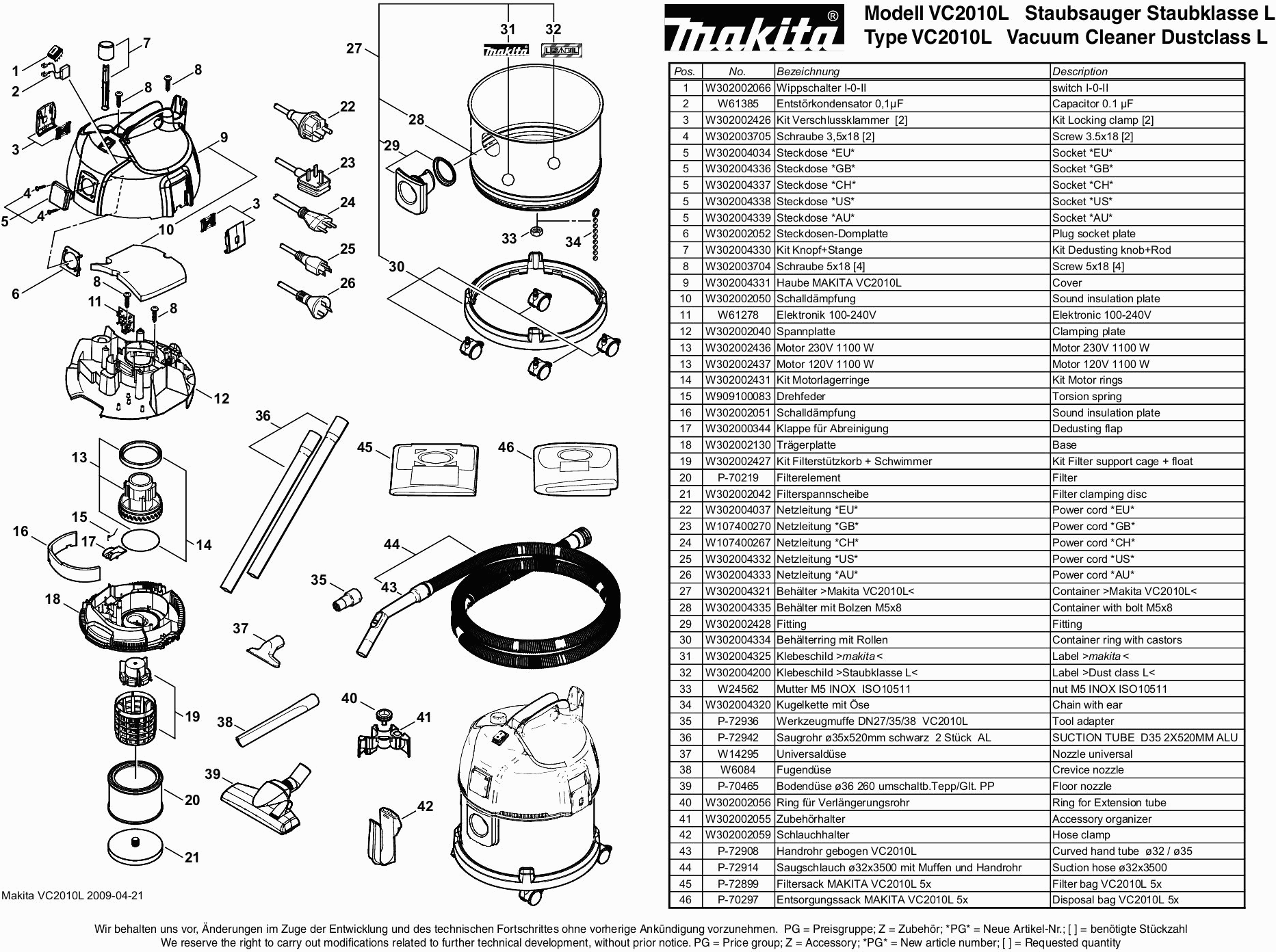

Technical drawing of model Makita VC2010L
Spare parts list of model Makita VC2010L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 001 | W107404541 | 10.80 | 13.07 | |
| Capacitor | ||||
| 002 | W61385 | 7.20 | 8.71 | |
| Kit closure | ||||
| 003 | W302002426 | 18.70 | 22.63 | |
| Screw 3.5x18 | ||||
| 004 | W302003705 | 3.60 | 4.36 | |
| SOCKET + FACE PLATE VC2010L P | ||||
| 005 | W107421225 | 59.00 | 71.39 | |
| No information available, not orderable | ||||
| 005-1 | W107421255 | |||
| Socket connection plate | ||||
| 006 | W302002052 | 39.60 | 47.92 | |
| Dust-off button + rod | ||||
| 007 | W302004330 | 14.30 | 17.30 | |
| Screw 5x18mm | ||||
| 008 | W302004029 | 7.20 | 8.71 | |
| Makita Lid | ||||
| 009 | W302004331 | 38.50 | 46.58 | |
| Insulation plate (sound) | ||||
| 010 | W302002050 | 8.40 | 10.16 | |
| Circuit 100-240v | ||||
| 011 | W61278 | 55.00 | 66.55 | |
| No information available, not orderable | ||||
| 012 | W302002040 | |||
| Motor 230v 1100w | ||||
| 013 | W302002435 | 111.10 | 134.43 | |
| Washers for motor mount | ||||
| 014 | W302002431 | 19.80 | 23.96 | |
| Spring | ||||
| 015 | W909100083 | 3.60 | 4.36 | |
| Insulation plate (sound) | ||||
| 016 | W302002051 | 4.80 | 5.81 | |
| SHUTTER | ||||
| 017 | W302000344 | 6.00 | 7.26 | |
| Motor support | ||||
| 018 | W302002130 | 28.60 | 34.61 | |
| Filter cage + float | ||||
| 019 | W302002427 | 28.60 | 34.61 | |
| FIJNSTOFFILTER STOFZUIGER | ||||
| 020 | P-70219 | 23.00 | 27.83 | |
| Clamping disc | ||||
| 021 | W302002042 | 6.00 | 7.26 | |
| Mains cable TCL 3 | ||||
| 022 | W107402641 | 58.30 | 70.54 | |
| Catch container | ||||
| 027 | W302004321 | 112.20 | 135.76 | |
| No information available, not orderable | ||||
| 028 | W302004335 | |||
| Connection for vacuum hose | ||||
| 029 | W302002428 | 20.90 | 25.29 | |
| Ring with swivel wheels | ||||
| 030 | W302004334 | 59.40 | 71.87 | |
| Label "makita" | ||||
| 031 | W302004325 | 2.40 | 2.90 | |
| Label "Dust Class L" | ||||
| 032 | W302004200 | 2.40 | 2.90 | |
| Nut M5 inox | ||||
| 033 | W24562 | 3.60 | 4.36 | |
| Chain with ear | ||||
| 034 | W302004320 | 10.80 | 13.07 | |
| SLANGADAPTER 35/25MM RIBBEL | ||||
| 035 | P-72936 | 8.00 | 9.68 | |
| ZUIGBUIS SET STAAL | ||||
| 036 | P-72942 | 22.00 | 26.62 | |
| MEUBELZUIGMOND ZWART | ||||
| 037 | W14295 | 7.00 | 8.47 | |
| KIERZUIGMOND LANG ZWART | ||||
| 038 | W6084 | 6.00 | 7.26 | |
| VLOERZUIGMOND HARDE VLOER&TAPIJT | ||||
| 039 | P-70465 | 24.00 | 29.04 | |
| Ring for extension tube | ||||
| 040 | W302002056 | 3.60 | 4.36 | |
| Holder, accessory- | ||||
| 041 | W302002055 | 19.80 | 23.96 | |
| Hose clamp IAS 3 | ||||
| 042 | W302002059 | 9.60 | 11.62 | |
| HANDGREEP ZUIGBUIS KUNSTSTOF | ||||
| 043 | P-72908 | 16.00 | 19.36 | |
| No information available, not orderable | ||||
| 044 | P-72914 | |||
| FLEECE STOFZAK 10L STOFZUIGER | ||||
| 045 | P-72899 | 20.00 | 24.20 | |
| PLASTIC STOFZAK STOFZUIGER | ||||
| 046 | P-70297 | 23.00 | 27.83 | |
