Here you will find all available parts and drawings of the 'Makita VC014GL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

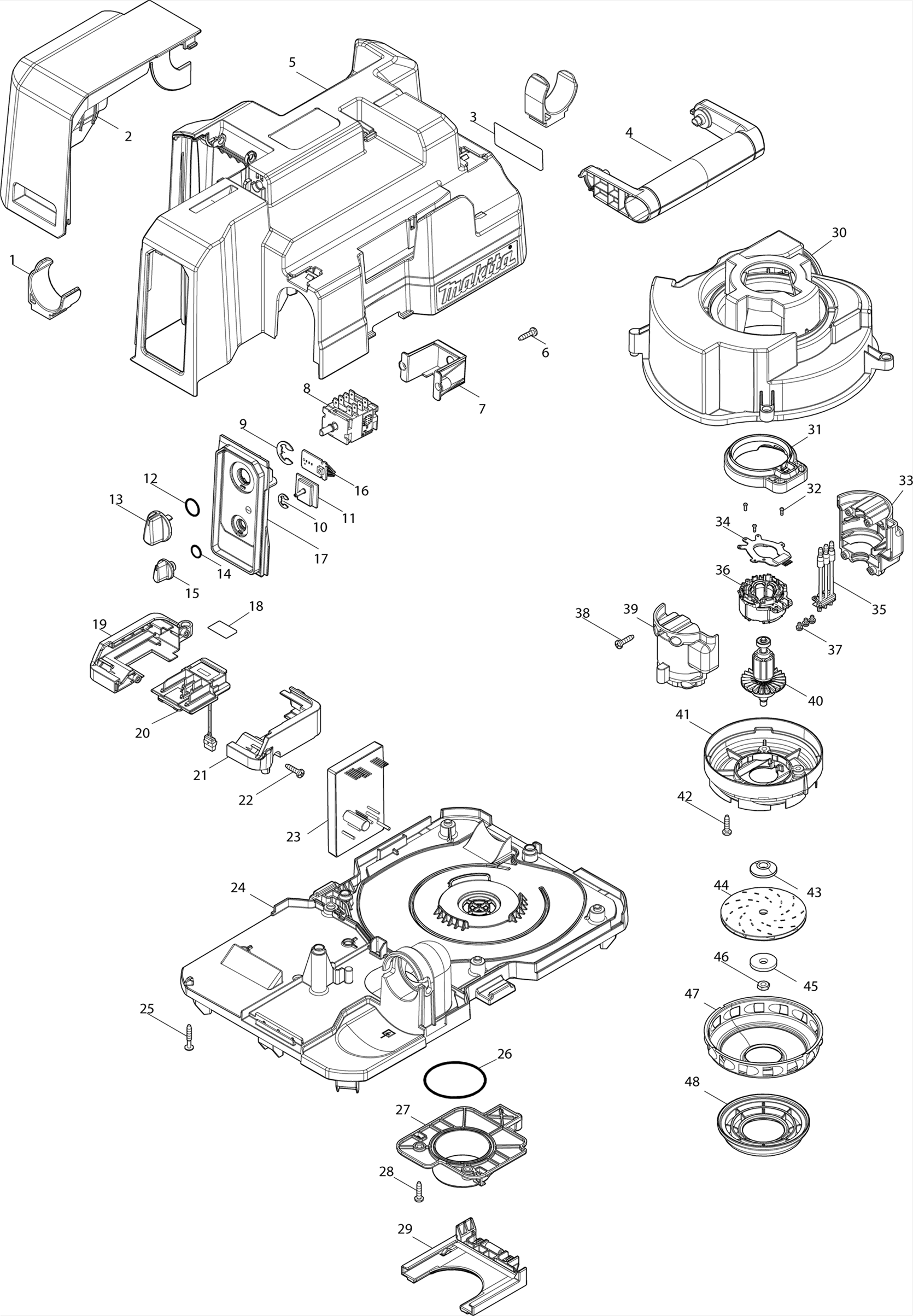

Technical drawing of model Makita VC014GL
Spare parts list of model Makita VC014GL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| STOFZUIGERSLANG 32X1500MM | ||||
| A01 | 140G04-3 | 6.00 | 7.26 | |
| Shoulder strap | ||||
| A02 | 199486-4 | 5.00 | 6.05 | |
| No information available, not orderable | ||||
| A03 | 4132U6-2 | |||
| MATZUIGMOND ZWART | ||||
| A04 | 458891-7 | 4.00 | 4.84 | |
| No information available, not orderable | ||||
| A05 | 1915T4-4 | |||
| PAPIEREN STOFZAK 7,5L STOFZUIGER | ||||
| A06 | 1915W5-3 | 10.00 | 12.10 | |
| Rubber pen 6 | ||||
| C10 | 263005-3 | 1.00 | 1.21 | |
| Warning Label | ||||
| C20 | 891977-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| F02 | 191Y12-5 | |||
| No information available, not orderable | ||||
| F03 | 1912G4-5 | |||
| No information available, not orderable | ||||
| F04 | 1912G5-3 | |||
| VLOERZUIGBORSTEL ROTEREND | ||||
| F05 | 1914Y6-9 | 45.00 | 54.45 | |
| VLOERZUIGBORSTEL ROTEREND | ||||
| F06 | 1914Y7-7 | 45.00 | 54.45 | |
| WIELEN STOFZUIGER | ||||
| F07 | 1915G5-1 | 12.00 | 14.52 | |
| STOFZUIGERSLANG 28X5000MM | ||||
| F08 | 1915G6-9 | 58.00 | 70.18 | |
| PAPIEREN STOFZAK 7,5L STOFZUIGER | ||||
| F12 | 1915W5-3 | 10.00 | 12.10 | |
| PLUMEAU ZWART | ||||
| F13 | 191657-9 | 9.00 | 10.89 | |
| Nozzle (a) | ||||
| F14 | 192236-6 | 5.00 | 6.05 | |
| Extension Bar | ||||
| F15 | 192563-1 | 9.00 | 10.89 | |
| PLASTIC STOFZAK STOFZUIGER 45L | ||||
| F16 | 195432-5 | 7.00 | 8.47 | |
| KOPPELADAPTER 38X25/22MM | ||||
| F17 | 195548-6 | 9.00 | 10.89 | |
| LINNEN VOORFILTER STOFZUIGER | ||||
| F22 | 199827-4 | 10.00 | 12.10 | |
| No information available, not orderable | ||||
| 001 | 4131X6-7 | |||
| No information available, not orderable | ||||
| 002 | 137268-6 | |||
| No information available, not orderable | ||||
| 003 | 8150S1-6 | |||
| No information available, not orderable | ||||
| 004 | 4131X7-5 | |||
| No information available, not orderable | ||||
| 005 | 137312-9 | |||
| No information available, not orderable | ||||
| 006 | 266326-2 | |||
| SWITCH HOLDER | ||||
| 007 | 451343-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 008 | 650067-4 | |||
| Lock Ring E12 | ||||
| 009 | 961062-2 | 1.00 | 1.21 | |
| Stopring E-7 | ||||
| 010 | 961013-5 | 1.00 | 1.21 | |
| Sub Controller DVC157L | ||||
| 011 | 620D39-7 | 8.40 | 10.16 | |
| O-ring 14 | ||||
| 012 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 013 | 455733-6 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 014 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 015 | 451344-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 016 | 620R97-7 | |||
| No information available, not orderable | ||||
| 017 | 1410V6-4 | |||
| No information available, not orderable | ||||
| 018 | 8150S3-2 | |||
| No information available, not orderable | ||||
| 019 | 1831K5-9 | |||
| No information available, not orderable | ||||
| 020 | 632W77-1 | |||
| No information available, not orderable | ||||
| 021 | 1831K5-9 | |||
| No information available, not orderable | ||||
| 022 | 266326-2 | |||
| No information available, not orderable | ||||
| 023 | 620R92-7 | |||
| No information available, not orderable | ||||
| 024 | 4131W9-4 | |||
| No longer available, no replacement | ||||
| 025 | 266374-1 | |||
| No information available, not orderable | ||||
| 026 | 213A93-6 | |||
| No information available, not orderable | ||||
| 027 | 4131X4-1 | |||
| No information available, not orderable | ||||
| 028 | 266326-2 | |||
| No information available, not orderable | ||||
| 029 | 4131W3-6 | |||
| No information available, not orderable | ||||
| 030 | 1410U8-3 | |||
| Ring VC001GL | ||||
| 031 | 422794-1 | 3.60 | 4.36 | |
| Parker Ck 2x6mm | ||||
| 032 | 266490-9 | 1.00 | 1.21 | |
| Motor Housing VC001GL | ||||
| 033 | 183U05-2 | 4.80 | 5.81 | |
| Controller B VC001GL | ||||
| 034 | 620F39-9 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 035 | 632W57-7 | |||
| VELD VC010G | ||||
| 036 | 629C29-1 | 11.00 | 13.31 | |
| Phillips Head Screw M3X6 | ||||
| 037 | 652069-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 038 | 266326-2 | |||
| Motor Housing VC001GL | ||||
| 039 | 183U05-2 | 4.80 | 5.81 | |
| Armature assembly VC001GL | ||||
| 040 | 619704-9 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 041 | 4131X1-7 | |||
| No information available, not orderable | ||||
| 042 | 266326-2 | |||
| Intermediate Flange | ||||
| 043 | 313062-2 | 1.20 | 1.45 | |
| WAAIER 80MM VC010G | ||||
| 044 | 240243-4 | 4.80 | 5.81 | |
| Washer 8 | ||||
| 045 | 253752-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 252268-6 | |||
| No information available, not orderable | ||||
| 047 | 347D45-4 | |||
| No information available, not orderable | ||||
| 048 | 422C08-6 | |||
| Float DVC750L | ||||
| 049 | 140G00-1 | 2.40 | 2.90 | |
| Gasket ring A DVC750L | ||||
| 050 | 422364-6 | 1.20 | 1.45 | |
| HEPA FIJNSTOFFILTER STOFZUIGER | ||||
| 051 | 162518-0 | 13.00 | 15.73 | |
| No information available, not orderable | ||||
| 052 | 422C07-8 | |||
| Case closure | ||||
| 053 | 162315-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 054 | 1410V9-8 | |||
