Here you will find all available parts and drawings of the 'Makita VC010G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

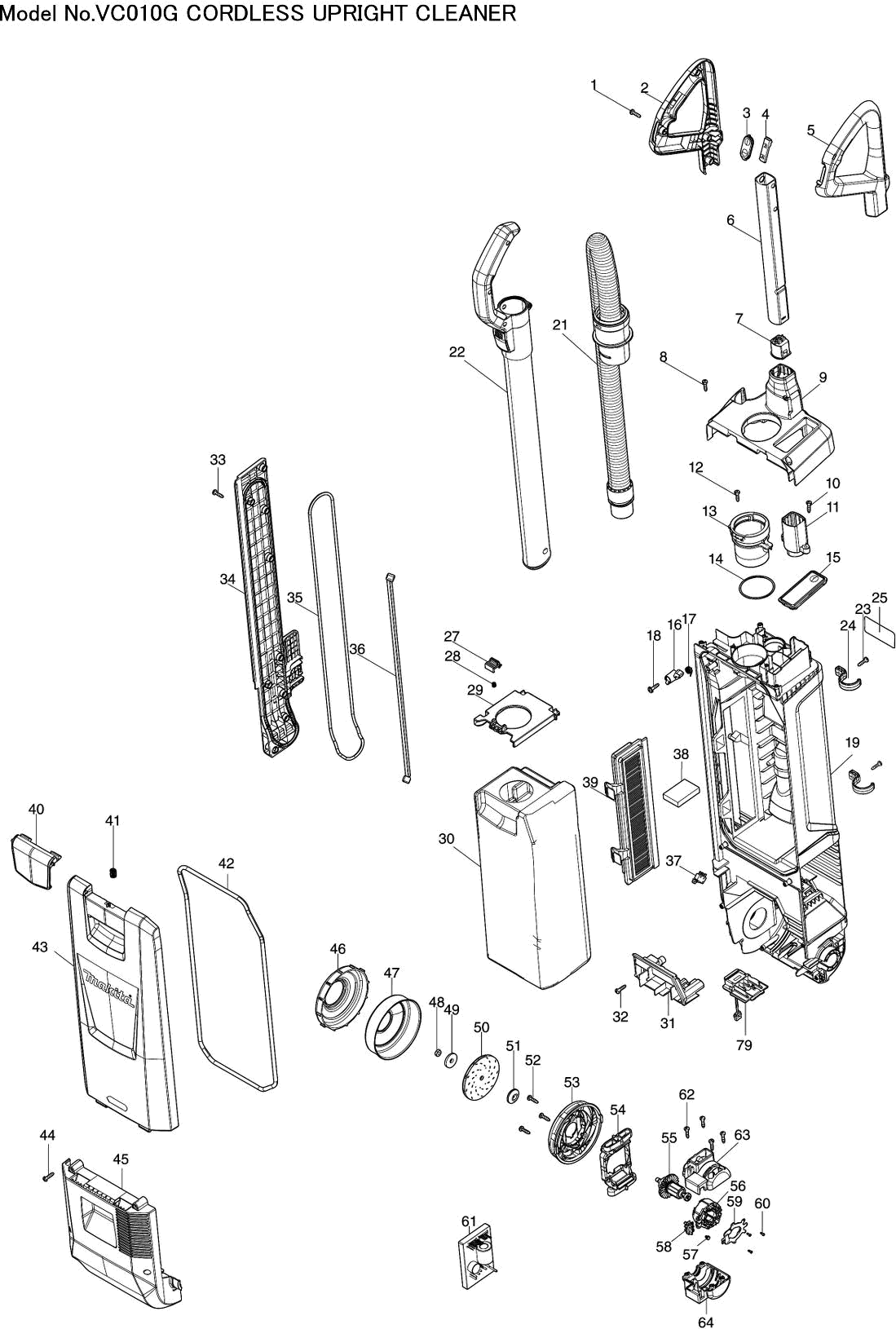

Technical drawing of model Makita VC010G
Spare parts list of model Makita VC010G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TAPSCHR 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| Handle set DVC560 | ||||
| 002 | 183R12-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 003 | 141R09-2 | |||
| Switching unit Bub360 | ||||
| 004 | 631973-2 | 7.20 | 8.71 | |
| Handle set DVC560 | ||||
| 005 | 183R12-7 | 8.40 | 10.16 | |
| Pipe A DVC560 | ||||
| 006 | 327555-3 | 8.40 | 10.16 | |
| Cable Entry DVC560 | ||||
| 007 | 632R23-4 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 008 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 009 | 141R11-5 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| Cable Entry DVC560 | ||||
| 011 | 632R22-6 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 012 | 265B67-9 | 1.00 | 1.21 | |
| Intake DVC560 | ||||
| 013 | 412455-1 | 4.80 | 5.81 | |
| O-ring 55 | ||||
| 014 | 213663-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 014-1 | 213A93-6 | |||
| No information available, not orderable | ||||
| 015 | 141R13-1 | |||
| AFSTELLING VC010G | ||||
| 016 | 413R48-5 | 2.40 | 2.90 | |
| Torsion Spring 9 DVC560 | ||||
| 017 | 232627-0 | 1.00 | 1.21 | |
| Parker 4x18mm HM1203C | ||||
| 018 | 265678-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 019 | 137100-4 | |||
| Rubber pen 6 | ||||
| 019C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 019C20 | 265B67-9 | 1.00 | 1.21 | |
| AANSLAG VC010G | ||||
| 019C30 | 413R43-5 | 2.40 | 2.90 | |
| EXTRACTION HOSE 28X0.7 VC010G | ||||
| 021 | 141R15-7 | 14.30 | 17.30 | |
| Rising pipe set DVC560 | ||||
| 022 | 127522-6 | 19.80 | 23.96 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 023 | 265B67-9 | 1.00 | 1.21 | |
| Nozzle holder DVC560 | ||||
| 024 | 412444-6 | 2.40 | 2.90 | |
| LABEL VC010G | ||||
| 025 | 8143R7-2 | 1.00 | 1.21 | |
| Switch lever A DVC560 | ||||
| 027 | 412464-0 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 028 | 231309-1 | 1.00 | 1.21 | |
| Adaptive piece DVC560 | ||||
| 029 | 412463-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 030 | 162A02-1 | |||
| No information available, not orderable | ||||
| 030-1 | 191T96-3 | |||
| No information available, not orderable | ||||
| 031 | 137101-2 | |||
| Rubber pen 6 | ||||
| 031C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 032 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 033 | 265B67-9 | 1.00 | 1.21 | |
| AFDEKKAP VC010G | ||||
| 034 | 413R47-7 | 11.00 | 13.31 | |
| PAKKINGRING B VC010G | ||||
| 035 | 422A29-6 | 2.40 | 2.90 | |
| KABELBOOM VC010G | ||||
| 036 | 632R24-2 | 7.20 | 8.71 | |
| Switch DVC560 | ||||
| 037 | 632R30-7 | 13.20 | 15.97 | |
| STOOTKUSSEN VC010G | ||||
| 038 | 422A26-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | 162808-1 | |||
| HEPA FIJNSTOFFILTER BORSTELSTOFZUIGER | ||||
| 039-1 | 191E39-5 | 8.00 | 9.68 | |
| Closure DVC560 | ||||
| 040 | 412446-2 | 2.40 | 2.90 | |
| Compression Spring 8 | ||||
| 041 | 234391-9 | 1.00 | 1.21 | |
| PAKKINGRING A VC010G | ||||
| 042 | 422A27-0 | 2.40 | 2.90 | |
| STOFBOXKAP VC010G | ||||
| 043 | 413R44-3 | 17.60 | 21.30 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 044 | 265B67-9 | 1.00 | 1.21 | |
| MOTOR HOUSING COVER VC010G | ||||
| 045 | 141R06-8 | 17.60 | 21.30 | |
| STOOTKUSSEN VC010G | ||||
| 045C10 | 422A91-1 | 1.20 | 1.45 | |
| SUPPORTRING VC010G | ||||
| 046 | 422A23-8 | 3.60 | 4.36 | |
| WAAIERHOUDER VC010G | ||||
| 047 | 347B39-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 048 | 252268-6 | |||
| Washer 8 | ||||
| 049 | 253752-4 | 1.00 | 1.21 | |
| WAAIER 80MM VC010G | ||||
| 050 | 240243-4 | 4.80 | 5.81 | |
| Intermediate Flange | ||||
| 051 | 313062-2 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 052 | 265B67-9 | 1.00 | 1.21 | |
| WAAIERBASIS VC010G | ||||
| 053 | 413R40-1 | 4.80 | 5.81 | |
| MONTAGEPLAAT VC010G | ||||
| 054 | 422A22-0 | 3.60 | 4.36 | |
| Armature assembly VC001GL | ||||
| 055 | 619704-9 | 14.30 | 17.30 | |
| VELD VC010G | ||||
| 056 | 629C29-1 | 11.00 | 13.31 | |
| Phillips Head Screw M3X6 | ||||
| 057 | 652069-6 | 1.00 | 1.21 | |
| Cable set HR005G | ||||
| 058 | 632R64-0 | 7.20 | 8.71 | |
| Controller B VC008G/9G | ||||
| 059 | 620H32-5 | 16.50 | 19.96 | |
| Parker Ck 2x6mm | ||||
| 060 | 266490-9 | 1.00 | 1.21 | |
| CONTROLLER VC010G | ||||
| 061 | 620M72-3 | 121.00 | 146.41 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 062 | 265B67-9 | 1.00 | 1.21 | |
| MOTORHUISSET VC010G | ||||
| 063 | 1830D9-6 | 7.20 | 8.71 | |
| MOTORHUISSET VC010G | ||||
| 064 | 1830D9-6 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 065 | 265B67-9 | 1.00 | 1.21 | |
| EXTRACTION HOSE 28X0.1 VC010G | ||||
| 066 | 141R14-9 | 9.60 | 11.62 | |
| Roller for DVC560 | ||||
| 067 | 412434-9 | 3.60 | 4.36 | |
| ROLHOUDER VC010G | ||||
| 068 | 413R55-8 | 3.60 | 4.36 | |
| Rollers DVC560 | ||||
| 069 | 256954-1 | 1.00 | 1.21 | |
| BUIS VC010G | ||||
| 070 | 422A32-7 | 2.40 | 2.90 | |
| Motor DVC560 | ||||
| 071 | 629A11-8 | 100.10 | 121.12 | |
| BUISVERBINDER VC010G | ||||
| 072 | 422A33-5 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 073 | 265B67-9 | 1.00 | 1.21 | |
| Screw M3x8 | ||||
| 074 | 265199-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 075 | 122G23-1 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 076 | 265B67-9 | 1.00 | 1.21 | |
| Hinge Holder DVC560 | ||||
| 077 | 347719-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 078 | 413J90-8 | |||
| Connection unit TD001G | ||||
| 079 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 079-1 | 632W77-1 | |||
| Compression Spring 6 | ||||
| 080 | 234339-1 | 1.00 | 1.21 | |
| Pin 4 DVC560 | ||||
| 081 | 256965-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 082 | 141R04-2 | |||
| LABEL WAARSCHUW VC010G | ||||
| 082C10 | 8073R1-1 | 1.00 | 1.21 | |
| Frame 75 DVC560 | ||||
| 083 | 140S28-1 | 8.40 | 10.16 | |
| Height adjustment lever DVC560 | ||||
| 084 | 412438-1 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 085 | 265B67-9 | 1.00 | 1.21 | |
| BOVENHUIS VC010G | ||||
| 086 | 413R41-9 | 14.30 | 17.30 | |
| NOK VC010G | ||||
| 087 | 413R56-6 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 088 | 265B67-9 | 1.00 | 1.21 | |
| LED CIRCUIT VC010G | ||||
| 089 | 620M58-7 | 9.60 | 11.62 | |
| BUFFER VC010G | ||||
| 090 | 422A24-6 | 9.60 | 11.62 | |
| BORSTELSET | ||||
| 091 | 1914B1-8 | 26.00 | 31.46 | |
| Brush DVC560 | ||||
| 092 | 422577-9 | 3.60 | 4.36 | |
| BASE PLATE VC010G | ||||
| 093 | 122E44-1 | 17.60 | 21.30 | |
| BORSTEL VC010G | ||||
| 094 | 422A31-9 | 2.40 | 2.90 | |
| Brush DVC560 | ||||
| 095 | 422577-9 | 3.60 | 4.36 | |
