Here you will find all available parts and drawings of the 'Makita VC008G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

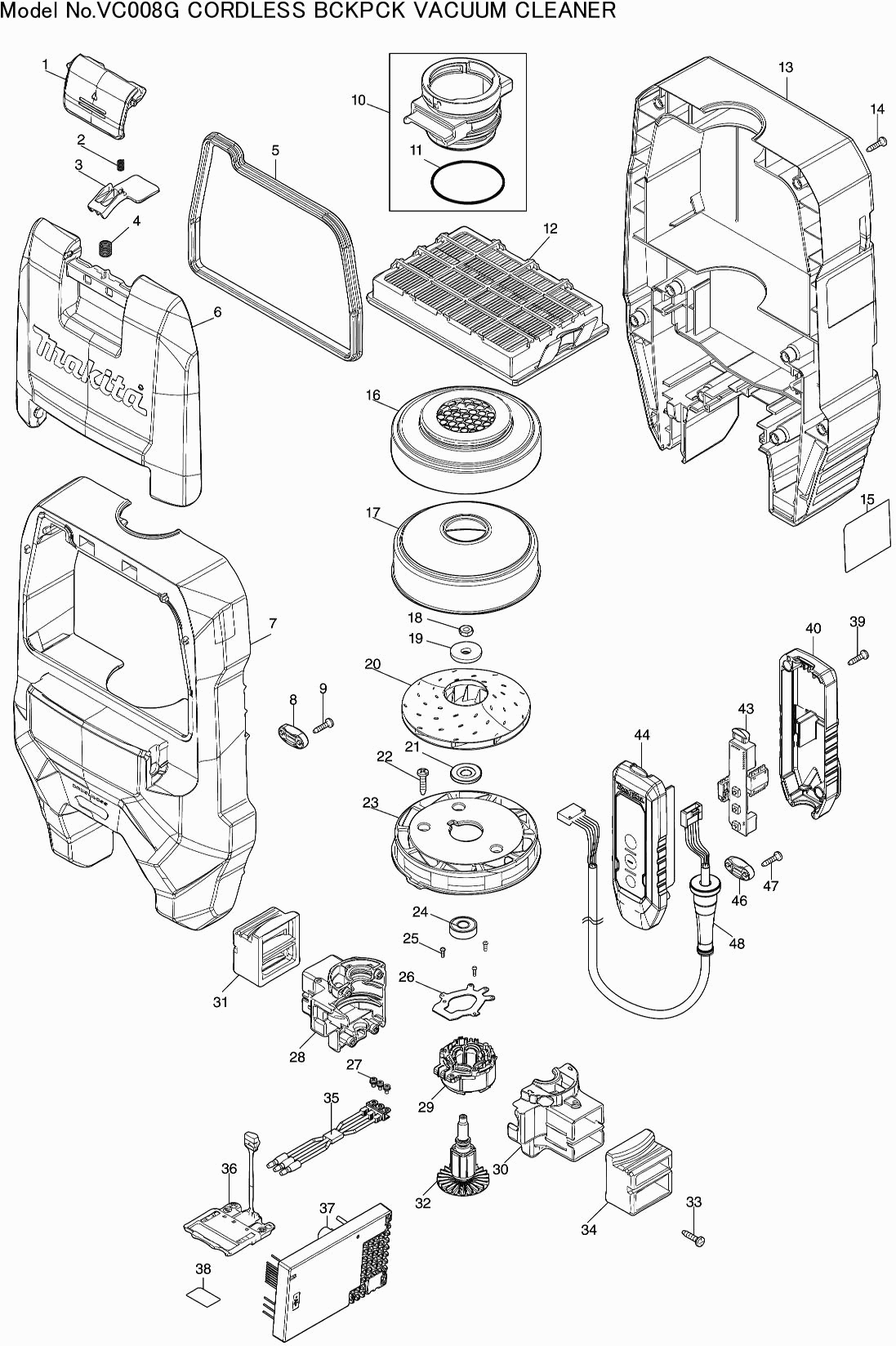

Technical drawing of model Makita VC008G
Spare parts list of model Makita VC008G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover cap VC008G | ||||
| 001 | 413E52-6 | 2.40 | 2.90 | |
| Compression spring 5mm DVC660 | ||||
| 002 | 232389-0 | 1.00 | 1.21 | |
| Stop plate DVC660 | ||||
| 003 | 459912-8 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 004 | 234391-9 | 1.00 | 1.21 | |
| Seal ring VC008G/9G | ||||
| 005 | 422850-7 | 3.60 | 4.36 | |
| Dust box cap VC008G | ||||
| 006 | 413E51-8 | 6.00 | 7.26 | |
| Upper Housing VC008G | ||||
| 007 | 136647-5 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 007C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT UX01G | ||||
| 007C20 | 8025F3-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 008 | 687124-5 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 009 | 265B67-9 | 1.00 | 1.21 | |
| Intake Complete | ||||
| 010 | 135771-1 | 2.40 | 2.90 | |
| O-ring 56 | ||||
| 011 | 213655-4 | 2.40 | 2.90 | |
| HEPA FIJNSTOFFILTER RUGSTOFZUIGER | ||||
| 012 | 191Y27-2 | 9.00 | 10.89 | |
| Lower Housing VC008G | ||||
| 013 | 141H47-4 | 22.00 | 26.62 | |
| Rear block filter A VC009G | ||||
| 013C10 | 422854-9 | 1.00 | 1.21 | |
| Rear block filter B VC009G | ||||
| 013C20 | 422855-7 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 014 | 265B67-9 | 1.00 | 1.21 | |
| Nameplate VC008G | ||||
| 015 | 8116N6-5 | 1.00 | 1.21 | |
| Support ring VC008G/9G | ||||
| 016 | 422851-5 | 7.20 | 8.71 | |
| Fan Holder VC008G/9G | ||||
| 017 | 347965-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 018 | 252268-6 | |||
| Washer 8 | ||||
| 019 | 253752-4 | 1.00 | 1.21 | |
| Fan 104 | ||||
| 020 | 240178-9 | 6.00 | 7.26 | |
| Intermediate Flange | ||||
| 021 | 313062-2 | 1.20 | 1.45 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 022 | 265B67-9 | 1.00 | 1.21 | |
| Fan base VC008G/9G | ||||
| 023 | 413E42-9 | 6.00 | 7.26 | |
| Ball Bearing 608ddw | ||||
| 024 | 210005-4 | 4.80 | 5.81 | |
| Parker Ck 2x6mm | ||||
| 025 | 266490-9 | 1.00 | 1.21 | |
| Controller B VC008G/9G | ||||
| 026 | 620H32-5 | 16.50 | 19.96 | |
| Phillips Head Screw M3X6 | ||||
| 027 | 652069-6 | 1.00 | 1.21 | |
| Motor Housing VC008G/9G | ||||
| 028 | 183V01-6 | 6.00 | 7.26 | |
| Field | ||||
| 029 | 629B16-4 | 9.60 | 11.62 | |
| Motor Housing VC008G/9G | ||||
| 030 | 183V01-6 | 6.00 | 7.26 | |
| Support A VC008G/9G | ||||
| 031 | 422856-5 | 2.40 | 2.90 | |
| Armature VC008G/9G | ||||
| 032 | 619746-3 | 16.50 | 19.96 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 033 | 265B67-9 | 1.00 | 1.21 | |
| Support A VC008G/9G | ||||
| 034 | 422856-5 | 2.40 | 2.90 | |
| Connection unit VC008G/9G | ||||
| 035 | 638A29-8 | 4.80 | 5.81 | |
| Connection unit TD001G | ||||
| 036 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 036-1 | 632W77-1 | |||
| Controller VC008G | ||||
| 037 | 620H30-9 | 113.30 | 137.09 | |
| Serial number label VC008G | ||||
| 038 | 8116P4-3 | 2.40 | 2.90 | |
| Tapping Screw 3x16 | ||||
| 039 | 266130-9 | 1.00 | 1.21 | |
| Switch Housing VC008G | ||||
| 040 | 183V66-8 | 6.00 | 7.26 | |
| Label A/U VC008G | ||||
| 040C10 | 8045G1-7 | 2.40 | 2.90 | |
| Switching circuit VC008G | ||||
| 043 | 620H33-3 | 19.80 | 23.96 | |
| Switch Housing VC008G | ||||
| 044 | 183V66-8 | 6.00 | 7.26 | |
| Clamp Bracket | ||||
| 046 | 687124-5 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 047 | 265B67-9 | 1.00 | 1.21 | |
| Wire Harness VC008G | ||||
| 048 | 699193-4 | 13.20 | 15.97 | |
| Flat head screw M5 | ||||
| 049 | 265008-3 | 1.20 | 1.45 | |
| DRAAGHARNAS RUGSTOFZUIGER | ||||
| 050 | 162B36-0 | 22.00 | 26.62 | |
