Here you will find all available parts and drawings of the 'Makita VC002GL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

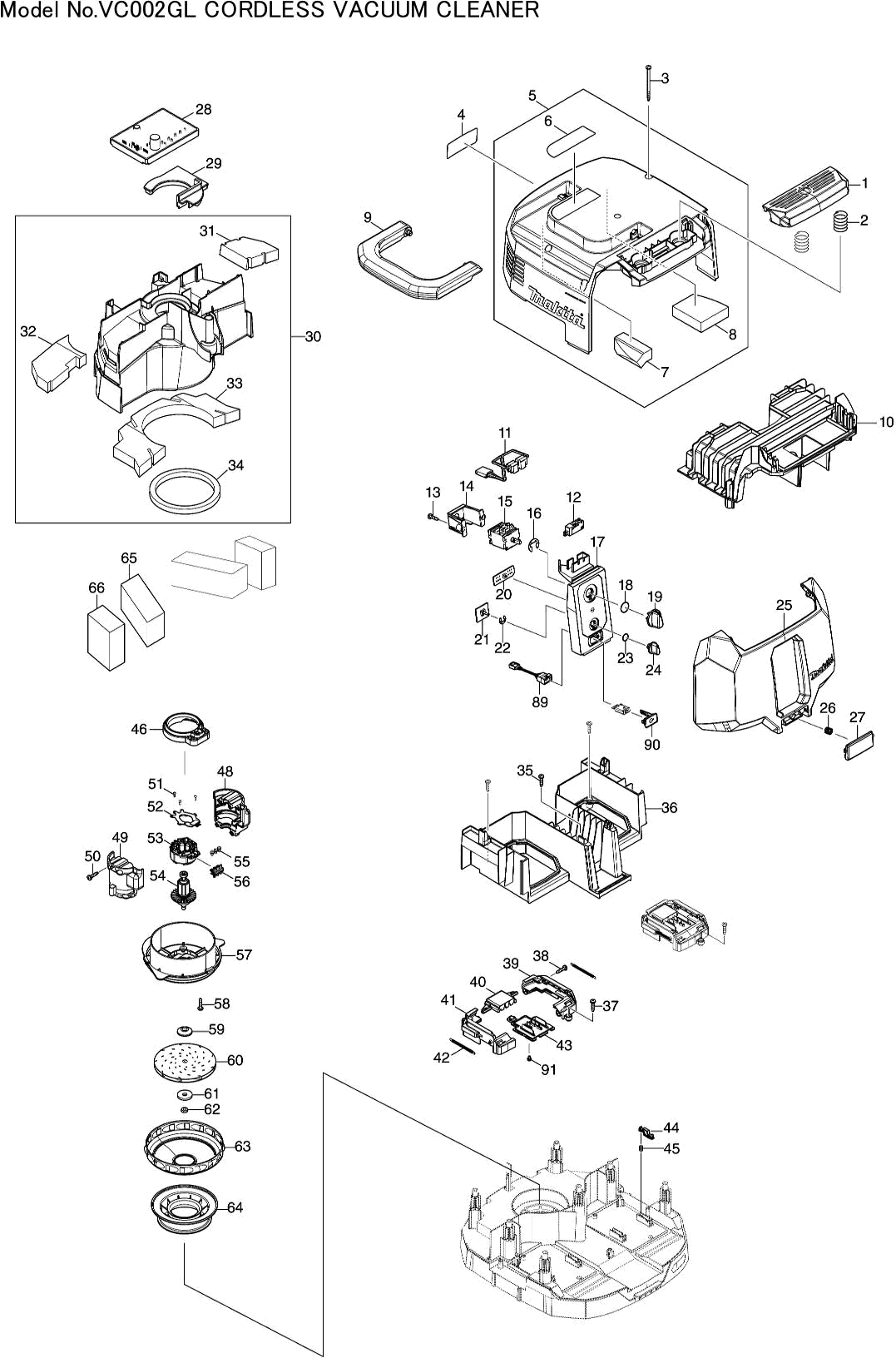

Technical drawing of model Makita VC002GL
Spare parts list of model Makita VC002GL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch Button VC001GL | ||||
| 001 | 413B26-9 | 7.20 | 8.71 | |
| Compression Spring 32mm | ||||
| 002 | 234273-5 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 003 | 266340-8 | 1.00 | 1.21 | |
| Nameplate VC002GL | ||||
| 004 | 8112J8-9 | 1.00 | 1.21 | |
| VC002GL complete coupling | ||||
| 005 | 141F80-4 | 23.10 | 27.95 | |
| Warning label VC001GL | ||||
| 006 | 813A18-6 | 2.40 | 2.90 | |
| Damping Ring A VC001GL | ||||
| 007 | 422796-7 | 1.20 | 1.45 | |
| Damping Ring B VC001GL | ||||
| 008 | 422797-5 | 1.20 | 1.45 | |
| Handle VC001GL | ||||
| 009 | 413B27-7 | 9.60 | 11.62 | |
| Upper body VC001GL | ||||
| 010 | 413B33-2 | 8.40 | 10.16 | |
| Cable harness VC002GL | ||||
| 011 | 638A19-1 | 4.80 | 5.81 | |
| Switch | ||||
| 012 | 651910-0 | 6.00 | 7.26 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 013 | 265B67-9 | 1.00 | 1.21 | |
| SWITCH HOLDER | ||||
| 014 | 451343-7 | 1.20 | 1.45 | |
| Switch VC002GL | ||||
| 015 | 650014-5 | 19.80 | 23.96 | |
| Lock Ring E12 | ||||
| 016 | 961062-2 | 1.00 | 1.21 | |
| Switchplate Base VC002GL | ||||
| 017 | 141F76-5 | 14.30 | 17.30 | |
| LABEL INDICATIE VC002 | ||||
| 017C10 | 8040N0-8 | 3.60 | 4.36 | |
| O-ring 14 | ||||
| 018 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 019 | 455733-6 | 2.40 | 2.90 | |
| Indicator label circuit VC001GL | ||||
| 020 | 620F40-4 | 14.30 | 17.30 | |
| Sub Controller DVC157L | ||||
| 021 | 620D39-7 | 8.40 | 10.16 | |
| Stopring E-7 | ||||
| 022 | 961013-5 | 1.00 | 1.21 | |
| O-ring 9 | ||||
| 023 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 024 | 451344-5 | 1.00 | 1.21 | |
| Battery Cover VC002GL | ||||
| 025 | 413B29-3 | 11.00 | 13.31 | |
| Compression spring 7 9629/39S * | ||||
| 026 | 231456-8 | 1.00 | 1.21 | |
| Battery Cover Hook VC001GL | ||||
| 027 | 413B30-8 | 2.40 | 2.90 | |
| Controller VC002GL | ||||
| 028 | 620F38-1 | 223.30 | 270.19 | |
| Cover cap VC001GL | ||||
| 029 | 422795-9 | 3.60 | 4.36 | |
| VC001GL complete exchanger | ||||
| 030 | 141F84-6 | 26.40 | 31.94 | |
| STOOTBUFFER E VC001GL | ||||
| 031 | 422802-8 | 1.20 | 1.45 | |
| STOOTBUFFER D VC001GL | ||||
| 032 | 422801-0 | 1.20 | 1.45 | |
| STOOTBUFFER B VC001GL | ||||
| 033 | 422799-1 | 2.40 | 2.90 | |
| Gasket A VC001GL | ||||
| 034 | 422804-4 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 035 | 265B67-9 | 1.00 | 1.21 | |
| Lower House VC001GL | ||||
| 036 | 413B31-6 | 11.00 | 13.31 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 037 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 038 | 265B67-9 | 1.00 | 1.21 | |
| Housing Set VC001GL | ||||
| 039 | 183U06-0 | 3.60 | 4.36 | |
| Cover cap VC001GL | ||||
| 040 | 413B40-5 | 2.40 | 2.90 | |
| Housing Set VC001GL | ||||
| 041 | 183U06-0 | 3.60 | 4.36 | |
| Push Rod Spring 4 VC001GL | ||||
| 042 | 232722-6 | 1.00 | 1.21 | |
| Circuit unit VC001GL | ||||
| 043 | 632T08-2 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 043-1 | 632W79-7 | |||
| Drilling lever VC001GL | ||||
| 044 | 413B41-3 | 1.20 | 1.45 | |
| Compression spring 2mm JR001G | ||||
| 045 | 232472-3 | 1.00 | 1.21 | |
| Ring VC001GL | ||||
| 046 | 422794-1 | 3.60 | 4.36 | |
| Motor Housing VC001GL | ||||
| 048 | 183U05-2 | 4.80 | 5.81 | |
| Motor Housing VC001GL | ||||
| 049 | 183U05-2 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 050 | 265B67-9 | 1.00 | 1.21 | |
| Parker Ck 2x6mm | ||||
| 051 | 266490-9 | 1.00 | 1.21 | |
| Controller B VC001GL | ||||
| 052 | 620F39-9 | 14.30 | 17.30 | |
| Field | ||||
| 053 | 629A83-3 | 11.00 | 13.31 | |
| Armature assembly VC001GL | ||||
| 054 | 619704-9 | 14.30 | 17.30 | |
| Phillips Head Screw M3X6 | ||||
| 055 | 652069-6 | 1.00 | 1.21 | |
| Cable harness VC001GL | ||||
| 056 | 632S88-2 | 6.00 | 7.26 | |
| Fan plate VC001GL | ||||
| 057 | 413B45-5 | 8.40 | 10.16 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 058 | 265B67-9 | 1.00 | 1.21 | |
| Intermediate Flange | ||||
| 059 | 313062-2 | 1.20 | 1.45 | |
| Fan 104 | ||||
| 060 | 240178-9 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 061 | 253752-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | 252268-6 | |||
| Fan Cover 104 | ||||
| 063 | 347171-5 | 4.80 | 5.81 | |
| Assist Ring VC001GL | ||||
| 064 | 422793-3 | 6.00 | 7.26 | |
| Block filter A VC001GL | ||||
| 065 | 422803-6 | 1.20 | 1.45 | |
| Block filter B VC001GL | ||||
| 066 | 422819-1 | 1.20 | 1.45 | |
| VC001GL complete cover | ||||
| 067 | 141F83-8 | 26.40 | 31.94 | |
| Impact Buffer A VC001GL | ||||
| 067C10 | 422798-3 | 3.60 | 4.36 | |
| Label XGT UB001G | ||||
| 068 | 8030S0-0 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 069 | 265B67-9 | 1.00 | 1.21 | |
| VC001GL Closure | ||||
| 070 | 162A10-2 | 9.60 | 11.62 | |
| Gasket VC001GL | ||||
| 071 | 422805-2 | 2.40 | 2.90 | |
| Lower Boiler VC001GL | ||||
| 072 | 413B22-7 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 073 | 266374-1 | |||
| HEPA FIJNSTOFFILTER STOFZUIGER | ||||
| 074 | 191V70-3 | 20.00 | 24.20 | |
| DEMPER STOFZUIGER | ||||
| 075 | 191V68-0 | 8.00 | 9.68 | |
| LINNEN VOORFILTER STOFZUIGER | ||||
| 077 | 191V69-8 | 26.00 | 31.46 | |
| No longer available, no replacement | ||||
| 078 | 266374-1 | |||
| Plate holder VC001GL | ||||
| 079 | 457853-2 | 2.40 | 2.90 | |
| Holder VC001GL | ||||
| 080 | 457852-4 | 2.40 | 2.90 | |
| Clamp | ||||
| 081 | 421468-1 | 1.00 | 1.21 | |
| Boiler VC001GL | ||||
| 082 | 457854-0 | 26.40 | 31.94 | |
| O-ring 56 | ||||
| 083 | 213655-4 | 2.40 | 2.90 | |
| Inlet VC001GL | ||||
| 084 | 457851-6 | 3.60 | 4.36 | |
| Buffer VC001GL | ||||
| 085 | 422176-7 | 17.60 | 21.30 | |
| Swivel wheel with brake 50mm | ||||
| 086 | 168535-8 | 7.20 | 8.71 | |
| Swivel wheel 50mm | ||||
| 087 | 168434-4 | 6.00 | 7.26 | |
| Earth Conductor | ||||
| 088 | 649150-2 | 3.60 | 4.36 | |
| Plug DHR400 | ||||
| 089 | 632L47-4 | 17.60 | 21.30 | |
| Cover DVC265 | ||||
| 090 | 140G18-2 | 3.60 | 4.36 | |
| O-ring 16 SP001G | ||||
| 090C10 | 213A05-9 | 1.00 | 1.21 | |
| Label cap DVC265 | ||||
| 090C20 | 818F57-1 | 2.40 | 2.90 | |
| Screw M3X6 | ||||
| 091 | 652031-1 | 1.00 | 1.21 | |
