Here you will find all available parts and drawings of the 'Makita UT120'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

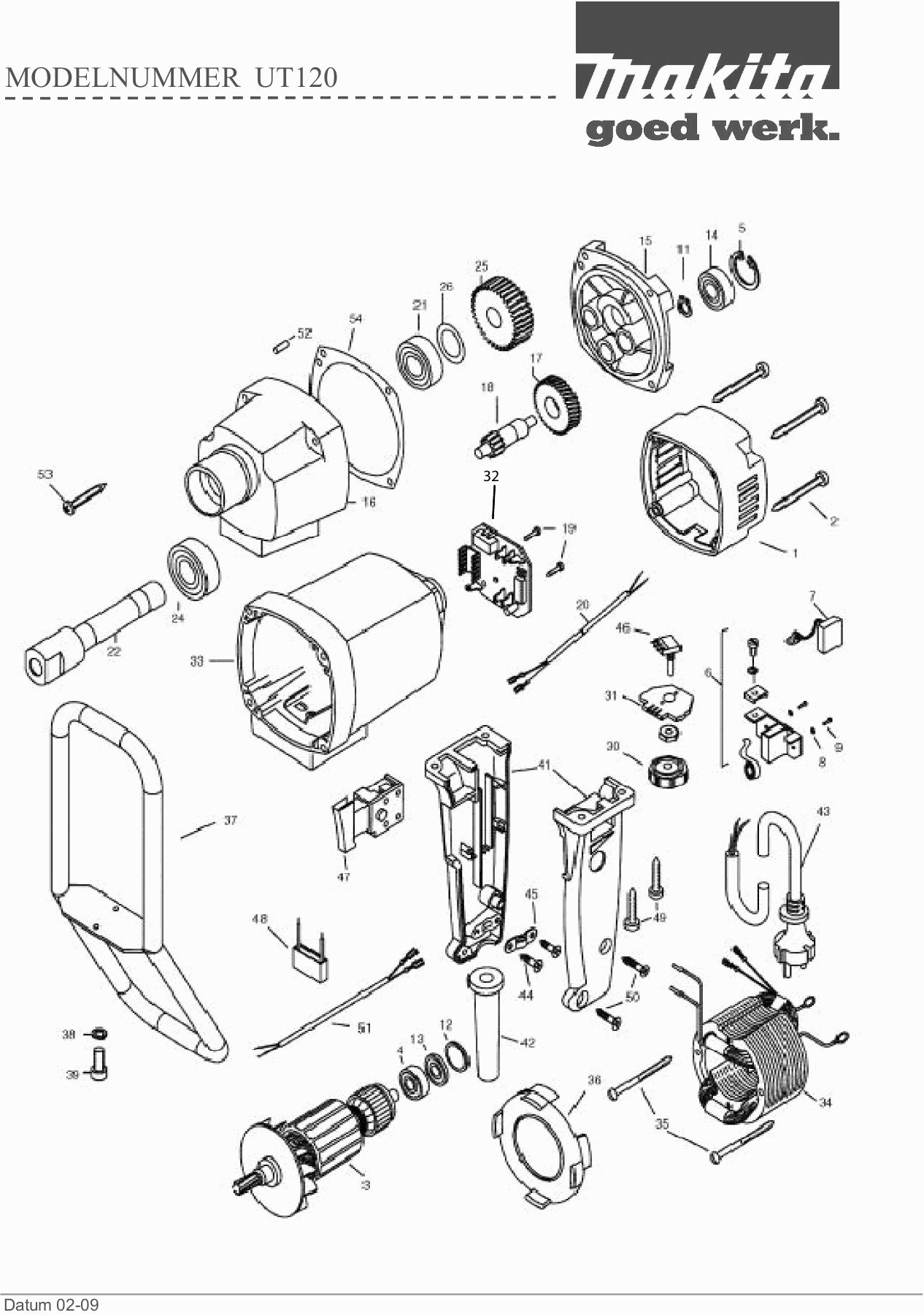

Technical drawing of model Makita UT120
Spare parts list of model Makita UT120
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Cover | ||||
| 001 | EE7132A240 | 8.40 | 10.16 | |
| Screw Ck 4,8x45 | ||||
| 002 | EE80201267 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 003 | EE77316100 | |||
| Ball bearing 608 2rs | ||||
| 004 | 210024-0 | 3.60 | 4.36 | |
| Stop ring R-28 | ||||
| 005 | 962116-8 | 1.20 | 1.45 | |
| Brush Holder | ||||
| 006 | EE80201196 | 17.60 | 21.30 | |
| Small carbon brush DBM080 A | ||||
| 007 | EE7132A22S | 17.60 | 21.30 | |
| Rivet 4mm * | ||||
| 008 | EE80201385 | 1.20 | 1.45 | |
| Screw Ck M4X12Mm * | ||||
| 009 | EE80201180 | 1.20 | 1.45 | |
| Locking Ring S-10 | ||||
| 011 | EE80201305 | 1.20 | 1.45 | |
| O-ring 22x2.5 | ||||
| 012 | EE83000036 | 1.20 | 1.45 | |
| Ring magnet | ||||
| 013 | EE80701005 | 8.40 | 10.16 | |
| Ball Bearing 6001zz | ||||
| 014 | 211148-5 | 8.40 | 10.16 | |
| Gear-box cover | ||||
| 015 | EE77318610 | 72.60 | 87.85 | |
| Gear Cover | ||||
| 016 | EE77318400 | 56.10 | 67.88 | |
| Gear | ||||
| 017 | EE74010470 | 39.60 | 47.92 | |
| Gear Shaft | ||||
| 018 | EE7731C490 | 56.10 | 67.88 | |
| Screw Ck 2.9X13Mm * | ||||
| 019 | EE80201252 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 020 | EE77314187 | 2.40 | 2.90 | |
| Ball Bearing 6003ddw | ||||
| 021 | 210301-0 | 6.00 | 7.26 | |
| Drive Shaft | ||||
| 022 | EE7731C420 | 63.80 | 77.20 | |
| Ball bearing | ||||
| 024 | 211256-2 | 8.10 | 9.80 | |
| Ball Bearing 6203zz | ||||
| 024 | 211290-2 | 6.38 | 7.72 | |
| Gear | ||||
| 025 | EE7731C430 | 72.60 | 87.85 | |
| Rivet 17mm | ||||
| 026 | EE80200507 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 030 | EE7132B230 | |||
| Intermediate Plate Ut120 A | ||||
| 031 | EE80901005 | 2.40 | 2.90 | |
| Controller | ||||
| 032 | EE80601132 | 88.00 | 106.48 | |
| Motor Housing | ||||
| 033 | EE80900170 | 26.40 | 31.94 | |
| Field | ||||
| 034 | EE77316150 | 51.70 | 62.56 | |
| Screw Ck3,9x60 | ||||
| 035 | EE80201266 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 036 | EE7132A140 | 3.60 | 4.36 | |
| Handle Bracket | ||||
| 037 | EE80200051 | 25.00 | 30.25 | |
| Spring Washer 6 | ||||
| 038 | EE80201303 | 1.20 | 1.45 | |
| Screw Vk 6x12 | ||||
| 039 | EE80201209 | 1.20 | 1.45 | |
| Handle Cover | ||||
| 041 | EE80900101 | 15.40 | 18.63 | |
| Cable sleeve DRP 18 | ||||
| 042 | EE83000004 | 6.00 | 7.26 | |
| Power cord 2x1.50 4.0mtr | ||||
| 043 | 695123-3 | 22.00 | 26.62 | |
| Screw Ck 4,2x13 | ||||
| 044 | EE80201270 | 1.20 | 1.45 | |
| Strain reliever | ||||
| 045 | EE71540330 | 1.20 | 1.45 | |
| Speed Controller | ||||
| 046 | EE80500020 | 12.10 | 14.64 | |
| No information available, not orderable | ||||
| 047 | EE80600125 | |||
| Capacitor | ||||
| 048 | EE80500010 | 10.80 | 13.07 | |
| Ck Screw 4.8x22 | ||||
| 049 | EE80201280 | 1.20 | 1.45 | |
| Screw Ck 4.2x16 | ||||
| 050 | EE80201271 | 1.00 | 1.21 | |
| Connecting cable | ||||
| 051 | EE77316186 | 3.60 | 4.36 | |
| Pin 4 | ||||
| 052 | EE80200582 | 1.20 | 1.45 | |
| Ck Screw 4.8X55Mm * | ||||
| 053 | EE80201284 | 1.20 | 1.45 | |
| Seal Packing | ||||
| 054 | EE77324620 | 2.40 | 2.90 | |
