Here you will find all available parts and drawings of the 'Makita UR3501'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

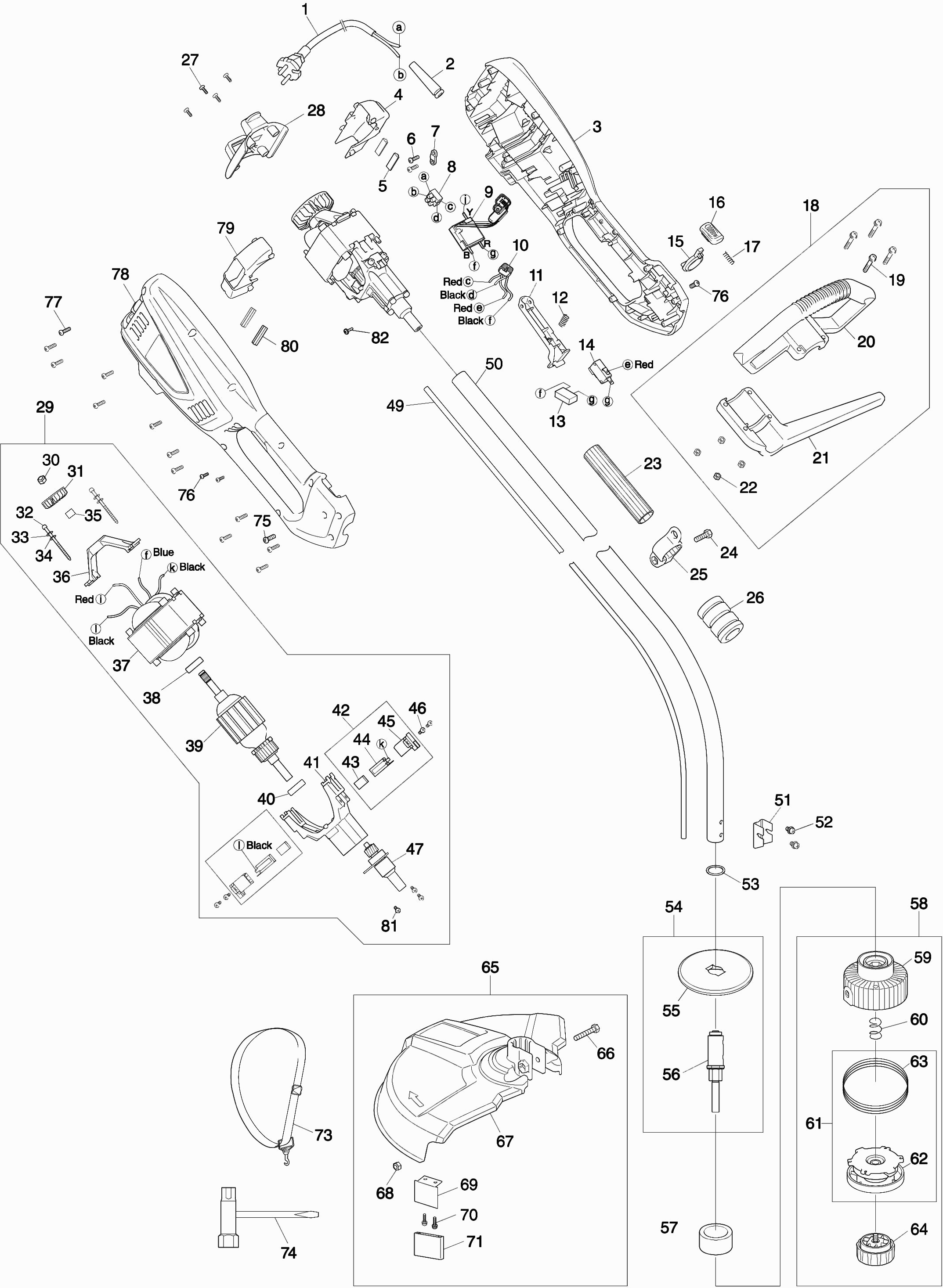

Technical drawing of model Makita UR3501
Spare parts list of model Makita UR3501
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Power cord 2x1.00 0.3mtr | ||||
| 001 | 665877-6 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 002 | YA00000516 | |||
| Housing | ||||
| 003 | YA00000660 | 30.69 | 37.13 | |
| Fan housing left | ||||
| 004 | YA00000562 | 1.20 | 1.45 | |
| Support | ||||
| 005 | YA00000514 | 0.83 | 1.00 | |
| Tap Screw | ||||
| 006 | YA00000618 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 007 | YA00000547 | |||
| Crown connector Et101C | ||||
| 008 | YA00000501 | 0.83 | 1.00 | |
| Connection Unit Et101c | ||||
| 009 | YA00000643 | 18.20 | 22.02 | |
| Coil | ||||
| 010 | YA00000499 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 011 | YA00000554 | |||
| Spring | ||||
| 012 | YA00000513 | 0.83 | 1.00 | |
| Capacitor | ||||
| 013 | YA00000498 | 1.00 | 1.21 | |
| Switch | ||||
| 014 | YA00000555 | 2.36 | 2.86 | |
| No information available, not orderable | ||||
| 015 | YA00000539 | |||
| Pushing Button | ||||
| 016 | YA00000525 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 017 | YA00000511 | 0.83 | 1.00 | |
| Handle "d" | ||||
| 018 | YA00000620 | 11.82 | 14.30 | |
| Truss head screw | ||||
| 019 | YA00000621 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 020 | YA00000564 | |||
| No information available, not orderable | ||||
| 021 | YA00000563 | |||
| Retaining ring m5 | ||||
| 022 | YA00000622 | 0.83 | 1.00 | |
| Insulation Tubing | ||||
| 023 | YA00000623 | 1.39 | 1.68 | |
| Met.screw ck M6x20mm | ||||
| 024 | YA00000624 | 0.83 | 1.00 | |
| Lifting Eye | ||||
| 025 | YA00000541 | 1.67 | 2.02 | |
| Damping Ring | ||||
| 026 | YA00000521 | 3.12 | 3.78 | |
| Parker | ||||
| 027 | YA00000453 | 0.83 | 1.00 | |
| Parker | ||||
| 027 | YA00000625 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 028 | YA00000560 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 029 | YA00000626 | |||
| Lock Nut M6 | ||||
| 030 | YA00000627 | 0.83 | 1.00 | |
| Fan | ||||
| 031 | YA00000507 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 032 | YA00000538 | |||
| Washer Spring | ||||
| 033 | YA00000523 | 0.83 | 1.00 | |
| Washer | ||||
| 034 | YA00000524 | 0.83 | 1.00 | |
| Bushing | ||||
| 035 | YA00000531 | 1.00 | 1.21 | |
| Rear Support | ||||
| 036 | YA00000526 | 3.11 | 3.76 | |
| Field Winding | ||||
| 037 | YA00000505 | 25.36 | 30.69 | |
| No information available, not orderable | ||||
| 038 | YA00000431 | |||
| Armature | ||||
| 039 | YA00000658 | 48.40 | 58.56 | |
| Bearing | ||||
| 040 | YA00000430 | 3.44 | 4.16 | |
| Front support | ||||
| 041 | YA00000629 | 13.83 | 16.73 | |
| Carbon brush set Et101c | ||||
| 042 | YA00000489 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 043 | YA00000504 | |||
| No information available, not orderable | ||||
| 044 | YA00000502 | |||
| No information available, not orderable | ||||
| 045 | YA00000503 | |||
| Screw,M4x12 | ||||
| 046 | YA00000630 | 0.83 | 1.00 | |
| Drive Shaft | ||||
| 047 | YA00000483 | 17.38 | 21.03 | |
| Spindle | ||||
| 049 | YA00000551 | 8.21 | 9.93 | |
| Steel | ||||
| 050 | YA00000495 | 30.70 | 37.15 | |
| Mounting Plate | ||||
| 051 | YA00000527 | 1.18 | 1.43 | |
| Screw Set | ||||
| 052 | YA00000647 | 0.83 | 1.00 | |
| Washer | ||||
| 053 | YA00000534 | 0.83 | 1.00 | |
| Drive shaft complete | ||||
| 054 | YA00000485 | 20.15 | 24.38 | |
| No information available, not orderable | ||||
| 055 | YA00000432 | |||
| No information available, not orderable | ||||
| 056 | YA00000482 | |||
| Keerring | ||||
| 057 | YA00000568 | 0.83 | 1.00 | |
| Draadkop 2x2,0 T+G | ||||
| 058 | YA00000649 | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 059 | YA00000650 | |||
| No information available, not orderable | ||||
| 060 | YA00000512 | |||
| No information available, not orderable | ||||
| 061 | YA00000651 | |||
| No information available, not orderable | ||||
| 062 | YA00000476 | |||
| No information available, not orderable | ||||
| 063 | YA00000635 | |||
| No information available, not orderable | ||||
| 064 | YA00000652 | |||
| Guard | ||||
| 065 | YA00000653 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 066 | YA00000654 | |||
| No information available, not orderable | ||||
| 067 | YA00000544 | |||
| Lock Nut M6 | ||||
| 068 | YA00000627 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 069 | YA00000529 | |||
| Locking Screw | ||||
| 070 | YA00000655 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 071 | YA00000518 | |||
| Carrying cord | ||||
| 073 | YA00000639 | 4.24 | 5.13 | |
| No information available, not orderable | ||||
| 074 | YA00000437 | |||
| No information available, not orderable | ||||
| 075 | YA00000640 | |||
| Self-Cutting Screw | ||||
| 076 | YA00000641 | 0.83 | 1.00 | |
| Parker St4,2 | ||||
| 077 | YA00000656 | 0.83 | 1.00 | |
| Housing | ||||
| 078 | YA00000660 | 30.69 | 37.13 | |
| Right fan housing | ||||
| 079 | YA00000561 | 0.83 | 1.00 | |
| Support | ||||
| 080 | YA00000514 | 0.83 | 1.00 | |
| Screw,M4x12 | ||||
| 081 | YA00000630 | 0.83 | 1.00 | |
| Met.Screw M3 | ||||
| 082 | YA00000657 | 0.83 | 1.00 | |
