Here you will find all available parts and drawings of the 'Makita UR180D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

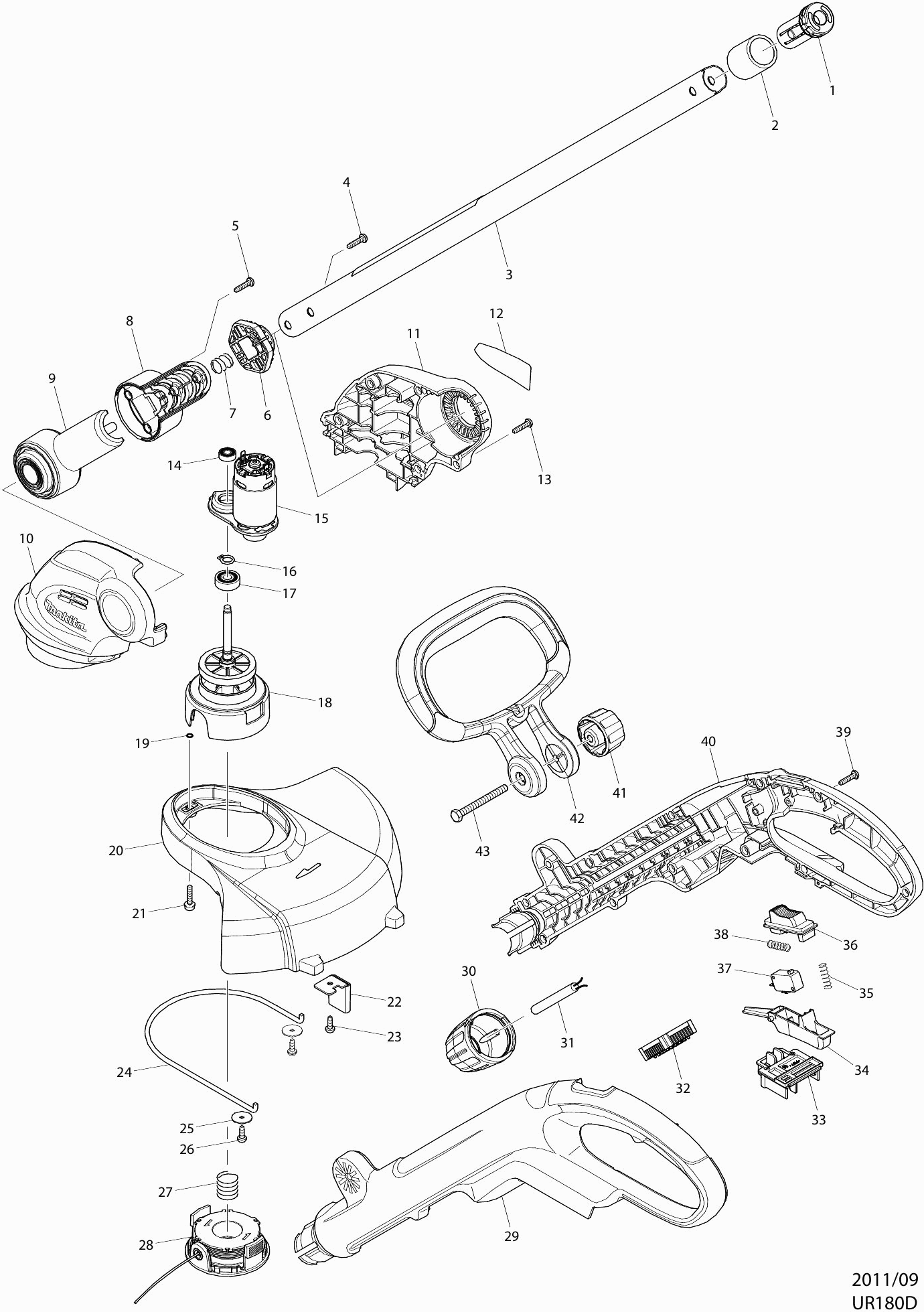

Technical drawing of model Makita UR180D
Spare parts list of model Makita UR180D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Covering hood | ||||
| 001 | 453357-2 | 1.20 | 1.45 | |
| Rubber Sleeve | ||||
| 002 | 422089-2 | 2.40 | 2.90 | |
| Rod cpl | ||||
| 003 | 141339-3 | 10.80 | 13.07 | |
| Warning Label | ||||
| 003A | 890862-2 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Pushing Button | ||||
| 006 | 451896-6 | 3.60 | 4.36 | |
| Compression spring 12 | ||||
| 007 | 231113-8 | 1.00 | 1.21 | |
| Steel Holder | ||||
| 008 | 188870-8 | 9.60 | 11.62 | |
| Steel Holder | ||||
| 009 | 188870-8 | 9.60 | 11.62 | |
| Motor Housing Set | ||||
| 010 | 187411-7 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 010A | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 010B | 263005-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 010C | 931102-0 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 011 | 187411-7 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 011A | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 011B | 263005-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 011C | 931102-0 | 1.00 | 1.21 | |
| Nameplate Ur180D | ||||
| 012 | 896747-0 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 014 | 210026-6 | 2.40 | 2.90 | |
| Motor 18v | ||||
| 015 | 629932-8 | 16.50 | 19.96 | |
| Lock ring S-8 | ||||
| 016 | 961004-6 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 017 | 210046-0 | 1.20 | 1.45 | |
| Gear Shaft | ||||
| 018 | 141338-5 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 018A | 227283-9 | |||
| No information available, not orderable | ||||
| 018B | 266744-4 | |||
| No information available, not orderable | ||||
| 018C | 326159-8 | |||
| No information available, not orderable | ||||
| 018D | 453360-3 | |||
| O-ring 4 | ||||
| 019 | 213023-1 | 1.00 | 1.21 | |
| Guard | ||||
| 020 | 453355-6 | 7.20 | 8.71 | |
| Hexagon socket screw M4x20 Ck | ||||
| 021 | 922138-0 | 1.00 | 1.21 | |
| Wire Cutter | ||||
| 022 | 123169-4 | 1.20 | 1.45 | |
| Screw 4x12 | ||||
| 023 | 265C54-4 | 1.00 | 1.21 | |
| Guide Piece | ||||
| 024 | 326128-9 | 2.40 | 2.90 | |
| 4 Washer | ||||
| 025 | 267071-2 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 026 | 265C54-4 | 1.00 | 1.21 | |
| Compression Spring 17 | ||||
| 027 | 231352-0 | 1.00 | 1.21 | |
| GEVULDE DRAADSPOEL 1X1,65 CLICK SYSTEEM | ||||
| 028 | 191Y39-5 | 7.00 | 8.47 | |
| Set Of Handles | ||||
| 029 | 187259-7 | 17.60 | 21.30 | |
| Locking Ring | ||||
| 030 | 453344-1 | 2.40 | 2.90 | |
| KABEL AT1826H A | ||||
| 031 | 699058-0 | 14.30 | 17.30 | |
| Kabel At1826H A | ||||
| 031 | 660260-2 | 7.21 | 8.72 | |
| No information available, not orderable | ||||
| 032 | 620111-1 | |||
| Connection unit | ||||
| 033 | 643862-9 | 3.60 | 4.36 | |
| Rotary knob ABB OHYS2AJ | ||||
| 034 | 453338-6 | 1.20 | 1.45 | |
| Compression spring 6mm | ||||
| 035 | 233068-3 | 1.00 | 1.21 | |
| Safety Lock Button | ||||
| 036 | 453339-4 | 1.20 | 1.45 | |
| Switch D3V-16-3C26 A | ||||
| 037 | 650744-8 | 2.40 | 2.90 | |
| Compression spring 6mm | ||||
| 038 | 233068-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Set Of Handles | ||||
| 040 | 187259-7 | 17.60 | 21.30 | |
| Star Knob M6 | ||||
| 041 | 264072-1 | 1.20 | 1.45 | |
| Handle | ||||
| 042 | 453342-5 | 8.40 | 10.16 | |
| Hex head bolt M6x60mm | ||||
| 043 | 921382-6 | 1.20 | 1.45 | |
