Here you will find all available parts and drawings of the 'Makita UR100D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

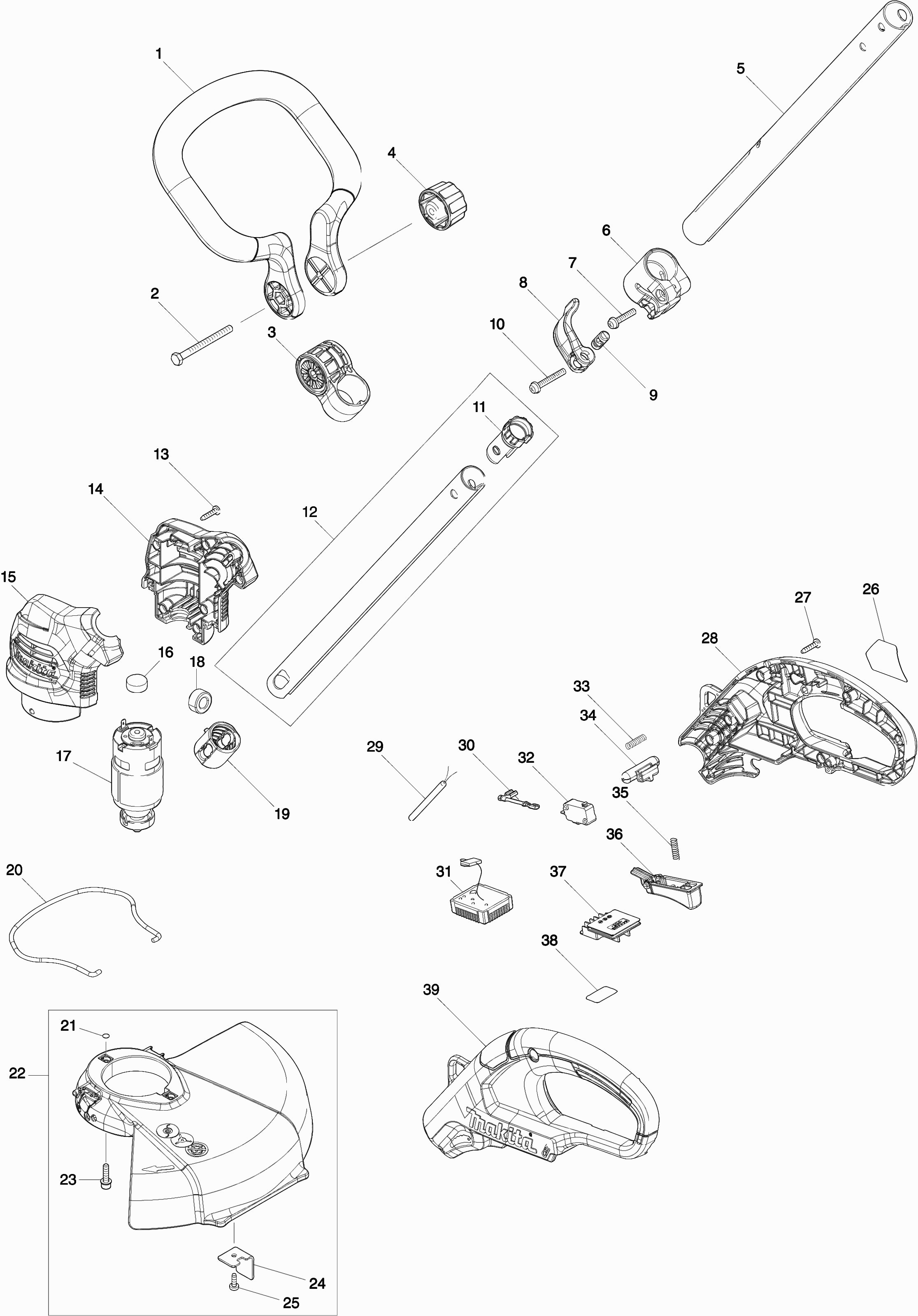

Technical drawing of model Makita UR100D
Spare parts list of model Makita UR100D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle Ur100D | ||||
| 001 | 458505-8 | 8.40 | 10.16 | |
| Nut bolt M6X65mm | ||||
| 002 | 921387-6 | 1.00 | 1.21 | |
| Handle holder Ur100D | ||||
| 003 | 458260-2 | 2.40 | 2.90 | |
| Star Knob M6 | ||||
| 004 | 264072-1 | 1.20 | 1.45 | |
| Steel A 28Mm Top Ur100 | ||||
| 005 | 144939-8 | 10.80 | 13.07 | |
| Warning Label | ||||
| 005C10 | 808723-2 | 2.40 | 2.90 | |
| Warning label UR100D | ||||
| 005C20 | 816F56-7 | 2.40 | 2.90 | |
| Bus 28mm Ur100D | ||||
| 006 | 458256-3 | 2.40 | 2.90 | |
| Hex lock nut 5x8 | ||||
| 006C10 | 252103-8 | 1.20 | 1.45 | |
| Screw 5x25 | ||||
| 007 | 911243-8 | 1.00 | 1.21 | |
| Clamping Bracket Ur100D | ||||
| 008 | 458257-1 | 1.20 | 1.45 | |
| Pin 9mm Ur100D | ||||
| 009 | 319667-6 | 2.40 | 2.90 | |
| Screw 5x36 | ||||
| 010 | 911258-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 011 | 458258-9 | |||
| Steel 24mm assy UR100 | ||||
| 012 | 135952-7 | 13.20 | 15.97 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 013 | 265B67-9 | 1.00 | 1.21 | |
| Motor Housing Ur100D | ||||
| 014 | 183H91-5 | 8.40 | 10.16 | |
| Motor Housing Ur100D | ||||
| 015 | 183H91-5 | 8.40 | 10.16 | |
| Cover Dbp181D | ||||
| 016 | 421940-3 | 1.00 | 1.21 | |
| Dc Motor 10,8V Ur100D | ||||
| 017 | 629315-2 | 22.00 | 26.62 | |
| Line filter | ||||
| 018 | 688131-1 | 1.00 | 1.21 | |
| Rubber bushing 24 | ||||
| 019 | 424567-8 | 2.40 | 2.90 | |
| Guide Ur100D | ||||
| 020 | 327065-0 | 1.67 | 2.02 | |
| O-ring 5 | ||||
| 021 | 213021-5 | 1.00 | 1.21 | |
| Protector Cap Ur100D | ||||
| 022 | 135950-1 | 8.40 | 10.16 | |
| Allen Screw M5X20 | ||||
| 023 | 922234-4 | 1.00 | 1.21 | |
| Draad snijder UR100D | ||||
| 024 | 346555-4 | 1.20 | 1.45 | |
| Screw 4x12 | ||||
| 025 | 265C54-4 | 1.00 | 1.21 | |
| Tapping screw 4X12 Ms246.4 | ||||
| 025 | 266427-6 | 0.83 | 1.00 | |
| Nameplate UR100D | ||||
| 026 | 854A93-3 | 3.60 | 4.36 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 027 | 265B67-9 | 1.00 | 1.21 | |
| Handle Set Ur100D | ||||
| 028 | 183H89-2 | 16.50 | 19.96 | |
| Rubber Pin 4 | ||||
| 028C10 | 263002-9 | 1.00 | 1.21 | |
| Cable Ur100D | ||||
| 029 | 699113-8 | 8.40 | 10.16 | |
| Wire Harness Ur100 | ||||
| 030 | 632L22-0 | 1.20 | 1.45 | |
| Controller Ur100D | ||||
| 031 | 620780-8 | 28.60 | 34.61 | |
| Switch D3V-16-3C26 A | ||||
| 032 | 650744-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 033 | 231473-8 | |||
| Lock button Uh200D A | ||||
| 034 | 452438-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 035 | 231473-8 | |||
| Switch Handle Ur100 | ||||
| 036 | 458259-7 | 1.20 | 1.45 | |
| Connection unit | ||||
| 037 | 644813-5 | 2.40 | 2.90 | |
| Serial number label UR100D | ||||
| 038 | 854B01-0 | 2.40 | 2.90 | |
| Handle Set Ur100D | ||||
| 039 | 183H89-2 | 16.50 | 19.96 | |
| Rubber Pin 4 | ||||
| 039C10 | 263002-9 | 1.00 | 1.21 | |
