Here you will find all available parts and drawings of the 'Makita UR017GZ'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

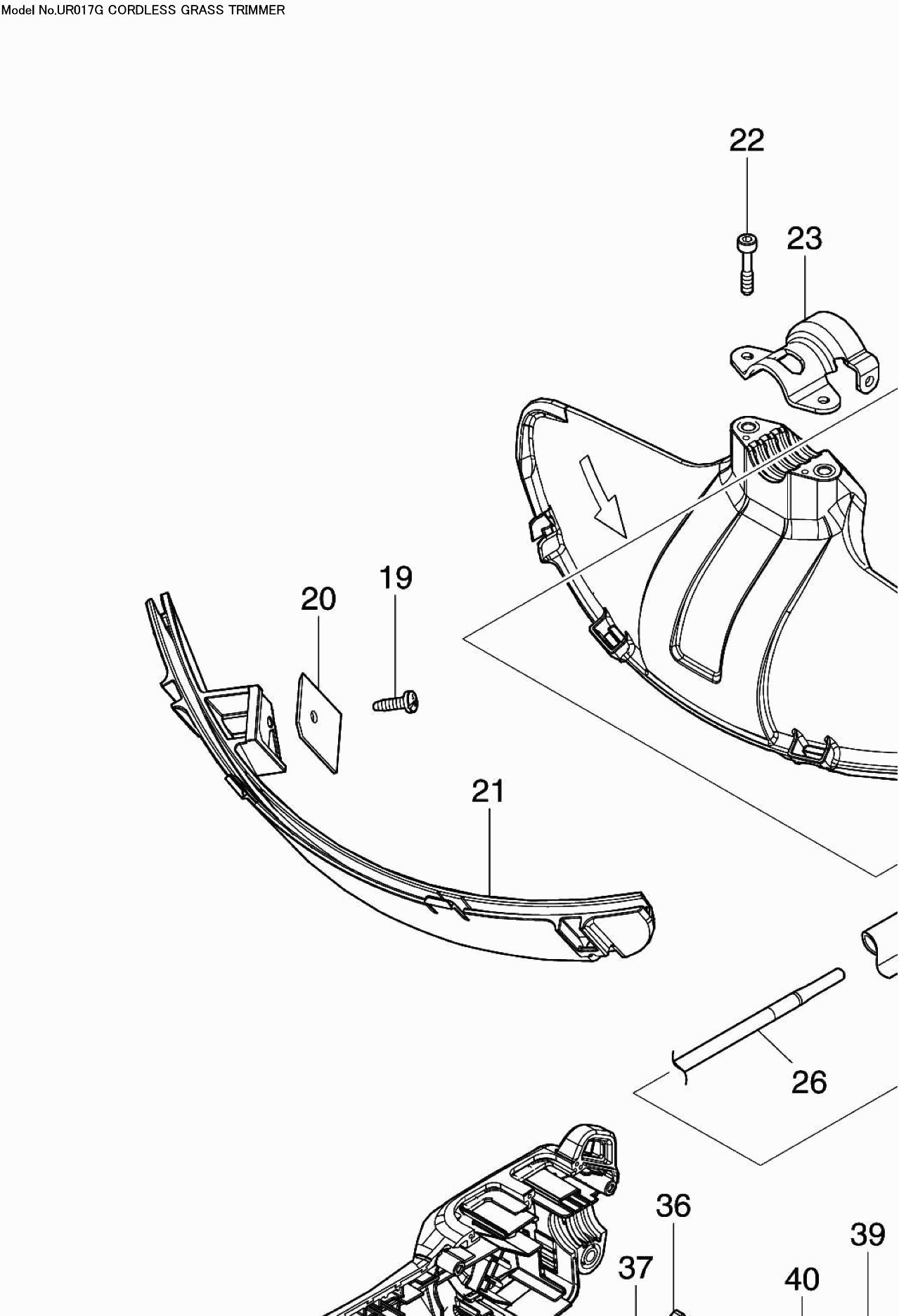

Technical drawing of model Makita UR017GZ

Spare parts list of model Makita UR017GZ

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Tandwielhuis assy G UR016
001 126840-9 31.93 38.64
No information available, not orderable
002 259072-4
No information available, not orderable
003 259071-6
No information available, not orderable
004 210157-1
No information available, not orderable
005 136949-9
Metal screw Ck M8x10mm
007 265590-2 0.83 1.00
No information available, not orderable
008 210180-6
No information available, not orderable
009 226184-8
No information available, not orderable
010 136973-2
Ball Bearing 6001llu
011 211138-8 4.45 5.38
No information available, not orderable
012 257456-0
No information available, not orderable
013 140A87-7
Locking Ring EM408MP
014 347766-4 4.03 4.88
EM408MP Cover Ring
015 413201-5 3.59 4.34
Nut M10-17
016 252236-9 3.11 3.76
Allen bolt 5x14
017 922216-6 0.83 1.00
Hexagon Bolt
018 922242-5 0.83 1.00
Tapping screw 5x16mm
019 266388-0 0.83 1.00
Thread Cutter Em405Mp
020 347115-5 1.99 2.41
Protection edge Maaikop EM408MP
021 140X35-4 6.41 7.76
Hex bolt M5X25 Em404Mp
022 251513-6 0.83 1.00
Clamp for Protection Cap Em403Mp
023 347107-4 2.38 2.88
Protector cap EM408MP
024 412969-0 8.27 10.01
Steel cpl UR016/17G
025 141N92-5 24.22 29.31
Makita logo label
025C10 819312-8 2.71 3.28
Warning label UR012G
025C20 8040V7-0 0.83 1.00
As UR016/17G
026 327B90-3 12.19 14.75
Allen Screw M5X20
027 922234-4 0.83 1.00
Complete Lever Dux60
028 144315-6 3.54 4.28
No information available, not orderable
028C10 911128-8
Handle D DUR368L
029 457267-5 11.84 14.33
Rubber pen 6
029C10 263005-3 0.83 1.00
Clamp Bracket 35, Top
030 347113-9 0.83 1.00
Damper Dux60
031 424942-8 1.18 1.43
Pipe holder Dux60
032 457269-1 1.39 1.68
Clamp Bracket 35, Bottom
033 347114-7 1.18 1.43
Wing Screw M5x25mm
034 922244-1 0.97 1.17
Spacer
035 451601-1 2.02 2.44
Schakelaar UR013/014G
036 632U36-3 7.80 9.44
Lock lever DUR369N
037 459759-0 1.18 1.43
Compression Spring 4
038 233101-1 0.83 1.00
No information available, not orderable
039 141D26-8
Schakelaarcircuit G UR101C
040 140W06-5 15.60 18.88
Label A/U DUR369A
040C10 819J26-9 2.38 2.88
Schakelaar UR013/014G
041 632U35-5 10.08 12.20
Schakelaarhandel UR017
042 413P50-6 0.83 1.00
Torsion spring 12
043 233622-3 0.83 1.00
Handgreepset UR017
044 183X78-3 14.50 17.54
No information available, not orderable
045 266326-2
No information available, not orderable
046 922233-6
Handgreepset UR017
047 183X78-3 14.50 17.54
Controller UR017
049 620L56-5 115.29 139.50
Phillips Head Screw M3X6
050 652069-6 0.83 1.00
Parker Ck 2x6mm
051 266490-9 0.83 1.00
No information available, not orderable
052 632P76-1
Motorhuisset UR016/17
053 183X80-6 4.88 5.90
Hex Nut M5
053C10 931202-6 0.83 1.00
Wire harness DUX18
054 632R79-7 0.83 1.00
Ball bearing 6001ZZ DUX18
055 210244-6 2.38 2.88
Axis Hub DUX18
056 327719-9 3.11 3.76
Gear 33 DUX18
057 227848-7 3.59 4.34
Ball bearing 6901ZZ DUX18
058 210243-8 1.20 1.45
No information available, not orderable
059 213925-1
No information available, not orderable
060 227A68-9
Ball Bearing 627Zz A
061 210050-9 0.98 1.19
Anker UR016/17G
062 519814-1 18.56 22.46
Ball bearing 625zz
063 211007-3 5.71 6.91
Field DHR281/283
064 629340-3 11.82 14.30
Allen Screw M5X20
065 922234-4 0.83 1.00
Allen bolt 5x14
066 922216-6 0.83 1.00
Motorhuisset UR016/17
067 183X80-6 4.88 5.90
Hex Nut M5
067C10 931202-6 0.83 1.00
No information available, not orderable
068 266326-2
Behuizingset UR016/17
070 183Y16-1 11.32 13.70
Rubber pen 6
070C10 263005-3 0.83 1.00
Label XGT HS004G
070C20 8012U4-2 0.83 1.00
Cap, -Closure Dga700
072 422230-7 0.83 1.00
Screw 4x20
073 266420-0 0.83 1.00
Valbeugel UR016/017G
074 347B26-6 6.46 7.82
No information available, not orderable
075 266326-2
Behuizingset UR016/17
076 183Y16-1 11.32 13.70
Rubber pen 6
076C10 263005-3 0.83 1.00
Label XGT HS004G
076C20 8012U4-2 0.83 1.00
Naamplaat UR017G
078 8587W6-3 0.83 1.00
Label serienr. UR017G
079 8587X0-2 0.83 1.00
