Here you will find all available parts and drawings of the 'Makita UR013G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

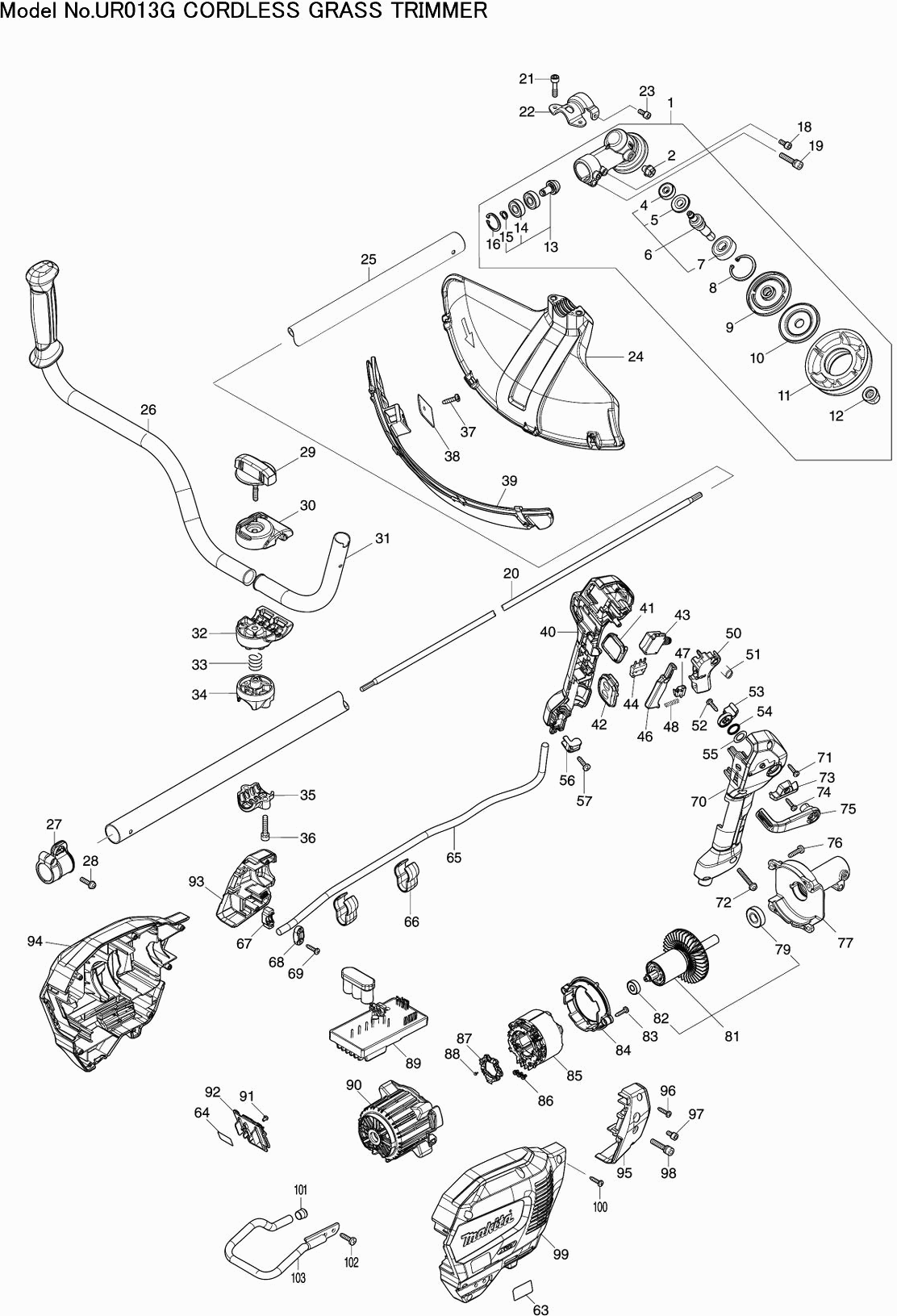

Technical drawing of model Makita UR013G
Spare parts list of model Makita UR013G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GEAR SET G UR013G | ||||
| 001 | 122D71-2 | 38.50 | 46.58 | |
| Metal screw Ck M8x10mm | ||||
| 002 | 265590-2 | 1.00 | 1.21 | |
| Ball Bearing 627Zz A | ||||
| 004 | 210050-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 005 | 226988-8 | |||
| SHAFT ASSY UR013G | ||||
| 006 | 136923-7 | 11.00 | 13.31 | |
| Ball bearing 6202llb | ||||
| 007 | 211228-7 | 8.40 | 10.16 | |
| Locking ring ext R-35 EM408MP | ||||
| 008 | 259069-3 | 1.00 | 1.21 | |
| Protective Ring EM408MP | ||||
| 009 | 140N88-3 | 4.80 | 5.81 | |
| Locking Ring EM408MP | ||||
| 010 | 347766-4 | 4.80 | 5.81 | |
| EM408MP Cover Ring | ||||
| 011 | 413201-5 | 3.60 | 4.36 | |
| Nut M10-17 | ||||
| 012 | 252236-9 | 3.60 | 4.36 | |
| GEAR SET ASSY UR013G | ||||
| 013 | 136922-9 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 014 | 210157-1 | |||
| No information available, not orderable | ||||
| 015 | 259071-6 | |||
| No information available, not orderable | ||||
| 016 | 259072-4 | |||
| Allen bolt 5x14 | ||||
| 018 | 922216-6 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 019 | 922353-6 | 1.00 | 1.21 | |
| AANDRIJVING UR013G | ||||
| 020 | 326205-7 | 15.40 | 18.63 | |
| Allen Screw m6x25 | ||||
| 021 | 266280-0 | 1.00 | 1.21 | |
| MONTAGEKLEM 25MM UR013/014G | ||||
| 022 | 347B13-5 | 2.40 | 2.90 | |
| Allen bolt 5x14 | ||||
| 023 | 922216-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 024 | 413P07-7 | |||
| Handle A complete UR013G | ||||
| 025 | 141N28-4 | 26.40 | 31.94 | |
| Makita logo label | ||||
| 025C10 | 819312-8 | 2.40 | 2.90 | |
| Warning label UR012G | ||||
| 025C20 | 8040V7-0 | 2.40 | 2.90 | |
| Handgreep 22L UR006/7G | ||||
| 026 | 141D27-6 | 14.30 | 17.30 | |
| Handle 36 UR006G | ||||
| 026C10 | 273014-4 | 4.80 | 5.81 | |
| Hanger UR013G | ||||
| 027 | 141N34-9 | 3.60 | 4.36 | |
| Hex Nut M5 | ||||
| 027C10 | 931202-6 | 1.00 | 1.21 | |
| Screw Vk 20mm | ||||
| 028 | 911233-1 | 1.00 | 1.21 | |
| Knob 57 UR002G | ||||
| 029 | 162965-5 | 6.00 | 7.26 | |
| Upper Handle Holder UR101C | ||||
| 030 | 144313-0 | 4.80 | 5.81 | |
| Rubber pen 6 | ||||
| 030C10 | 263005-3 | 1.00 | 1.21 | |
| Handle 22 UR006G | ||||
| 031 | 327837-3 | 4.80 | 5.81 | |
| Handle Holder below UR101C | ||||
| 032 | 319517-5 | 4.80 | 5.81 | |
| Pressure spring 16 | ||||
| 033 | 233309-7 | 2.40 | 2.90 | |
| BUISKLEM 25MM A UR013G | ||||
| 034 | 312D92-4 | 4.80 | 5.81 | |
| BUISKLEM 25MM B UR013G | ||||
| 035 | 312D93-2 | 3.60 | 4.36 | |
| Hex bolt 6x30 | ||||
| 036 | 922351-0 | 1.00 | 1.21 | |
| Tapping screw 5x16mm | ||||
| 037 | 266388-0 | 1.00 | 1.21 | |
| Thread Cutter Em405Mp | ||||
| 038 | 347115-5 | 2.40 | 2.90 | |
| Protective Edge Mowing Head Em403Mp | ||||
| 039 | 144316-4 | 8.40 | 10.16 | |
| Clamp Spring | ||||
| 039C10 | 346696-6 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 039C20 | 232284-4 | 1.00 | 1.21 | |
| HANDGREEPSET UR013G P | ||||
| 040 | 183X45-8 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 040-1 | 1831W8-7 | |||
| Lock Nut M5 DUR369A | ||||
| 040C10 | 252180-0 | 1.00 | 1.21 | |
| CIRCUIT E UR013G | ||||
| 041 | 141N49-6 | 17.60 | 21.30 | |
| SWITCH CIRCUIT G UR013G | ||||
| 042 | 141N45-4 | 14.30 | 17.30 | |
| LABEL A/U UR013G | ||||
| 042C10 | 8064D7-4 | 2.40 | 2.90 | |
| Switch UR002/3G | ||||
| 043 | 651492-2 | 14.30 | 17.30 | |
| SCHAKELAAR UR013/014G | ||||
| 044 | 632U35-5 | 10.80 | 13.07 | |
| Lock lever DUR369A | ||||
| 046 | 459146-3 | 3.60 | 4.36 | |
| SCHAKELAAR UR013/014G | ||||
| 047 | 632U36-3 | 8.40 | 10.16 | |
| Compression Spring 4 | ||||
| 048 | 233101-1 | 1.00 | 1.21 | |
| SCHAKELHENDEL UR013G | ||||
| 050 | 413N90-2 | 1.20 | 1.45 | |
| Torsion spring 12 | ||||
| 051 | 233622-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 051-1 | 232838-7 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 052 | 265B67-9 | 1.00 | 1.21 | |
| VEILIGHEIDSKNOP UR013G | ||||
| 053 | 413N92-8 | 1.00 | 1.21 | |
| O-ring 14 | ||||
| 054 | 213154-6 | 1.00 | 1.21 | |
| Rivet 13 | ||||
| 055 | 253798-0 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 056 | 687260-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 057 | 265B67-9 | 1.00 | 1.21 | |
| NAAMPLAAT UR013G | ||||
| 063 | 8585U1-7 | 1.00 | 1.21 | |
| LABEL SERIENR. UR013G | ||||
| 064 | 8585V0-6 | 2.40 | 2.90 | |
| CONTROLEKABEL UR013G | ||||
| 065 | 699218-4 | 14.30 | 17.30 | |
| Cable clamp DUR369A | ||||
| 066 | 457458-8 | 1.20 | 1.45 | |
| Terminal Strip * | ||||
| 067 | 687051-6 | 1.20 | 1.45 | |
| Clamp Bracket | ||||
| 068 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 069 | 265B67-9 | 1.00 | 1.21 | |
| HANDGREEPSET UR013G P | ||||
| 070 | 183X45-8 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 070-1 | 1831W8-7 | |||
| Lock Nut M5 DUR369A | ||||
| 070C10 | 252180-0 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 071 | 265B67-9 | 1.00 | 1.21 | |
| Screw 5x36 | ||||
| 072 | 911258-5 | 1.00 | 1.21 | |
| AFSCHERMKAP UR013G | ||||
| 073 | 413P02-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 074 | 265B67-9 | 1.00 | 1.21 | |
| CONTROLE HANDEL UR013G | ||||
| 075 | 413N91-0 | 1.20 | 1.45 | |
| Screw 4x20 | ||||
| 076 | 266420-0 | 1.00 | 1.21 | |
| FRONT HOUSING UR013/014G | ||||
| 077 | 136862-1 | 10.80 | 13.07 | |
| Rubber Pin 4 | ||||
| 077C10 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 6001ZZ DUX18 | ||||
| 079 | 210244-6 | 2.40 | 2.90 | |
| ANKER UR013G | ||||
| 081 | 519794-1 | 57.20 | 69.21 | |
| Ball bearing 607Zz A | ||||
| 082 | 211382-7 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 083 | 265B67-9 | 1.00 | 1.21 | |
| TUSSENPLAAT UR013/014G | ||||
| 084 | 413N96-0 | 2.40 | 2.90 | |
| VELD UR013/014G | ||||
| 085 | 629B96-0 | 31.90 | 38.60 | |
| Phillips Head Screw M3X6 | ||||
| 086 | 652069-6 | 1.00 | 1.21 | |
| Sensor set RS002G | ||||
| 087 | 632R96-7 | 22.00 | 26.62 | |
| Met. screw M2x5mm RS002G | ||||
| 088 | 652093-9 | 1.00 | 1.21 | |
| CONTROLLER UR013G | ||||
| 089 | 620K86-0 | 159.50 | 193.00 | |
| MOTORHUIS UR013G | ||||
| 090 | 413N73-2 | 7.20 | 8.71 | |
| Screw M3X6 | ||||
| 091 | 652031-1 | 1.00 | 1.21 | |
| Connection unit UC016G/017G | ||||
| 092 | 632T07-4 | 7.20 | 8.71 | |
| MOTORHUISAFDEKKAP UR013G | ||||
| 093 | 183X42-4 | 7.20 | 8.71 | |
| BEHUIZING UR013G | ||||
| 094 | 183X39-3 | 26.40 | 31.94 | |
| Rubber pen 6 | ||||
| 094C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT UX01G | ||||
| 094C20 | 8025F3-0 | 2.40 | 2.90 | |
| MOTORHUISAFDEKKAP UR013G | ||||
| 095 | 183X42-4 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 096 | 265B67-9 | 1.00 | 1.21 | |
| Allen Bolt 5x12 | ||||
| 097 | 922211-6 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 098 | 922353-6 | 1.00 | 1.21 | |
| BEHUIZING UR013G | ||||
| 099 | 183X39-3 | 26.40 | 31.94 | |
| Rubber pen 6 | ||||
| 099C10 | 263005-3 | 1.00 | 1.21 | |
| Label XGT UX01G | ||||
| 099C20 | 8025F3-0 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 100 | 265B67-9 | 1.00 | 1.21 | |
| Cap, -Closure Dga700 | ||||
| 101 | 422230-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 102 | 266420-0 | 1.00 | 1.21 | |
| VALBEUGEL UR013/014G | ||||
| 103 | 327B36-9 | 8.40 | 10.16 | |
