Here you will find all available parts and drawings of the 'Makita UR012G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

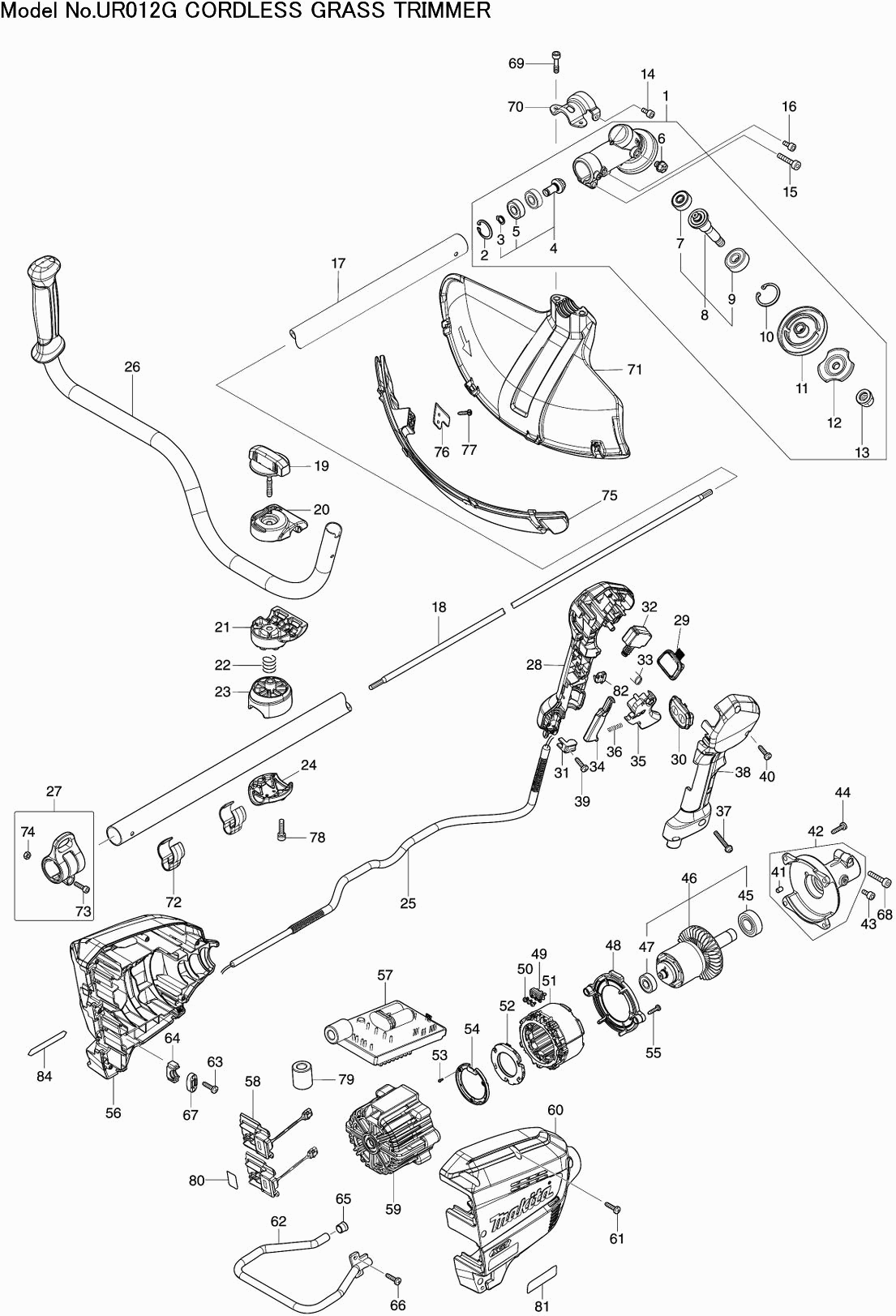

Technical drawing of model Makita UR012G
Spare parts list of model Makita UR012G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gearbox UR012G | ||||
| 001 | 127238-3 | 38.50 | 46.58 | |
| Lock Washer R26 UR012G | ||||
| 002 | 257470-6 | 1.00 | 1.21 | |
| Lock Washer S10 UR012G | ||||
| 003 | 257471-4 | 1.00 | 1.21 | |
| Gear 13 UR012G | ||||
| 004 | 136564-9 | 6.00 | 7.26 | |
| Ball Bearing 6000zz | ||||
| 005 | 210067-2 | 1.20 | 1.45 | |
| Metal screw Ck M8x10mm | ||||
| 006 | 265590-2 | 1.00 | 1.21 | |
| Ball Bearing 629Zz A | ||||
| 007 | 210084-2 | 1.20 | 1.45 | |
| Shaft assembly UR012G | ||||
| 008 | 136565-7 | 14.30 | 17.30 | |
| Ball Bearing 6201llu | ||||
| 009 | 211137-0 | 6.00 | 7.26 | |
| Lock Washer R32 UR012G | ||||
| 010 | 257469-1 | 1.00 | 1.21 | |
| Washer UR012G | ||||
| 011 | 140J59-6 | 4.80 | 5.81 | |
| Locking ring cpl UR012G | ||||
| 012 | 162567-7 | 4.80 | 5.81 | |
| Nut M10-17 | ||||
| 013 | 252236-9 | 3.60 | 4.36 | |
| Allen Bolt 5x12 | ||||
| 014 | 922211-6 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 015 | 922353-6 | 1.00 | 1.21 | |
| Allen Bolt 5x12 | ||||
| 016 | 922211-6 | 1.00 | 1.21 | |
| Complete Steel UR012G | ||||
| 017 | 141D74-7 | 44.00 | 53.24 | |
| Makita logo label | ||||
| 017C10 | 819312-8 | 2.40 | 2.90 | |
| Warning label UR012G | ||||
| 017C20 | 8040V7-0 | 2.40 | 2.90 | |
| Axis UR012G | ||||
| 018 | 327845-4 | 16.50 | 19.96 | |
| Star head 57mm | ||||
| 019 | 168796-0 | 4.80 | 5.81 | |
| Upper Handle Holder UR101C | ||||
| 020 | 144313-0 | 4.80 | 5.81 | |
| Rubber pen 6 | ||||
| 020C10 | 263005-3 | 1.00 | 1.21 | |
| Handle Holder below UR101C | ||||
| 021 | 319517-5 | 4.80 | 5.81 | |
| Pressure spring 16 | ||||
| 022 | 233309-7 | 2.40 | 2.90 | |
| Tube Holder UR012G | ||||
| 023 | 319799-9 | 4.80 | 5.81 | |
| Tube Grip Bracket | ||||
| 024 | 318422-3 | 3.60 | 4.36 | |
| Power cable UR012G | ||||
| 025 | 699171-4 | 16.50 | 19.96 | |
| Handle 22 UR101C | ||||
| 026 | 140J61-9 | 17.60 | 21.30 | |
| Handle 36 UR006G | ||||
| 026C10 | 273014-4 | 4.80 | 5.81 | |
| Carrying eye set | ||||
| 027 | 125558-9 | 4.80 | 5.81 | |
| Handle Set UR012G | ||||
| 028 | 183T68-2 | 16.50 | 19.96 | |
| Lock Nut M5 DUR369A | ||||
| 028C10 | 252180-0 | 1.00 | 1.21 | |
| Circuit E indic cpl UR012G | ||||
| 029 | 141D25-0 | 19.80 | 23.96 | |
| Schakelaarcircuit G UR101C | ||||
| 030 | 140W06-5 | 16.50 | 19.96 | |
| Label A/U DUR369A | ||||
| 030C10 | 819J26-9 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 031 | 687260-7 | 1.00 | 1.21 | |
| Switch UR002/3G | ||||
| 032 | 651492-2 | 14.30 | 17.30 | |
| Torsion Spring 11 | ||||
| 033 | 233540-5 | 2.40 | 2.90 | |
| Lock lever DUR369A | ||||
| 034 | 459146-3 | 3.60 | 4.36 | |
| Switch Button DUR369A | ||||
| 035 | 459145-5 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 036 | 233101-1 | 1.00 | 1.21 | |
| Screw 5x36 | ||||
| 037 | 911258-5 | 1.00 | 1.21 | |
| Handle Set UR012G | ||||
| 038 | 183T68-2 | 16.50 | 19.96 | |
| Lock Nut M5 DUR369A | ||||
| 038C10 | 252180-0 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 039 | 265B67-9 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 040 | 265B67-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 041 | 263005-3 | 1.00 | 1.21 | |
| Handle Holder UR012G | ||||
| 042 | 136465-1 | 14.30 | 17.30 | |
| Allen Bolt 5x12 | ||||
| 043 | 922211-6 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 044 | 266420-0 | 1.00 | 1.21 | |
| Ball Bearing 6003ddw | ||||
| 045 | 210301-0 | 6.00 | 7.26 | |
| Armature 40V UR12G | ||||
| 046 | 519560-6 | 155.10 | 187.67 | |
| Ball bearing 6000ddw | ||||
| 047 | 211289-7 | 13.20 | 15.97 | |
| Intermediate Plate DCE90 | ||||
| 048 | 459144-7 | 2.40 | 2.90 | |
| Cable set UR012G | ||||
| 049 | 632T09-0 | 6.00 | 7.26 | |
| Screw M3X6 | ||||
| 050 | 652031-1 | 1.00 | 1.21 | |
| Field | ||||
| 051 | 629A82-5 | 62.70 | 75.87 | |
| Controller B UR012G | ||||
| 052 | 620F36-5 | 13.20 | 15.97 | |
| Parker Ck 2x6mm | ||||
| 053 | 266490-9 | 1.00 | 1.21 | |
| Stopper DHR400 | ||||
| 054 | 687B69-9 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 055 | 265B67-9 | 1.00 | 1.21 | |
| Motor Housing UR012G | ||||
| 056 | 183T69-0 | 30.80 | 37.27 | |
| Rubber pen 6 | ||||
| 056C10 | 263005-3 | 1.00 | 1.21 | |
| Controller UR012G | ||||
| 057 | 620F33-1 | 259.88 | 314.45 | |
| Controller UR012G | ||||
| 057A | 620F33-1 | 259.88 | 314.45 | |
| CONTROLLER UR012G P | ||||
| 057B | 632V71-7 | 291.50 | 352.72 | |
| No information available, not orderable | ||||
| 057C | 620M69-2 | |||
| Connection unit TD001G | ||||
| 058 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 058-1 | 632W77-1 | |||
| Motor Housing UR012G | ||||
| 059 | 459143-9 | 14.30 | 17.30 | |
| Motor Housing UR012G | ||||
| 060 | 183T69-0 | 30.80 | 37.27 | |
| Rubber pen 6 | ||||
| 060C10 | 263005-3 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 061 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | 327A49-4 | |||
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 063 | 265B67-9 | 1.00 | 1.21 | |
| Terminal Strip * | ||||
| 064 | 687051-6 | 1.20 | 1.45 | |
| Cap, -Closure Dga700 | ||||
| 065 | 422230-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 066 | 266420-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 067 | 687052-4 | |||
| Allen Bolt m6x30 | ||||
| 068 | 922353-6 | 1.00 | 1.21 | |
| Allen Screw m6x25 | ||||
| 069 | 266280-0 | 1.00 | 1.21 | |
| Protection Cap Clamp 28 UR012G | ||||
| 070 | 347494-1 | 2.40 | 2.90 | |
| BESCHERMKAPMES UR012G | ||||
| 071 | 459147-1 | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 072 | 455588-9 | |||
| No information available, not orderable | ||||
| 073 | 266698-5 | |||
| Nut M5 UR012G | ||||
| 074 | 264086-0 | 1.00 | 1.21 | |
| BESCHERMRAND DRDKOP UR012G | ||||
| 075 | 141D72-1 | 17.00 | 20.57 | |
| Thread Cutter UR012G | ||||
| 076 | 347493-3 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 077 | 265B67-9 | 1.00 | 1.21 | |
| Hex bolt 6x25 | ||||
| 078 | 922341-3 | 1.00 | 1.21 | |
| Line filter | ||||
| 079 | 688140-0 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 080 | 811X20-1 | |||
| No information available, not orderable | ||||
| 081 | 811X59-4 | |||
| Switch | ||||
| 082 | 632G61-0 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 084 | 8040V4-6 | |||
