Here you will find all available parts and drawings of the 'Makita UR002G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

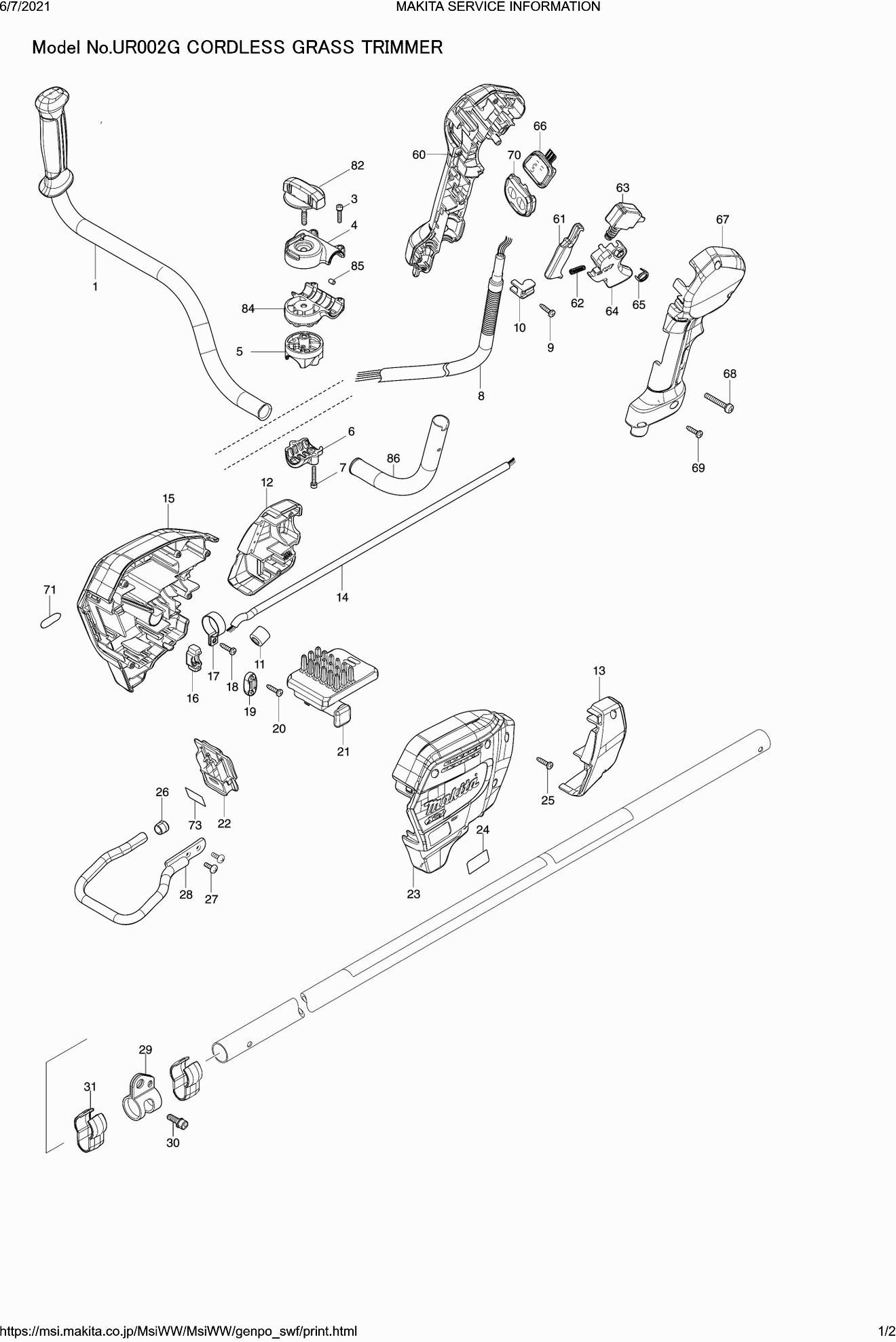

Technical drawing of model Makita UR002G
Spare parts list of model Makita UR002G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle 19 DUR368A | ||||
| 001A | 140L83-1 | 17.60 | 21.30 | |
| Handle 19 L UR002G | ||||
| 001B | 141E67-0 | 17.60 | 21.30 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 003A | 922241-7 | 1.00 | 1.21 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 003B | 922241-7 | 1.00 | 1.21 | |
| Handrail plate Rbc525 A | ||||
| 004A | 318272-6 | 2.40 | 2.90 | |
| Upper Handle Holder UR002G | ||||
| 004B | 141D69-0 | 4.80 | 5.81 | |
| Handrail plate Dur361 | ||||
| 005A | 318273-4 | 3.60 | 4.36 | |
| Tube Holder Above 24 UR002G | ||||
| 005B | 312B65-5 | 4.80 | 5.81 | |
| Handle holder Dur361 | ||||
| 006A | 318274-2 | 2.40 | 2.90 | |
| Lower Tube Holder 24 UR002G | ||||
| 006B | 312B66-3 | 3.60 | 4.36 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 007A | 922241-7 | 1.00 | 1.21 | |
| Hex socket screw M5X30 Sg1250 | ||||
| 007B | 922251-4 | 1.00 | 1.21 | |
| Wire harness DUR369A | ||||
| 008A | 699132-4 | 14.30 | 17.30 | |
| Wire harness UR002G | ||||
| 008B | 699172-2 | 12.10 | 14.64 | |
| Line filter | ||||
| 008C10 | 688163-8 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 009 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 010 | 687260-7 | 1.00 | 1.21 | |
| Line filter | ||||
| 011 | 688163-8 | 1.20 | 1.45 | |
| Motor Housing Cap UR002G | ||||
| 012 | 183S35-1 | 6.00 | 7.26 | |
| Motor Housing Cap UR002G | ||||
| 013 | 183S35-1 | 6.00 | 7.26 | |
| Connection cable unit UR002G | ||||
| 014 | 699159-4 | 16.50 | 19.96 | |
| Motor Housing Set UR002/3G | ||||
| 015 | 183S34-3 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 015C10 | 263005-3 | 1.00 | 1.21 | |
| Terminal Strip * | ||||
| 016 | 687051-6 | 1.20 | 1.45 | |
| Tube Grip Bracket | ||||
| 017 | 346248-3 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 018 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 019 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 020 | 265B67-9 | 1.00 | 1.21 | |
| Controller UR002G | ||||
| 021 | 620E46-6 | 106.70 | 129.11 | |
| Connection unit TD001G | ||||
| 022 | 632P75-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 022-1 | 632W77-1 | |||
| Motor Housing Set UR002/3G | ||||
| 023 | 183S34-3 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 023C10 | 263005-3 | 1.00 | 1.21 | |
| Nameplate UR002G | ||||
| 024 | 811A45-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 025 | 265B67-9 | 1.00 | 1.21 | |
| Cap, -Closure Dga700 | ||||
| 026 | 422230-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 027 | 266420-0 | 1.00 | 1.21 | |
| Battery Guide UX01G | ||||
| 028 | 347752-5 | 8.40 | 10.16 | |
| Hanger | ||||
| 029 | 347116-3 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 030 | 922212-4 | 1.00 | 1.21 | |
| Cable clamp DUR369A | ||||
| 031 | 457458-8 | 1.20 | 1.45 | |
| Screw Vk 20mm | ||||
| 032 | 911233-1 | 1.00 | 1.21 | |
| Cover cap UR002/3G | ||||
| 033 | 413335-4 | 8.40 | 10.16 | |
| Ball bearing 607Zz A | ||||
| 034 | 211382-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 035 | 529146-8 | |||
| Armature Dur365 A | ||||
| 036 | 619462-7 | 78.10 | 94.50 | |
| Screw 4x16 A | ||||
| 037 | 911526-6 | 1.00 | 1.21 | |
| Inner shield | ||||
| 038 | 455628-3 | 1.20 | 1.45 | |
| Controller UR002G | ||||
| 039 | 620E48-2 | 14.30 | 17.30 | |
| Screw 4x16 A | ||||
| 040 | 911526-6 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 041 | 687042-7 | 1.00 | 1.21 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 042 | 922223-9 | 1.00 | 1.21 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 043 | 922241-7 | 1.00 | 1.21 | |
| Motor Housing UR002/3G | ||||
| 044 | 141A05-8 | 17.60 | 21.30 | |
| Ball Bearing 6001dw | ||||
| 045 | 211131-2 | 9.60 | 11.62 | |
| Lock washer R-28 | ||||
| 046 | 962106-1 | 1.20 | 1.45 | |
| Protection Ring G DUR368A | ||||
| 047 | 140L84-9 | 8.40 | 10.16 | |
| Spring retaining ring | ||||
| 048 | 346355-2 | 9.60 | 11.62 | |
| Hexagonal bolt M5X20 Dur361 | ||||
| 049 | 266896-1 | 6.00 | 7.26 | |
| Rivet 4mm Dur361Z | ||||
| 050 | 261156-6 | 2.40 | 2.90 | |
| Clamp for Protection Cover Dur361 | ||||
| 051 | 346785-7 | 3.60 | 4.36 | |
| BESCHERMKAP UR002/3G | ||||
| 052 | 413336-2 | 5.00 | 6.05 | |
| BESCHERMKAP U 350MM UR002/3G | ||||
| 053 | 141A09-0 | 4.00 | 4.84 | |
| Thread Cutter Em405Mp | ||||
| 054 | 347115-5 | 2.40 | 2.90 | |
| Tapping screw 5x16mm | ||||
| 055 | 266388-0 | 1.00 | 1.21 | |
| Pipe cpl UR002/3G | ||||
| 056 | 141B05-4 | 16.50 | 19.96 | |
| Makita logo label | ||||
| 056C10 | 819312-8 | 2.40 | 2.90 | |
| Warning Label | ||||
| 056C20 | 819J22-7 | 2.40 | 2.90 | |
| O-ring 19 | ||||
| 057 | 213325-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 058 | 168526-9 | |||
| NUT M10 | ||||
| 059 | 264025-0 | 2.40 | 2.90 | |
| Handle Set UR003G | ||||
| 060 | 183S64-4 | 16.50 | 19.96 | |
| Lock Nut M5 DUR369A | ||||
| 060C10 | 252180-0 | 1.00 | 1.21 | |
| Lock lever DUR369A | ||||
| 061 | 459146-3 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 062 | 233101-1 | 1.00 | 1.21 | |
| Switch UR002/3G | ||||
| 063 | 651492-2 | 14.30 | 17.30 | |
| Switch Button DUR369A | ||||
| 064 | 459145-5 | 2.40 | 2.90 | |
| Torsion Spring 11 | ||||
| 065 | 233540-5 | 2.40 | 2.90 | |
| Circuit indicator UR002/3G | ||||
| 066 | 141B31-3 | 17.60 | 21.30 | |
| Handle Set UR003G | ||||
| 067 | 183S64-4 | 16.50 | 19.96 | |
| Lock Nut M5 DUR369A | ||||
| 067C10 | 252180-0 | 1.00 | 1.21 | |
| Screw 5x36 | ||||
| 068 | 911258-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 069 | 265B67-9 | 1.00 | 1.21 | |
| Schakelaarcircuit G UR101C | ||||
| 070 | 140W06-5 | 16.50 | 19.96 | |
| Label A/U DUR369A | ||||
| 070C10 | 819J26-9 | 2.40 | 2.90 | |
| Label XGT HS004G | ||||
| 071 | 8012U4-2 | 2.40 | 2.90 | |
| Cover cap UR002G | ||||
| 072 | 422727-6 | 1.00 | 1.21 | |
| Label serial no. UR002G | ||||
| 073 | 811A49-9 | 2.40 | 2.90 | |
| O-ring 4 | ||||
| 081 | 213032-0 | 1.00 | 1.21 | |
| Knob 57 UR002G | ||||
| 082 | 162965-5 | 6.00 | 7.26 | |
| Washer 6x12mm | ||||
| 083 | 941151-9 | 1.00 | 1.21 | |
| Lower Handle Holder UR002G | ||||
| 084 | 312B85-9 | 3.60 | 4.36 | |
| Rubber pen 6 | ||||
| 085 | 263005-3 | 1.00 | 1.21 | |
| Handle 19 R UR002G | ||||
| 086 | 327861-6 | 6.00 | 7.26 | |
