Here you will find all available parts and drawings of the 'Makita UM603D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

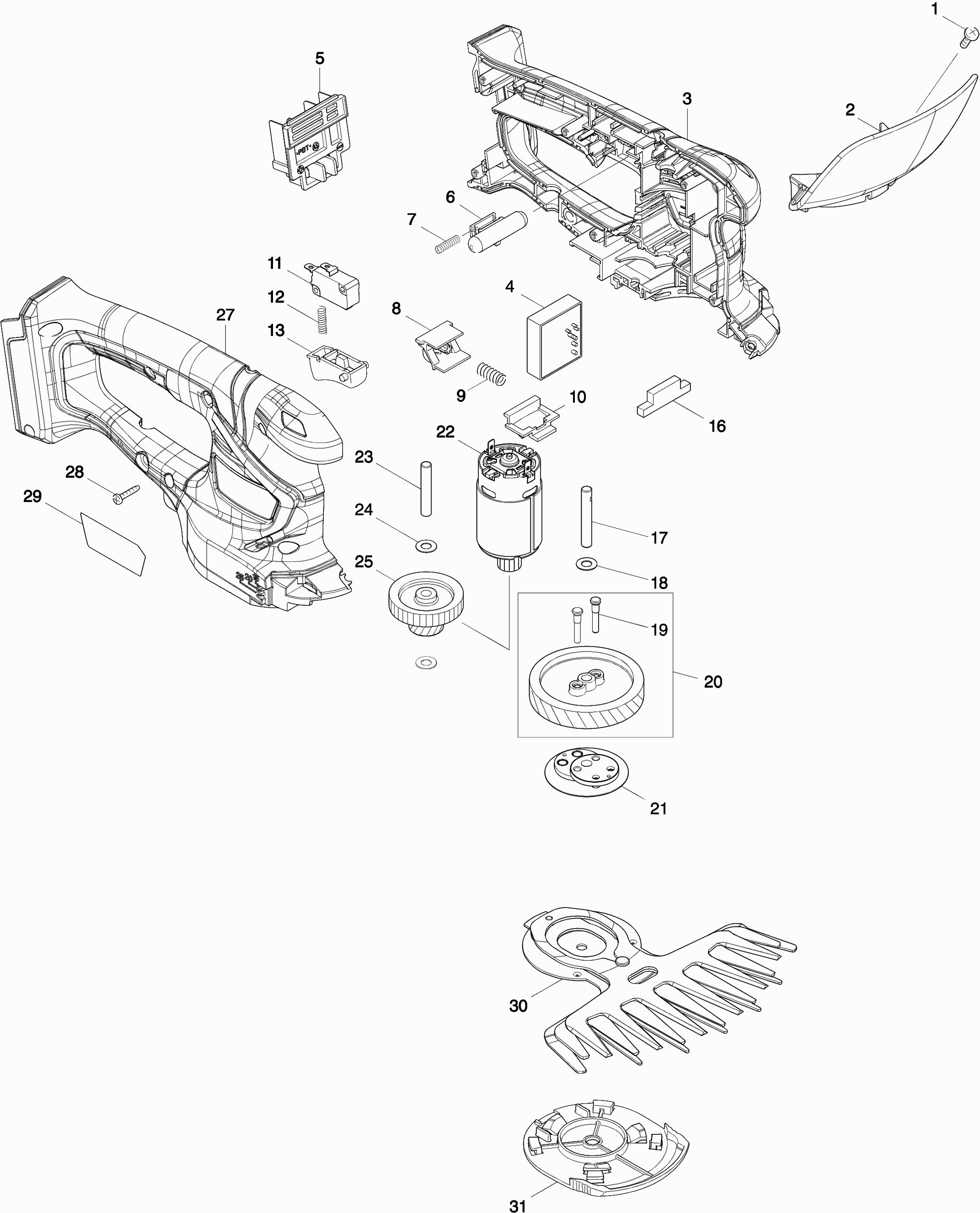

Technical drawing of model Makita UM603D
Spare parts list of model Makita UM603D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Adjustment Screw M4x12 | ||||
| 001 | 915116-7 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 002 | 140V97-0 | |||
| No information available, not orderable | ||||
| 003 | 183G07-4 | |||
| Hex nut M4 | ||||
| 003C10 | 931102-0 | 0.83 | 1.00 | |
| Plate | ||||
| 003C20 | 346275-0 | 0.83 | 1.00 | |
| Controller | ||||
| 004 | 620646-2 | 38.75 | 46.89 | |
| Connection unit | ||||
| 005 | 643862-9 | 3.28 | 3.97 | |
| Lock button Uh200D A | ||||
| 006 | 452438-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 007 | 231473-8 | |||
| Guide Plate | ||||
| 008 | 454878-7 | 0.83 | 1.00 | |
| Compression Spring 6 | ||||
| 009 | 234339-1 | 0.83 | 1.00 | |
| Deblock handle | ||||
| 010 | 454879-5 | 0.83 | 1.00 | |
| Switch D3V-16-3C26 A | ||||
| 011 | 650744-8 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 012 | 231473-8 | |||
| Switch handle | ||||
| 013 | 417564-1 | 0.83 | 1.00 | |
| Dust Guide | ||||
| 016 | 451814-4 | 0.83 | 1.00 | |
| Pin 6 | ||||
| 017 | 268254-7 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 018 | 253715-0 | 0.83 | 1.00 | |
| Pin 4 Um164D | ||||
| 019 | 268256-3 | 0.83 | 1.00 | |
| Gear 47 | ||||
| 020 | 135883-0 | 2.36 | 2.86 | |
| Drive Shaft | ||||
| 021 | 161598-3 | 5.71 | 6.91 | |
| Motor 18.0v | ||||
| 022 | 629945-9 | 11.82 | 14.30 | |
| Pin 6 | ||||
| 023 | 268076-5 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 024 | 253715-0 | 0.83 | 1.00 | |
| Gear 12-31 | ||||
| 025 | 226831-1 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 027 | 183G07-4 | |||
| Hex nut M4 | ||||
| 027C10 | 931102-0 | 0.83 | 1.00 | |
| Plate | ||||
| 027C20 | 346275-0 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 028 | 266130-9 | 0.83 | 1.00 | |
| Nameplate Um603d | ||||
| 029 | 852Y95-7 | 2.71 | 3.28 | |
| Schaarmessenset gras compleet | ||||
| 030 | 195267-4 | 36.00 | 43.56 | |
| Flesje olie | ||||
| 030 | 188369-3 | 2.00 | 2.42 | |
| Lower Plate | ||||
| 031 | 140451-6 | 2.71 | 3.28 | |
