Here you will find all available parts and drawings of the 'Makita UM370'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

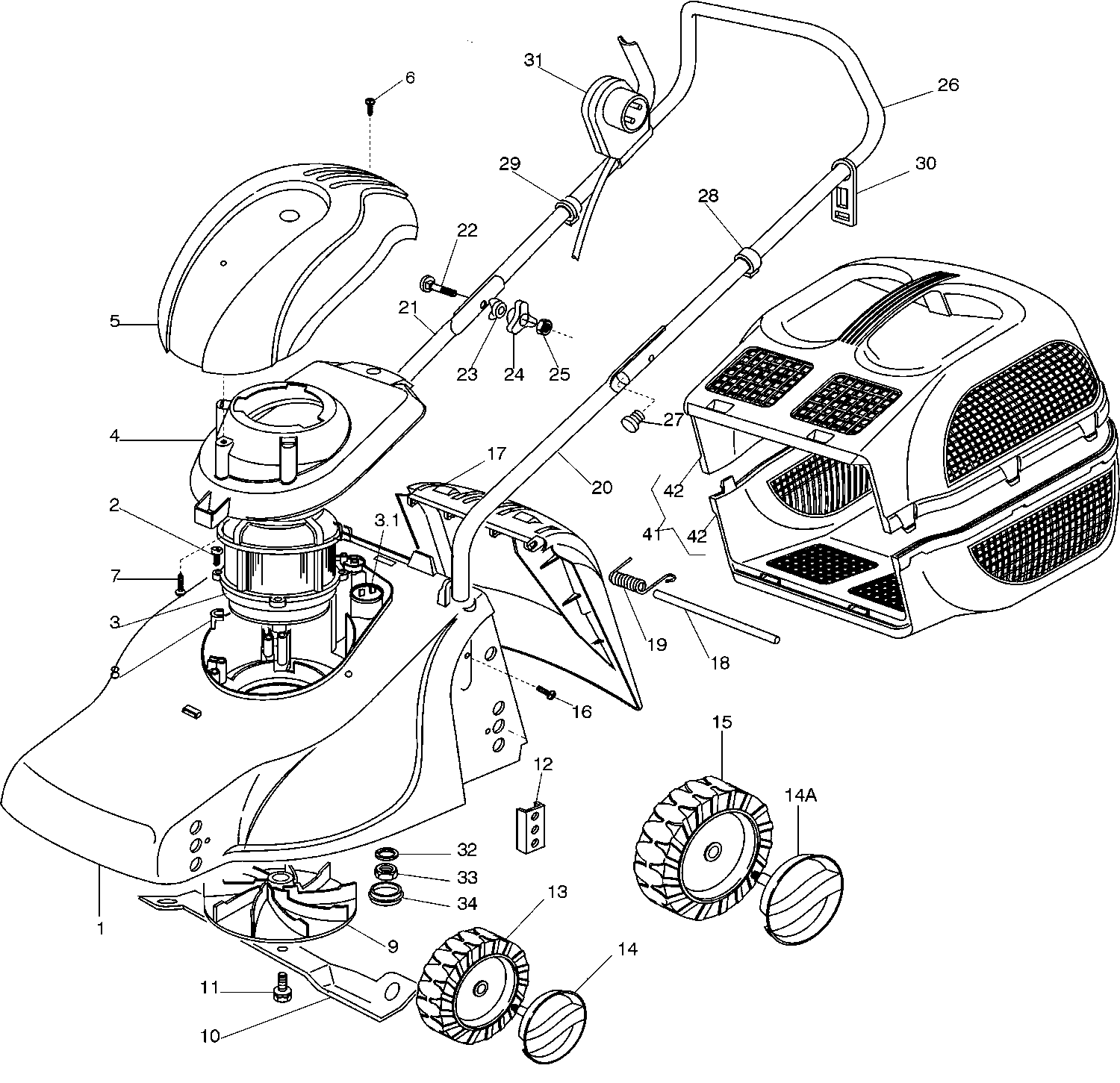

Technical drawing of model Makita UM370
Spare parts list of model Makita UM370
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cutting deck Um370 * | ||||
| 001 | 664002367 | 105.60 | 127.78 | |
| Screw | ||||
| 002 | 664735410 | 2.40 | 2.90 | |
| 12Uf Um332 Capacitor * | ||||
| 003A | 664222036 | 88.00 | 106.48 | |
| 16Uf Um370 Capacitor 06> * | ||||
| 003B | 664222037 | 88.00 | 106.48 | |
| Motor mount | ||||
| 004 | 664055050 | 10.80 | 13.07 | |
| Engine Cover Cap * | ||||
| 005 | 664055049 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 006 | 664728680 | |||
| Screw Um332 * | ||||
| 007 | 664728450 | 2.40 | 2.90 | |
| WASHER SHIM | ||||
| 008 | 664167700 | 2.40 | 2.90 | |
| Blade Holder | ||||
| 009 | 664465602 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 010 | 664004117 | |||
| Bolt for circular blade | ||||
| 011 | 664004352 | 9.60 | 11.62 | |
| Vertical Adjustment | ||||
| 012 | 664785087 | 10.80 | 13.07 | |
| Front wheel | ||||
| 013 | 664686083 | 11.00 | 13.31 | |
| Cover for forew. | ||||
| 014A | 664004322 | 9.60 | 11.62 | |
| Cover for Rearw.Um332 * | ||||
| 014A | 664004323 | 8.40 | 10.16 | |
| Cover Cap For Rear Wheel Um332 06> | ||||
| 014B | 664110446 | 19.80 | 23.96 | |
| Rear wheel | ||||
| 015 | 664686085 | 12.10 | 14.64 | |
| Screw Um332 * | ||||
| 016 | 664728450 | 2.40 | 2.90 | |
| Ejector lid Um370 * | ||||
| 017 | 664600056 | 17.60 | 21.30 | |
| Pin for ejection cover | ||||
| 018 | 664512601 | 4.80 | 5.81 | |
| Spring for ejection cover | ||||
| 019 | 664450250 | 4.80 | 5.81 | |
| Push boom li-lower | ||||
| 020 | 664006940 | 27.50 | 33.28 | |
| Push boom lower right Um332 * | ||||
| 021 | 664006939 | 27.50 | 33.28 | |
| Lock Bolt for Push Boom Um332 * | ||||
| 022 | 664819120 | 2.40 | 2.90 | |
| Lock ring for push bar | ||||
| 023 | 664680006 | 2.40 | 2.90 | |
| Star knob for push bar | ||||
| 024 | 664399900 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 025 | 664293200 | |||
| Push bar upper part Um332 * | ||||
| 026 | 664006941 | 82.50 | 99.82 | |
| Cover cap for push bar | ||||
| 027 | 664566112 | 2.40 | 2.90 | |
| Cable Guide | ||||
| 028 | 664192151 | 2.40 | 2.90 | |
| Gas cable guide | ||||
| 029 | 664192000 | 2.40 | 2.90 | |
| Cable Guide | ||||
| 030 | 664195101 | 6.00 | 7.26 | |
| Deadman's switch | ||||
| 031A | 664710561 | 147.40 | 178.35 | |
| No information available, not orderable | ||||
| 031B | 664600503 | |||
| Spring Washer Um332 * | ||||
| 032A | 664540260 | 2.40 | 2.90 | |
| Protection Um370 06> * | ||||
| 032B | 664034601 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 033 | 664293200 | |||
| No information available, not orderable | ||||
| 034 | 664110275 | |||
| Grass catcher | ||||
| 041 | 664390000 | 100.10 | 121.12 | |
| No information available, not orderable | ||||
| 042 | 664486049 | |||
