Here you will find all available parts and drawings of the 'Makita UM103D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

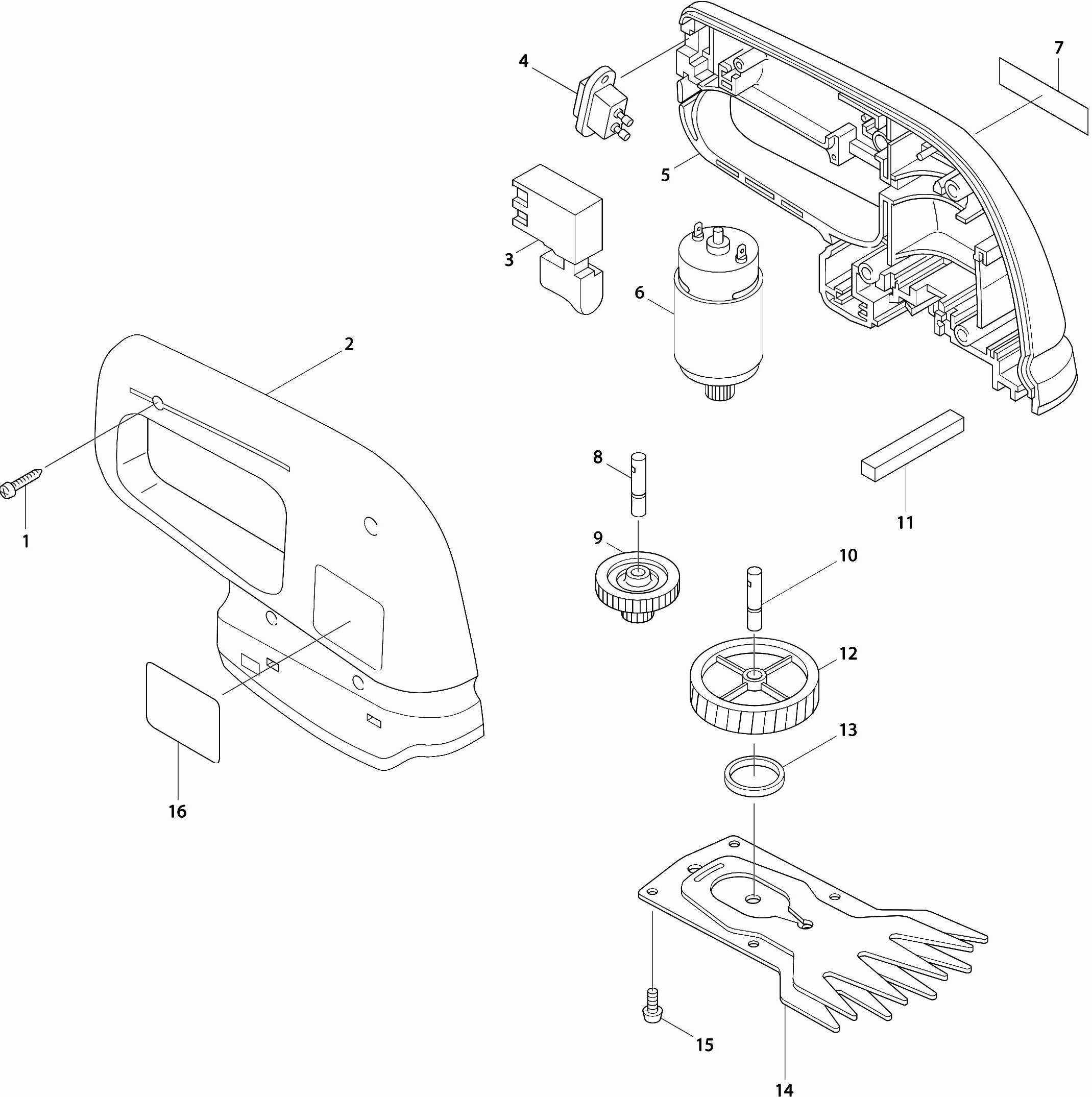

Technical drawing of model Makita UM103D
Spare parts list of model Makita UM103D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 265874-8 | |||
| No information available, not orderable | ||||
| 002 | 182682-1 | |||
| Switch Sw136 * | ||||
| 003 | 651276-8 | 13.20 | 15.97 | |
| Counter Contact Uh303D * | ||||
| 004 | 655409-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 006 | 629679-4 | |||
| Gear 9 | ||||
| 006A | 221922-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 008 | 321835-9 | |||
| Gear 14-34 | ||||
| 009 | 226804-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 010 | 321835-9 | |||
| Rubber seal | ||||
| 011 | 423121-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 012 | 221742-5 | |||
| Washer 21 | ||||
| 013 | 257116-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 014 | 125030-1 | |||
| Steel ball 3.5 | ||||
| 014A | 216040-0 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 015 | 911526-6 | 1.00 | 1.21 | |
