Here you will find all available parts and drawings of the 'Makita UH6570'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

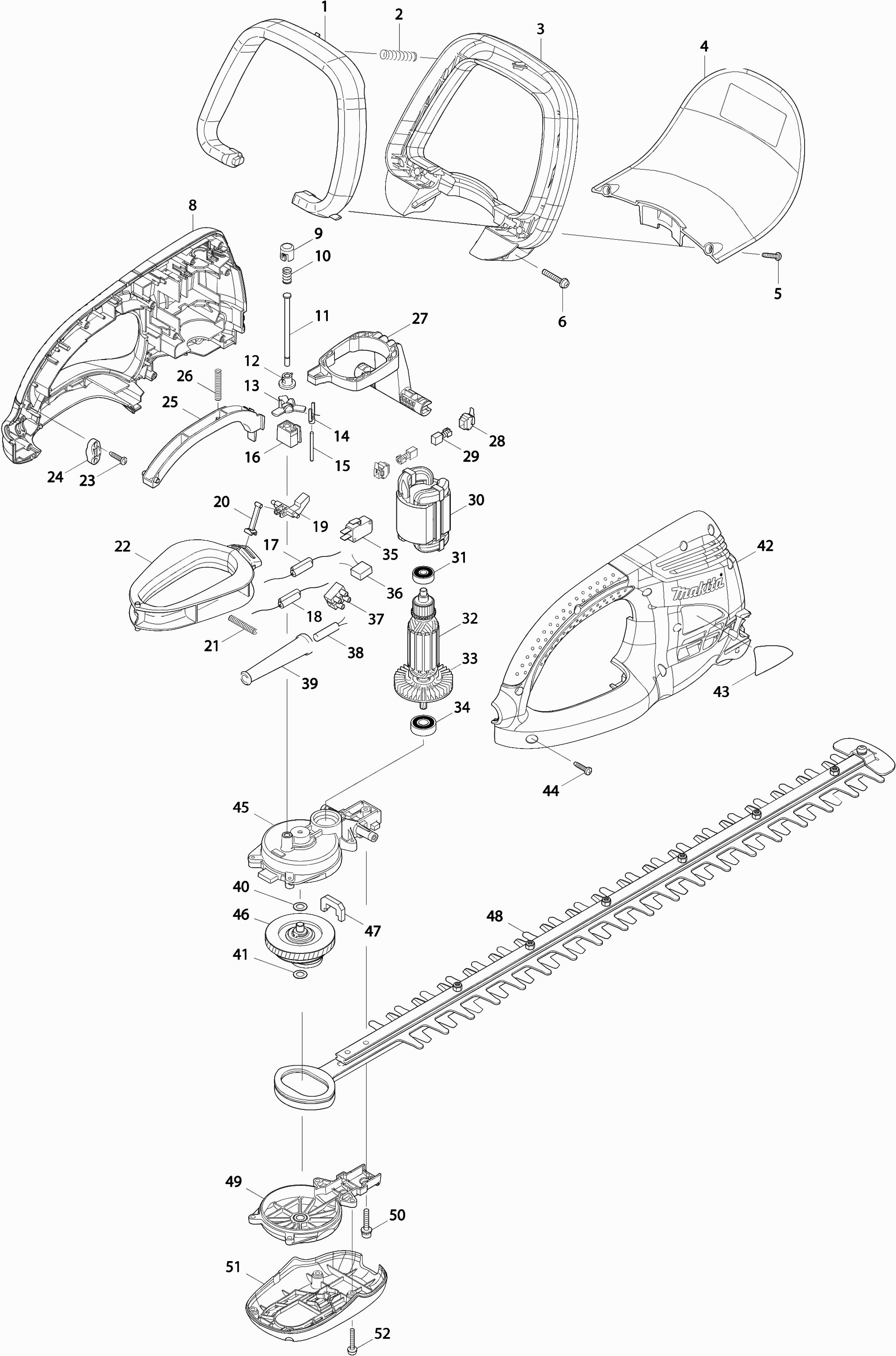

Technical drawing of model Makita UH6570
Spare parts list of model Makita UH6570
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch button b | ||||
| 001 | 450444-8 | 6.88 | 8.32 | |
| Compression Spring 9 | ||||
| 002 | 233157-4 | 0.83 | 1.00 | |
| Front handle | ||||
| 003 | 450442-2 | 10.99 | 13.30 | |
| Complete hand protection | ||||
| 004 | 141J42-6 | 8.21 | 9.93 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 0.83 | 1.00 | |
| Screw 5x30 | ||||
| 006 | 911253-5 | 0.83 | 1.00 | |
| Housing | ||||
| 008 | 188567-9 | 25.62 | 31.00 | |
| Guard | ||||
| 009 | 417740-7 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 010 | 233288-9 | 0.83 | 1.00 | |
| Switch rod Uh45/55/65 A | ||||
| 011 | 268077-3 | 5.98 | 7.24 | |
| Nut | ||||
| 012 | 417727-9 | 0.83 | 1.00 | |
| Lever | ||||
| 013 | 417736-8 | 0.83 | 1.00 | |
| Pressure plate cover | ||||
| 014 | 417735-0 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 015 | 268237-7 | 1.39 | 1.68 | |
| Pin Holder | ||||
| 016 | 417781-3 | 0.83 | 1.00 | |
| Capacitor | ||||
| 017 | 646206-2 | 0.89 | 1.08 | |
| Capacitor | ||||
| 018 | 646207-0 | 0.86 | 1.04 | |
| Lever | ||||
| 019 | 417737-6 | 0.83 | 1.00 | |
| Rod | ||||
| 020 | 417739-2 | 0.83 | 1.00 | |
| Compression Spring 5 | ||||
| 021 | 233156-6 | 0.83 | 1.00 | |
| Switch rod c | ||||
| 022 | 417731-8 | 3.12 | 3.78 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 024 | 687053-2 | 0.83 | 1.00 | |
| Switch button a | ||||
| 025 | 450443-0 | 2.38 | 2.88 | |
| Compression Spring 5 | ||||
| 026 | 233156-6 | 0.83 | 1.00 | |
| Lever | ||||
| 027 | 450488-8 | 5.71 | 6.91 | |
| No information available, not orderable | ||||
| 028 | 643936-6 | |||
| Brush Set CB-419 | ||||
| 029 | 195015-1 | 4.45 | 5.38 | |
| Field | ||||
| 030 | 621733-0 | 22.58 | 27.32 | |
| No information available, not orderable | ||||
| 031 | 211027-7 | |||
| Armature | ||||
| 032 | 515738-9 | 23.88 | 28.89 | |
| Fan 60 | ||||
| 033 | 241850-6 | 7.22 | 8.74 | |
| Ball bearing 6000rd | ||||
| 034 | 211062-5 | 4.45 | 5.38 | |
| Switch Uh45/55/6570 A | ||||
| 035 | 650628-0 | 5.06 | 6.12 | |
| Capacitor 0.22uF | ||||
| 036 | 645190-8 | 2.36 | 2.86 | |
| Terminal block | ||||
| 037 | 654531-7 | 2.10 | 2.54 | |
| Power cord 2x0.3 1.5mtr | ||||
| 038 | 666246-4 | 3.44 | 4.16 | |
| Cable grommet 8-90 | ||||
| 039 | 682503-2 | 1.39 | 1.68 | |
| Washer 8 x 14 x 0.5mm | ||||
| 040 | 253215-0 | 0.83 | 1.00 | |
| Washer 8 x 14 x 0.5mm | ||||
| 041 | 253215-0 | 0.83 | 1.00 | |
| Housing | ||||
| 042 | 188567-9 | 25.62 | 31.00 | |
| Nameplate "uh6570" | ||||
| 043 | 865757-8 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 045 | 158625-5 | 16.35 | 19.78 | |
| Drive eccentric | ||||
| 046 | 158623-9 | 33.36 | 40.37 | |
| Dust Guide | ||||
| 047 | 443142-1 | 0.83 | 1.00 | |
| Schaarmessenset 65 cm | ||||
| 048 | 194666-7 | 54.00 | 65.34 | |
| No information available, not orderable | ||||
| 048A | 264013-7 | |||
| No information available, not orderable | ||||
| 048B | 345205-8 | |||
| Screw 5x10 | ||||
| 048C | 911208-0 | 0.83 | 1.00 | |
| Bus 5 | ||||
| 048D | 257766-5 | 0.83 | 1.00 | |
| Crosshead screw 5x20mm | ||||
| 048E | 265181-9 | 0.83 | 1.00 | |
| Oil guide set | ||||
| 048F | 188605-7 | 2.10 | 2.54 | |
| Inner Cover | ||||
| 049 | 158626-3 | 11.34 | 13.72 | |
| No longer available, no replacement | ||||
| 050 | 265182-7 | |||
| Lower Cover | ||||
| 051 | 450440-6 | 5.98 | 7.24 | |
| Screw 4x25 | ||||
| 052 | 911148-2 | 0.83 | 1.00 | |
