Here you will find all available parts and drawings of the 'Makita UH6540'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

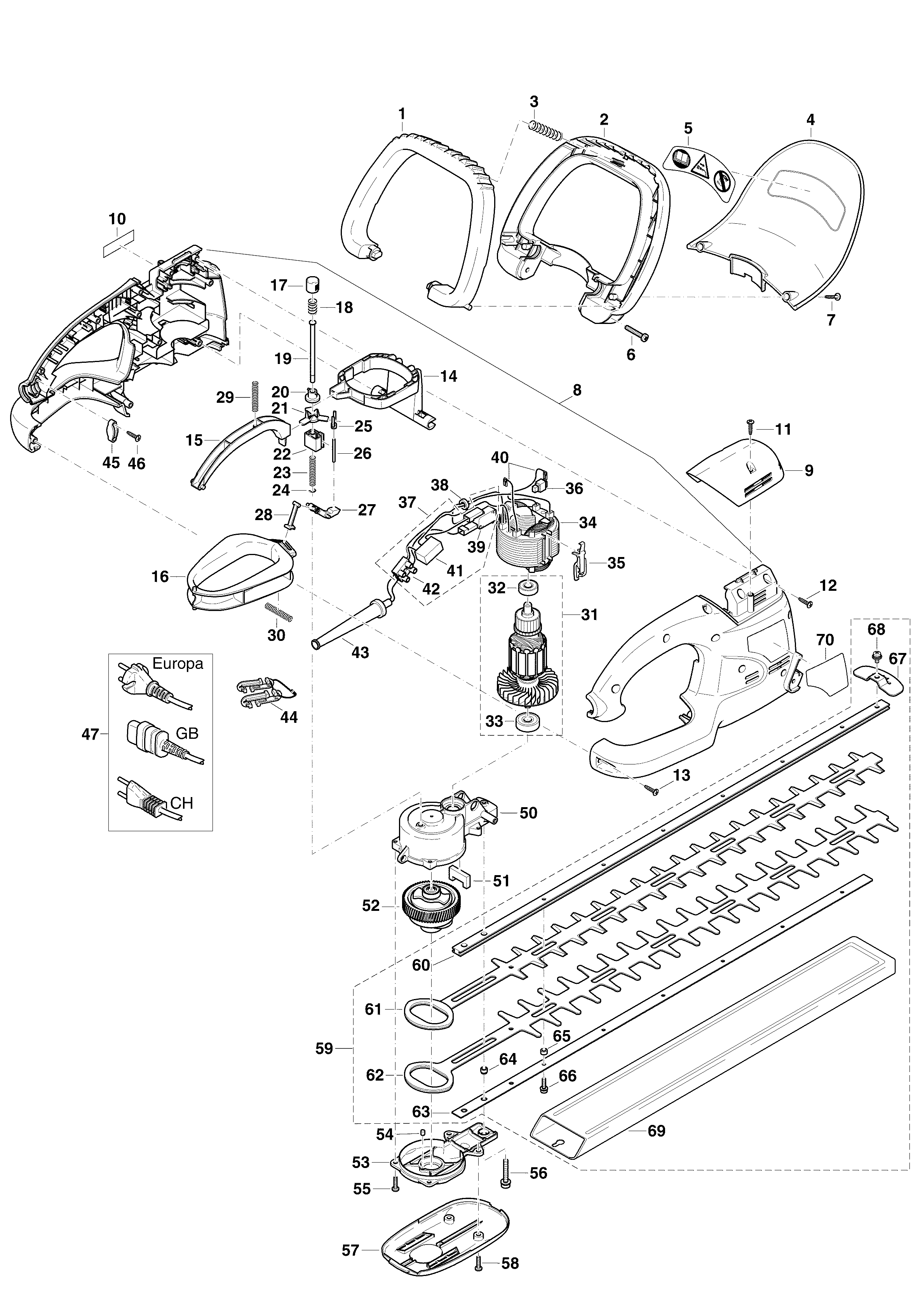

Technical drawing of model Makita UH6540
Spare parts list of model Makita UH6540
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bow handle cpl | ||||
| 002 | 223310010 | 19.29 | 23.34 | |
| Pressure Spring for Toggle Bracket * | ||||
| 003 | 221145110 | 0.98 | 1.19 | |
| Complete hand protection | ||||
| 004 | 141J42-6 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 005 | 980114856 | |||
| Screw 5x30 | ||||
| 006 | 913250304 | 1.39 | 1.68 | |
| Screw 4X18 | ||||
| 007 | 913540185 | 0.83 | 1.00 | |
| Motor house Uh45/55/6540 * | ||||
| 008 | 223110610 | 48.40 | 58.56 | |
| Motor Housing Cover Uh45/55/6540 * | ||||
| 009 | 223111050 | 13.83 | 16.73 | |
| Label Makita | ||||
| 010 | 980114832 | 1.39 | 1.68 | |
| Screw 4X18 | ||||
| 011 | 913540185 | 0.83 | 1.00 | |
| Screw 4X18 | ||||
| 012 | 913540185 | 0.83 | 1.00 | |
| Screw 4X18 | ||||
| 013 | 913540185 | 0.83 | 1.00 | |
| Switch Fork | ||||
| 014 | 223144130 | 8.21 | 9.93 | |
| Switch Fork | ||||
| 015 | 223144120 | 4.44 | 5.37 | |
| Switch Fork | ||||
| 016 | 223144140 | 9.24 | 11.18 | |
| Baffle | ||||
| 017 | 223144030 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 018 | 223145010 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 019 | 223144010 | |||
| Cap Holder | ||||
| 020 | 223144040 | 0.98 | 1.19 | |
| Lever | ||||
| 021 | 223144150 | 1.67 | 2.02 | |
| Pen Holder | ||||
| 022 | 223144050 | 2.36 | 2.86 | |
| Compression Spring | ||||
| 023 | 221145120 | 0.98 | 1.19 | |
| Locking ring 4mm A | ||||
| 024 | 927304000 | 0.83 | 1.00 | |
| Pressure Cap | ||||
| 025 | 223144170 | 1.67 | 2.02 | |
| Pin 3mm | ||||
| 026 | 223229090 | 0.83 | 1.00 | |
| Pressure Handle | ||||
| 027 | 223144180 | 2.36 | 2.86 | |
| Push rod | ||||
| 028 | 223144160 | 0.98 | 1.19 | |
| Compression Spring | ||||
| 029 | 221145120 | 0.98 | 1.19 | |
| Compression Spring | ||||
| 030 | 221145120 | 0.98 | 1.19 | |
| Armature | ||||
| 031 | 970804830 | 74.58 | 90.24 | |
| Ball Bearing 608 | ||||
| 032 | 960101084 | 5.98 | 7.24 | |
| Ball bearing 6002zz | ||||
| 033 | 211243-1 | 2.02 | 2.44 | |
| Field | ||||
| 034 | 970804230 | 38.75 | 46.89 | |
| Clamp for field | ||||
| 035 | 970804010 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 036 | 223804410 | |||
| Wiring Harness | ||||
| 037 | 223970010 | 23.06 | 27.90 | |
| Wire guide | ||||
| 038 | 970804610 | 5.71 | 6.91 | |
| Switch | ||||
| 039 | 970001230 | 6.38 | 7.72 | |
| Connecting Cable | ||||
| 040 | 970311670 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 041 | 970109830 | |||
| Screw for connector Uh4030* | ||||
| 042 | 970201220 | 1.00 | 1.21 | |
| Cable gland 8-110 | ||||
| 043 | 682559-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 158024-1 | |||
| Clamp Bracket | ||||
| 045 | 687053-2 | 0.83 | 1.00 | |
| Screw 4X18 | ||||
| 046 | 913540185 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 970102310 | |||
| Gear Cover | ||||
| 050 | 223211150 | 36.05 | 43.62 | |
| Dust Cap | ||||
| 051 | 223211040 | 2.10 | 2.54 | |
| Eccentric | ||||
| 052 | 223220001 | 131.16 | 158.70 | |
| No information available, not orderable | ||||
| 053 | 223211160 | |||
| Rubber Pin 4 | ||||
| 054 | 263002-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 055 | 904904164 | |||
| Screw 5x25 | ||||
| 056 | 917105250 | 0.97 | 1.17 | |
| Cover cap | ||||
| 057 | 223111040 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 058 | 904904164 | |||
| No longer available, no replacement | ||||
| 059 | 223230631 | |||
| No longer available, no replacement | ||||
| 059A | 223230631 | |||
| Mounting Strip 4Mm Uh6540 A | ||||
| 060 | 010223030 | 40.56 | 49.08 | |
| No information available, not orderable | ||||
| 063 | 223233430 | |||
| No information available, not orderable | ||||
| 064 | 223233030 | |||
| No information available, not orderable | ||||
| 064A | 220233150 | |||
| Spacer | ||||
| 065 | 223233020 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 066 | 223233160 | |||
| No information available, not orderable | ||||
| 067 | 223233170 | |||
| No longer available, no replacement | ||||
| 068 | 223233090 | |||
| No information available, not orderable | ||||
| 069 | 220233640 | |||
| Label Uh6540 * | ||||
| 070 | 980114859 | 4.44 | 5.37 | |
