Here you will find all available parts and drawings of the 'Makita UH482D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

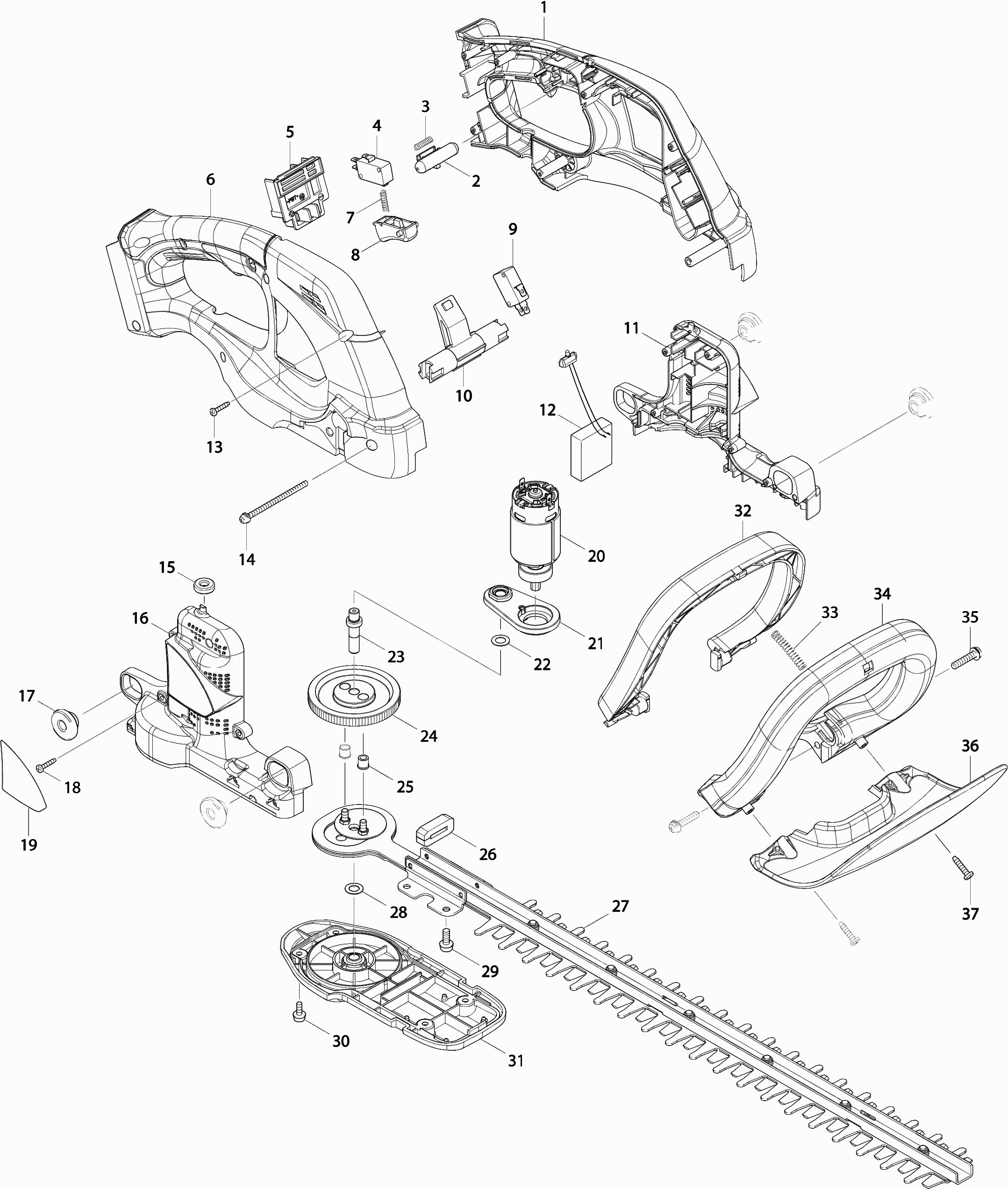

Technical drawing of model Makita UH482D
Spare parts list of model Makita UH482D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle set | ||||
| 001 | 187287-2 | 14.30 | 17.30 | |
| Lock button Uh200D A | ||||
| 002 | 452438-9 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 003 | 234079-1 | 1.00 | 1.21 | |
| Switch Sw-48 | ||||
| 004 | 651852-8 | 4.80 | 5.81 | |
| Connection unit | ||||
| 005 | 643862-9 | 3.60 | 4.36 | |
| Handle set | ||||
| 006 | 187287-2 | 14.30 | 17.30 | |
| Compression Spring 4 | ||||
| 007 | 234079-1 | 1.00 | 1.21 | |
| Switch handle | ||||
| 008 | 417564-1 | 1.20 | 1.45 | |
| Switch Sw-48 | ||||
| 009 | 651852-8 | 4.80 | 5.81 | |
| Switching Arm | ||||
| 010 | 452681-0 | 1.20 | 1.45 | |
| Motor Housing Set | ||||
| 011 | 187290-3 | 12.10 | 14.64 | |
| Motor Housing Set | ||||
| 011A | 187290-3 | 12.10 | 14.64 | |
| Motor casing Uh482D A | ||||
| 011B | 183P35-3 | 11.00 | 13.31 | |
| Controller UHH482D A | ||||
| 012 | 632N01-0 | 36.30 | 43.92 | |
| Tapping Screw 3x16 | ||||
| 013 | 266130-9 | 1.00 | 1.21 | |
| Cross-head screw 4x65mm | ||||
| 014 | 911193-7 | 1.00 | 1.21 | |
| Ring 6mm | ||||
| 015 | 424195-9 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 016 | 187290-3 | 12.10 | 14.64 | |
| Motor Housing Set | ||||
| 016A | 187290-3 | 12.10 | 14.64 | |
| Motor casing Uh482D A | ||||
| 016B | 183P35-3 | 11.00 | 13.31 | |
| Washer 8mm | ||||
| 017 | 424394-3 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 1.00 | 1.21 | |
| Label | ||||
| 019 | 814P59-5 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 020 | 629930-2 | |||
| No longer available, no replacement | ||||
| 020A | 629930-2 | |||
| Motor 18V AH1852H A | ||||
| 020B | 629450-6 | 27.50 | 33.28 | |
| Bearing Housing | ||||
| 021 | 141211-9 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 021A | 263002-9 | 1.00 | 1.21 | |
| Washer 8 x 14 x 0.5mm | ||||
| 022 | 253215-0 | 1.00 | 1.21 | |
| As Uh42/48/5261 A | ||||
| 023 | 326034-8 | 2.40 | 2.90 | |
| Gear 93 | ||||
| 024 | 227281-3 | 11.00 | 13.31 | |
| Sliding bearing 5mm | ||||
| 025 | 262570-9 | 1.00 | 1.21 | |
| Dust Guide | ||||
| 026 | 423417-4 | 1.20 | 1.45 | |
| Set of knives | ||||
| 027 | 195768-2 | 58.04 | 70.23 | |
| Oil guide set | ||||
| 027A | 188605-7 | 2.40 | 2.90 | |
| Sliding bearing 5mm | ||||
| 027B | 262570-9 | 1.00 | 1.21 | |
| Washer 8 x 14 x 0.5mm | ||||
| 028 | 253215-0 | 1.00 | 1.21 | |
| Metal screw Ph M5x14mm Ck | ||||
| 029 | 266809-2 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 030 | 911113-1 | 1.00 | 1.21 | |
| Lower Cover | ||||
| 031 | 453317-4 | 6.00 | 7.26 | |
| Switch Handle | ||||
| 032 | 452678-9 | 3.60 | 4.36 | |
| Compression spring 5mm | ||||
| 033 | 234261-2 | 1.00 | 1.21 | |
| Handle | ||||
| 034 | 452682-8 | 6.00 | 7.26 | |
| Screw 5x25 | ||||
| 035 | 911243-8 | 1.00 | 1.21 | |
| Hand guard | ||||
| 036 | 453316-6 | 7.20 | 8.71 | |
| Tap screw 4x18 | ||||
| 037 | 265A48-7 | 1.00 | 1.21 | |
