Here you will find all available parts and drawings of the 'Makita UC4551A'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

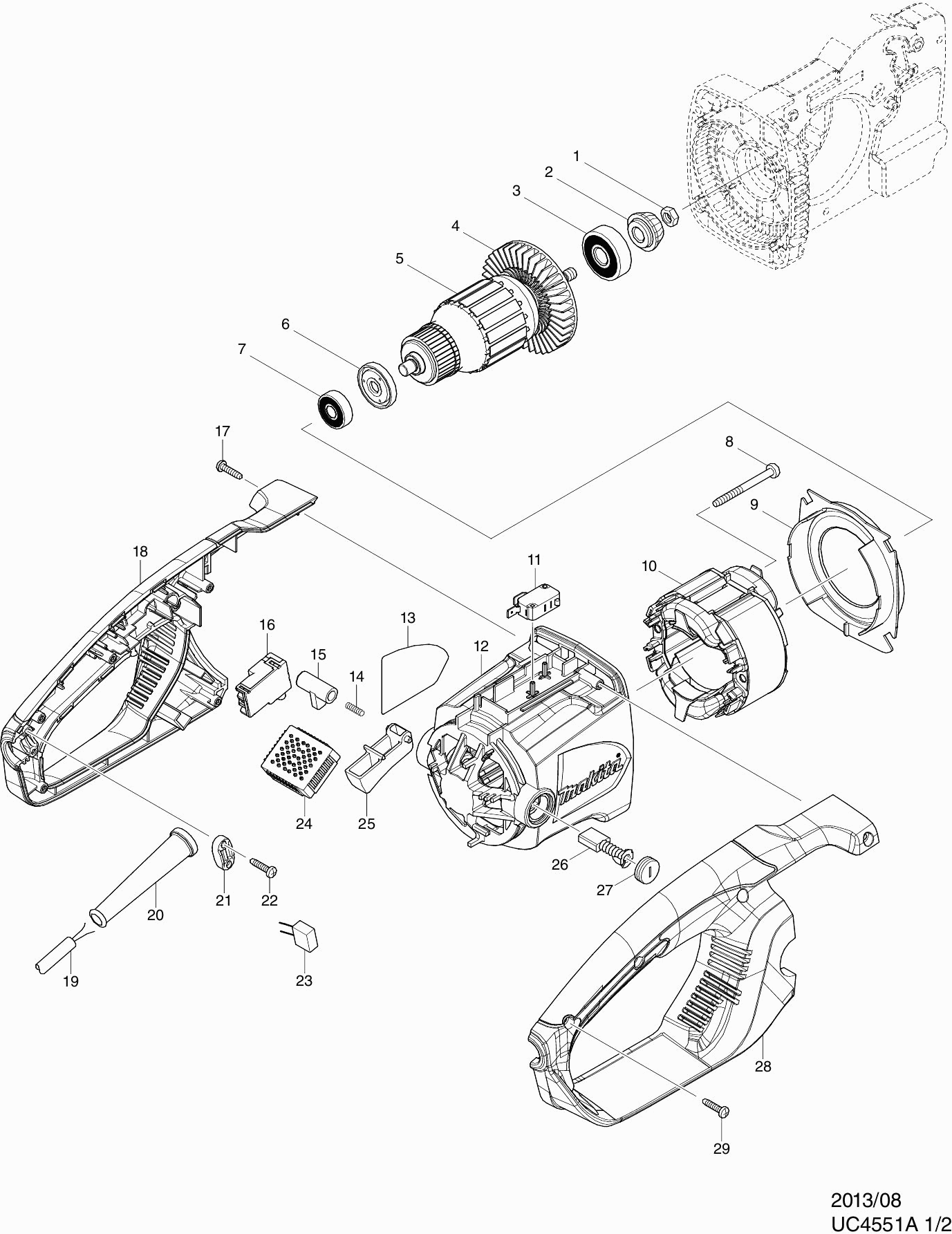

Technical drawing of model Makita UC4551A
Spare parts list of model Makita UC4551A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex nut M8 | ||||
| 001 | 931403-6 | 0.83 | 1.00 | |
| Gear 12 | ||||
| 002 | 227626-5 | 6.70 | 8.11 | |
| No information available, not orderable | ||||
| 003 | 211111-8 | |||
| Fan 80 | ||||
| 004 | 240003-4 | 3.12 | 3.78 | |
| Armature 240v | ||||
| 005 | 517904-4 | 44.21 | 53.49 | |
| Insulating Washer Uc35/40/4530A A | ||||
| 006 | 681666-1 | 1.02 | 1.23 | |
| Ball Bearing 629Zz A | ||||
| 007 | 210084-2 | 1.18 | 1.43 | |
| Self-tapping screw Pt 5x55 Hr5001C A | ||||
| 008 | 266095-5 | 0.98 | 1.19 | |
| Luchtverplaatser Uc35/40/4530* | ||||
| 009 | 419410-4 | 1.44 | 1.74 | |
| Field | ||||
| 010 | 636394-3 | 36.08 | 43.66 | |
| Switch | ||||
| 011 | 650577-1 | 2.10 | 2.54 | |
| Motor Housing | ||||
| 012 | 142348-5 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 012C10 | 643653-8 | |||
| Carbon brush holder A | ||||
| 012C11 | 643536-2 | 1.49 | 1.80 | |
| Nameplate UC4551A | ||||
| 013 | 815G15-4 | 2.71 | 3.28 | |
| Compression Spring 4 | ||||
| 014 | 233173-6 | 0.83 | 1.00 | |
| Deadman's Switch | ||||
| 015 | 416178-3 | 0.83 | 1.00 | |
| Switch Tgc30b | ||||
| 016 | 650717-1 | 8.59 | 10.39 | |
| Tap screw 4x18 | ||||
| 017 | 265A48-7 | 0.83 | 1.00 | |
| Set Of Handles | ||||
| 018 | 187901-0 | 12.80 | 15.49 | |
| Warning Label | ||||
| 018C10 | 802G51-9 | 2.71 | 3.28 | |
| Power cord m/plug | ||||
| 019 | 665894-6 | 12.80 | 15.49 | |
| No information available, not orderable | ||||
| 020 | 682540-6 | |||
| Clamp Bracket | ||||
| 021 | 687124-5 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 0.83 | 1.00 | |
| Capacitor 0,1uf | ||||
| 023 | 645105-5 | 2.71 | 3.28 | |
| Control unit | ||||
| 024 | 631719-6 | 68.13 | 82.44 | |
| Switch Button A/u | ||||
| 025 | 419411-2 | 5.30 | 6.41 | |
| Carbon Brush Set Cb-153 | ||||
| 026 | 194985-1 | 3.96 | 4.79 | |
| Brush holder cap | ||||
| 027 | 643650-4 | 0.83 | 1.00 | |
| Brush holder cap | ||||
| 027-1 | 643650-4 | 0.83 | 1.00 | |
| Set Of Handles | ||||
| 028 | 187901-0 | 12.80 | 15.49 | |
| Warning Label | ||||
| 028C10 | 802G51-9 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 029 | 265A48-7 | 0.83 | 1.00 | |
| Fuel Cap | ||||
| 030 | 142282-9 | 3.54 | 4.28 | |
| Inner Cover | ||||
| 031 | 454822-4 | 5.09 | 6.16 | |
| Gasket | ||||
| 032 | 421959-2 | 1.39 | 1.68 | |
| Oil Reservoir | ||||
| 033 | 454826-6 | 1.39 | 1.68 | |
| Connection piece "b" | ||||
| 034 | 424611-1 | 0.98 | 1.19 | |
| Connection piece "a" | ||||
| 035 | 424610-3 | 1.20 | 1.45 | |
| Compression Spring | ||||
| 036 | 231975-4 | 0.83 | 1.00 | |
| Covering hood | ||||
| 037 | 416274-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 038 | 454825-8 | |||
| Spring for hand protection | ||||
| 039 | 233174-4 | 1.18 | 1.43 | |
| Hand protection | ||||
| 040 | 142341-9 | 4.67 | 5.65 | |
| Indicator label | ||||
| 040C10 | 802K54-7 | 2.71 | 3.28 | |
| Brake Band Holder | ||||
| 041 | 158044-5 | 9.26 | 11.20 | |
| Spring | ||||
| 042 | 234005-0 | 1.67 | 2.02 | |
| O-ring 6 | ||||
| 043 | 213017-6 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 044 | 454821-6 | 8.21 | 9.93 | |
| Tap Screw 5X25 | ||||
| 045 | 266041-8 | 0.83 | 1.00 | |
| Ball bearing 606Zz A | ||||
| 046-1 | 210137-7 | 0.98 | 1.19 | |
| Locking Ring S-10 | ||||
| 047 | 257408-1 | 0.83 | 1.00 | |
| Worm Wheel DUC353 | ||||
| 048 | 221427-3 | 3.29 | 3.98 | |
| No information available, not orderable | ||||
| 049 | 196419-0 | |||
| Oil pump complete | ||||
| 049-1 | 142156-4 | 15.60 | 18.88 | |
| Bushing | ||||
| 050 | 424612-9 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 051 | 265A48-7 | 0.83 | 1.00 | |
| Gear 37 | ||||
| 052 | 227627-3 | 10.66 | 12.90 | |
| Spindle Ass'y | ||||
| 053 | 326373-6 | 4.45 | 5.38 | |
| Ball Bearing 6001zz | ||||
| 054-1 | 211148-5 | 8.21 | 9.93 | |
| Handle | ||||
| 055 | 454823-2 | 10.52 | 12.73 | |
| Tap Screw 5X25 | ||||
| 056 | 266041-8 | 0.83 | 1.00 | |
| Pole bumper | ||||
| 057 | 345651-5 | 2.71 | 3.28 | |
| Tap Screw 5X25 | ||||
| 058 | 266041-8 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 059 | 319091-3 | 19.29 | 23.34 | |
| Tapping screw 5x60mm | ||||
| 060 | 266044-2 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 061 | 267195-4 | 0.83 | 1.00 | |
| Tapping screw M4x12mm Ck | ||||
| 062 | 266026-4 | 0.83 | 1.00 | |
| Brake Band | ||||
| 063 | 168426-3 | 10.99 | 13.30 | |
| Clutch drum.Uc35/40/4530A A | ||||
| 064 | 123886-6 | 23.06 | 27.90 | |
| Clutch drum.Uc35/40/4530A A | ||||
| 064-1 | 123886-6 | 23.06 | 27.90 | |
| Washer 8 x 14 x 0.5mm | ||||
| 065 | 253215-0 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 066 | 259033-4 | |||
| No information available, not orderable | ||||
| 067 | 265C54-4 | |||
| Covering hood | ||||
| 068 | 454818-5 | 0.83 | 1.00 | |
| Gear 14 | ||||
| 069 | 227496-2 | 3.96 | 4.79 | |
| Adjusting Screw | ||||
| 070 | 326372-8 | 0.83 | 1.00 | |
| Adjustment Pin | ||||
| 071 | 326310-0 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 072 | 265C54-4 | |||
| No information available, not orderable | ||||
| 073 | 142342-7 | |||
| Side-cover assy | ||||
| 073-1 | 183B54-5 | 17.40 | 21.05 | |
| No information available, not orderable | ||||
| 073-1C10 | 142342-7 | |||
| Rubber Pin 4 | ||||
| 075 | 263002-9 | 0.83 | 1.00 | |
| Drive Shaft | ||||
| 076 | 142665-3 | 3.54 | 4.28 | |
| Cover Ring | ||||
| 077 | 454819-3 | 1.20 | 1.45 | |
| Quick Release Toggle | ||||
| 078 | 142235-8 | 5.71 | 6.91 | |
| Hose clamp IAS 3 | ||||
| 081 | 324685-1 | 1.24 | 1.50 | |
