Here you will find all available parts and drawings of the 'Makita UC4041A'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

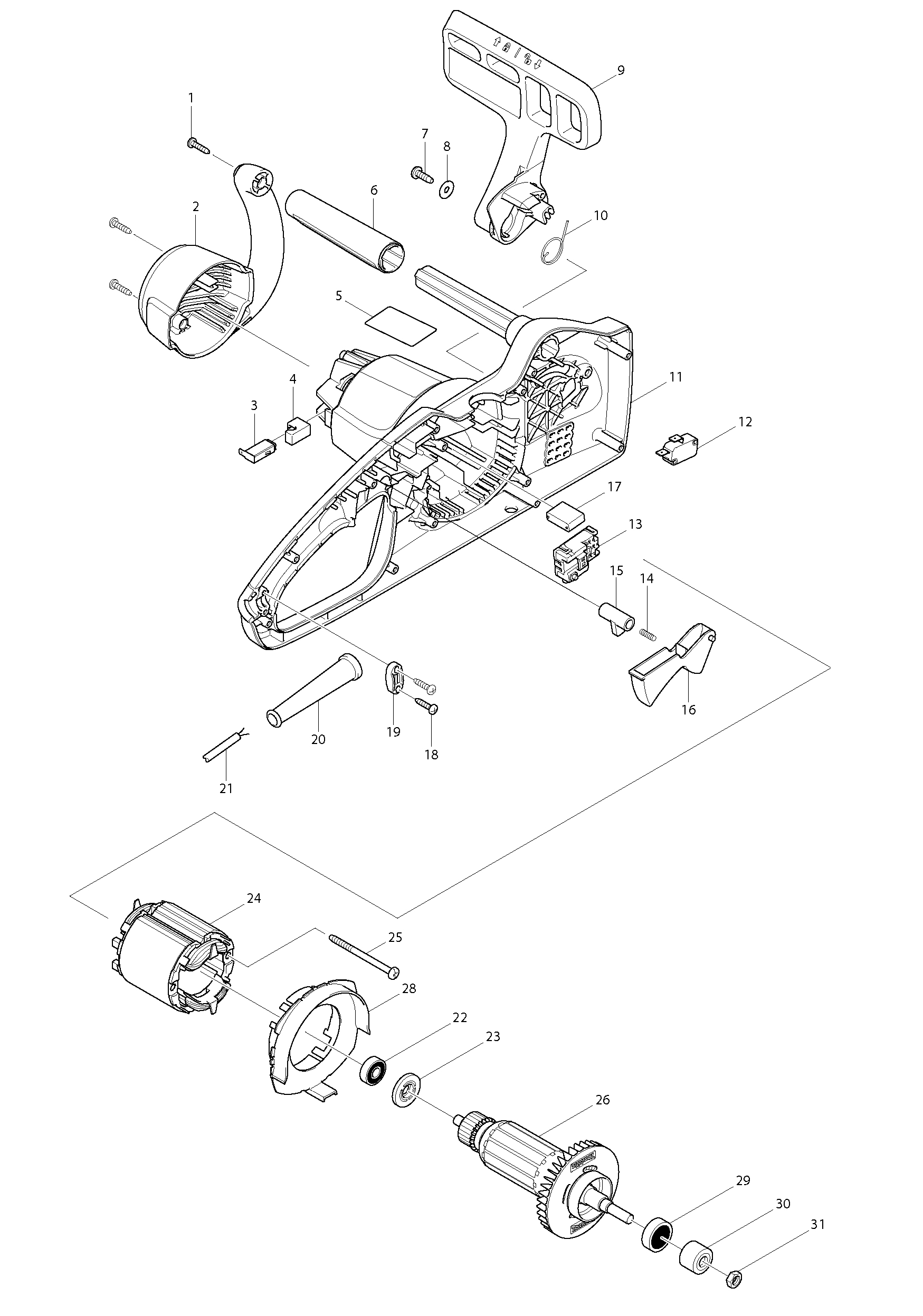

Technical drawing of model Makita UC4041A
Spare parts list of model Makita UC4041A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 266326-2 | |||
| Side Cover | ||||
| 002 | 454725-2 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 003 | 191972-1 | |||
| Bus Uc30/35/4020A A | ||||
| 004 | 682211-5 | 0.83 | 1.00 | |
| Handle | ||||
| 006 | 424600-6 | 1.39 | 1.68 | |
| Tapping screw 5x16mm | ||||
| 007 | 266388-0 | 0.83 | 1.00 | |
| Lock washer 5 | ||||
| 008 | 253807-5 | 0.83 | 1.00 | |
| Hand protection | ||||
| 009 | 142279-8 | 3.96 | 4.79 | |
| Indicator label | ||||
| 009A | 802K54-7 | 2.71 | 3.28 | |
| Torsion Spring 20 | ||||
| 010 | 231640-5 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 011 | 187784-8 | 29.35 | 35.51 | |
| Motor Housing Set | ||||
| 011 | 187869-0 | 28.02 | 33.90 | |
| Warning Label | ||||
| 011A | 802G51-9 | 2.71 | 3.28 | |
| Switch | ||||
| 012 | 650577-1 | 2.10 | 2.54 | |
| Switch | ||||
| 013 | 650716-3 | 8.27 | 10.01 | |
| Compression Spring 4 | ||||
| 014 | 233173-6 | 0.83 | 1.00 | |
| Deadman's Switch | ||||
| 015 | 416178-3 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 016 | 455185-1 | 1.39 | 1.68 | |
| Capacitor | ||||
| 017 | 645149-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 018 | 266326-2 | |||
| Clamp Bracket | ||||
| 019 | 687124-5 | 0.83 | 1.00 | |
| Cable grommet 10-90 | ||||
| 020 | 682505-8 | 1.67 | 2.02 | |
| Power cord 2x1,0 0,6mtr | ||||
| 021 | 665876-8 | 3.12 | 3.78 | |
| Ball Bearing 608Zz A | ||||
| 022 | 210046-0 | 0.83 | 1.00 | |
| Insulation ring | ||||
| 023 | 681644-1 | 0.83 | 1.00 | |
| Field Assy Uc30/35/4020A A | ||||
| 024 | 593869-4 | 21.97 | 26.58 | |
| Motor connection | ||||
| 024A | 654069-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 024B | 654208-4 | |||
| Tapping screw 5x70mm | ||||
| 025 | 266389-8 | 0.83 | 1.00 | |
| Armature 240v | ||||
| 026 | 513893-1 | 33.36 | 40.37 | |
| Spacer plate | ||||
| 028 | 419238-0 | 0.83 | 1.00 | |
| Ball bearing 6000llb | ||||
| 029 | 211061-7 | 7.22 | 8.74 | |
| Gear 12 Uc30/35/4020A | ||||
| 030 | 227153-2 | 1.18 | 1.43 | |
| Hex nut M8 | ||||
| 031 | 931403-6 | 0.83 | 1.00 | |
| Fuel Cap | ||||
| 032 | 142282-9 | 3.54 | 4.28 | |
| Oil Reservoir | ||||
| 034 | 454729-4 | 2.71 | 3.28 | |
| Oil hose | ||||
| 037 | 424602-2 | 1.20 | 1.45 | |
| Compression Spring | ||||
| 038 | 231975-4 | 0.83 | 1.00 | |
| Covering hood | ||||
| 039 | 416274-7 | 0.83 | 1.00 | |
| Pen 5Mm Ebh253U A | ||||
| 040 | 268238-5 | 0.83 | 1.00 | |
| Intermediate Plate | ||||
| 041 | 158047-9 | 2.84 | 3.44 | |
| Compression Spring 9 | ||||
| 042 | 233175-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 266326-2 | |||
| 4 Washer | ||||
| 045 | 267195-4 | 0.83 | 1.00 | |
| Brake Band | ||||
| 046 | 168321-7 | 6.38 | 7.72 | |
| Brake ring | ||||
| 047 | 346739-4 | 0.83 | 1.00 | |
| Tension spring 5 | ||||
| 048 | 231817-2 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 049 | 454720-2 | 5.71 | 6.91 | |
| O-ring 6 | ||||
| 050 | 213017-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 051 | 266326-2 | |||
| Connector | ||||
| 052 | 424601-4 | 1.18 | 1.43 | |
| Gear 43 | ||||
| 053 | 135615-5 | 11.82 | 14.30 | |
| Ball bearing 6001llb | ||||
| 055 | 211101-1 | 5.06 | 6.12 | |
| Locking Ring S-10 | ||||
| 056 | 257408-1 | 0.83 | 1.00 | |
| Ball bearing 696ZZ A | ||||
| 057 | 210026-6 | 1.99 | 2.41 | |
| Hook Bracket | ||||
| 058 | 326359-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 060 | 266326-2 | |||
| Pole bumper | ||||
| 061 | 345651-5 | 2.71 | 3.28 | |
| Motor Housing Set | ||||
| 062 | 187869-0 | 28.02 | 33.90 | |
| Warning Label | ||||
| 062A | 802G51-9 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 063 | 266326-2 | |||
| Chain drive wheel | ||||
| 064 | 221526-1 | 2.36 | 2.86 | |
| Lock ring E8 | ||||
| 065 | 259036-8 | 0.83 | 1.00 | |
| Tapping screw Pt3x10 | ||||
| 066 | 266007-8 | 0.83 | 1.00 | |
| Cover Plate | ||||
| 067 | 454727-8 | 0.83 | 1.00 | |
| Adjusting Knob | ||||
| 068 | 454726-0 | 0.83 | 1.00 | |
| Clamping Plate | ||||
| 069 | 326360-5 | 1.18 | 1.43 | |
| Gear 14 | ||||
| 070 | 227496-2 | 3.96 | 4.79 | |
| Gear 14 | ||||
| 071 | 227496-2 | 3.96 | 4.79 | |
| Adjusting Screw | ||||
| 072 | 324620-9 | 0.83 | 1.00 | |
| Tension plate guide | ||||
| 073 | 346859-4 | 1.39 | 1.68 | |
| Passage Uc Es Series | ||||
| 074 | 424603-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 075 | 196419-0 | |||
| Worm Wheel DUC353 | ||||
| 076 | 221427-3 | 3.29 | 3.98 | |
| No information available, not orderable | ||||
| 077 | 266326-2 | |||
| No information available, not orderable | ||||
| 078 | 265C54-4 | |||
| Sprocket Cover | ||||
| 079 | 142281-1 | 4.45 | 5.38 | |
| Cover Ring | ||||
| 080 | 454728-6 | 0.83 | 1.00 | |
| Quick Release Toggle | ||||
| 081 | 142235-8 | 5.71 | 6.91 | |
| Label "104db" | ||||
| 082 | 804G74-3 | 2.71 | 3.28 | |
