Here you will find all available parts and drawings of the 'Makita UC120D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

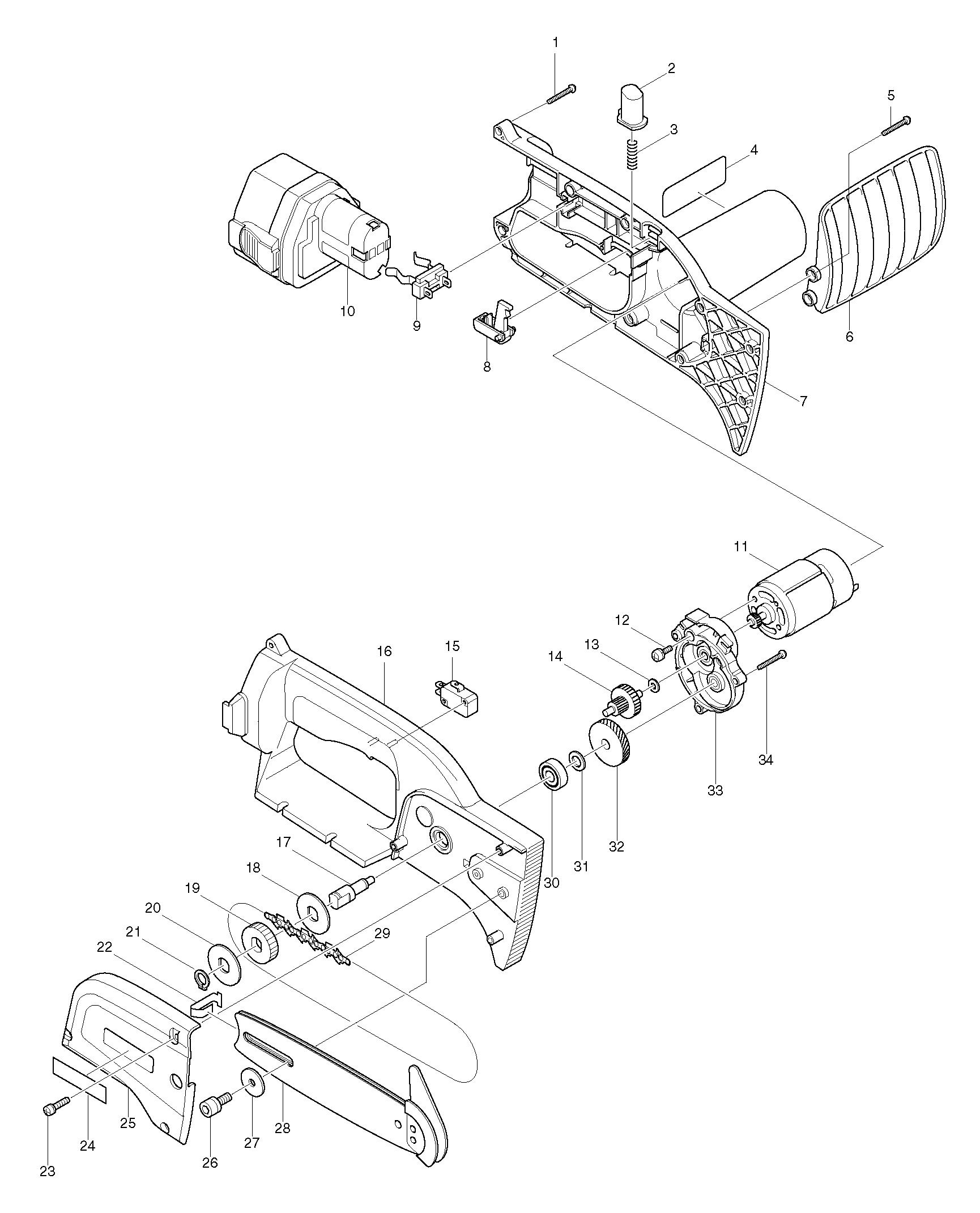

Technical drawing of model Makita UC120D
Spare parts list of model Makita UC120D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Unlock button Uc120Dw * | ||||
| 002 | 416308-6 | 2.40 | 2.90 | |
| Compression spring 4 UC120DW A | ||||
| 003 | 233194-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Hand protection Uc120Dw * | ||||
| 006 | 416312-5 | 4.80 | 5.81 | |
| Motorhuis set | ||||
| 007 | 182923-5 | 36.30 | 43.92 | |
| Switch handle | ||||
| 008 | 415679-8 | 3.60 | 4.36 | |
| Battery connector piece | ||||
| 009 | 643909-9 | 3.60 | 4.36 | |
| Dc Motor 12 Volt Uc120Dw * | ||||
| 011 | 629715-6 | 47.30 | 57.23 | |
| Screw 4X10 | ||||
| 012 | 911113-1 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 013 | 253811-4 | 1.00 | 1.21 | |
| Gear 9-46 | ||||
| 014 | 226131-9 | 16.50 | 19.96 | |
| Switch | ||||
| 015 | 651942-7 | 6.00 | 7.26 | |
| Motorhuis set | ||||
| 016 | 182923-5 | 36.30 | 43.92 | |
| Axle Uc120Dw * | ||||
| 017 | 322954-4 | 6.00 | 7.26 | |
| Lock Washer 12 Uc120Dw * | ||||
| 018 | 267729-3 | 1.20 | 1.45 | |
| Chainwheel 9 | ||||
| 019 | 221504-1 | 8.40 | 10.16 | |
| Lock Washer 12 Uc120Dw * | ||||
| 020 | 267729-3 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 1.00 | 1.21 | |
| Leaf spring Uc120Dw * | ||||
| 022 | 232170-9 | 2.40 | 2.90 | |
| Screw 4x25 | ||||
| 023 | 911148-2 | 1.00 | 1.21 | |
| Label "makita" | ||||
| 024 | 819197-2 | 2.40 | 2.90 | |
| Cover cap for sword Uc120Dw * | ||||
| 025 | 416306-0 | 4.80 | 5.81 | |
| Hex bolt M6X16 * | ||||
| 026 | 922321-9 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 027 | 267173-4 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 028 | 158476-6 | |||
| No information available, not orderable | ||||
| 029 | 572466042 | |||
| Ball bearing 608llb | ||||
| 030 | 210043-6 | 2.40 | 2.90 | |
| Washer 8 x 14 x 0.5mm | ||||
| 031 | 253215-0 | 1.00 | 1.21 | |
| Gear 44 Uc120Dw * | ||||
| 032 | 226478-1 | 8.40 | 10.16 | |
| Gear Cover | ||||
| 033 | 159982-4 | 7.20 | 8.71 | |
| Tap screw 4x18 | ||||
| 034 | 265A48-7 | 1.00 | 1.21 | |
| Line Filter Uc120Dw * | ||||
| 035 | 688114-1 | 1.20 | 1.45 | |
| Contact Plate For Extension* | ||||
| 101 | 654184-2 | 8.40 | 10.16 | |
| Contact Holder Extension * | ||||
| 102 | 687096-4 | 6.00 | 7.26 | |
| Screw 4x12 | ||||
| 103 | 265C54-4 | 1.00 | 1.21 | |
| Cable Clamp Extension * | ||||
| 104 | 687048-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 105 | 183000-6 | |||
| Washer 7 LF1000 A | ||||
| 106 | 267322-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 107 | 150934-8 | |||
| No information available, not orderable | ||||
| 108 | 667802-3 | |||
| No information available, not orderable | ||||
| 109 | 183000-6 | |||
| Tap screw 4x18 | ||||
| 110 | 265A48-7 | 1.00 | 1.21 | |
| Lock Nut Extension | ||||
| 111 | 416551-7 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 112 | 150828-7 | |||
| No information available, not orderable | ||||
| 112A | 816781-4 | |||
| No information available, not orderable | ||||
| 113 | 331528-0 | |||
| No information available, not orderable | ||||
| 114 | 182999-2 | |||
| Screw 4x12 | ||||
| 115 | 265C54-4 | 1.00 | 1.21 | |
| Cable Clamp Extension * | ||||
| 116 | 687048-5 | 1.00 | 1.21 | |
| Unlock button Uc120Dw * | ||||
| 117 | 416308-6 | 2.40 | 2.90 | |
| Switch | ||||
| 118 | 651942-7 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 119 | 182999-2 | |||
| Switch handle | ||||
| 120 | 415679-8 | 3.60 | 4.36 | |
| Battery connector piece | ||||
| 121 | 643909-9 | 3.60 | 4.36 | |
| Compression spring 4 UC120DW A | ||||
| 122 | 233194-8 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 123 | 265A48-7 | 1.00 | 1.21 | |
