Here you will find all available parts and drawings of the 'Makita TW160D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

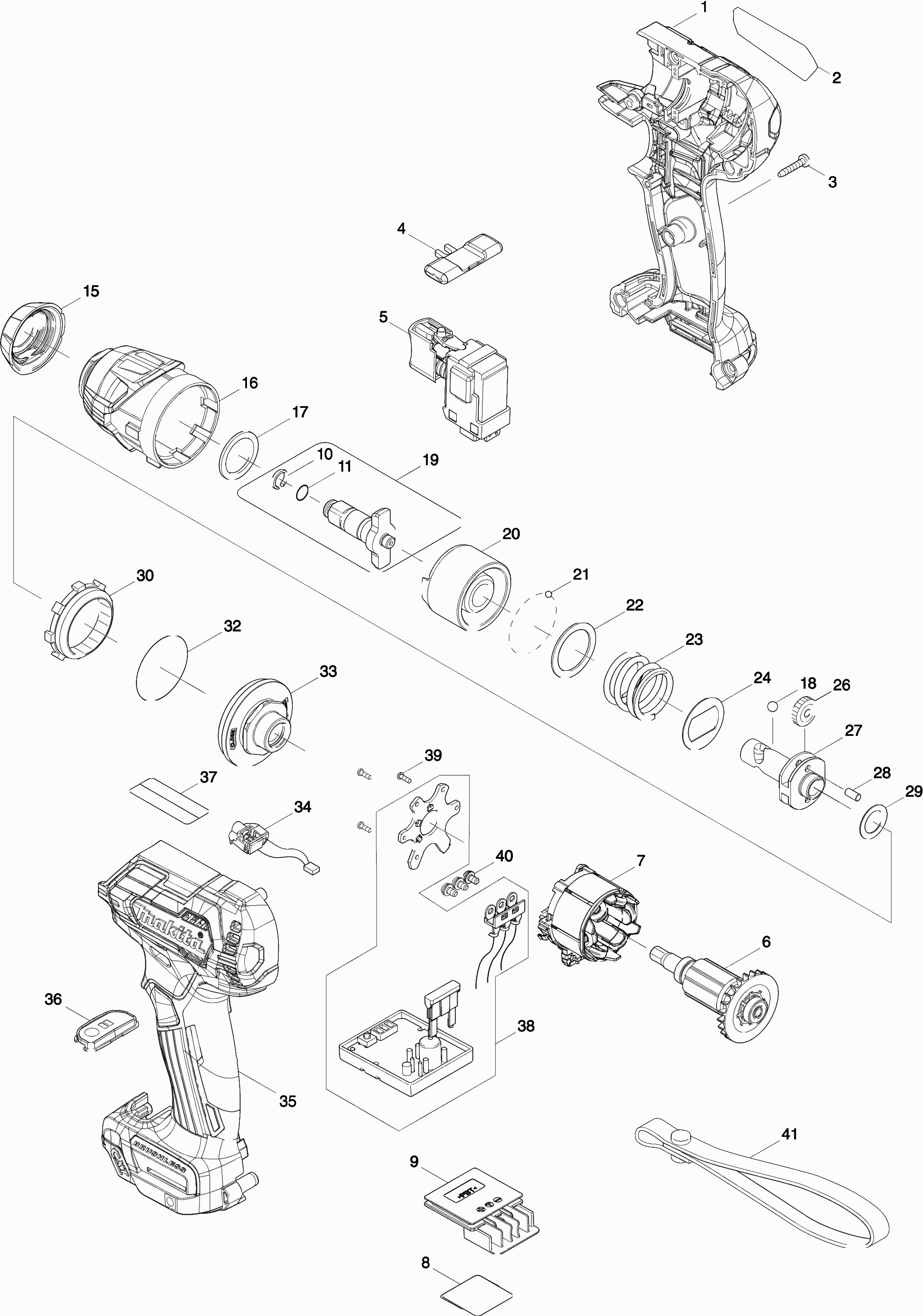

Technical drawing of model Makita TW160D
Spare parts list of model Makita TW160D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motorhuisset TW160D | ||||
| 001 | 183L31-7 | 13.83 | 16.73 | |
| Rubber Pin 4 | ||||
| 001C10 | 263002-9 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 001C20 | 252126-6 | 0.83 | 1.00 | |
| Nameplate TW160D | ||||
| 002 | 855L57-6 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 004 | 455053-8 | 0.83 | 1.00 | |
| Complete Switch | ||||
| 005 | 143975-1 | 17.40 | 21.05 | |
| Switch cover DTW180 | ||||
| 005C10 | 424890-1 | 0.83 | 1.00 | |
| Armature 18V Dtw180 | ||||
| 006 | 619491-0 | 19.23 | 23.27 | |
| Armature 10.8V TW160D | ||||
| 007 | 629398-2 | 10.52 | 12.73 | |
| Serial number label TW160D | ||||
| 008 | 855L63-1 | 0.83 | 1.00 | |
| Connection unit | ||||
| 009 | 644813-5 | 2.36 | 2.86 | |
| Lock washer 8 DTW180 | ||||
| 010 | 233943-3 | 2.71 | 3.28 | |
| O-ring 4 | ||||
| 011 | 213032-0 | 0.83 | 1.00 | |
| Shock ring Dtw180 | ||||
| 015 | 422228-4 | 0.83 | 1.00 | |
| Impact Case TW160D | ||||
| 016 | 140G53-0 | 11.84 | 14.33 | |
| O-ring 12.5 | ||||
| 016C10 | 213166-9 | 1.39 | 1.68 | |
| Nylon washer 19mm | ||||
| 017 | 261159-0 | 0.83 | 1.00 | |
| Steel ball 4.8 | ||||
| 018 | 216002-8 | 0.83 | 1.00 | |
| Anvil Dtw180 | ||||
| 019 | 135932-3 | 6.38 | 7.72 | |
| Impact piece Dtw180 | ||||
| 020 | 327045-6 | 9.26 | 11.20 | |
| Steel ball 3 | ||||
| 021 | 216019-1 | 0.83 | 1.00 | |
| Washer 22 Ga5021 | ||||
| 022 | 267352-4 | 0.83 | 1.00 | |
| Compression Spring 21mm Dtw180 | ||||
| 023 | 232410-5 | 2.36 | 2.86 | |
| Rivet 21mm | ||||
| 024 | 267813-4 | 0.83 | 1.00 | |
| Gear 17 | ||||
| 026 | 227213-0 | 0.83 | 1.00 | |
| Axle Dtw180 | ||||
| 027 | 327046-4 | 5.70 | 6.90 | |
| Pen 3,5mm | ||||
| 028 | 268217-3 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 029 | 253052-2 | 0.83 | 1.00 | |
| Gear 43 | ||||
| 030 | 227316-0 | 3.54 | 4.28 | |
| O-ring 33 | ||||
| 032 | 213479-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 033 | 140G75-0 | |||
| O-ring 13mm DTW181 | ||||
| 033C10 | 213845-9 | 0.83 | 1.00 | |
| Light Circuit TD160D | ||||
| 034 | 620999-9 | 6.41 | 7.76 | |
| Motorhuisset TW160D | ||||
| 035 | 183L31-7 | 13.83 | 16.73 | |
| Rubber Pin 4 | ||||
| 035C10 | 263002-9 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 035C20 | 252126-6 | 0.83 | 1.00 | |
| Switch Plate TW160D | ||||
| 036 | 140G52-2 | 1.39 | 1.68 | |
| Controller TW160D | ||||
| 038 | 620998-1 | 87.32 | 105.66 | |
| Parker Ck 2x6mm | ||||
| 039 | 266490-9 | 0.83 | 1.00 | |
| Phillips Head Screw M3X6 | ||||
| 040 | 652069-6 | 0.83 | 1.00 | |
