Here you will find all available parts and drawings of the 'Makita TW0200'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

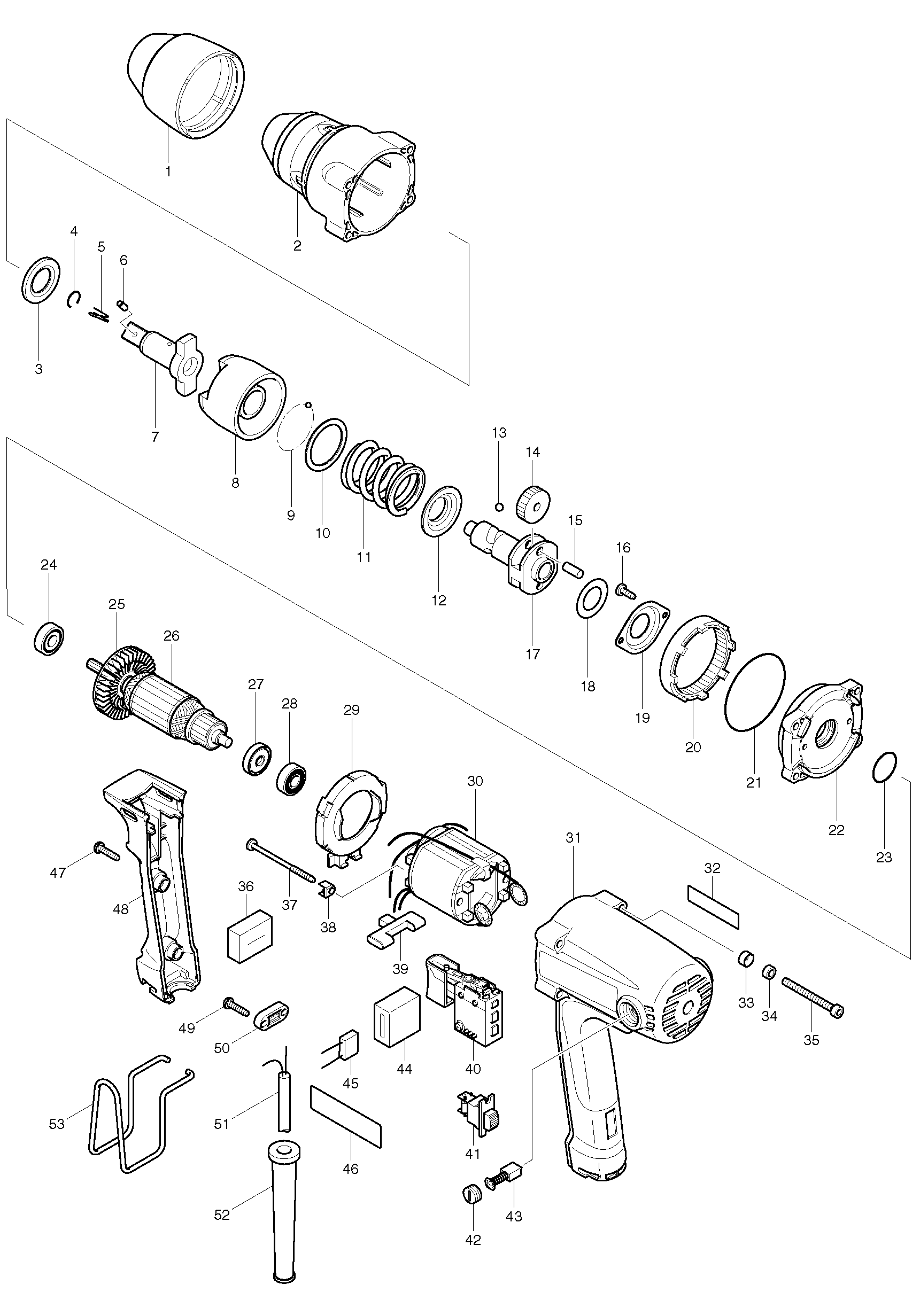

Technical drawing of model Makita TW0200
Spare parts list of model Makita TW0200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Leg | ||||
| 001 | 421839-2 | 2.84 | 3.44 | |
| Hammer Case | ||||
| 002 | 153581-4 | 34.95 | 42.29 | |
| Seal Ring 18 | ||||
| 002A | 213257-6 | 3.97 | 4.80 | |
| Bus 18 | ||||
| 002B | 321119-5 | 11.34 | 13.72 | |
| Flat Washer 19 | ||||
| 003 | 267268-3 | 0.98 | 1.19 | |
| Lock washer 10 | ||||
| 004 | 231907-1 | 0.83 | 1.00 | |
| Anvil | ||||
| 007 | 324344-7 | 28.02 | 33.90 | |
| Striker | ||||
| 008 | 324341-3 | 43.75 | 52.94 | |
| Steel ball 3.5 | ||||
| 009 | 216040-0 | 0.83 | 1.00 | |
| Washer 32 | ||||
| 010 | 267269-1 | 1.24 | 1.50 | |
| Compression Spring 30 | ||||
| 011 | 233377-0 | 2.84 | 3.44 | |
| Washer 19 | ||||
| 012 | 267777-2 | 0.83 | 1.00 | |
| Steel ball 6.4 | ||||
| 013 | 216007-8 | 0.83 | 1.00 | |
| Gear 32 | ||||
| 014 | 227092-6 | 9.26 | 11.20 | |
| Pin 6 | ||||
| 015 | 256002-6 | 0.83 | 1.00 | |
| Tapping screw M4x12mm Ck | ||||
| 016 | 266026-4 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 017 | 324339-0 | 76.04 | 92.01 | |
| Washer 18 | ||||
| 018 | 253794-8 | 0.83 | 1.00 | |
| Bearing Lock 44 | ||||
| 019 | 285709-7 | 1.75 | 2.12 | |
| Internal gear 71 | ||||
| 020 | 227093-4 | 6.70 | 8.11 | |
| O-ring 58 | ||||
| 021 | 213670-8 | 0.83 | 1.00 | |
| Gearcase Sa | ||||
| 022 | 153583-0 | 10.99 | 13.30 | |
| O-ring 22 | ||||
| 023 | 213373-4 | 1.18 | 1.43 | |
| Ball Bearing 608ddw | ||||
| 024 | 210005-4 | 4.45 | 5.38 | |
| Fan 52 | ||||
| 025 | 241881-5 | 2.02 | 2.44 | |
| Armature | ||||
| 026 | 517448-4 | 51.83 | 62.71 | |
| Insulation ring | ||||
| 027 | 681652-2 | 0.83 | 1.00 | |
| Ball bearing 607llb | ||||
| 028 | 211021-9 | 4.45 | 5.38 | |
| Spacer plate | ||||
| 029 | 418187-8 | 1.75 | 2.12 | |
| Field 220-240V Tw0200 | ||||
| 030 | 599354-5 | 36.08 | 43.66 | |
| Stator spring | ||||
| 030A | 654100-4 | 1.24 | 1.50 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 030B | 654501-6 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 031 | 140021-1 | 26.55 | 32.13 | |
| Brush Holder | ||||
| 031A | 643455-2 | 1.91 | 2.31 | |
| Label Makita | ||||
| 032 | 819063-3 | 2.71 | 3.28 | |
| Disk Washer M5 | ||||
| 033 | 253929-1 | 0.83 | 1.00 | |
| Plastic Washer 5 | ||||
| 034 | 262001-8 | 1.39 | 1.68 | |
| Allen bolt M5X50 | ||||
| 035 | 266331-9 | 0.83 | 1.00 | |
| Sponge rubber | ||||
| 036 | 685700-9 | 0.83 | 1.00 | |
| Self-tapping screw 4x50 | ||||
| 037 | 266091-3 | 0.83 | 1.00 | |
| Insulating Cap | ||||
| 038 | 417237-6 | 0.83 | 1.00 | |
| Adjustment Button | ||||
| 039 | 418186-0 | 2.10 | 2.54 | |
| Switch | ||||
| 040 | 650523-4 | 36.05 | 43.62 | |
| Brush holder cap | ||||
| 042 | 643550-8 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 043 | 195010-1 | 4.45 | 5.38 | |
| Capacitor | ||||
| 045 | 645253-0 | 4.45 | 5.38 | |
| Label | ||||
| 046 | 850444-2 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 047 | 265A48-7 | 0.83 | 1.00 | |
| Handle Cover | ||||
| 048 | 418189-4 | 7.57 | 9.16 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 050 | 687124-5 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 051 | 665383-1 | 10.50 | 12.70 | |
| Cable gland 10 | ||||
| 052 | 682566-8 | 1.18 | 1.43 | |
| Carry Hook | ||||
| 053 | 324284-9 | 4.14 | 5.01 | |
