Here you will find all available parts and drawings of the 'Makita TW004G'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

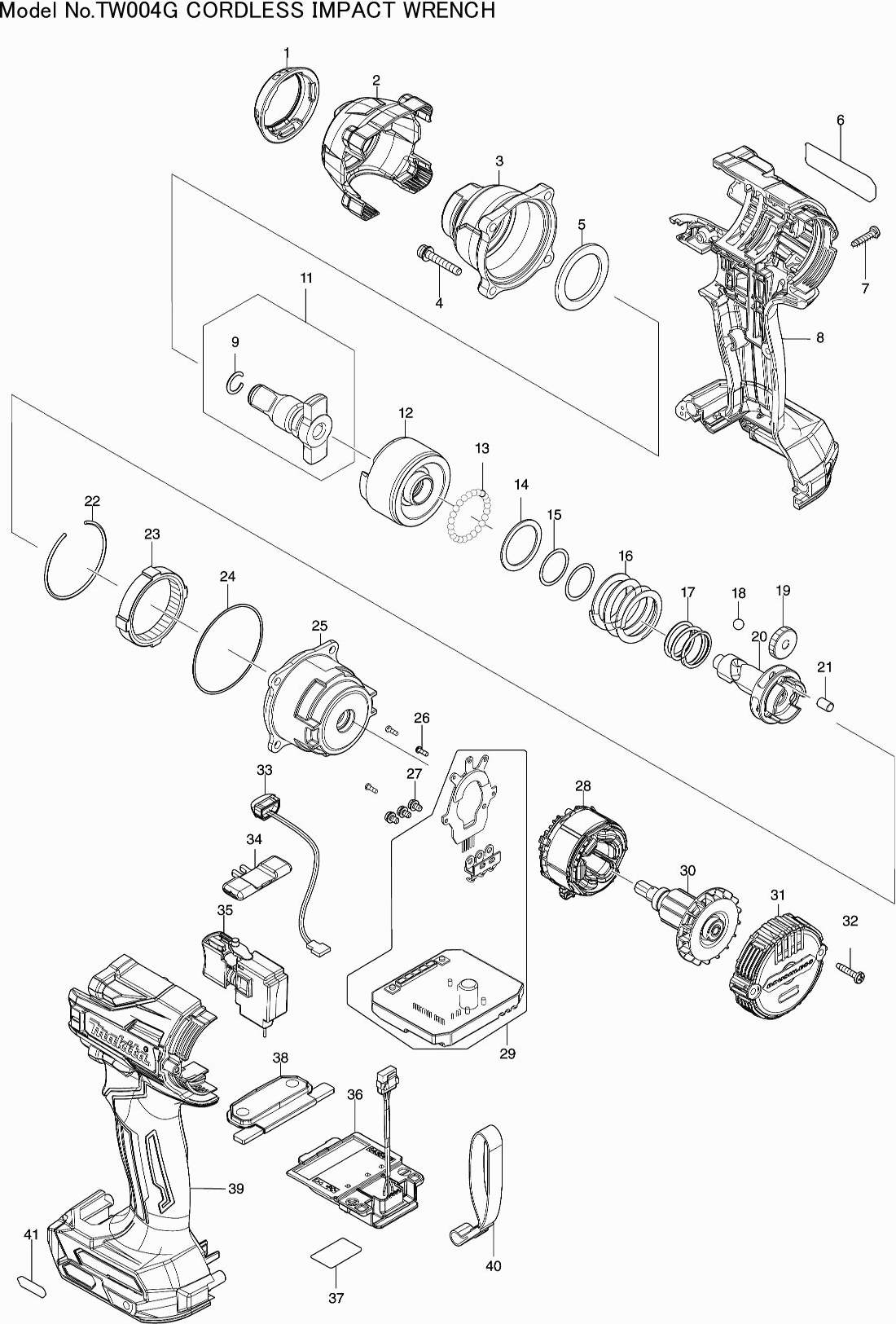

Technical drawing of model Makita TW004G
Spare parts list of model Makita TW004G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Shock ring DTW300 | ||||
| 001 | 422584-2 | 1.39 | 1.68 | |
| Strike Housing Cap TW004/5G | ||||
| 002 | 412822-0 | 0.98 | 1.19 | |
| Slaghuis cpl TW004/5G | ||||
| 003 | 140W13-8 | 11.82 | 14.30 | |
| Allen screw M4x25mm DTW301 | ||||
| 004 | 265472-8 | 2.71 | 3.28 | |
| Plastic washer 28 | ||||
| 005 | 261154-0 | 0.83 | 1.00 | |
| Nameplate TW004G | ||||
| 006 | 857P12-8 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 007 | 266130-9 | 0.83 | 1.00 | |
| Motor housing TW004/5G | ||||
| 008 | 183R16-9 | 12.22 | 14.79 | |
| Rubber pen 6 | ||||
| 008C10 | 263005-3 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 008C20 | 263032-0 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 008C30 | 252126-6 | 0.83 | 1.00 | |
| Lock washer 10 | ||||
| 009 | 231907-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 011 | 136357-4 | |||
| Strike piece TW004/5G | ||||
| 012 | 327648-6 | 25.36 | 30.69 | |
| Steel ball 3.5 | ||||
| 013 | 216040-0 | 0.83 | 1.00 | |
| Flat Washer 24 | ||||
| 014 | 267175-0 | 0.83 | 1.00 | |
| Washer 18 Hr2400 * | ||||
| 015 | 267106-9 | 0.98 | 1.19 | |
| Compression spring 25 DTW300/301 | ||||
| 016 | 232615-7 | 2.36 | 2.86 | |
| Compression Spring 18 TW004/5G A | ||||
| 017 | 232682-2 | 1.18 | 1.43 | |
| Steel ball 5.6 | ||||
| 018 | 216041-8 | 0.83 | 1.00 | |
| Gear 22 | ||||
| 019 | 227338-0 | 5.06 | 6.12 | |
| Shaft TW004G | ||||
| 020 | 327689-2 | 33.36 | 40.37 | |
| Pen 5 | ||||
| 021 | 268311-1 | 0.83 | 1.00 | |
| Lock washer 43 | ||||
| 022 | 233910-8 | 0.83 | 1.00 | |
| Gear 51 | ||||
| 023 | 227337-2 | 2.71 | 3.28 | |
| O-ring 49 | ||||
| 024 | 213785-1 | 0.83 | 1.00 | |
| Tandwiel TW004/5G | ||||
| 025 | 140W14-6 | 8.27 | 10.01 | |
| Parker Ck 2x6mm | ||||
| 026 | 266490-9 | 0.83 | 1.00 | |
| Phillips Head Screw M3X6 | ||||
| 027 | 652069-6 | 0.83 | 1.00 | |
| Field | ||||
| 028 | 629A13-4 | 8.21 | 9.93 | |
| Controller TW004/5G | ||||
| 029 | 620D69-8 | 105.70 | 127.90 | |
| Armature DTW300/301 | ||||
| 030 | 619626-3 | 17.38 | 21.03 | |
| Rear Cover TW004/5G | ||||
| 031 | 412821-2 | 1.67 | 2.02 | |
| Tapping Screw 3x16 | ||||
| 032 | 266130-9 | 0.83 | 1.00 | |
| LED Circuit | ||||
| 033 | 620521-2 | 5.71 | 6.91 | |
| Rotary knob ABB OHYS2AJ | ||||
| 034 | 455053-8 | 0.83 | 1.00 | |
| Switch TD001G | ||||
| 035 | 651442-7 | 15.60 | 18.88 | |
| Connection unit TD001G | ||||
| 036 | 632P75-3 | 8.21 | 9.93 | |
| Serial number label TW004G | ||||
| 037 | 857P18-6 | 0.83 | 1.00 | |
| Schakelplaat TW004/5G | ||||
| 038 | 140W19-6 | 4.45 | 5.38 | |
| Label A/U | ||||
| 038C10 | 8020J3-8 | 1.20 | 1.45 | |
| Motor housing TW004/5G | ||||
| 039 | 183R16-9 | 12.22 | 14.79 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 039C20 | 263032-0 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 039C30 | 252126-6 | 0.83 | 1.00 | |
| Label XGT logo | ||||
| 041 | 8007R2-2 | 0.83 | 1.00 | |
