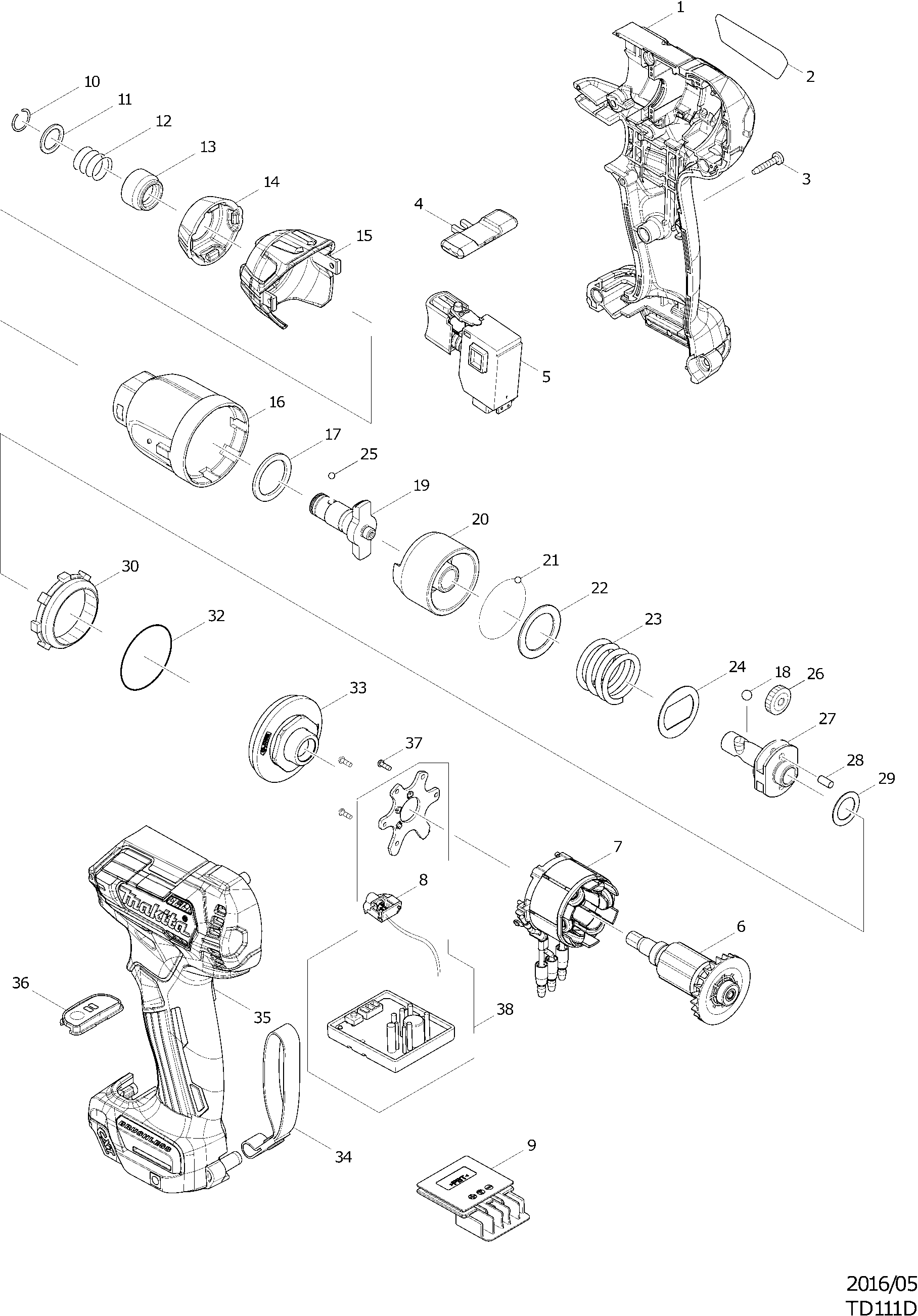

Technical drawing of model Makita TD111D
Spare parts list of model Makita TD111D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set | ||||
| 001 | 183E65-8 | 14.30 | 17.30 | |
| Lock Nut M4x7mm | ||||
| 001A | 252126-6 | 1.00 | 1.21 | |
| Nameplate "td111d" | ||||
| 002 | 852P37-7 | 2.71 | 3.28 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 004 | 455053-8 | 1.00 | 1.21 | |
| Switch | ||||
| 005 | 650005-6 | 17.60 | 21.30 | |
| Armature | ||||
| 006 | 619415-6 | 26.40 | 31.94 | |
| Armature | ||||
| 007 | 629232-6 | 13.20 | 15.97 | |
| Light circuit | ||||
| 008 | 620553-9 | 6.00 | 7.26 | |
| Connection unit | ||||
| 009 | 644813-5 | 2.40 | 2.90 | |
| Spring Washer 10 | ||||
| 010 | 231965-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 011 | 267143-3 | 1.20 | 1.45 | |
| Compression Spring 13 | ||||
| 012 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 013 | 326803-7 | 2.40 | 2.90 | |
| Bumper | ||||
| 014 | 424907-0 | 2.40 | 2.90 | |
| Impact housing cover | ||||
| 015 | 457062-3 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 016 | 144058-0 | 8.40 | 10.16 | |
| Nylon washer 19mm | ||||
| 017 | 261159-0 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 018 | 216019-1 | 1.00 | 1.21 | |
| Anvil Td0100 A | ||||
| 019 | 326630-2 | 6.00 | 7.26 | |
| Striker | ||||
| 020 | 324894-2 | 8.40 | 10.16 | |
| Steel ball 3 | ||||
| 021 | 216019-1 | 1.00 | 1.21 | |
| Rivet 20mm | ||||
| 022 | 267380-9 | 1.00 | 1.21 | |
| Pressure Spring 21 | ||||
| 023 | 232326-4 | 1.00 | 1.21 | |
| Rivet 21mm | ||||
| 024 | 267813-4 | 1.00 | 1.21 | |
| Steel ball 4.8 | ||||
| 025 | 216002-8 | 1.00 | 1.21 | |
| Gear 17 | ||||
| 026 | 221437-0 | 4.80 | 5.81 | |
| Spindle Ass'y | ||||
| 027 | 324897-6 | 6.00 | 7.26 | |
| Pen 3,5mm | ||||
| 028 | 268217-3 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 029 | 253052-2 | 1.00 | 1.21 | |
| Gear 43 | ||||
| 030 | 227316-0 | 3.60 | 4.36 | |
| O-ring 33 | ||||
| 032 | 213479-8 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 033 | 141893-7 | 6.00 | 7.26 | |
| Motor Housing Set | ||||
| 035 | 183E65-8 | 14.30 | 17.30 | |
| Lock Nut M4x7mm | ||||
| 035A | 252126-6 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 036 | 144060-3 | 2.40 | 2.90 | |
| Parker Ck 2x6mm | ||||
| 037 | 266490-9 | 1.00 | 1.21 | |
| Controller | ||||
| 038 | 620552-1 | 62.70 | 75.87 | |
