Here you will find all available parts and drawings of the 'Makita TD090D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

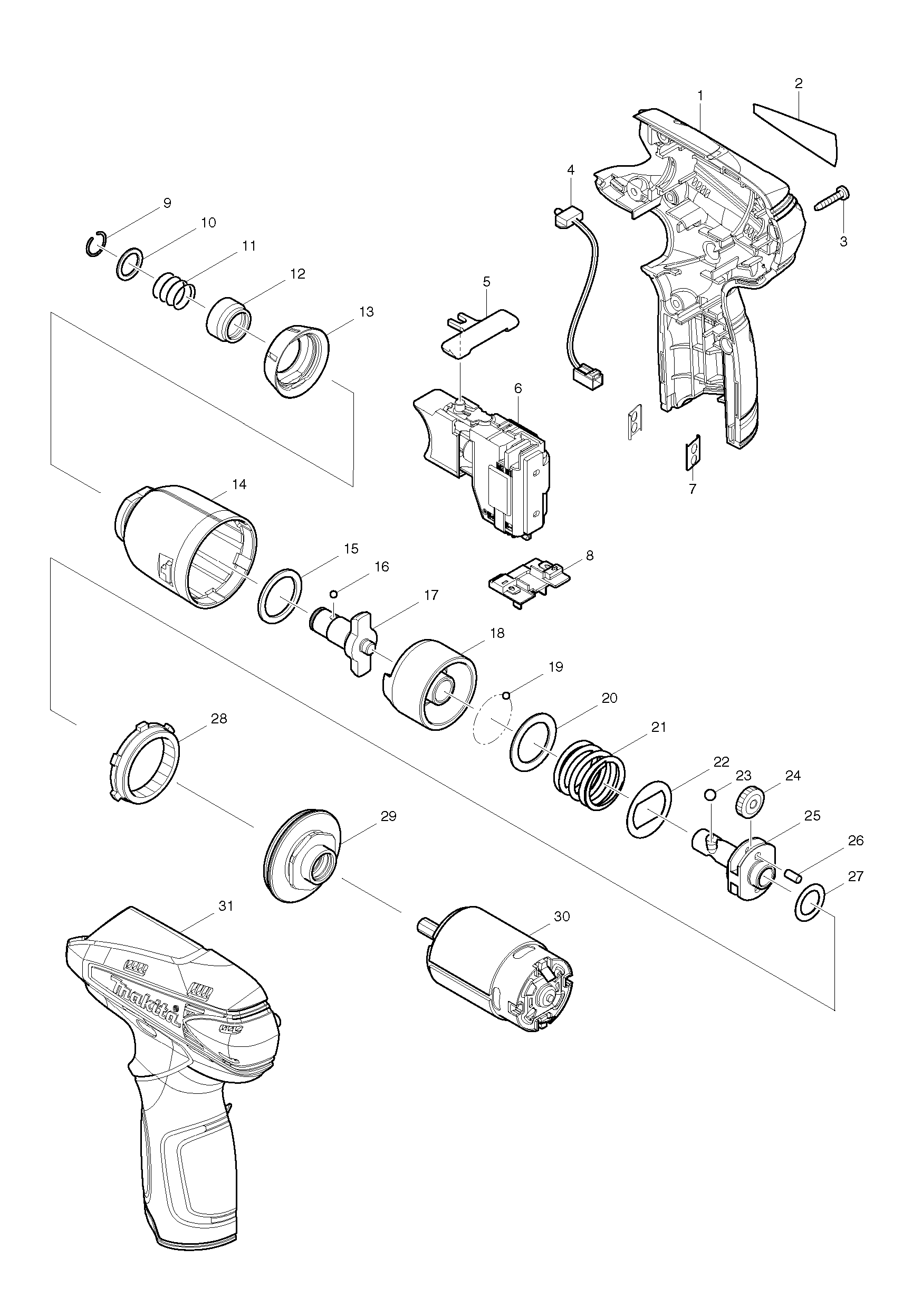

Technical drawing of model Makita TD090D
Spare parts list of model Makita TD090D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Casing Box DUO 110 - Set | ||||
| 001 | 187160-6 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 001A | 187170-3 | |||
| Nameplate "td090" | ||||
| 002 | 865121-3 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Light Circuit | ||||
| 004 | 631813-4 | 6.00 | 7.26 | |
| F/r switch button | ||||
| 005 | 450504-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 650645-0 | |||
| Switch+led | ||||
| 006A | 650699-7 | 34.10 | 41.26 | |
| Clamp Plate Set | ||||
| 007 | 345998-7 | 1.00 | 1.21 | |
| Motor connection | ||||
| 008 | 643830-2 | 1.20 | 1.45 | |
| Spring Washer 10 | ||||
| 009 | 231965-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 010 | 267143-3 | 1.20 | 1.45 | |
| Compression Spring 13 | ||||
| 011 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 012 | 324711-6 | 2.40 | 2.90 | |
| Bumper | ||||
| 013 | 424109-8 | 2.40 | 2.90 | |
| Hammer Case | ||||
| 014 | 158670-0 | 8.40 | 10.16 | |
| Rivet 20mm | ||||
| 015 | 261140-1 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 016 | 216019-1 | 1.00 | 1.21 | |
| Anvil | ||||
| 017 | 324895-0 | 4.80 | 5.81 | |
| Striker | ||||
| 018 | 324894-2 | 8.40 | 10.16 | |
| Steel ball 3 | ||||
| 019 | 216019-1 | 1.00 | 1.21 | |
| Rivet 20mm | ||||
| 020 | 267380-9 | 1.00 | 1.21 | |
| Pressure Spring 21 | ||||
| 021 | 234064-4 | 1.00 | 1.21 | |
| Rivet 21mm | ||||
| 022 | 267813-4 | 1.00 | 1.21 | |
| Steel ball 4.8 | ||||
| 023 | 216002-8 | 1.00 | 1.21 | |
| Gear 17 | ||||
| 024 | 227213-0 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 025 | 324897-6 | 6.00 | 7.26 | |
| Pen 3,5mm | ||||
| 026 | 268217-3 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 027 | 253052-2 | 1.00 | 1.21 | |
| Gear 43 | ||||
| 028 | 227215-6 | 2.40 | 2.90 | |
| Bearing Housing | ||||
| 029 | 158671-8 | 6.00 | 7.26 | |
| Ball Bearing 6801llb | ||||
| 029A | 210112-3 | 6.00 | 7.26 | |
| O-ring 13 | ||||
| 029B | 213188-9 | 1.00 | 1.21 | |
| Motor 10.8 | ||||
| 030 | 629851-8 | 11.00 | 13.31 | |
| Casing Box DUO 110 - Set | ||||
| 031 | 187160-6 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 031A | 187170-3 | |||
| Pin 1.5 | ||||
| 032 | 268284-8 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 033 | 263038-8 | 1.00 | 1.21 | |
