Here you will find all available parts and drawings of the 'Makita SKR200Z'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

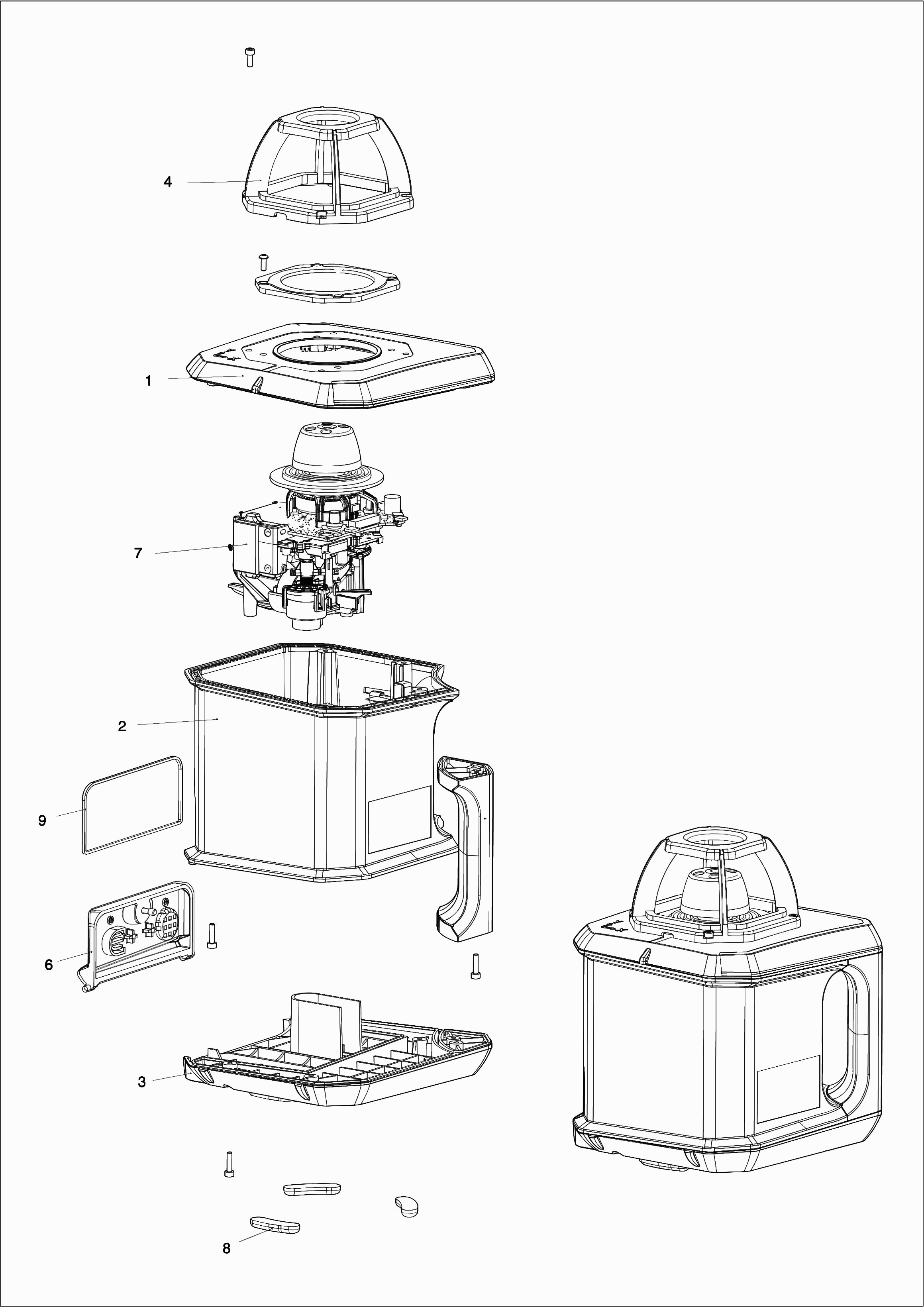

Technical drawing of model Makita SKR200Z
Spare parts list of model Makita SKR200Z
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing cover | ||||
| 001 | LE00813970 | 82.50 | 99.82 | |
| Housing | ||||
| 002 | LE00813968 | 248.60 | 300.81 | |
| Lower Lid | ||||
| 003 | LE00813971 | 59.40 | 71.87 | |
| Lens cage | ||||
| 004 | LE00813972 | 23.10 | 27.95 | |
| Battery cover | ||||
| 006 | LE00813973 | 30.80 | 37.27 | |
| Laser unit assembly | ||||
| 007 | LE00813966 | 465.30 | 563.01 | |
| Foot cap | ||||
| 008 | LE00813975 | 3.60 | 4.36 | |
| Battery cover seal | ||||
| 009 | LE00813974 | 8.40 | 10.16 | |
