Here you will find all available parts and drawings of the 'Makita SK209GD'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

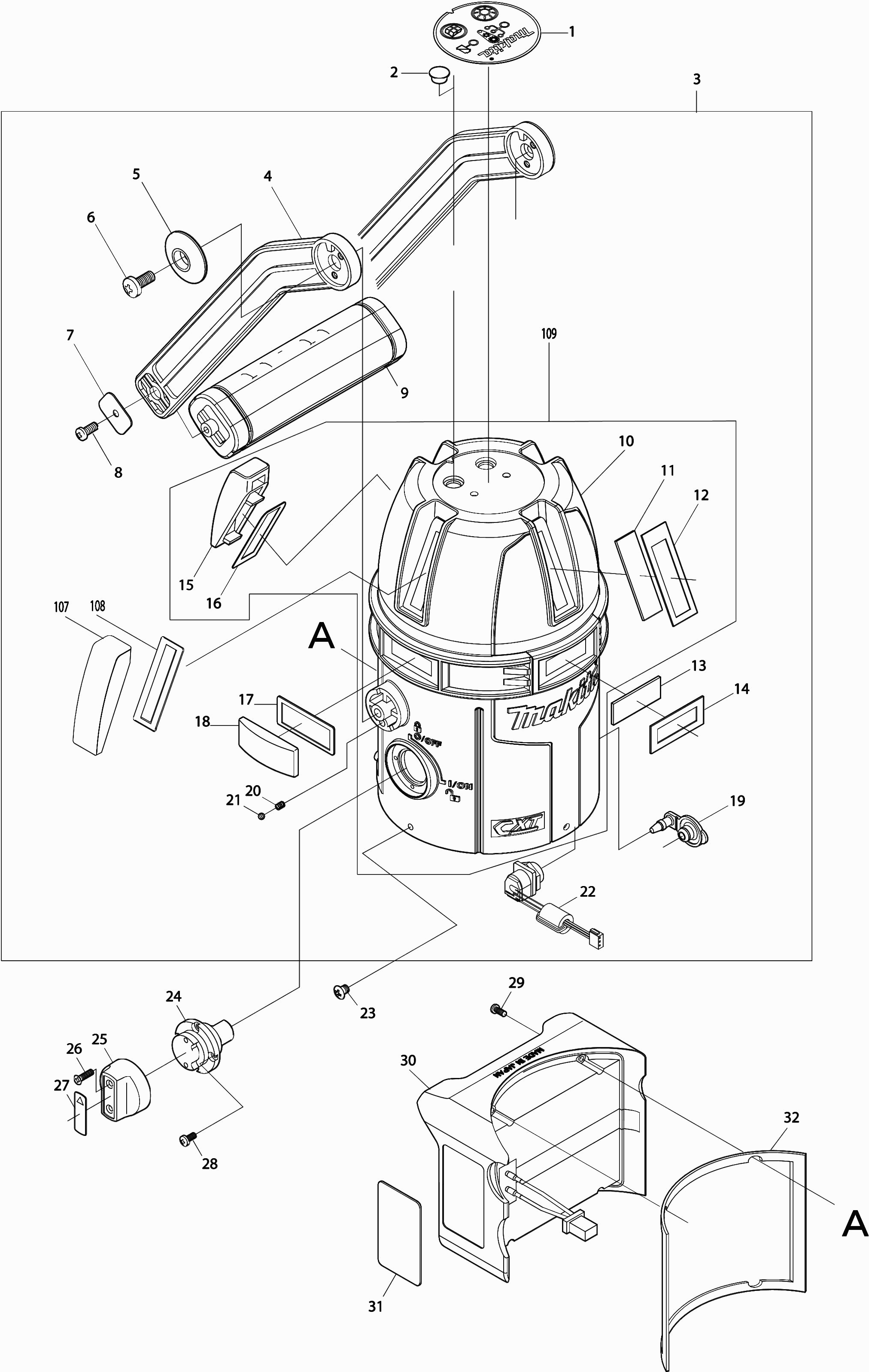

Technical drawing of model Makita SK209GD

Spare parts list of model Makita SK209GD

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Switch label SK312GD
001 TK219UN101 15.60 18.88
Switch button 4.1 SK312GD A
002 TK16010441 2.71 3.28
No information available, not orderable
002A TK16010423
No information available, not orderable
002B TK16010424
No information available, not orderable
003 TK220EUSA1
Handle SK312GD
004 TK02181041 10.52 12.73
Locking, Handle- SK312GD
005 TK02181261 6.41 7.76
No information available, not orderable
006 TKTP4010FU
Locking, Handle- SK312GD
007 TK02180127 9.26 11.20
Screw handle 3x10 SK312GD
008 TKTT3010FB 0.83 1.00
Handle SK312GD
009 TK02181051 33.35 40.35
Housing complete SK312GD
010 TK219102EU 146.74 177.56
Glass V for SK312GD
011 TK00210106 17.40 21.05
Attachment label glass SK312GD
012 TK02180128 3.54 4.28
Glass H for SK312GD
013 TK02101071 17.40 21.05
Attachment label glass SK312GD
014 TK02180129 3.12 3.78
Cover cap V SK312GD
015 TK02190125 7.21 8.72
Double-Sided Label V SK312GD
016 TK02190128 2.02 2.44
Cover Cap H SK312GD
017 TK02190126 6.41 7.76
Double-Sided Label H SK312GD
018 TK02190129 2.02 2.44
DC connection flap SK312GD
019 TKAL411252 4.44 5.37
Pressure spring E SK312GD
020 TK02181302 1.20 1.45
Steel ball 3 SK312GD
021 TK00SB3000 0.83 1.00
DC connection SK312GD
022 TK219UN131 38.75 46.89
Screw SK312GD
023 TK0P2550FB 0.83 1.00
Locking washer SK312GD
024 TK0195SA01 52.76 63.84
Lock button SK312GD
025 TK01701192 3.44 4.16
Countersunk screw M2X8 SK312GD
026 TK03F2080N 0.83 1.00
Lock button label SK312GD
027 TK01700104 2.38 2.88
Metal Screw 2x4 SK312GD
028 TKTP2040FU 0.83 1.00
Metal Screw 2x8 SK312GD
029 TKTP2080FB 0.83 1.00
Battery holder SK312GD
030 TK02180008 59.31 71.77
Nameplate SK209GD
031 TK220EU113 10.50 12.70
Battery holder gasket SK312GD
032 TK02181242 6.41 7.76
Lock ring house SK312GD P
033 TK02180103 112.06 135.59
Metal Screw 2x4 SK312GD
034 TK03P2040N 0.83 1.00
Switch unit SK209GD
035 TKLVF0076D 63.68 77.05
Screw 3x6 SK312GD
036 TK0T3060FU 0.83 1.00
Washer 5 SK312GD
037 TK0000PW50 0.83 1.00
Sleeve SK312GD
038 TK01731383 1.20 1.45
Gimbal holder SK209GD
039 TK0220SA02 297.12 359.52
Upper frame holder SK312GD
040 TK01830135 146.74 177.56
Gimbal Holder Ring SK312GD
041 TK00174111 33.35 40.35
Screw SK312GD
042 TK01730196 3.44 4.16
Ball bearing SK312GD
043 TK01730199 17.40 21.05
Screw M3X6 SK312GD
044 TKS3060FB5 0.83 1.00
O-Ring SK312GD
045 TK01730148 19.29 23.34
Cross head screw M2.5X8 SK312GD
046 TK0F2580B0 0.83 1.00
Metal Screw 2x4 SK312GD
047 TK03P2040N 0.83 1.00
Laser unit V cpl SK312GD
048 TK219SA03E 451.14 545.88
Laser unit G complete SK312GD P
049 TK02160111 374.74 453.44
Lens SK312GD P
050 TK00218012 38.75 46.89
Lock Ring SK312GD
051 TK0000PW20 0.83 1.00
Screw M2X6
052 TK03P2060N 0.83 1.00
Screw SK312GD
053 TK0LV37351 0.83 1.00
Laser unit cpl SK312GD
054 TK219SA04E 425.68 515.07
Met. screw H312GD
055 TKS2550S05 1.20 1.45
Met. screw M2.5X4 H312GD
056 TKS2540FB4 1.20 1.45
Laser unit G complete SK312GD P
057 TK02160111 374.74 453.44
Lens SK312GD P
058 TK00218012 38.75 46.89
Lock Ring SK312GD
059 TK0000PW20 0.83 1.00
Screw M2X6
060 TK03P2060N 0.83 1.00
Screw SK312GD
061 TK0LV37351 0.83 1.00
Laser unit cpl SK312GD
062 TK219SA04E 425.68 515.07
Control panel SK312GD
063 TKLVF0068B 69.12 83.64
Metal Screw 2x4 SK312GD
064 TK03P2040N 0.83 1.00
Metal Screw 2x8 SK312GD
065 TK03P2080N 0.83 1.00
Spacer bushing SK312GD
066 TKST2060FZ 0.83 1.00
No information available, not orderable
067 TK0219SET1
Cable harness
068 TK0LVE3044 21.23 25.69
Washer 5 SK312GD
069 TK0000PW50 0.83 1.00
Axis A SK312GD
070 TK01701146 13.83 16.73
Axis B SK312GD
071 TK02100118 19.29 23.34
Power supply unit SK312GD
072 TKLVF00753 325.02 393.27
Metal Screw 2x4 SK312GD
073 TK03P2040N 0.83 1.00
Lower frame holder SK312GD
074 TK0218SA05 98.23 118.86
Screw 3x10 SK312GD
075 TK0P3080FU 0.83 1.00
Metal Screw 2x4 SK312GD
076 TK03P2040N 0.83 1.00
Connector unit SK312GD
077 TK0LVF0066 17.40 21.05
Metal Screw 2x8 SK312GD
078 TK03P2080N 0.83 1.00
Switch SK312GD
079 TK0TL32108 6.41 7.76
O-Ring SK312GD
080 TK01501151 13.83 16.73
Magnet unit SK312GD
081 TK0173SA13 31.78 38.45
Screw SK312GD
082 TK0P3060FU 0.83 1.00
Buffer Plate A SK312DG
083 TK00170132 8.80 10.65
Buffer plate B SK312DG
084 TK01730156 11.26 13.62
Ring nut SK312GD
085 TKLV272921 6.41 7.76
Adjustment wheel SK312GD
086 TK01970106 13.83 16.73
Met. screw M2.5X4 H312GD
087 TKS2540FB4 1.20 1.45
Sleeve SK312GD
088 TK01821171 5.70 6.90
Adjustment shaft SK312GD
089 TK01821141 36.08 43.66
Rotating ring SK312GD
090 TK01821161 38.75 46.89
Set collar SK312GD
091 TK01821152 25.36 30.69
Screw SK312GD
092 TK0P2550FU 0.83 1.00
Adjustment frame SK312GD
093 TK0218118S 63.68 77.05
Spring washer 5 SK312GD
094 TK00WW50S0 0.83 1.00
Sleeve SK312GD
095 TK01850105 5.70 6.90
Sponge rubber SK312GD
096 TK01851071 3.44 4.16
Screw SK312GD
097 TK0P2560FU 0.83 1.00
Tension spring SK312GD
098 TK01821181 11.84 14.33
Screw 3x10 SK312GD
099 TKTP2550FB 0.83 1.00
Tripod SK312GD
100 TK0218121S 87.86 106.31
Screw 3x7 SK312GD
101 TKTT3070FU 0.83 1.00
Tripod spike SK312GD
102 TK02180108 55.67 67.36
Tripod spiked foot SK312GD
103 TK01581222 6.41 7.76
Cover glass SK312GD
104 TK0LV36971 3.77 4.56
Bottom plate SK312GD
105 TK01821112 5.70 6.90
Screw 3x10 SK312GD
106 TKTP3010FB 0.83 1.00
Cover cap V SK312GD
107 TK02190125 7.21 8.72
Double-Sided Label V SK312GD
108 TK02190128 2.02 2.44
No information available, not orderable
109 TK2191EU01
