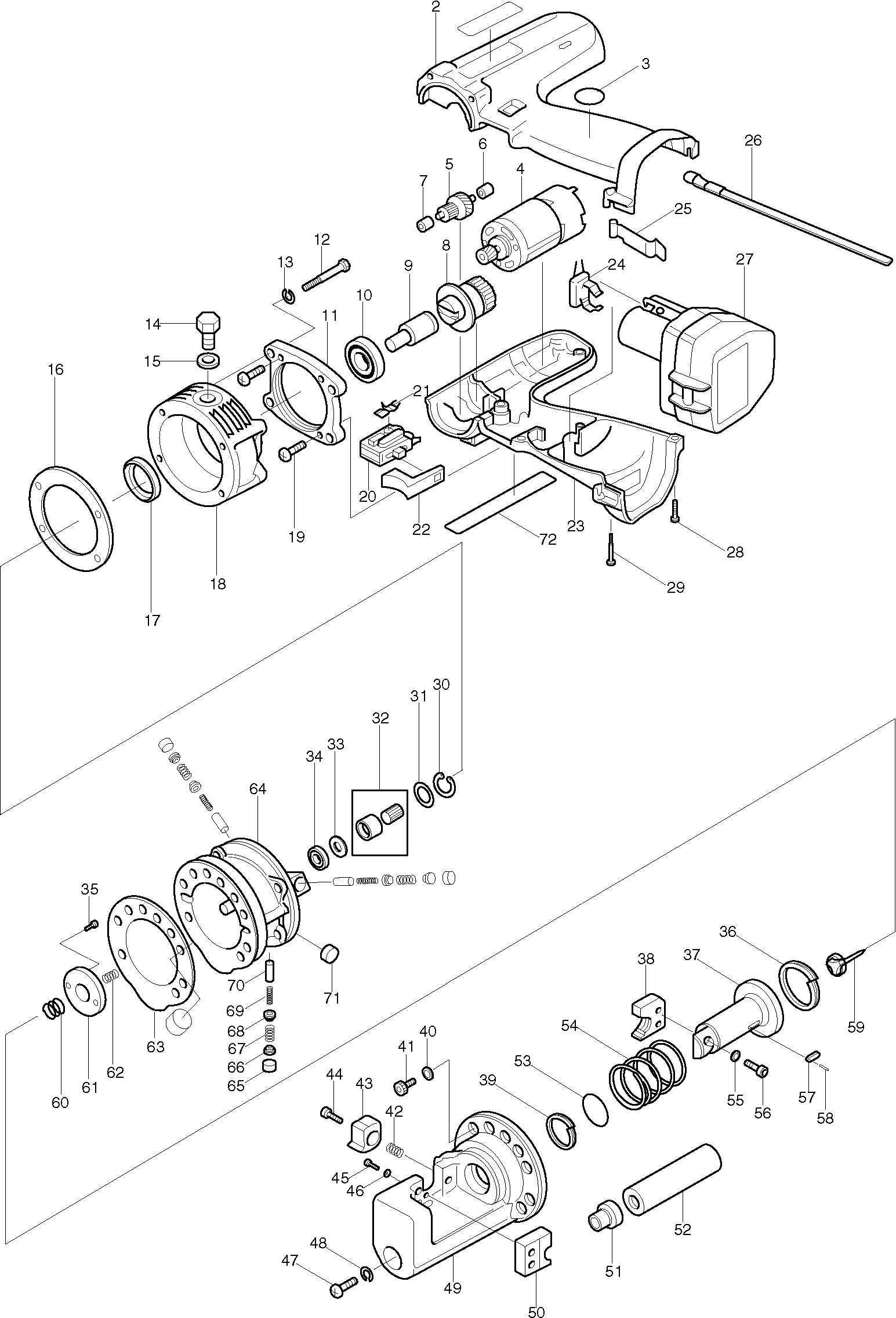

Technical drawing of model Makita SC120D
Spare parts list of model Makita SC120D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Label | ||||
| 001 | SC00000518 | 6.00 | 7.26 | |
| Machine Housing | ||||
| 002 | 182637-6 | 20.90 | 25.29 | |
| DC motor 12v | ||||
| 004 | 629638-8 | 55.00 | 66.55 | |
| Gear 15-38 | ||||
| 005 | 226118-1 | 34.10 | 41.26 | |
| Slide Bearing 4 | ||||
| 006 | 214027-6 | 1.20 | 1.45 | |
| Slide Bearing 4 | ||||
| 007 | 214027-6 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 008 | 153222-2 | 41.80 | 50.58 | |
| Spindle Ass'y | ||||
| 008A | 322636-8 | 23.10 | 27.95 | |
| Ball Bearing 6001 | ||||
| 008B | 211104-5 | 4.80 | 5.81 | |
| Washer 20 | ||||
| 008C | 267083-5 | 4.80 | 5.81 | |
| Rubber Ring 20 Sc120Dra * | ||||
| 008D | 261090-0 | 1.00 | 1.21 | |
| Gear 36 | ||||
| 008E | 226265-8 | 17.60 | 21.30 | |
| Eccentric Shaft | ||||
| 009 | SC00000486 | 92.40 | 111.80 | |
| Ball Bearing 6002ru | ||||
| 010 | SC00000050 | 23.10 | 27.95 | |
| Intermediate housing | ||||
| 011 | SC00000491 | 55.00 | 66.55 | |
| Allen bolt M5x55 | ||||
| 012 | SC00000488 | 2.40 | 2.90 | |
| Spring washer 5MM DLS211 | ||||
| 013 | 253427-5 | 1.00 | 1.21 | |
| Hex bolt M10 X 16 * | ||||
| 014 | 921522-6 | 1.20 | 1.45 | |
| SEALING WASHER | ||||
| 015 | SC00000489 | 6.00 | 7.26 | |
| Lining B | ||||
| 016 | SC00000478 | 7.20 | 8.71 | |
| Oil seal | ||||
| 017 | SC00000484 | 14.30 | 17.30 | |
| Bearing Housing | ||||
| 018 | SC00000460 | 312.40 | 378.00 | |
| Self-tapping screw 4x20 | ||||
| 019 | 265925-7 | 1.00 | 1.21 | |
| Switch Sw-104 | ||||
| 020 | 650500-6 | 39.60 | 47.92 | |
| Switch slide | ||||
| 021 | 414740-8 | 2.40 | 2.90 | |
| Switch handle | ||||
| 022 | 415671-4 | 1.20 | 1.45 | |
| Machine Housing | ||||
| 023 | 182637-6 | 20.90 | 25.29 | |
| Battery clamp | ||||
| 024 | 643918-8 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 025 | 343579-1 | |||
| Shoulder strap | ||||
| 026 | 163319-9 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 027 | 192536-4 | |||
| Self-tapping screw 4x20 | ||||
| 028 | 265925-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 029 | 911138-5 | 1.00 | 1.21 | |
| Lockring H19 | ||||
| 030 | SC00000487 | 2.40 | 2.90 | |
| Needle bearing holder B | ||||
| 031 | SC00000467 | 6.00 | 7.26 | |
| Needle bearing Rnaf81510 | ||||
| 032 | SC00000466 | 36.30 | 43.92 | |
| Needle bearing holder A | ||||
| 033 | SC00000465 | 6.00 | 7.26 | |
| Ball bearing 625zz | ||||
| 034 | 211007-3 | 6.00 | 7.26 | |
| Hexagonal bolt 4x6 | ||||
| 035 | 922102-1 | 1.00 | 1.21 | |
| Gasket | ||||
| 036 | SC00000485 | 20.90 | 25.29 | |
| Cutting shaft | ||||
| 037 | SC00000461 | 490.60 | 593.63 | |
| MESSENSET M8 STAAL | ||||
| 038 | SC00000508 | 110.00 | 133.10 | |
| Support Ring P25 | ||||
| 039 | SC00000482 | 8.40 | 10.16 | |
| Washer 6x12mm | ||||
| 040 | 941151-9 | 1.00 | 1.21 | |
| Hex bolt M6X16 * | ||||
| 041 | 922322-7 | 1.00 | 1.21 | |
| Spring T45470 | ||||
| 042 | SC00000469 | 3.60 | 4.36 | |
| Stop for 8-10mm | ||||
| 043 | SC00000498 | 39.60 | 47.92 | |
| Bolt T45452 | ||||
| 044 | SC00000474 | 13.20 | 15.97 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 045 | 922212-4 | 1.00 | 1.21 | |
| Washer 5mm DSP601 A | ||||
| 046 | 253414-4 | 1.00 | 1.21 | |
| Screw 5x60 | ||||
| 047 | SC00000034 | 9.60 | 11.62 | |
| Lock Washer M8 | ||||
| 048 | 942201-3 | 1.00 | 1.21 | |
| Cutting head housing | ||||
| 049 | SC00000458 | 766.70 | 927.71 | |
| MESSENSET M8 STAAL | ||||
| 050 | SC00000508 | 110.00 | 133.10 | |
| Sleeve T43694 | ||||
| 051 | SC00000490 | 22.00 | 26.62 | |
| Oil Dipstick | ||||
| 052 | SC00000479 | 19.80 | 23.96 | |
| O-ring P25 | ||||
| 053 | SC00000483 | 7.20 | 8.71 | |
| Spring | ||||
| 054 | SC00000470 | 36.30 | 43.92 | |
| Washer 5mm DSP601 A | ||||
| 055 | 253414-4 | 1.00 | 1.21 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 056 | 922212-4 | 1.00 | 1.21 | |
| Woodruff Key | ||||
| 057 | SC00000480 | 9.60 | 11.62 | |
| Holding Pin | ||||
| 058 | SC00000070 | 1.20 | 1.45 | |
| Release plunger | ||||
| 059 | SC00000462 | 56.10 | 67.88 | |
| Spring T45378 | ||||
| 060 | SC00000471 | 6.00 | 7.26 | |
| Stop Plate | ||||
| 061 | SC00000481 | 46.20 | 55.90 | |
| Spring T45468 | ||||
| 062 | SC00000472 | 6.00 | 7.26 | |
| Liner | ||||
| 063 | SC00000477 | 7.20 | 8.71 | |
| Cylinder T31811 | ||||
| 064 | SC00000459 | 808.50 | 978.28 | |
| Utrthaan Gasket | ||||
| 065 | SC00000076 | 9.60 | 11.62 | |
| Spring support | ||||
| 066 | SC00000018 | 9.60 | 11.62 | |
| Plunger return spring | ||||
| 067 | SC00000022 | 3.60 | 4.36 | |
| Control valve | ||||
| 068 | SC00000464 | 30.80 | 37.27 | |
| Spring | ||||
| 069 | SC00000468 | 2.71 | 3.28 | |
| Ram | ||||
| 070 | SC00000463 | 36.30 | 43.92 | |
| Magnet | ||||
| 071 | SC00000020 | 6.00 | 7.26 | |
