Here you will find all available parts and drawings of the 'Makita RBLV250'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

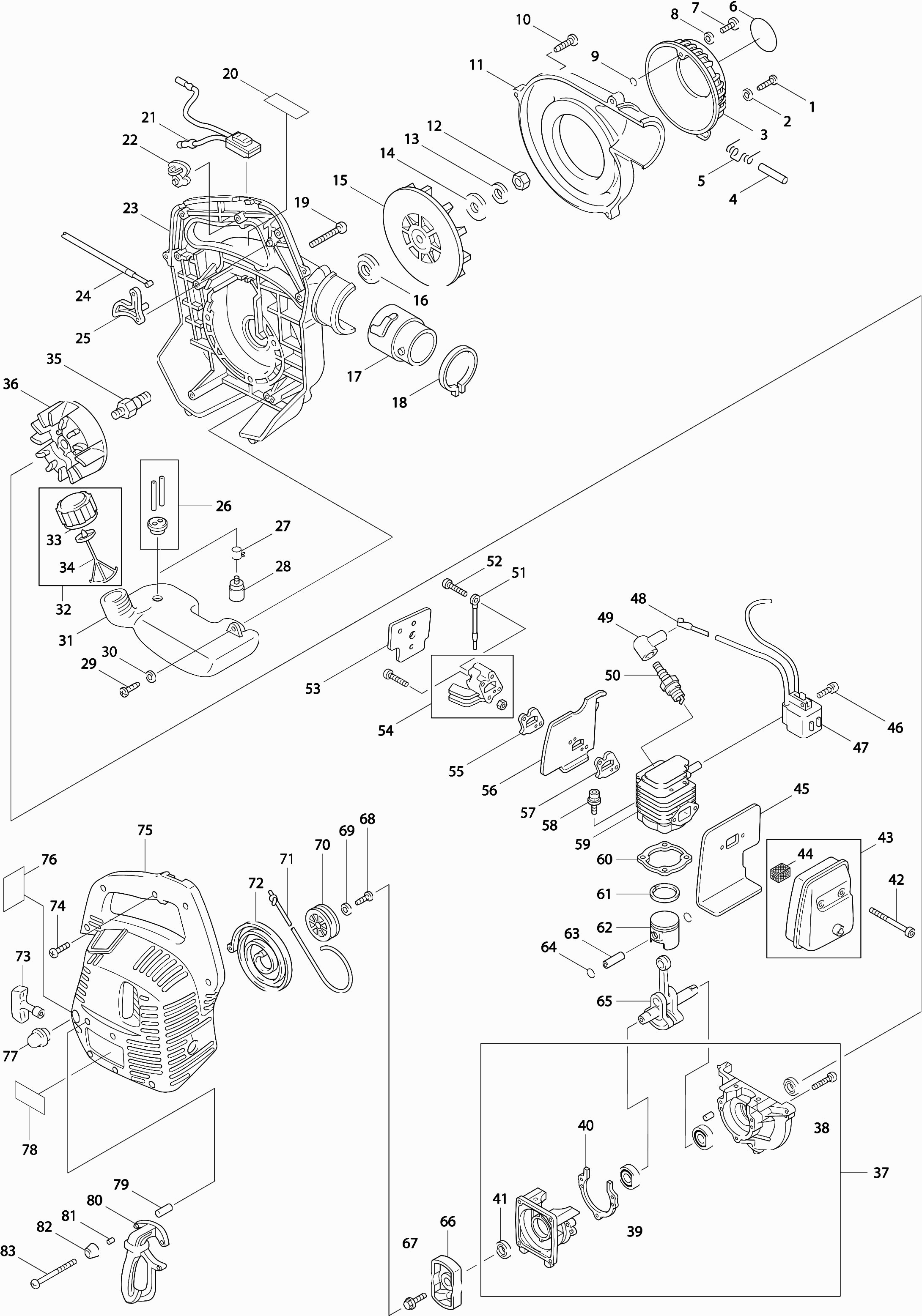

Technical drawing of model Makita RBLV250
Spare parts list of model Makita RBLV250
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap Screw | ||||
| 001 | 6601500500 | 1.39 | 1.68 | |
| Ring A | ||||
| 002 | 0031205000 | 0.83 | 1.00 | |
| Axle 4mm | ||||
| 004-1 | 268230-1 | 1.46 | 1.77 | |
| Spring 5mm | ||||
| 005-1 | 233536-6 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 006 | 6609519000 | |||
| Screw | ||||
| 007-1 | 265782-3 | 2.02 | 2.44 | |
| Ring | ||||
| 008-1 | 424180-2 | 0.98 | 1.19 | |
| O-ring 3 | ||||
| 009-2 | 213022-3 | 0.83 | 1.00 | |
| Tapping Screw ,5X20 Rbl250 * | ||||
| 010 | 6601501300 | 0.83 | 1.00 | |
| Air Circulation House 1 | ||||
| 011 | 6601020000 | 34.80 | 42.11 | |
| Nut G3501R | ||||
| 012 | 0021708000 | 0.83 | 1.00 | |
| Washer Rbl250 * | ||||
| 013 | 0200089850 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 014 | 0031208000 | |||
| Fan | ||||
| 015 | 6601503300 | 12.80 | 15.49 | |
| Ring | ||||
| 016 | 6601503600 | 5.71 | 6.91 | |
| Connector Sleeve | ||||
| 017 | 6609511300 | 7.00 | 8.47 | |
| Hose clamp IAS 3 | ||||
| 018-1 | 140352-8 | 12.80 | 15.49 | |
| Screw 5X35 Rbl250 * | ||||
| 019 | 0043605350 | 0.83 | 1.00 | |
| Warning Label Eh760 | ||||
| 020 | 0736359980 | 9.24 | 11.18 | |
| Schakelaar Rbl250 * | ||||
| 021-1 | 632B98-7 | 9.67 | 11.70 | |
| Stopper | ||||
| 022 | 6605502101 | 3.11 | 3.76 | |
| Fan House 2 | ||||
| 023 | 6601016003 | 33.19 | 40.16 | |
| No information available, not orderable | ||||
| 024 | 0630049830 | |||
| Throttle | ||||
| 025 | 6605502700 | 2.36 | 2.86 | |
| No information available, not orderable | ||||
| 026 | 140G56-4 | |||
| Hose clamp IAS 3 | ||||
| 027-1 | 345920-4 | 0.83 | 1.00 | |
| Fuel filter | ||||
| 028-2 | 163447-0 | 3.11 | 3.76 | |
| Tapping Screw ,5X20 Rbl250 * | ||||
| 029 | 6601501300 | 0.83 | 1.00 | |
| Washer M5 | ||||
| 030 | 0031105000 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 031-1 | 6603500102 | |||
| Petrol/Oil cap cpl | ||||
| 032-1 | 168668-9 | 10.52 | 12.73 | |
| Spindle Ass'y | ||||
| 035 | 6605502203 | 5.06 | 6.12 | |
| Magneto Rotor Comp. | ||||
| 036-1 | 318765-3 | 12.19 | 14.75 | |
| Crank Case | ||||
| 037 | 5231011001 | 82.47 | 99.79 | |
| No information available, not orderable | ||||
| 038-1 | 266701-2 | |||
| Ball Bearing 6001C3 Rpt250 A | ||||
| 039-1 | 210113-1 | 5.30 | 6.41 | |
| Crankcase Gasket | ||||
| 040-1 | 424447-8 | 1.46 | 1.77 | |
| Oil seal | ||||
| 041-1 | 213628-7 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 042 | 0119059670 | |||
| Muffler | ||||
| 043 | 5253002001 | 14.48 | 17.52 | |
| Spark arrestor | ||||
| 044 | 5253002130 | 8.21 | 9.93 | |
| Exhaust Gasket | ||||
| 045 | 5253500401 | 3.28 | 3.97 | |
| No information available, not orderable | ||||
| 046 | 0043704200 | |||
| Ignition | ||||
| 047 | 5237034022 | 20.15 | 24.38 | |
| Bougieveer Ebh253U A | ||||
| 048-1 | 324891-8 | 1.18 | 1.43 | |
| Spark Plug Bmr7a | ||||
| 050-1 | 168662-1 | 17.38 | 21.03 | |
| Wire | ||||
| 051 | 6165501200 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 052-1 | 266700-4 | |||
| Gasket | ||||
| 053 | 5233504103 | 1.46 | 1.77 | |
| Spacer | ||||
| 054 | 5233038001 | 13.57 | 16.42 | |
| Spacer gasket | ||||
| 055-1 | 424448-6 | 1.39 | 1.68 | |
| Intermediate Plate | ||||
| 056-1 | 346490-6 | 2.62 | 3.17 | |
| Spacer gasket | ||||
| 057-1 | 424448-6 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 058-1 | 266814-9 | |||
| Cylinder | ||||
| 059-1 | 318762-9 | 92.06 | 111.39 | |
| Cylinder gasket | ||||
| 060-1 | 442171-1 | 1.67 | 2.02 | |
| Piston Ring | ||||
| 061-1 | 257979-8 | 3.12 | 3.78 | |
| Piston | ||||
| 062 | 5232501902 | 12.22 | 14.79 | |
| Piston Pin | ||||
| 063-1 | 257781-9 | 2.71 | 3.28 | |
| Lock ring for piston pin | ||||
| 064-1 | 233976-8 | 0.83 | 1.00 | |
| Crank Shaft | ||||
| 065-2 | 142398-0 | 154.02 | 186.36 | |
| No information available, not orderable | ||||
| 066 | 5235063000 | |||
| Threaded bolt M6x14mm | ||||
| 067-1 | 266703-8 | 0.83 | 1.00 | |
| Tapping Screw Rbl250 * | ||||
| 068 | 6608001010 | 5.06 | 6.12 | |
| Ring | ||||
| 069 | 6608001020 | 0.83 | 1.00 | |
| Retractable Wheel | ||||
| 070 | 6608001030 | 4.67 | 5.65 | |
| No information available, not orderable | ||||
| 071 | 6608001060 | |||
| Spiral Spring | ||||
| 072 | 6608001040 | 4.14 | 5.01 | |
| Start Button | ||||
| 073 | 6608001050 | 2.02 | 2.44 | |
| Tapping Screw ,5X20 Rbl250 * | ||||
| 074 | 6601501300 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 075 | 6608001002 | 24.61 | 29.78 | |
| No information available, not orderable | ||||
| 076 | 0736309910 | |||
| Fuel Pump DCS230T A | ||||
| 077-1 | 168398-2 | 4.45 | 5.38 | |
| Spacer | ||||
| 079-1 | 332096-6 | 4.44 | 5.37 | |
| No information available, not orderable | ||||
| 081-1 | 346438-8 | |||
| Cover | ||||
| 082-1 | 424616-1 | 2.02 | 2.44 | |
| No information available, not orderable | ||||
| 083-1 | 266878-3 | |||
| Hose Rbl250 | ||||
| 084 | 0851139962 | 1.67 | 2.02 | |
| Carburetor | ||||
| 085 | 5256013000 | 41.77 | 50.54 | |
| Swivel element | ||||
| 086-1 | 325922-6 | 4.14 | 5.01 | |
| No information available, not orderable | ||||
| 087-2 | WJ00096364 | |||
| Seegering E-3 A | ||||
| 088-1 | 257964-1 | 2.02 | 2.44 | |
| O-ring 2 | ||||
| 089-1 | 213538-8 | 2.02 | 2.44 | |
| Sprayer | ||||
| 090-2 | WJ00112245 | 7.57 | 9.16 | |
| Gasket "carb" | ||||
| 091-1 | 442172-9 | 5.06 | 6.12 | |
| Pump diaphragm | ||||
| 092-2 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 093 | 5256003010 | |||
| Inlet strainer | ||||
| 094-2 | WJ00014070 | 1.67 | 2.02 | |
| Gasket Ht2350/60D A | ||||
| 095-1 | 442183-4 | 2.02 | 2.44 | |
| Cover Ea3201S A | ||||
| 097-2 | WJ00021158 | 2.10 | 2.54 | |
| Screw | ||||
| 098-2 | WJ00096325 | 1.67 | 2.02 | |
| Point Screw | ||||
| 099 | 5256500801 | 2.02 | 2.44 | |
| Nut Rbl250 * | ||||
| 100 | 0021704000 | 0.83 | 1.00 | |
| Chokestopper Rbl250 * | ||||
| 101 | 5256500701 | 3.54 | 4.28 | |
| Carburetor Gasket | ||||
| 102 | 5233504200 | 1.67 | 2.02 | |
| Carburetor Gasket | ||||
| 103 | 5233504200 | 1.67 | 2.02 | |
| Choke Handle | ||||
| 104 | 5233504801 | 1.18 | 1.43 | |
| Air filter plate | ||||
| 105 | 5233048001 | 7.21 | 8.72 | |
| Screw 5X62 | ||||
| 106 | 0140059470 | 1.02 | 1.23 | |
| Choke plate | ||||
| 107 | 5233505002 | 1.02 | 1.23 | |
| Washer | ||||
| 108 | 0031104000 | 0.83 | 1.00 | |
| Thread cutting screw 4X8 | ||||
| 109 | 0150049980 | 0.83 | 1.00 | |
| Cleaner Element | ||||
| 110-1 | 443167-5 | 1.18 | 1.43 | |
| Air filter housing | ||||
| 111 | 5233504602 | 2.36 | 2.86 | |
