Here you will find all available parts and drawings of the 'Makita RBL500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

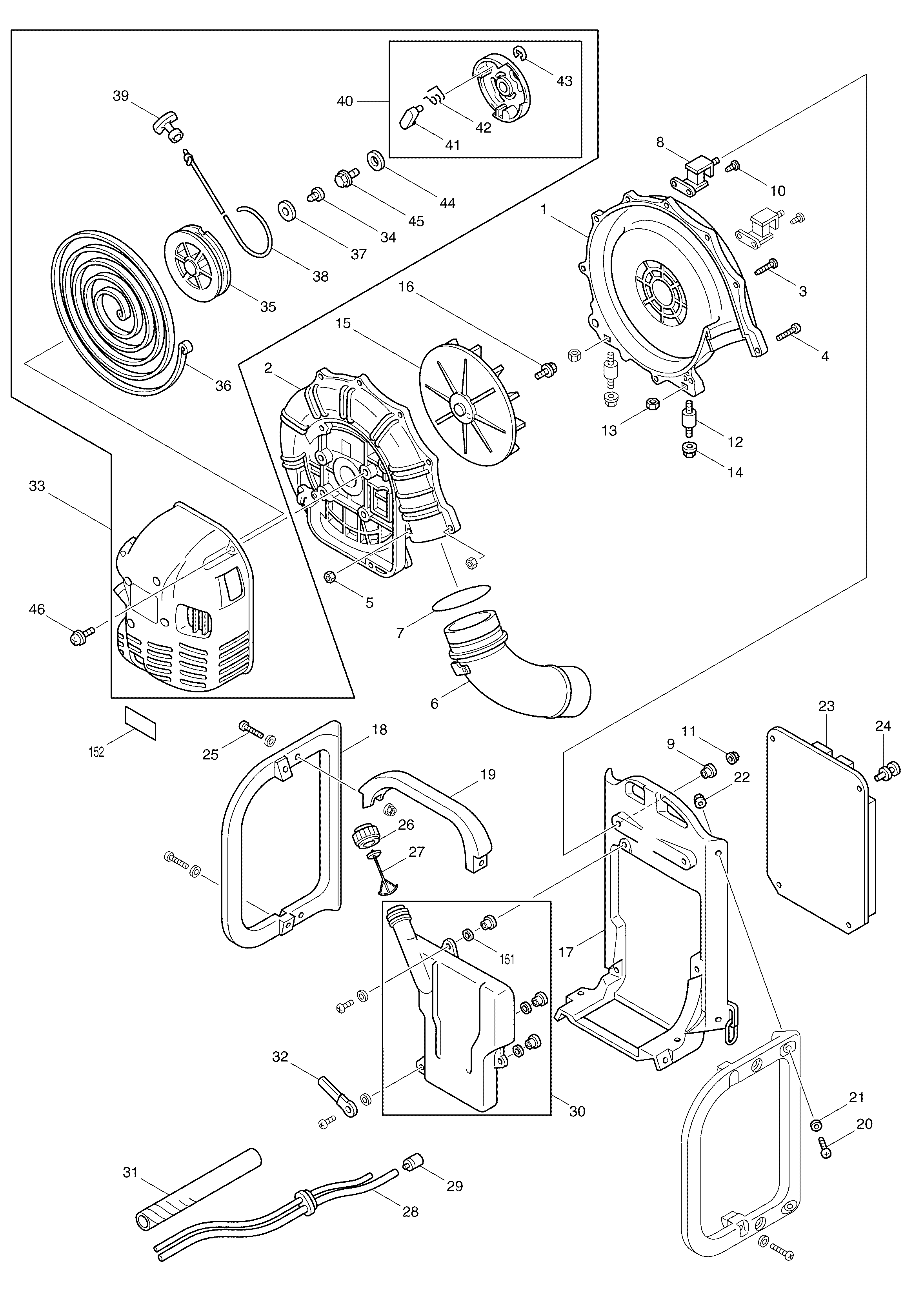

Technical drawing of model Makita RBL500
Spare parts list of model Makita RBL500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fan Housing 1 | ||||
| 001 | 6621500201 | 28.60 | 34.61 | |
| Complete fan housing | ||||
| 002 | 6621004003 | 50.60 | 61.23 | |
| Tap Screw 5X25 | ||||
| 003 | 0150059870 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 004 | 0043605251 | |||
| Hex Nut M5 | ||||
| 005 | 931202-6 | 1.00 | 1.21 | |
| Elbow | ||||
| 006 | 6621006001 | 13.20 | 15.97 | |
| O Ring | ||||
| 007 | 0062630850 | 3.60 | 4.36 | |
| Support | ||||
| 008 | 6621005000 | 13.20 | 15.97 | |
| Spacer | ||||
| 009 | 6621500900 | 2.40 | 2.90 | |
| Tap screw 5X10 | ||||
| 010 | 0150059910 | 1.00 | 1.21 | |
| Flange nut M5 | ||||
| 011 | 0023705000 | 1.00 | 1.21 | |
| Vibration Damper | ||||
| 012 | 6621500401 | 16.50 | 19.96 | |
| Nut G2400R-Etc A | ||||
| 013 | 0021706000 | 1.00 | 1.21 | |
| Flange nut P | ||||
| 014 | 0023706000 | 1.00 | 1.21 | |
| Fan | ||||
| 015 | 6821500201 | 72.60 | 87.85 | |
| Bolt And Washer | ||||
| 016 | 0011306250 | 1.20 | 1.45 | |
| Frame | ||||
| 017 | 6622008001 | 31.90 | 38.60 | |
| Side frame | ||||
| 018 | 6622500600 | 34.10 | 41.26 | |
| Support | ||||
| 019 | 6622500701 | 9.60 | 11.62 | |
| Screw Vk 20mm | ||||
| 020 | 911233-1 | 1.00 | 1.21 | |
| Ring A | ||||
| 021 | 0031205000 | 1.00 | 1.21 | |
| Flange nut M5 | ||||
| 022 | 0023705000 | 1.00 | 1.21 | |
| Back Cushion | ||||
| 023 | 6622010001 | 19.80 | 23.96 | |
| Clamping Piece | ||||
| 024 | 6822500200 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 025 | 0043605251 | |||
| Petrol/Oil cap cpl | ||||
| 026 | 168668-9 | 24.20 | 29.28 | |
| Petrol/Oil cap cpl | ||||
| 027 | 168668-9 | 24.20 | 29.28 | |
| Fuel Pipe | ||||
| 028 | 6623003001 | 23.10 | 27.95 | |
| Fuel filter | ||||
| 029 | 163447-0 | 11.00 | 13.31 | |
| FUEL TANK | ||||
| 030 | 6623005000 | 39.60 | 47.92 | |
| Hose | ||||
| 031 | 455645-3 | 4.80 | 5.81 | |
| Clamp m6xl 73 | ||||
| 032 | 8558501100 | 2.40 | 2.90 | |
| Motor cover cap | ||||
| 033 | 6628002002 | 181.50 | 219.62 | |
| Label Rbl500 | ||||
| 033A | 0736409430 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 034 | 5105015110 | |||
| Cord reel | ||||
| 035 | 5415003010 | 6.00 | 7.26 | |
| Winding washer | ||||
| 036 | 5415003020 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 037 | 5415003030 | |||
| No information available, not orderable | ||||
| 038 | 5415001140 | |||
| Starter Handle | ||||
| 039 | 140884-5 | 3.60 | 4.36 | |
| Pulley unit | ||||
| 040 | 5415011000 | 11.00 | 13.31 | |
| Pawl Rbl500 | ||||
| 041 | 5415011010 | 6.00 | 7.26 | |
| Return Spring Rbl500 | ||||
| 042 | 5415011020 | 4.80 | 5.81 | |
| E Ring Rbc230 * | ||||
| 043 | 5215003040 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 044 | 267427-9 | |||
| Bolt M6x16mm / rivet EM4250 A | ||||
| 045 | 265577-4 | 1.00 | 1.21 | |
| Screw 6x20 | ||||
| 046 | 911333-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 047 | 5411007001 | |||
| Oil Seal Rbl500 | ||||
| 048 | 0440179930 | 8.40 | 10.16 | |
| Oil seal 15Mm A | ||||
| 049 | 213546-9 | 2.40 | 2.90 | |
| Ball bearing 6203C3 | ||||
| 050 | 0600179830 | 6.38 | 7.72 | |
| Ball bearing 6202C3 A | ||||
| 051 | 211483-1 | 6.00 | 7.26 | |
| Crankcase Gasket Rbc410 A | ||||
| 052 | 442157-5 | 2.40 | 2.90 | |
| Cylinder | ||||
| 053 | 319241-0 | 124.30 | 150.40 | |
| Cylinder gasket Rbc410-Rbk410 A | ||||
| 054 | 442156-7 | 2.40 | 2.90 | |
| Bout M6X18 Rbc410-Rbk410 | ||||
| 055 | 0119069990 | 1.00 | 1.21 | |
| Bolt 5X30 Rbc410-Rbk410 | ||||
| 056 | 0119059940 | 1.20 | 1.45 | |
| Crank Shaft | ||||
| 057 | 5412024000 | 161.70 | 195.66 | |
| Piston | ||||
| 058 | 5412500700 | 36.05 | 43.62 | |
| PISTON RBL500 A | ||||
| 058 | 319442-0 | 22.00 | 26.62 | |
| Piston Pin | ||||
| 059 | 5602501100 | 11.00 | 13.31 | |
| Piston ring p/piece | ||||
| 060 | 5602500900 | 3.60 | 4.36 | |
| Needle Bearing Rbl500 | ||||
| 061 | 0610129950 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 062 | 0565119990 | |||
| No information available, not orderable | ||||
| 063 | 0053203101 | |||
| No information available, not orderable | ||||
| 064 | 5413045003 | |||
| Insulator new | ||||
| 065 | 5413046002 | 19.80 | 23.96 | |
| Exhaust gasket | ||||
| 066 | 5413501700 | 8.40 | 10.16 | |
| Bolt 6x13 | ||||
| 067 | 5413502001 | 4.80 | 5.81 | |
| Spring Washer 6 A | ||||
| 068 | 253903-9 | 1.00 | 1.21 | |
| Bolt 6X16 | ||||
| 069 | 0011506160 | 1.20 | 1.45 | |
| Inlet diaphragm set | ||||
| 070 | 5413036000 | 24.20 | 29.28 | |
| Gasket | ||||
| 071 | 442160-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 072 | 5403500600 | |||
| No information available, not orderable | ||||
| 073 | 0119059630 | |||
| Magneto Rotor Comp. | ||||
| 074 | 5417021010 | 72.60 | 87.85 | |
| Ignition | ||||
| 075 | 5417024021 | 26.40 | 31.94 | |
| Spark Plug Cap Ptr2500 A | ||||
| 076 | 0655009870 | 4.80 | 5.81 | |
| Bougieveer Ebh253U A | ||||
| 077 | 324891-8 | 1.20 | 1.45 | |
| Spark Plug Bpm7a | ||||
| 078 | 168588-7 | 9.60 | 11.62 | |
| Bolt with Washer G5500-5501R | ||||
| 079 | 0011308160 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 080 | 0031108000 | |||
| Hex Socket Screw Ck M5x22mm | ||||
| 081 | 922236-0 | 1.00 | 1.21 | |
| Bolt And Washer | ||||
| 082 | 0011306250 | 1.20 | 1.45 | |
| Wire | ||||
| 083 | 6628003000 | 4.80 | 5.81 | |
| Carburetor | ||||
| 084 | 5416043003 | 56.10 | 67.88 | |
| Filter | ||||
| 085 | 5416043430 | 3.60 | 4.36 | |
| Holding Plate | ||||
| 086 | 5416043460 | 6.00 | 7.26 | |
| Throttle pin | ||||
| 087 | 5416043020 | 10.80 | 13.07 | |
| Throttle handle | ||||
| 088 | 5416043520 | 6.00 | 7.26 | |
| Gas Spring | ||||
| 089 | 5416043030 | 3.60 | 4.36 | |
| Throttle valve | ||||
| 090 | 5416043040 | 4.80 | 5.81 | |
| Diaphragm | ||||
| 091 | 5416043260 | 13.20 | 15.97 | |
| Pump diaphragm | ||||
| 092 | 5416043110 | 4.80 | 5.81 | |
| Chamber gasket | ||||
| 093 | 5416043310 | 2.40 | 2.90 | |
| Pump gasket | ||||
| 094 | 5416043120 | 2.40 | 2.90 | |
| Inlet nozzle | ||||
| 095 | 5416043210 | 9.60 | 11.62 | |
| Lever Spring Cj120v/va | ||||
| 096 | 5416043220 | 4.80 | 5.81 | |
| Lever | ||||
| 097 | 5416043230 | 7.20 | 8.71 | |
| Pin | ||||
| 098 | 5416043240 | 2.40 | 2.90 | |
| Adjusting Screw H | ||||
| 099 | 5416043350 | 8.40 | 10.16 | |
| Adjusting Screw L | ||||
| 100 | 5416043360 | 6.00 | 7.26 | |
| New choke pen | ||||
| 101 | 5416043551 | 13.20 | 15.97 | |
| Choke Valve | ||||
| 102 | 5416043620 | 3.60 | 4.36 | |
| Plate | ||||
| 103 | 5416043540 | 10.80 | 13.07 | |
| Carburetor Cover Rbl500 A | ||||
| 104 | 5416043920 | 23.10 | 27.95 | |
| Cap | ||||
| 105 | 5416043510 | 8.40 | 10.16 | |
| Screw | ||||
| 106 | 5416043250 | 1.20 | 1.45 | |
| Screw | ||||
| 107 | 5416043050 | 1.20 | 1.45 | |
| Screw | ||||
| 108 | 5416043340 | 1.20 | 1.45 | |
| Screw | ||||
| 109 | 5416043160 | 1.20 | 1.45 | |
| Screw | ||||
| 110 | 5416043530 | 1.20 | 1.45 | |
| E ring | ||||
| 111 | 5416043060 | 1.20 | 1.45 | |
| Screw | ||||
| 112 | 5416043330 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 113 | 5416043720 | |||
| Adjustment cap | ||||
| 114 | 5416043760 | 6.00 | 7.26 | |
| Adjustment cap | ||||
| 115 | 5416043810 | 6.00 | 7.26 | |
| Choke spring | ||||
| 116 | 5416043640 | 2.40 | 2.90 | |
| Choke control handle | ||||
| 117 | 5416043560 | 3.60 | 4.36 | |
| Choke Handle | ||||
| 118 | 5416043660 | 3.60 | 4.36 | |
| Choke shaft guide | ||||
| 119 | 5416043610 | 1.20 | 1.45 | |
| Choke handle screw | ||||
| 120 | 5416043710 | 1.20 | 1.45 | |
| Lower pump cover | ||||
| 121 | 5416043820 | 11.00 | 13.31 | |
| Air filter housing | ||||
| 122 | 5413048001 | 6.00 | 7.26 | |
| Air filter cover | ||||
| 123 | 5413507001 | 4.80 | 5.81 | |
| Cleaner Element | ||||
| 124 | 5413507101 | 8.40 | 10.16 | |
| Air filter gasket | ||||
| 125 | 5413507200 | 1.20 | 1.45 | |
| Screw 5X14 P | ||||
| 126 | 0043605140 | 1.20 | 1.45 | |
| Carburetor gasket | ||||
| 127 | 5416504302 | 2.40 | 2.90 | |
| Screw M5x55mm | ||||
| 128 | 266877-5 | 1.00 | 1.21 | |
| CABLE SUPPORT | ||||
| 129 | 5416504600 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 130 | 5216008010 | |||
| Nut M6 Htr5600 A | ||||
| 131 | 0022706000 | 1.00 | 1.21 | |
| Carburetor gasket | ||||
| 132 | 5413507900 | 2.40 | 2.90 | |
| Plate | ||||
| 133 | 5413507800 | 2.40 | 2.90 | |
| Operating handle | ||||
| 134 | 6625001003 | 41.80 | 50.58 | |
| Handle Cover | ||||
| 135 | 6625500500 | 3.60 | 4.36 | |
| Switch | ||||
| 136 | 632C00-6 | 11.00 | 13.31 | |
| Throttle Lever 1 | ||||
| 137 | 453716-0 | 13.20 | 15.97 | |
| Throttle Lever 2 | ||||
| 138 | 453717-8 | 38.50 | 46.58 | |
| Plate | ||||
| 139 | 6625004000 | 6.00 | 7.26 | |
| Torsion Spring | ||||
| 140 | 233602-9 | 2.40 | 2.90 | |
| Control Cable Rbl500 | ||||
| 141 | 0630139901 | 12.10 | 14.64 | |
| Cable sleeve | ||||
| 142 | 6625501001 | 6.00 | 7.26 | |
| Bolt 6X30 * | ||||
| 143 | 6625501700 | 6.00 | 7.26 | |
| Thread cutting screw * | ||||
| 144 | 0150049970 | 1.20 | 1.45 | |
| Ring P | ||||
| 145 | 0031106000 | 1.20 | 1.45 | |
| Corrugated washer | ||||
| 146 | 267841-9 | 2.40 | 2.90 | |
| Nut M6 Htr5600 A | ||||
| 147 | 0022706000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 148 | 0150049940 | |||
| No information available, not orderable | ||||
| 149 | 0043605251 | |||
| Screw Vk 20mm | ||||
| 150 | 911233-1 | 1.00 | 1.21 | |
| Rubber washer 8mm PB500 | ||||
| 151 | 261162-1 | 2.40 | 2.90 | |
| Warning label Rbl500 * | ||||
| 152 | 6629508600 | 2.40 | 2.90 | |
| Label Rbl500 | ||||
| 153 | 0736409430 | 2.40 | 2.90 | |
| Screw 5X8 Rbc310 * | ||||
| 154 | 0140059920 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 155 | 5413506001 | 9.60 | 11.62 | |
| Handle holder Nr1 | ||||
| 156 | 6625500802 | 4.80 | 5.81 | |
| Handle holder Nr2 | ||||
| 157 | 6625005002 | 4.80 | 5.81 | |
