Here you will find all available parts and drawings of the 'Makita RBC525E'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

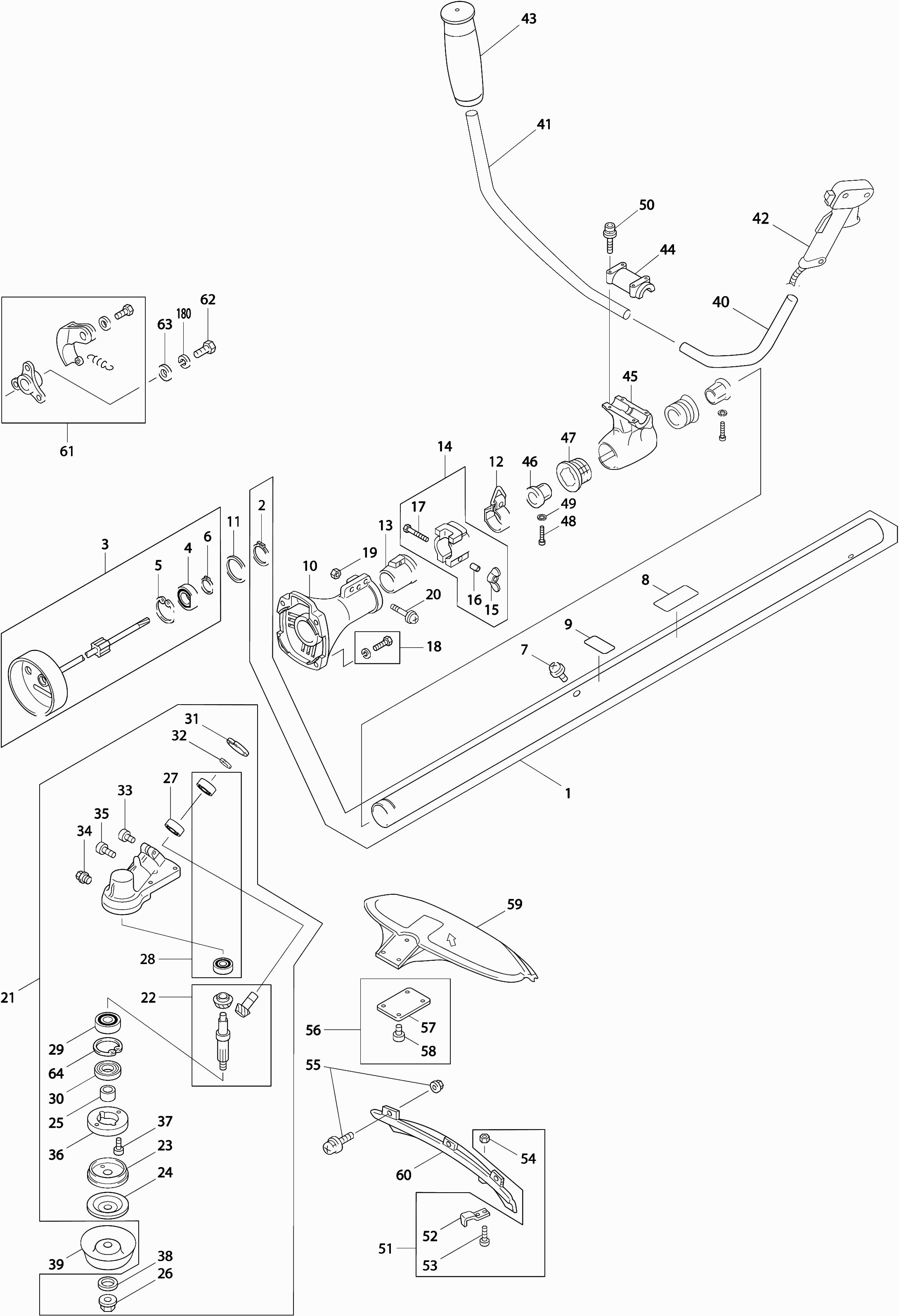

Technical drawing of model Makita RBC525E
Spare parts list of model Makita RBC525E
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle Rbc525 Cpl * | ||||
| 001 | 6401008002 | 203.50 | 246.24 | |
| No information available, not orderable | ||||
| 002 | 257974-8 | |||
| Rbc525 Assy Shaft * | ||||
| 003 | 6401033000 | 168.30 | 203.64 | |
| Ball bearing 6003Llu A | ||||
| 004 | 211338-0 | 7.20 | 8.71 | |
| Lock Ring R-35 | ||||
| 005 | 962153-2 | 1.00 | 1.21 | |
| Lock ring S-17 | ||||
| 006 | 961057-5 | 1.00 | 1.21 | |
| Oil Bolt Rbc525 * | ||||
| 007 | 6301500700 | 1.20 | 1.45 | |
| Warning label Rbc525 * | ||||
| 008 | 6459505200 | 8.40 | 10.16 | |
| Warning Label | ||||
| 009 | 808723-2 | 2.40 | 2.90 | |
| Clutch Housing | ||||
| 010 | 6351500000 | 124.30 | 150.40 | |
| No information available, not orderable | ||||
| 011 | 267445-7 | |||
| Blocking pipe Rbc525 A | ||||
| 013 | 413154-8 | 17.60 | 21.30 | |
| Locking Ring | ||||
| 014 | 318732-8 | 6.00 | 7.26 | |
| Nut Wing | ||||
| 015 | 6411501300 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 016 | 6401032010 | |||
| No longer available, no replacement | ||||
| 017 | 0016706500 | |||
| Allen bolt M6x18mm | ||||
| 018 | 266668-4 | 1.20 | 1.45 | |
| Nut M6 Htr5600 A | ||||
| 019 | 0022706000 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 020 | 266667-6 | |||
| Gear Cover | ||||
| 021 | 6453011000 | 118.86 | 143.82 | |
| No information available, not orderable | ||||
| 022 | 6453012000 | |||
| Washer Rbc525 * | ||||
| 023 | 6453011030 | 41.80 | 50.58 | |
| Holding Plate | ||||
| 024 | 6453011040 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 025 | 6453011020 | |||
| No information available, not orderable | ||||
| 026 | 6453011060 | |||
| Ball Bearing 6001C3 Rpt250 A | ||||
| 027 | 210113-1 | 6.00 | 7.26 | |
| Ball Bearing 6001zz | ||||
| 028 | 211148-5 | 8.40 | 10.16 | |
| Ball bearing 6202C3 A | ||||
| 029 | 211483-1 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 030 | 0440209910 | |||
| Lock washer R-28 | ||||
| 031 | 962106-1 | 1.20 | 1.45 | |
| Outer Lock Ring Rbc260-310-Rbk | ||||
| 032 | 0031512000 | 1.00 | 1.21 | |
| Allen bolt M6X20mm RBC525 A | ||||
| 033 | 266680-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 034 | 6453011110 | |||
| No information available, not orderable | ||||
| 035 | 6453011130 | |||
| Protective ring Rbc525 * | ||||
| 036 | 6453011050 | 6.00 | 7.26 | |
| Hex bolt M5X10Mm Rbc525 * | ||||
| 037 | 6453011120 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 038 | 0203109990 | |||
| No information available, not orderable | ||||
| 039 | 6458500900 | |||
| Handlebar (R) Rbc525E * | ||||
| 040 | 6414507300 | 19.80 | 23.96 | |
| Handlebar (l) | ||||
| 041 | 6414507400 | 34.10 | 41.26 | |
| Control handle | ||||
| 042 | 6455007000 | 40.70 | 49.25 | |
| No information available, not orderable | ||||
| 043 | 273526-7 | |||
| No information available, not orderable | ||||
| 044 | 6254503802 | |||
| Handle Holder Rbc525E * | ||||
| 045 | 6414507201 | 13.20 | 15.97 | |
| End stop | ||||
| 046 | 6404506200 | 14.30 | 17.30 | |
| Spacer bush | ||||
| 047 | 6404506600 | 4.80 | 5.81 | |
| Bolt 6X30 | ||||
| 048 | 0119069930 | 1.20 | 1.45 | |
| Spring washer Rbc310-G2400- * | ||||
| 049 | 0032006000 | 1.00 | 1.21 | |
| Allen bolt M5x18mm | ||||
| 050 | 266787-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 051 | 6458007000 | |||
| Mount.Set (Bolt + Nut) Rbc525 * | ||||
| 055 | 6458011000 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 056 | 6458006000 | |||
| No information available, not orderable | ||||
| 058 | 6453011130 | |||
| No information available, not orderable | ||||
| 059 | 6458010010 | |||
| No information available, not orderable | ||||
| 060 | 6458010021 | |||
| Clutch | ||||
| 061 | 140897-6 | 52.80 | 63.89 | |
| No information available, not orderable | ||||
| 062 | 6202500400 | |||
| Ring | ||||
| 063 | 267429-5 | 1.20 | 1.45 | |
| Lock Ring R-35 | ||||
| 064 | 962153-2 | 1.00 | 1.21 | |
| Crankcase Rbc525 * | ||||
| 065 | 5501003001 | 224.40 | 271.52 | |
| Oil seal 15Mm A | ||||
| 066 | 213546-9 | 2.40 | 2.90 | |
| Ball bearing 6202C3 A | ||||
| 067 | 211483-1 | 6.00 | 7.26 | |
| Oil Seal Rbl500 | ||||
| 068 | 0440179930 | 8.40 | 10.16 | |
| Ball bearing 6203C3 | ||||
| 069 | 0600179830 | 6.38 | 7.72 | |
| No information available, not orderable | ||||
| 070 | 5501502500 | |||
| Cylinder gasket | ||||
| 071 | 5501500400 | 2.40 | 2.90 | |
| Crankcase gasket | ||||
| 072 | 5501500200 | 2.40 | 2.90 | |
| Screw G5500-5501R | ||||
| 073 | 0043506200 | 1.00 | 1.21 | |
| Screw M6X40Mm Assy Rbc525 | ||||
| 074 | 0043506400 | 1.20 | 1.45 | |
| Crank Shaft | ||||
| 075 | 5502005000 | 223.30 | 270.19 | |
| Piston | ||||
| 076 | 5502500400 | 22.00 | 26.62 | |
| Piston ring p/piece | ||||
| 077 | 5602500900 | 3.60 | 4.36 | |
| Piston Pin | ||||
| 078 | 5602501100 | 11.00 | 13.31 | |
| Needle Bearing Rbc525 | ||||
| 079 | 0610129961 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 080 | 0565119990 | |||
| No information available, not orderable | ||||
| 081 | 0323049950 | |||
| Exhaust Rbc525 * | ||||
| 082 | 5503016001 | 100.10 | 121.12 | |
| Hex Nut M6 | ||||
| 083 | 931302-2 | 1.00 | 1.21 | |
| Spring washer Rbc310-G2400- * | ||||
| 084 | 0032006000 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 085 | 5503503900 | |||
| Exhaust gasket Rbc525 * | ||||
| 086 | 5503504200 | 11.00 | 13.31 | |
| Insulator Rbc525 * | ||||
| 087 | 5503504101 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 088 | 264093-3 | |||
| Insulator gasket | ||||
| 089 | 5503504000 | 2.40 | 2.90 | |
| Inlet gasket | ||||
| 090 | 5503500501 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 091 | 0043705140 | |||
| Inbusbout M6X25Mm Rbc525 | ||||
| 092 | 0119069850 | 1.20 | 1.45 | |
| Washer Rbc410-G2400R- * | ||||
| 093 | 0031006000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 094 | 5505001000 | |||
| No longer available, no replacement | ||||
| 095 | 5505001010 | |||
| Detent | ||||
| 096 | 5105015020 | 4.80 | 5.81 | |
| Spring Rbc525 * | ||||
| 097 | 5505001020 | 13.20 | 15.97 | |
| Spring Plate | ||||
| 098 | 5105015050 | 4.80 | 5.81 | |
| Clutch Plate Rbc310 * | ||||
| 099 | 5505001030 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 100 | 5105015110 | |||
| Spring Plate | ||||
| 101 | 5105015060 | 2.40 | 2.90 | |
| Start Cord | ||||
| 102 | 5505001050 | 10.80 | 13.07 | |
| Starter Handle | ||||
| 103 | 140884-5 | 3.60 | 4.36 | |
| Flywheel Housing Rbc525 * | ||||
| 104 | 5505500001 | 39.60 | 47.92 | |
| Clamp | ||||
| 105 | 345963-6 | 1.00 | 1.21 | |
| Screw Assy Rbc525E | ||||
| 106 | 0043604100 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 107 | 5505008000 | |||
| Screw Assy M5X14Mm Rbc525 | ||||
| 108 | 0043706140 | 1.00 | 1.21 | |
| Screw 5x20 | ||||
| 109 | 911234-9 | 1.00 | 1.21 | |
| Label "rbc525" | ||||
| 110 | 6459505400 | 3.60 | 4.36 | |
| Wire | ||||
| 111 | 6828011000 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 112 | 5506501603 | |||
| Fuel filter | ||||
| 113 | 163447-0 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 114 | 5506010000 | |||
| Hose clamp IAS 3 | ||||
| 115 | 345920-4 | 1.00 | 1.21 | |
| Muffler Rbc525 * | ||||
| 116 | 5506500200 | 2.40 | 2.90 | |
| Distance bushing Rbc525 * | ||||
| 117 | 0230069760 | 2.40 | 2.90 | |
| Rivet RBC230-G24-350 P | ||||
| 118 | 0031206000 | 1.00 | 1.21 | |
| Screw G5500-5501R | ||||
| 119 | 0043506250 | 1.00 | 1.21 | |
| Fuel Pump DCS230T A | ||||
| 120 | 168398-2 | 15.20 | 18.39 | |
| Hose | ||||
| 121 | 5506501700 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 122 | 5806113050 | |||
| Petrol/Oil cap cpl | ||||
| 123 | 168668-9 | 24.20 | 29.28 | |
| Petrol/Oil cap cpl | ||||
| 124 | 168668-9 | 24.20 | 29.28 | |
| Magneto Rotor Comp. | ||||
| 125 | 5507001010 | 114.40 | 138.42 | |
| No longer available, no replacement | ||||
| 126 | 5507002010 | |||
| Pass-through Rbc525 | ||||
| 127 | 0241059970 | 2.40 | 2.90 | |
| Pass-Through Rbc260 | ||||
| 128 | 0241029990 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 129 | 5417037001 | |||
| Bougieveer Ebh253U A | ||||
| 130 | 324891-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 131 | 0650149721 | |||
| Allen bolt M5x18mm | ||||
| 132 | 266787-6 | 1.00 | 1.21 | |
| Moer M10 Rbc525 | ||||
| 133 | 0022810000 | 1.20 | 1.45 | |
| Washer M10 G5500-5501R | ||||
| 134 | 0031010000 | 1.00 | 1.21 | |
| Washer G5500-5501R | ||||
| 135 | 0032010000 | 1.00 | 1.21 | |
| Bow | ||||
| 136 | 6455500100 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 137 | 0119069970 | |||
| No information available, not orderable | ||||
| 138 | 5506009000 | |||
| No information available, not orderable | ||||
| 139 | 5506009040 | |||
| Adjustment knob Rbc525 * | ||||
| 140 | 5426003030 | 8.40 | 10.16 | |
| Carburetor Cap Rbc525 # | ||||
| 141 | 5426003010 | 7.44 | 9.00 | |
| Cap Em4250 * | ||||
| 142 | 5246004150 | 3.60 | 4.36 | |
| Rubber sleeve Rbc525 * | ||||
| 143 | 5246004010 | 2.40 | 2.90 | |
| Control valve | ||||
| 144 | 5426003130 | 3.60 | 4.36 | |
| Gas needle clip Rbc525 * | ||||
| 145 | 5106048050 | 2.40 | 2.90 | |
| Control slide Rbc525 * | ||||
| 146 | 5106043150 | 2.40 | 2.90 | |
| Diaphragm cover | ||||
| 147 | 5506001120 | 2.40 | 2.90 | |
| Diaphragm | ||||
| 148 | 5426003050 | 9.60 | 11.62 | |
| Pivot Pin | ||||
| 149 | 5106043130 | 1.20 | 1.45 | |
| Gas needle Rbc525 * | ||||
| 150 | 5506009010 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 151 | 5426003220 | |||
| No information available, not orderable | ||||
| 152 | 5106042060 | |||
| Gasket | ||||
| 153 | 5246005222 | 3.60 | 4.36 | |
| Diaphragm gasket | ||||
| 154 | 5506001040 | 2.40 | 2.90 | |
| Pump Gasket | ||||
| 155 | 5106042310 | 2.40 | 2.90 | |
| Adjustment pipe Rbc525 * | ||||
| 156 | 5246004320 | 7.20 | 8.71 | |
| Valve plate | ||||
| 157 | 5426003140 | 6.00 | 7.26 | |
| Pump Cover | ||||
| 158 | 5506009030 | 22.00 | 26.62 | |
| Pump diaphragm | ||||
| 159 | 5426003060 | 6.00 | 7.26 | |
| Adjusting Nut Rbc525 * | ||||
| 160 | 5426003020 | 2.40 | 2.90 | |
| Screw 3x10 | ||||
| 161 | 5106041220 | 1.20 | 1.45 | |
| Screw 3x6 | ||||
| 162 | 5106043360 | 1.20 | 1.45 | |
| Screw 3x5 | ||||
| 163 | 5426003150 | 1.20 | 1.45 | |
| Screw 3x8 | ||||
| 164 | 5426003160 | 1.20 | 1.45 | |
| Stationary adjustment screw | ||||
| 165 | 5106048230 | 2.40 | 2.90 | |
| Spring | ||||
| 166 | 5426003210 | 1.20 | 1.45 | |
| Spring holder (gas needle) Rbc525 * | ||||
| 167 | 5506001060 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 168 | 5106042120 | |||
| Adjustment screw | ||||
| 169 | 5106048240 | 1.20 | 1.45 | |
| Control needle spring | ||||
| 170 | 5426003230 | 2.40 | 2.90 | |
| Spring (gas needle) Rbc525 * | ||||
| 171 | 5506009020 | 3.60 | 4.36 | |
| Throttle valve | ||||
| 172 | 5506001050 | 15.40 | 18.63 | |
| Screw 5x45 | ||||
| 173 | 911268-2 | 1.00 | 1.21 | |
| Choke label | ||||
| 174 | 898454-1 | 2.40 | 2.90 | |
| Distance Bush Rbc525 | ||||
| 175 | 0230049980 | 1.00 | 1.21 | |
| Air Filter Rbc525 | ||||
| 176 | 5103502700 | 2.40 | 2.90 | |
| Cleaner Cover | ||||
| 177 | 5503500300 | 4.80 | 5.81 | |
| Air filter holder | ||||
| 178 | 5503500400 | 3.60 | 4.36 | |
| Screw 4x30 | ||||
| 179 | 911156-3 | 1.00 | 1.21 | |
