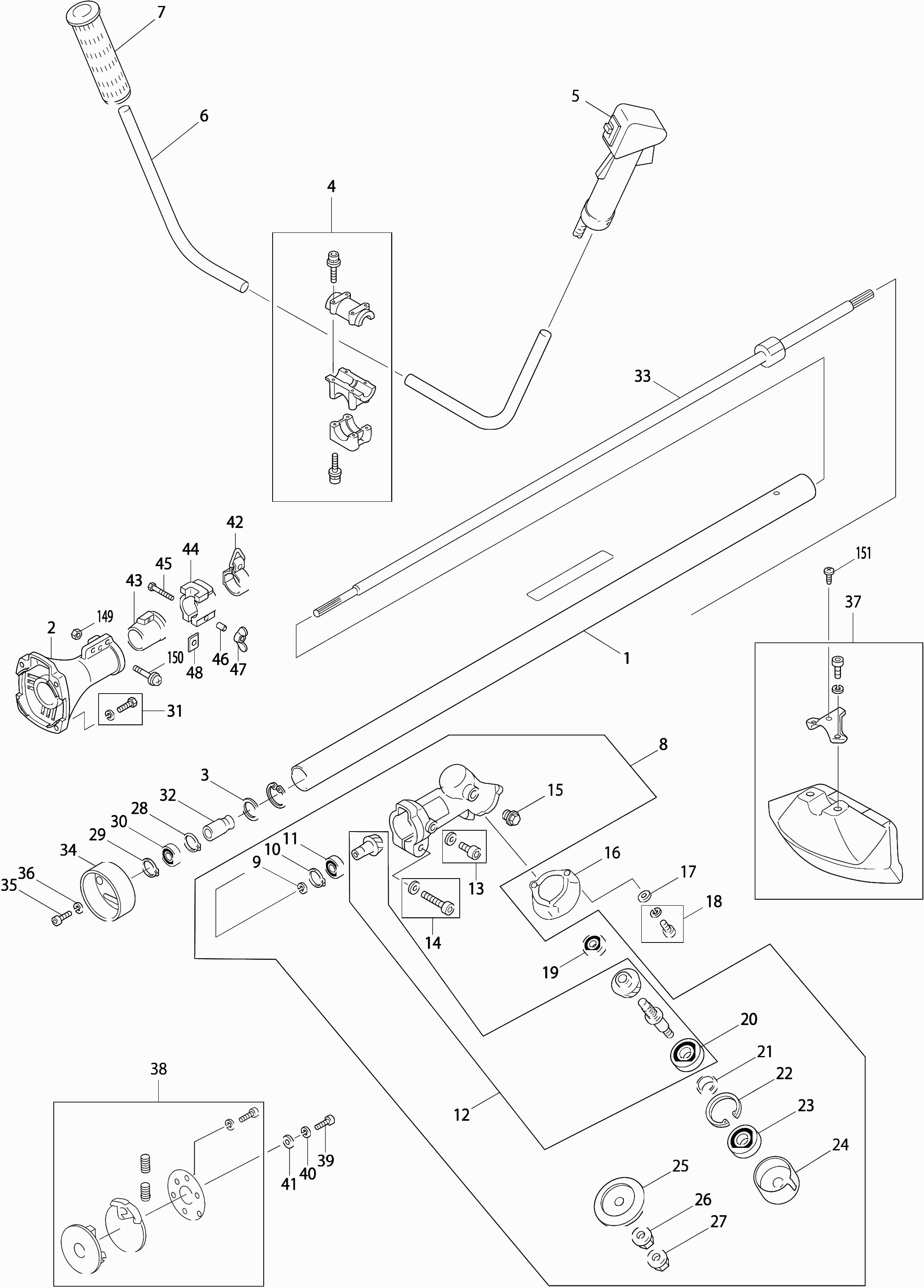

Technical drawing of model Makita RBC420
Spare parts list of model Makita RBC420
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 6411001000 | |||
| Clutch Housing * | ||||
| 002 | 140628-3 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 003 | 267445-7 | |||
| Handlebar Assy Rbc320 A | ||||
| 004 | 6414005001 | 14.30 | 17.30 | |
| Control/throttle handle | ||||
| 005 | 6415017000 | 42.90 | 51.91 | |
| Handle Bracket | ||||
| 006 | 331971-3 | 22.00 | 26.62 | |
| Handle | ||||
| 007 | 6404502400 | 3.60 | 4.36 | |
| Gear Cover | ||||
| 008 | 6353001000 | 112.20 | 135.76 | |
| Outer Lock Ring Rbc260-310-Rbk | ||||
| 009 | 0031512000 | 1.00 | 1.21 | |
| Lock washer R-28 | ||||
| 010 | 962106-1 | 1.20 | 1.45 | |
| Ball Bearing 6001zz | ||||
| 011 | 211148-5 | 8.40 | 10.16 | |
| Bevel gear | ||||
| 012 | 6413003000 | 81.40 | 98.49 | |
| Hex bolt M6X14 A | ||||
| 013 | 922316-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014 | 266664-2 | |||
| No information available, not orderable | ||||
| 015 | 6413500600 | |||
| No information available, not orderable | ||||
| 016 | 6418500200 | |||
| Washer 5mm DSP601 A | ||||
| 017 | 253414-4 | 1.00 | 1.21 | |
| Bolt 5X12 A | ||||
| 018 | 0119059900 | 1.20 | 1.45 | |
| Ball Bearing 627Zz A | ||||
| 019 | 210050-9 | 1.20 | 1.45 | |
| Ball Bearing 6201 | ||||
| 020 | 211109-5 | 4.80 | 5.81 | |
| Spacer | ||||
| 021 | 326052-6 | 2.40 | 2.90 | |
| Lock washer r-32 | ||||
| 022 | 962151-6 | 1.00 | 1.21 | |
| oil seal | ||||
| 023 | 213596-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 024 | 6418500101 | |||
| No information available, not orderable | ||||
| 025 | 6308503100 | |||
| Nut Rbc410 A | ||||
| 026 | 264058-5 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 027 | 6308503300 | |||
| Lock ring S-17 | ||||
| 028 | 961057-5 | 1.00 | 1.21 | |
| Lock Ring R-35 | ||||
| 029 | 962153-2 | 1.00 | 1.21 | |
| Ball bearing 6003Llu A | ||||
| 030 | 211338-0 | 7.20 | 8.71 | |
| Allen bolt M6x18mm | ||||
| 031 | 266668-4 | 1.20 | 1.45 | |
| Buffer | ||||
| 032 | 424403-8 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 033 | 6411011001 | |||
| No information available, not orderable | ||||
| 034 | 6412006001 | |||
| No information available, not orderable | ||||
| 035 | 6202500400 | |||
| Ring | ||||
| 036 | 267429-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 037 | 6258028002 | |||
| Clutch | ||||
| 038 | 140897-6 | 52.80 | 63.89 | |
| No information available, not orderable | ||||
| 039 | 6202500400 | |||
| Spring washer Rbc310-G2400- * | ||||
| 040 | 0032006000 | 1.00 | 1.21 | |
| Ring | ||||
| 041 | 267429-5 | 1.20 | 1.45 | |
| Belt Hook Rbc525 * | ||||
| 042 | 125941-0 | 10.80 | 13.07 | |
| Blocking pipe Rbc525 A | ||||
| 043 | 413154-8 | 17.60 | 21.30 | |
| Locking Ring | ||||
| 044 | 318732-8 | 6.00 | 7.26 | |
| No longer available, no replacement | ||||
| 045 | 0016706500 | |||
| No information available, not orderable | ||||
| 046 | 6401032010 | |||
| Nut Wing | ||||
| 047 | 6411501300 | 4.80 | 5.81 | |
| Filling Gasket Ms4200 | ||||
| 048 | 0037108000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 5411005000 | |||
| Ball bearing 6202C3 A | ||||
| 049A | 211483-1 | 6.00 | 7.26 | |
| Oil seal 15Mm A | ||||
| 049B | 213546-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 050 | 5411500300 | |||
| Cylinder gasket Rbc410-Rbk410 A | ||||
| 051 | 442156-7 | 2.40 | 2.90 | |
| Crankcase Gasket Rbc410 A | ||||
| 052 | 442157-5 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 053 | 142159-8 | |||
| No longer available, no replacement | ||||
| 054 | 318631-4 | |||
| Piston Ring | ||||
| 055 | 257309-3 | 3.60 | 4.36 | |
| Piston Pin | ||||
| 056 | 257797-4 | 2.40 | 2.90 | |
| Needle-roller Bearing | ||||
| 057 | 212085-6 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 058 | 0565099990 | |||
| No information available, not orderable | ||||
| 059 | 0323039990 | |||
| Exhaust Rbk420/Mb351 (Old) A | ||||
| 060 | 168649-3 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 061 | 5413500100 | |||
| No information available, not orderable | ||||
| 062 | 5323500600 | |||
| Manifold | ||||
| 063 | 453971-4 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 064 | 5403500600 | |||
| Carburetor gasket | ||||
| 065 | 5416504000 | 1.20 | 1.45 | |
| Gasket | ||||
| 066 | 442160-6 | 1.20 | 1.45 | |
| Clevis Inlet Set Rbc420/Ms4200 * | ||||
| 067 | 126211-0 | 14.30 | 17.30 | |
| Screw Rbk420 A | ||||
| 068 | 266739-7 | 1.00 | 1.21 | |
| Start Cover Rbk420 * | ||||
| 069 | 5415504500 | 8.40 | 10.16 | |
| Starting device complete | ||||
| 070 | 5415050000 | 44.00 | 53.24 | |
| Cord reel | ||||
| 071 | 452766-2 | 6.00 | 7.26 | |
| Detent | ||||
| 072 | 452767-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 073 | 5415001030 | |||
| No information available, not orderable | ||||
| 074 | 5415001040 | |||
| Friction spring | ||||
| 075 | 233994-6 | 1.20 | 1.45 | |
| Ring | ||||
| 076 | 267443-1 | 1.20 | 1.45 | |
| Screw 5X18 | ||||
| 077 | 265131-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 078 | 5415001140 | |||
| Starter Handle | ||||
| 079 | 140884-5 | 3.60 | 4.36 | |
| Cylinder Plate Cover Ms4200 * | ||||
| 080 | 5415504600 | 13.20 | 15.97 | |
| FUEL TANK | ||||
| 081 | 454558-5 | 12.10 | 14.64 | |
| No information available, not orderable | ||||
| 082 | 0851279970 | |||
| Pipe | ||||
| 083 | 168766-9 | 4.80 | 5.81 | |
| Hose clamp IAS 3 | ||||
| 084 | 345920-4 | 1.00 | 1.21 | |
| Petrol/Oil cap cpl | ||||
| 085 | 168668-9 | 24.20 | 29.28 | |
| Fuel filter | ||||
| 086 | 163447-0 | 11.00 | 13.31 | |
| Tank support Rbc410-Rbk410 A | ||||
| 087 | 455434-6 | 1.66 | 2.01 | |
| No longer available, no replacement | ||||
| 088 | 0230059990 | |||
| No information available, not orderable | ||||
| 089 | 5416501100 | |||
| Damper RBK420 * | ||||
| 090 | 5416503500 | 4.80 | 5.81 | |
| Damper | ||||
| 091 | 5416503600 | 6.00 | 7.26 | |
| Ignition | ||||
| 092 | 168587-9 | 34.10 | 41.26 | |
| No information available, not orderable | ||||
| 093 | 5417001010 | |||
| Spark Plug Cap Ptr2500 A | ||||
| 094 | 0655009870 | 4.80 | 5.81 | |
| Bougieveer Ebh253U A | ||||
| 095 | 324891-8 | 1.20 | 1.45 | |
| SPARK PLUG A | ||||
| 096 | 168517-0 | 6.00 | 7.26 | |
| Tube | ||||
| 097 | 5417500300 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 098 | 5607005000 | |||
| No information available, not orderable | ||||
| 099 | 0016706160 | |||
| Washer 5mm DSP601 A | ||||
| 100 | 253414-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 101 | 267427-9 | |||
| Spring washer Rbc310-G2400- * | ||||
| 102 | 0032006000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 103 | 0140059610 | |||
| No information available, not orderable | ||||
| 104 | 0140059610 | |||
| Screw 5X20 * | ||||
| 105 | 0140059560 | 1.20 | 1.45 | |
| Hex Socket Screw Ck M5x22mm | ||||
| 106 | 922236-0 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 107 | 266794-9 | |||
| Bolt 5X30 Rbc410-Rbk410 | ||||
| 108 | 0119059940 | 1.20 | 1.45 | |
| Hex Socket Bolt M6X60mm | ||||
| 109 | 266589-0 | 2.40 | 2.90 | |
| Bout M6X18 Rbc410-Rbk410 | ||||
| 110 | 0119069990 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 111 | 267444-9 | 1.20 | 1.45 | |
| Screw 6X16 * | ||||
| 112 | 0140069910 | 1.20 | 1.45 | |
| Screw 5X14 * | ||||
| 113 | 0140059550 | 1.20 | 1.45 | |
| Metal Screw Ck M5x25mm | ||||
| 114 | 266749-4 | 2.40 | 2.90 | |
| Support Rbc310 A | ||||
| 115 | 346286-5 | 8.40 | 10.16 | |
| Hex bolt M6X14 A | ||||
| 116 | 922316-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 117 | 5416041001 | |||
| No information available, not orderable | ||||
| 118 | 5236046130 | |||
| No information available, not orderable | ||||
| 119 | 5236046060 | |||
| Pump cover Ebh253U A | ||||
| 120 | 346270-0 | 7.20 | 8.71 | |
| Booster pump | ||||
| 121 | 424314-7 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 122 | 5216008010 | |||
| Diaphragm Gasket | ||||
| 123 | 442154-1 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 124 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 125 | 5246001030 | |||
| Seegering E-3 A | ||||
| 126 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 127 | 5236018040 | |||
| No information available, not orderable | ||||
| 128 | 453970-6 | |||
| Adjustment Screw Rbc230 A | ||||
| 129 | 266704-6 | 2.40 | 2.90 | |
| CABLE SUPPORT | ||||
| 130 | 5236052020 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 131 | 5316005450 | |||
| No information available, not orderable | ||||
| 132 | 5216008010 | |||
| Packing Washer | ||||
| 133 | 424444-4 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 134 | 266582-4 | 3.60 | 4.36 | |
| Adjusting Needle Rbc420 A | ||||
| 135 | 326211-2 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 136 | 234262-0 | |||
| Rivet for adjustment needle | ||||
| 137 | 267461-9 | 2.40 | 2.90 | |
| O-ring | ||||
| 138 | WJ00016105 | 3.60 | 4.36 | |
| Rivet for adjusting needle | ||||
| 139 | 5426005030 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 140 | 5413044010 | |||
| Air filter plate | ||||
| 141 | 453982-9 | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 142 | 5413044020 | |||
| Ring | ||||
| 143 | 5313003050 | 2.40 | 2.90 | |
| Bus Rbc420 A | ||||
| 144 | 332044-5 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 145 | 5233013040 | |||
| Choke Valve Rbc420 * | ||||
| 146 | 346627-5 | 17.60 | 21.30 | |
| Clip | ||||
| 147 | 5313003110 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 148 | 266794-9 | |||
| Nut M6 Htr5600 A | ||||
| 149 | 0022706000 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 150 | 266667-6 | |||
| SCREW | ||||
| 151 | 0150059940 | 1.20 | 1.45 | |
| Petrol/Oil cap cpl | ||||
| 152 | 168668-9 | 24.20 | 29.28 | |
| Hex Socket Screw Ck M5x22mm | ||||
| 153 | 922236-0 | 1.00 | 1.21 | |
