Here you will find all available parts and drawings of the 'Makita PV7000C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

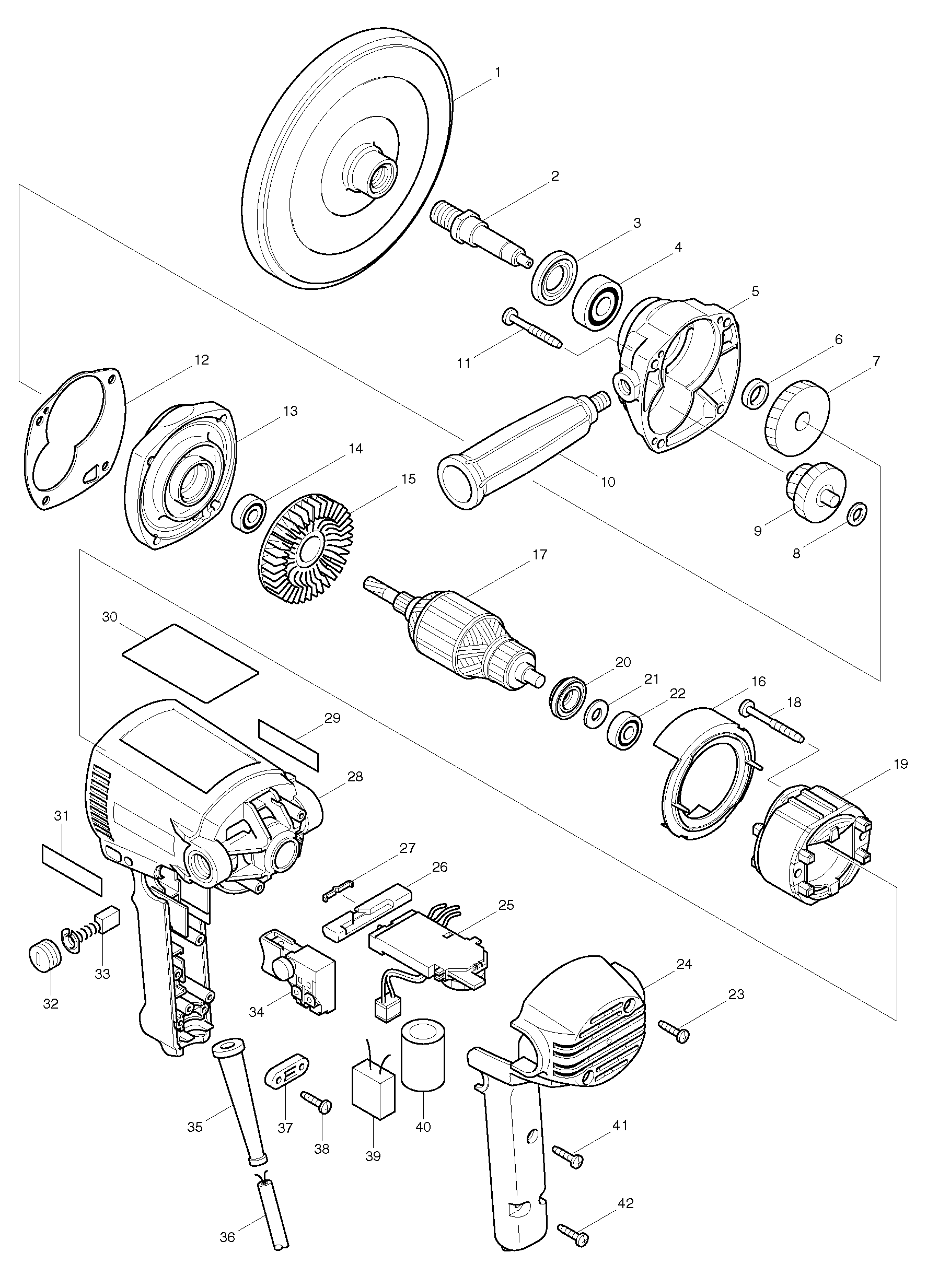

Technical drawing of model Makita PV7000C
Spare parts list of model Makita PV7000C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| STEUNSCHIJF 165MM VELCRO | ||||
| 001 | 743053-3 | 14.00 | 16.94 | |
| Spindle Ass'y | ||||
| 002 | 324079-0 | 28.60 | 34.61 | |
| Bearing Lock | ||||
| 003 | 152690-6 | 10.80 | 13.07 | |
| Seal Ring 16 | ||||
| 003A | 213209-7 | 3.60 | 4.36 | |
| Ball Bearing 6201dw1 | ||||
| 004 | 211129-9 | 8.40 | 10.16 | |
| Gear Cover | ||||
| 005 | 152691-4 | 28.60 | 34.61 | |
| Ball bearing 626 | ||||
| 005A | 210018-5 | 3.60 | 4.36 | |
| Bus 12 | ||||
| 006 | 257707-1 | 2.40 | 2.90 | |
| Gear 43 | ||||
| 007 | 226536-3 | 9.60 | 11.62 | |
| Washer 8 x 14 x 0.5mm | ||||
| 008 | 253215-0 | 1.00 | 1.21 | |
| Gear 21-44 | ||||
| 009 | 226141-6 | 48.40 | 58.56 | |
| Handle TSC 55 | ||||
| 010 | 273649-1 | 4.00 | 4.84 | |
| Self-tapping screw 5x40 | ||||
| 011 | 266211-9 | 1.00 | 1.21 | |
| Gasket | ||||
| 012 | 417837-2 | 2.40 | 2.90 | |
| Inner Cover | ||||
| 013 | 152692-2 | 23.10 | 27.95 | |
| Needle Bearing 609 * | ||||
| 013A | 212016-5 | 6.00 | 7.26 | |
| Glijlager 8 | ||||
| 013B | 214028-4 | 1.20 | 1.45 | |
| Ball Bearing 608ddw | ||||
| 014 | 210005-4 | 4.80 | 5.81 | |
| Fan 65 | ||||
| 015 | 240020-4 | 3.60 | 4.36 | |
| TUSSENPLAAT PV7000C A | ||||
| 016 | 419721-7 | 2.40 | 2.90 | |
| Armature | ||||
| 017 | 516433-4 | 63.80 | 77.20 | |
| Metal Screw M5x45mm | ||||
| 018 | 266037-9 | 1.00 | 1.21 | |
| Field | ||||
| 019 | 599013-1 | 30.80 | 37.27 | |
| Stator spring Cb5 | ||||
| 019A | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 019B | 654501-6 | 0.83 | 1.00 | |
| Insulation ring | ||||
| 020 | 681660-3 | 7.20 | 8.71 | |
| Washer 8x0.5mm | ||||
| 021 | 253139-0 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 022 | 210005-4 | 4.80 | 5.81 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 024 | 417450-6 | 11.00 | 13.31 | |
| Electronic regulator | ||||
| 025 | 631427-9 | 59.40 | 71.87 | |
| Tappet | ||||
| 026 | 417449-1 | 3.60 | 4.36 | |
| Leaf Spring | ||||
| 027 | 232201-4 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 028 | 183300-4 | 23.10 | 27.95 | |
| Label Makita | ||||
| 029 | 819063-3 | 2.40 | 2.90 | |
| Label | ||||
| 030 | 852814-1 | 1.20 | 1.45 | |
| Label Makita | ||||
| 031 | 819063-3 | 2.40 | 2.90 | |
| Carbon brush cap | ||||
| 032 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 033 | 194996-6 | 6.00 | 7.26 | |
| Switch | ||||
| 034 | 651297-0 | 11.00 | 13.31 | |
| Cable gland 8-110 | ||||
| 035 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 036 | 665383-1 | 10.80 | 13.07 | |
| Clamp Bracket | ||||
| 037 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 037 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 038 | 265A48-7 | 1.00 | 1.21 | |
| Capacitor | ||||
| 039 | 645253-0 | 4.80 | 5.81 | |
| Sponge ring | ||||
| 040 | 685722-9 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 041 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 1.00 | 1.21 | |
