Here you will find all available parts and drawings of the 'Makita PTR2500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

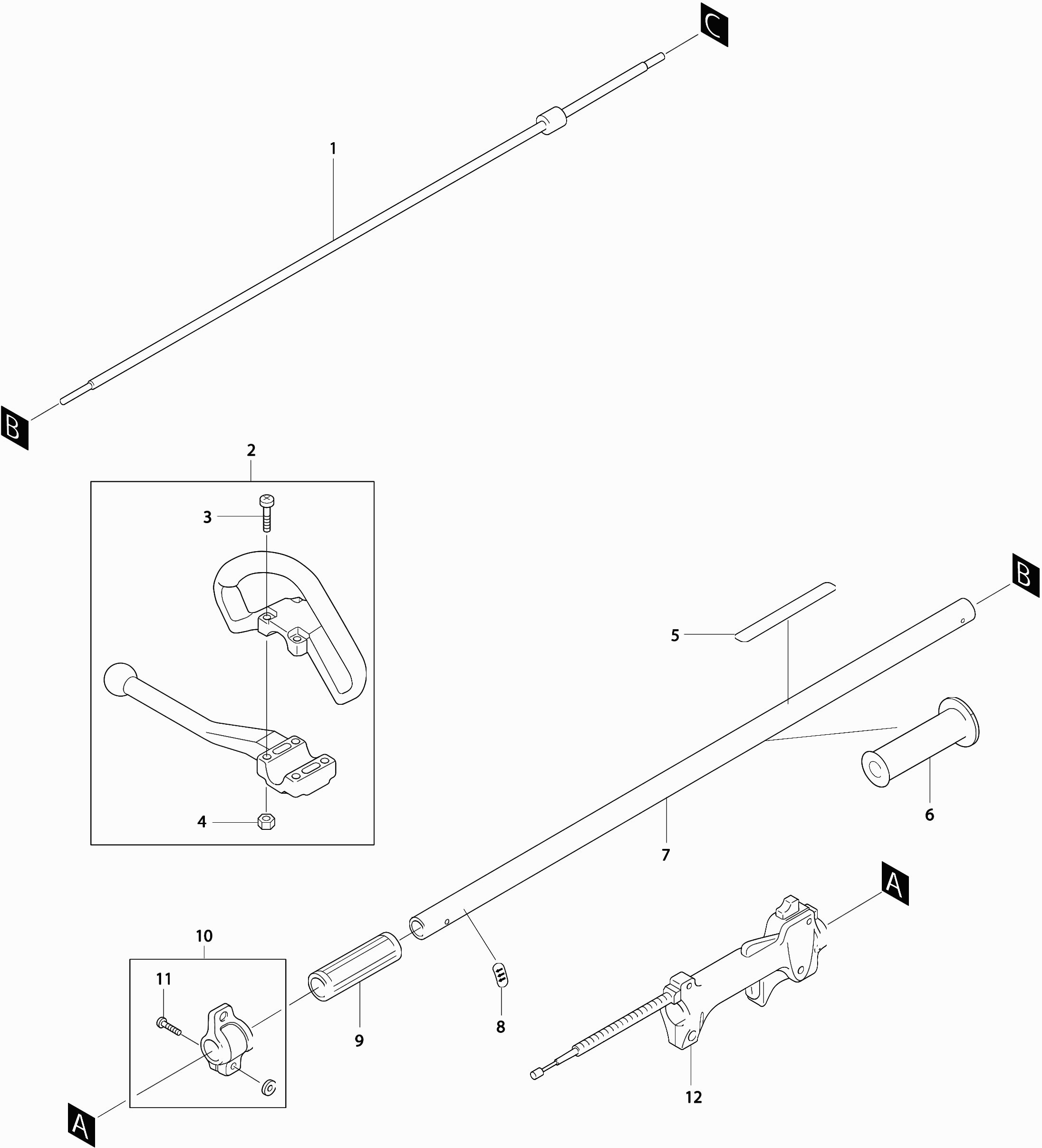

Technical drawing of model Makita PTR2500
Spare parts list of model Makita PTR2500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 6191500401 | |||
| No information available, not orderable | ||||
| 002 | 6214016000 | |||
| No information available, not orderable | ||||
| 003 | 6214016030 | |||
| No information available, not orderable | ||||
| 004 | 264093-3 | |||
| Label Ptr2500 | ||||
| 005 | 6019514600 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 006 | 6014503800 | |||
| Steel | ||||
| 007 | 6211025000 | 33.00 | 39.93 | |
| Warning Label | ||||
| 008 | 808723-2 | 2.40 | 2.90 | |
| Spacer | ||||
| 009 | 450659-7 | 3.60 | 4.36 | |
| Carry Hook | ||||
| 010 | 126378-4 | 3.00 | 3.63 | |
| Screw | ||||
| 011 | 266788-4 | 1.00 | 1.21 | |
| Control handle | ||||
| 012 | 126014-2 | 39.60 | 47.92 | |
| Hex Bolt 5X20 Rpt250 P | ||||
| 013 | 0119059720 | 1.20 | 1.45 | |
| Screw 4x20 | ||||
| 014 | 6195006060 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 015 | 6215030110 | |||
| Cable set Ptr2500 A | ||||
| 016 | 638786-2 | 19.80 | 23.96 | |
| Lock Lever | ||||
| 017 | 451934-4 | 7.20 | 8.71 | |
| Spring | ||||
| 018 | 6195006050 | 2.40 | 2.90 | |
| Lever | ||||
| 019 | 6195006030 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 020 | 6415011160 | |||
| Cover cap | ||||
| 021 | 6195006150 | 2.40 | 2.90 | |
| Screw M4X8 Rpt250 A | ||||
| 022 | 016040080K | 1.20 | 1.45 | |
| Plate Ptr2500 | ||||
| 023 | 0196112004 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 024 | 0224145003 | |||
| No information available, not orderable | ||||
| 025 | 0207060209 | |||
| Lock Washer Ptr2500 A | ||||
| 026 | 0210060000 | 1.20 | 1.45 | |
| Draaihandel M6x25mm | ||||
| 027 | 034000900R | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 028 | 0054060220 | |||
| Lock Ring Ptr2500 | ||||
| 029 | 0280006000 | 2.40 | 2.90 | |
| Tandwiel Ptr2500 | ||||
| 030 | 0023500444 | 74.80 | 90.51 | |
| Lock Ring Ptr2500 | ||||
| 031 | 0282026000 | 2.40 | 2.90 | |
| Kogellager Ptr2500 | ||||
| 032 | 0354060000 | 18.70 | 22.63 | |
| Gear Shaft | ||||
| 033 | 224130004A | 167.20 | 202.31 | |
| O-ring | ||||
| 034 | 0440P41000 | 4.80 | 5.81 | |
| House B | ||||
| 035 | 6013509000 | 92.40 | 111.80 | |
| Bolt Ptr2500 * | ||||
| 036 | 0054060120 | 0.98 | 1.19 | |
| Covering hood | ||||
| 037 | 224147004A | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 038 | 0010050100 | |||
| Rivet Ptr2500 | ||||
| 039 | 0200050000 | 0.83 | 1.00 | |
| Bolt Ptr2500 * | ||||
| 040 | 0054050250 | 6.00 | 7.26 | |
| Lock Ring Ptr2500 | ||||
| 041 | 0282022000 | 2.40 | 2.90 | |
| Kogellager Ptr2500 | ||||
| 042 | 0354006080 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 043 | 0224141003 | |||
| Nut Ptr2500 * | ||||
| 044 | 0150060000 | 1.20 | 1.45 | |
| Lock Washer Ptr2500 A | ||||
| 045 | 0210060000 | 1.20 | 1.45 | |
| Grease nipple M6 Htr5600 | ||||
| 046 | 0055000100 | 4.80 | 5.81 | |
| Drive house | ||||
| 047 | 224148002A | 55.00 | 66.55 | |
| Flange nut M5 | ||||
| 048 | 162050000K | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 0224108004 | |||
| Bus R Ptr2500 A | ||||
| 050 | 0224146004 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 051 | 0196109004 | |||
| Ball Bearing 6900 | ||||
| 052 | 352069000K | 34.10 | 41.26 | |
| Tandwiel Ptr2500 A | ||||
| 053 | 0023500434 | 44.00 | 53.24 | |
| Packing Ptr2500 | ||||
| 054 | 0196114004 | 6.00 | 7.26 | |
| Plate Ptr2500 | ||||
| 055 | 0196113004 | 6.00 | 7.26 | |
| Screw 4x8 | ||||
| 055A | 251291-8 | 1.00 | 1.21 | |
| Hexagonal Bolt M6 | ||||
| 056 | 164060000K | 1.20 | 1.45 | |
| Guide Ptr2500 | ||||
| 057 | 0224131004 | 2.40 | 2.90 | |
| Screw Ptr2500 | ||||
| 058 | 0031050200 | 1.20 | 1.45 | |
| Drive unit | ||||
| 059 | 024000053A | 58.30 | 70.54 | |
| Lock Ring Ptr2500 | ||||
| 060 | 0283028000 | 2.40 | 2.90 | |
| Lower or upper cutting knife | ||||
| 061 | 224143009A | 78.10 | 94.50 | |
| No information available, not orderable | ||||
| 062 | 0224154004 | |||
| No information available, not orderable | ||||
| 063 | 0351006080 | |||
| Seal | ||||
| 064 | 224112004A | 6.00 | 7.26 | |
| Washer for Cutting Blade Eh561 | ||||
| 065 | 0082500000 | 1.20 | 1.45 | |
| Schroef voor blad (l=19) | ||||
| 066 | 040002009A | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 067 | 0224153003 | |||
| Screw 4x12 | ||||
| 068 | 911516-9 | 2.40 | 2.90 | |
| Schroef voor blad (l=17) | ||||
| 069 | 040001009A | 6.00 | 7.26 | |
| Transport protection | ||||
| 070 | 028200039A | 5.00 | 6.05 | |
| Reinforcement plate | ||||
| 071 | 224144003A | 27.50 | 33.28 | |
| Metal screw Ph M5x14mm Ck | ||||
| 072 | 266809-2 | 1.00 | 1.21 | |
| Cylinder cover | ||||
| 073 | 5255506600 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 074 | 5103502801 | |||
| Metal Screw Ck M5x25mm | ||||
| 075 | 266749-4 | 2.40 | 2.90 | |
| Wire | ||||
| 076 | 6165501200 | 3.60 | 4.36 | |
| Manifold | ||||
| 077 | 5423006000 | 10.50 | 12.70 | |
| Spark plug cap cover | ||||
| 078 | 5197500100 | 2.40 | 2.90 | |
| Inlet Manifold Gasket | ||||
| 079 | 5253503800 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 080 | 0119059630 | |||
| No information available, not orderable | ||||
| 081 | 0650149721 | |||
| Cylinder | ||||
| 082 | 318762-9 | 92.40 | 111.80 | |
| Exhaust Gasket | ||||
| 083 | 5233504302 | 2.40 | 2.90 | |
| Exhaust Gasket | ||||
| 084 | 5253503500 | 8.40 | 10.16 | |
| Spark Plug Cap Ptr2500 A | ||||
| 085 | 0655009870 | 4.80 | 5.81 | |
| Bougieveer Ebh253U A | ||||
| 086 | 324891-8 | 1.20 | 1.45 | |
| Hose Ptr2500 | ||||
| 087 | 0851139930 | 2.40 | 2.90 | |
| Bushing | ||||
| 088 | 5257501100 | 1.20 | 1.45 | |
| Ignition | ||||
| 089 | 5257037020 | 24.20 | 29.28 | |
| Connection Cable Ebh253U P | ||||
| 090 | 638665-4 | 2.40 | 2.90 | |
| Hexagon socket screw M4x20 Ck | ||||
| 091 | 922138-0 | 1.00 | 1.21 | |
| Muffler | ||||
| 092 | 5253057000 | 47.30 | 57.23 | |
| Spark arrestor | ||||
| 093 | 5253033010 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 094 | 0119059600 | |||
| Threaded bolt M6x14mm | ||||
| 095 | 266703-8 | 1.20 | 1.45 | |
| Startinrichting | ||||
| 096 | 5255049000 | 24.20 | 29.28 | |
| Pulley (1) | ||||
| 097 | 5255051000 | 13.20 | 15.97 | |
| Set screw | ||||
| 098 | 5425003010 | 2.40 | 2.90 | |
| Cam plate | ||||
| 099 | 5255050020 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 100 | 5255016020 | |||
| Damping spring | ||||
| 101 | 233984-9 | 4.80 | 5.81 | |
| Cord reel Ebh253U A | ||||
| 102 | 451939-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 103 | 5235024032 | |||
| Starter Handle | ||||
| 104 | 424319-7 | 3.60 | 4.36 | |
| Damper | ||||
| 105 | 5255001040 | 3.60 | 4.36 | |
| Label Ptr2500 | ||||
| 106 | 6019514700 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 107 | 0140059350 | |||
| Buffer | ||||
| 108 | 5256503000 | 2.40 | 2.90 | |
| Cylinder gasket | ||||
| 109 | 442171-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 110 | 5242500701 | |||
| Lock ring for piston pin | ||||
| 111 | 233976-8 | 1.00 | 1.21 | |
| Piston | ||||
| 112 | 318766-1 | 13.20 | 15.97 | |
| Piston Pin | ||||
| 113 | 257781-9 | 3.60 | 4.36 | |
| Lock ring for piston pin | ||||
| 114 | 233976-8 | 1.00 | 1.21 | |
| Needle Bearing Rbc230-260-310 | ||||
| 115 | 0610089990 | 6.00 | 7.26 | |
| Crank Shaft | ||||
| 116 | 5252007000 | 155.10 | 187.67 | |
| No information available, not orderable | ||||
| 117 | 5237034012 | |||
| Bolt M6x16mm / rivet EM4250 A | ||||
| 118 | 265577-4 | 1.00 | 1.21 | |
| Ring | ||||
| 119 | 6252500900 | 2.40 | 2.90 | |
| Spring | ||||
| 120 | 5928500100 | 4.80 | 5.81 | |
| Clutch shoe | ||||
| 121 | 5928500000 | 10.80 | 13.07 | |
| Clutch Screw | ||||
| 122 | 5928500200 | 2.40 | 2.90 | |
| Clamp | ||||
| 123 | 345963-6 | 1.00 | 1.21 | |
| Allen bolt M5x18mm | ||||
| 124 | 266787-6 | 1.00 | 1.21 | |
| Clutch Housing | ||||
| 125 | 6211505500 | 112.20 | 135.76 | |
| Outer Lock Ring Rbc260-310-Rbk | ||||
| 126 | 0031512000 | 1.00 | 1.21 | |
| Label | ||||
| 127 | 6279516201 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 128 | 266809-2 | 1.00 | 1.21 | |
| Pedal | ||||
| 129 | 5259010001 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 130 | 6241500300 | |||
| Ball Bearing 6201ddu | ||||
| 131 | 210111-5 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 132 | 962151-6 | 1.00 | 1.21 | |
| Clutch Drum | ||||
| 133 | 6212014000 | 17.60 | 21.30 | |
| Crank Case | ||||
| 134 | 5231014000 | 108.90 | 131.77 | |
| No information available, not orderable | ||||
| 135 | 266700-4 | |||
| Ball Bearing 6001C3 Rpt250 A | ||||
| 136 | 210113-1 | 6.00 | 7.26 | |
| Crankcase Gasket | ||||
| 137 | 424447-8 | 2.40 | 2.90 | |
| Oil seal | ||||
| 138 | 213628-7 | 2.40 | 2.90 | |
| Damper Rbc2501/11 A | ||||
| 139 | 424446-0 | 17.60 | 21.30 | |
| Petrol/Oil cap cpl | ||||
| 140 | 168668-9 | 24.20 | 29.28 | |
| FUEL TANK | ||||
| 143 | 5256502900 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 144 | 0851159850 | |||
| Hose clamp IAS 3 | ||||
| 145 | 345920-4 | 1.00 | 1.21 | |
| Fuel filter | ||||
| 146 | 163447-0 | 11.00 | 13.31 | |
| Damper Ebh253U A | ||||
| 147 | 424102-2 | 1.00 | 1.21 | |
| Damper Ebh253U A | ||||
| 148 | 424103-0 | 1.00 | 1.21 | |
| Damper 1 | ||||
| 149 | 6241501200 | 3.60 | 4.36 | |
| Bolt 5X12 A | ||||
| 150 | 0119059900 | 1.20 | 1.45 | |
| Mounting bracket "upper" | ||||
| 151 | 6241500601 | 6.00 | 7.26 | |
| Bolt 5x18 | ||||
| 152 | 266844-0 | 1.20 | 1.45 | |
| Steel Clamp 2 Ebh253U A | ||||
| 153 | 318271-8 | 2.40 | 2.90 | |
| Damper 2 | ||||
| 154 | 6241501300 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 155 | 5236018040 | |||
| Rivet for adjusting needle | ||||
| 156 | 5426005030 | 2.40 | 2.90 | |
| Adjustment Screw Rbc230 A | ||||
| 157 | 266704-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 158 | 5316005450 | |||
| No information available, not orderable | ||||
| 159 | 5216008010 | |||
| Throttle slide Ptr2500 A | ||||
| 160 | 126230-6 | 28.60 | 34.61 | |
| CABLE SUPPORT | ||||
| 161 | 5236052020 | 10.80 | 13.07 | |
| Seegering E-3 A | ||||
| 162 | 257964-1 | 7.20 | 8.71 | |
| Packing Washer | ||||
| 163 | 424444-4 | 7.20 | 8.71 | |
| Carburetor | ||||
| 164 | 168669-7 | 55.47 | 67.12 | |
| O-ring 2 | ||||
| 165 | 213538-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 166 | 5256013010 | |||
| No information available, not orderable | ||||
| 167 | 5246001030 | |||
| Pump diaphragm | ||||
| 168 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 169 | 352010-6 | |||
| No information available, not orderable | ||||
| 170 | 5236046130 | |||
| Diaphragm Gasket | ||||
| 171 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 172 | 168620-7 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 173 | 5236046060 | |||
| Booster pump | ||||
| 174 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 175 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 176 | 266582-4 | 3.60 | 4.36 | |
| Metal screw Ph M5x14mm Ck | ||||
| 177 | 266809-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 178 | 5253502600 | |||
| Cleaner Element | ||||
| 179 | 443167-5 | 1.20 | 1.45 | |
| Label | ||||
| 180 | 892911-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 181 | 266695-1 | |||
| No information available, not orderable | ||||
| 182 | 5013502400 | |||
| Filter plate | ||||
| 183 | 140993-0 | 4.80 | 5.81 | |
