Here you will find all available parts and drawings of the 'Makita PLM5600'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

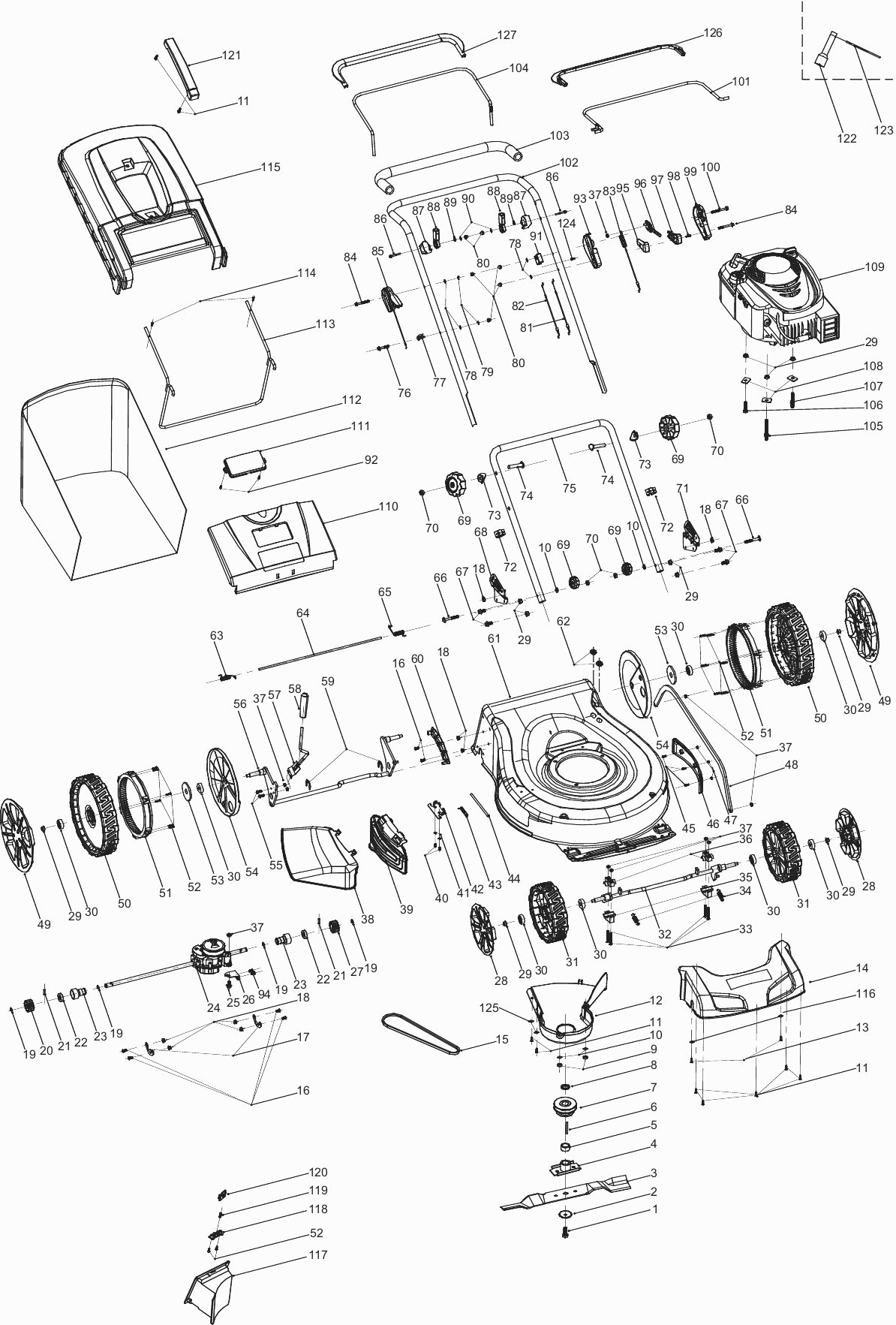

Technical drawing of model Makita PLM5600
Spare parts list of model Makita PLM5600
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Blade bolt Pm-462C A | ||||
| 001 | DA00000528 | 2.40 | 2.90 | |
| Rivet | ||||
| 002 | 671010730 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 003 | 671002532 | |||
| No information available, not orderable | ||||
| 004 | 671015252 | |||
| No information available, not orderable | ||||
| 005 | 671002089 | |||
| No information available, not orderable | ||||
| 006 | 671090002 | |||
| Pulley | ||||
| 007 | 671004019 | 51.70 | 62.56 | |
| Flat Washer PM-4602S | ||||
| 008 | 671002351 | 2.40 | 2.90 | |
| Hexagon lock nut M8 | ||||
| 009 | 671005008 | 1.20 | 1.45 | |
| Rivet 8 | ||||
| 010 | 671007007 | 1.20 | 1.45 | |
| Screw M5X16 | ||||
| 011 | 671001037 | 1.00 | 1.21 | |
| V-belt shield | ||||
| 012 | 671560001 | 8.40 | 10.16 | |
| Parker St5x12 | ||||
| 013 | DA00000888 | 1.00 | 1.21 | |
| Baffle | ||||
| 014 | 671825001 | 14.30 | 17.30 | |
| V-Belt 817mm | ||||
| 015 | 671002065 | 13.20 | 15.97 | |
| Screw M6x12 | ||||
| 016 | 671002019 | 1.20 | 1.45 | |
| Mounting Ring Wheel Axle Plm4120N A | ||||
| 017 | DA00000542 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 018 | 671005024 | |||
| Spring retaining ring | ||||
| 019 | 671090020 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 020 | 671003002 | |||
| No longer available, no replacement | ||||
| 021 | DA00000597 | |||
| No information available, not orderable | ||||
| 022 | 671004023 | |||
| Bearing Housing | ||||
| 023 | DA00000610 | 4.80 | 5.81 | |
| Gear | ||||
| 024 | 671502027 | 125.40 | 151.73 | |
| No information available, not orderable | ||||
| 025 | 671006181 | |||
| No information available, not orderable | ||||
| 026 | 671002297 | |||
| No information available, not orderable | ||||
| 027 | 671003001 | |||
| Wheel cover cap | ||||
| 028 | DA00000536 | 3.60 | 4.36 | |
| Hexagon nut M8 | ||||
| 029 | 671005028 | 1.20 | 1.45 | |
| Ball Bearing 6201dw1 | ||||
| 030 | 211129-9 | 8.40 | 10.16 | |
| Rear wheel | ||||
| 031 | 671020160 | 19.80 | 23.96 | |
| Shaft "front" | ||||
| 032 | 671002295 | 52.80 | 63.89 | |
| No information available, not orderable | ||||
| 033 | 671006002 | |||
| No information available, not orderable | ||||
| 034 | 671011087 | |||
| No information available, not orderable | ||||
| 035 | 671076001 | |||
| Bearing Pedestal | ||||
| 036 | 671445001 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 037 | 671005005 | |||
| Lever (a) Vb13y | ||||
| 038 | 671065001 | 11.00 | 13.31 | |
| Side cover | ||||
| 039 | 671406001 | 8.40 | 10.16 | |
| Screw m5x12 | ||||
| 040 | DA00000840 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 041 | 671080040 | |||
| Mounting plate Plm5600N A | ||||
| 042 | 671021830 | 2.40 | 2.90 | |
| Draw spring | ||||
| 043 | 671111300 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 044 | 671001019 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 045 | 671006085 | |||
| No information available, not orderable | ||||
| 046 | 671416001 | |||
| No information available, not orderable | ||||
| 047 | 671050140 | |||
| Connecting Rod | ||||
| 048 | 671002292 | 10.80 | 13.07 | |
| Rear Wheel Cover Cap | ||||
| 049 | 671001322 | 9.60 | 11.62 | |
| Rear wheel | ||||
| 050 | 671002021 | 30.80 | 37.27 | |
| Gear | ||||
| 051 | 671200010 | 11.00 | 13.31 | |
| Parker screw 4x16 | ||||
| 052 | 671001005 | 1.20 | 1.45 | |
| Body ring 20mm | ||||
| 053 | 671007065 | 2.40 | 2.90 | |
| Wheel cover cap 11" | ||||
| 054 | 671251800 | 8.40 | 10.16 | |
| Screw | ||||
| 055 | 671002030 | 1.20 | 1.45 | |
| Axle for rear wheel | ||||
| 056 | 671002296 | 29.70 | 35.94 | |
| Handle for height adjustment | ||||
| 057 | DA00001077 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 059 | 671009003 | |||
| No information available, not orderable | ||||
| 060 | 671010600 | |||
| Mower Deck | ||||
| 061 | 671001690 | 178.20 | 215.62 | |
| No information available, not orderable | ||||
| 062 | 671800104 | |||
| Spring Right Pm-5600S3 | ||||
| 063 | 671011229 | 2.40 | 2.90 | |
| Mounting Rod Pm-5600S3 | ||||
| 064 | 671001484 | 3.60 | 4.36 | |
| Spring Left Pm-5600S3 | ||||
| 065 | 671011228 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 066 | DA00000880 | |||
| No information available, not orderable | ||||
| 067 | 671006064 | |||
| No information available, not orderable | ||||
| 068 | 671018280 | |||
| Knob | ||||
| 069 | DA00000564 | 1.20 | 1.45 | |
| Nut | ||||
| 070 | DA00000563 | 1.00 | 1.21 | |
| Bracket L Plm5600 | ||||
| 071 | 671018260 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 072 | 671814001 | |||
| No information available, not orderable | ||||
| 073 | 671001085 | |||
| No information available, not orderable | ||||
| 074 | 671006165 | |||
| Lower handle bracket | ||||
| 075 | 671001869 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 076 | 671006077 | |||
| Cable guide Plm4120N * | ||||
| 077 | DA00000579 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 078 | 671007008 | |||
| Lock washer A | ||||
| 079 | DA00000576 | 1.00 | 1.21 | |
| Hexagonal Bolt M6 | ||||
| 080 | 164060000K | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 081 | 671001241 | |||
| Control cable | ||||
| 082 | 671001242 | 30.80 | 37.27 | |
| Throttle cable | ||||
| 083 | 671001243 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 084 | 671006082 | |||
| No information available, not orderable | ||||
| 085 | 671106202 | |||
| Hexagon bolt m8x35 | ||||
| 086 | 671006029 | 1.00 | 1.21 | |
| Locking part Plm4630 | ||||
| 087 | 671990001 | 2.40 | 2.90 | |
| Throttle lever coupling | ||||
| 088 | 671989001 | 2.40 | 2.90 | |
| Screw M4x8 | ||||
| 089 | 671002025 | 1.20 | 1.45 | |
| Rivet | ||||
| 090 | 671007070 | 1.20 | 1.45 | |
| Cable mounting plate Plm4120N A | ||||
| 091 | DA00000573 | 1.20 | 1.45 | |
| Parker Screw 4x12 mm | ||||
| 092 | 671010710 | 1.00 | 1.21 | |
| Switch box cover cap | ||||
| 093 | 671827001 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 094 | 671006112 | |||
| No information available, not orderable | ||||
| 095 | 671471002 | |||
| No information available, not orderable | ||||
| 096 | 671002279 | |||
| No information available, not orderable | ||||
| 097 | 671471001 | |||
| No information available, not orderable | ||||
| 098 | 671001047 | |||
| Switch box cover cap | ||||
| 099 | 671828001 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 100 | 671006036 | |||
| Drive handle | ||||
| 101 | 671020110 | 16.50 | 19.96 | |
| Push bar Pm5600S3R A | ||||
| 102 | 671001868 | 38.75 | 46.89 | |
| No information available, not orderable | ||||
| 103 | 671103101 | |||
| Motor Brake Handle | ||||
| 104 | 671020120 | 3.60 | 4.36 | |
| Screw M8x60x17 | ||||
| 105 | 671003024 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 106 | 671006025 | |||
| Special screw M8x17x35 | ||||
| 107 | 671003044 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 108 | 671002106 | |||
| Ejector cover | ||||
| 110 | 671004613 | 13.20 | 15.97 | |
| Ejector cover | ||||
| 111 | 671385001 | 3.60 | 4.36 | |
| Grass catcher | ||||
| 112 | 671137909 | 30.80 | 37.27 | |
| Grass catcher bracket | ||||
| 113 | 671001382 | 34.10 | 41.26 | |
| Bolt 4,2x18mm | ||||
| 114 | 671001032 | 1.20 | 1.45 | |
| Grass catch cover | ||||
| 115 | 671409001 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 116 | 671007004 | |||
| MULCHPLUG | ||||
| 117 | 671315001 | 19.00 | 22.99 | |
| Pressure Plate | ||||
| 118 | 671317001 | 1.20 | 1.45 | |
| Spring | ||||
| 119 | 671011005 | 2.40 | 2.90 | |
| Attachment button | ||||
| 120 | 671316004 | 1.20 | 1.45 | |
| Grass catcher bracket | ||||
| 121 | 671384001 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 124 | 671001003 | |||
| No information available, not orderable | ||||
| 125 | 671008011 | |||
| Drive handle | ||||
| 126 | 671020110 | 16.50 | 19.96 | |
| Motor Brake Handle | ||||
| 127 | 671020120 | 3.60 | 4.36 | |
