Here you will find all available parts and drawings of the 'Makita PLM4621N'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

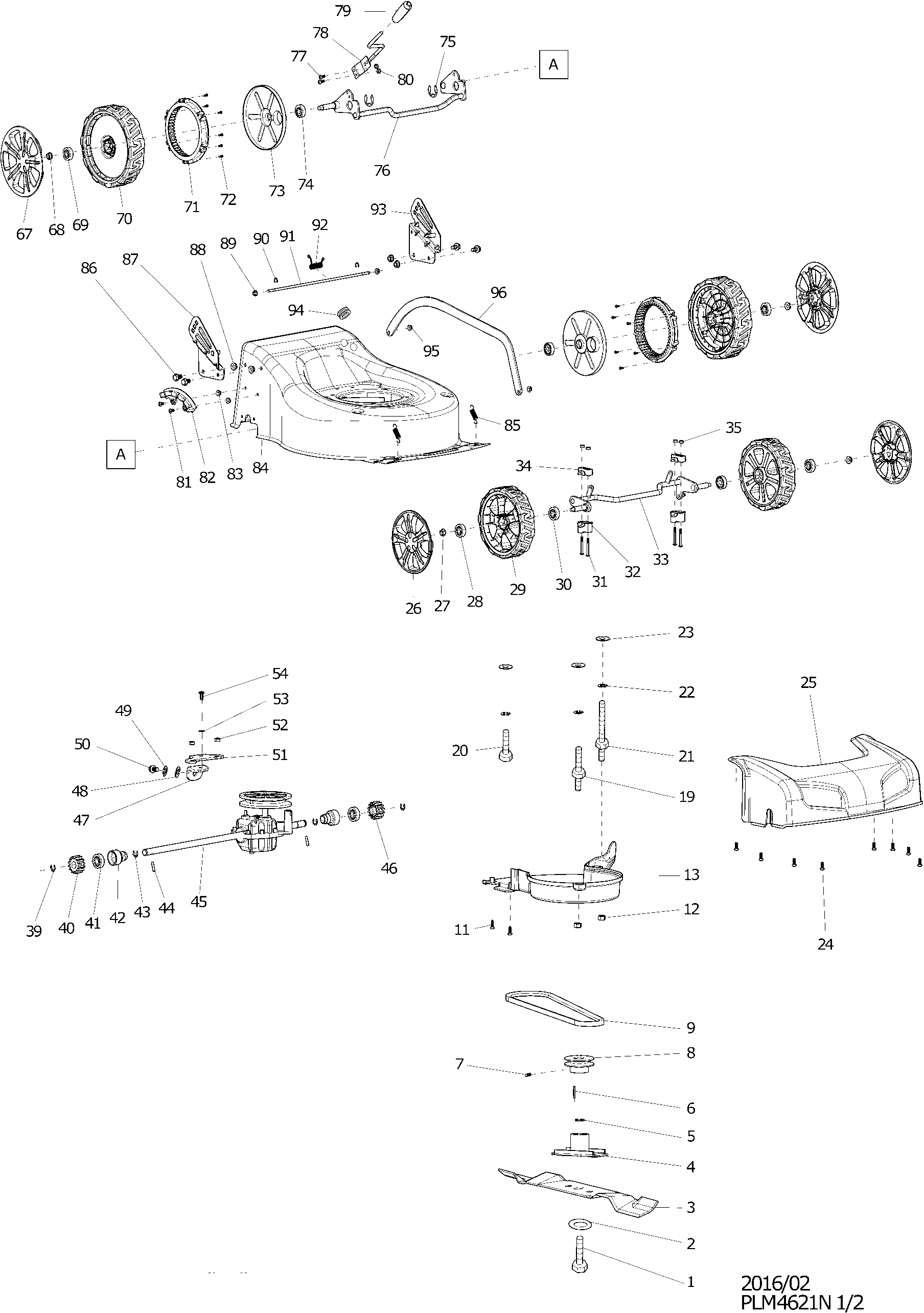

Technical drawing of model Makita PLM4621N
Spare parts list of model Makita PLM4621N
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Blade bolt Pm-462C A | ||||
| 001 | DA00000528 | 2.40 | 2.90 | |
| Rivet | ||||
| 002 | 671010730 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | 671014610 | |||
| No information available, not orderable | ||||
| 004 | 671015252 | |||
| No longer available, no replacement | ||||
| 005 | DA00000979 | |||
| Wedge Plm4120N A | ||||
| 006 | DA00000535 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007 | DA00000598 | |||
| Pulley, tension transm. 45 | ||||
| 008 | 671004002 | 13.20 | 15.97 | |
| V-belt 752mm | ||||
| 009 | 671002043 | 11.00 | 13.31 | |
| Screw M5X16 | ||||
| 011 | 671001037 | 1.00 | 1.21 | |
| Hexagon lock nut M8 | ||||
| 012 | 671005008 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 013 | 671658001 | |||
| Bolt "spec" | ||||
| 019 | DA00000617 | 1.20 | 1.45 | |
| Bolt | ||||
| 020 | DA00000586 | 1.20 | 1.45 | |
| Screw M8x60x17 | ||||
| 021 | 671003024 | 4.80 | 5.81 | |
| Washer Spring | ||||
| 022 | DA00000832 | 1.00 | 1.21 | |
| Rivet 8 | ||||
| 023 | 671007007 | 1.20 | 1.45 | |
| Parker St4.2x10 | ||||
| 024 | DA00000911 | 1.00 | 1.21 | |
| Baffle | ||||
| 025 | 671659001 | 14.30 | 17.30 | |
| Wheel cover 7" | ||||
| 026 | 671001176 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 027 | DA00000537 | |||
| No information available, not orderable | ||||
| 028 | DA00000538 | |||
| Wheel 7" | ||||
| 029 | 671020150 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 030 | DA00000538 | |||
| Puller m6x45 | ||||
| 031 | 671002028 | 1.20 | 1.45 | |
| Bearing Pedestal | ||||
| 032 | 671418001 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 033 | 671001786 | 22.00 | 26.62 | |
| Bearing Pedestal | ||||
| 034 | 671445001 | 2.40 | 2.90 | |
| Nut | ||||
| 035 | DA00000549 | 1.00 | 1.21 | |
| Screw M6x12 | ||||
| 036 | 671002019 | 1.20 | 1.45 | |
| Mounting Ring Wheel Axle Plm4120N A | ||||
| 037 | DA00000542 | 1.20 | 1.45 | |
| Flange nut | ||||
| 038 | DA00000543 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | DA00000604 | |||
| No information available, not orderable | ||||
| 040 | DA00000607 | |||
| No information available, not orderable | ||||
| 041 | DA00000609 | |||
| Bearing Housing | ||||
| 042 | DA00000610 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 043 | DA00000604 | |||
| No longer available, no replacement | ||||
| 044 | DA00000597 | |||
| No longer available, no replacement | ||||
| 045 | 671502016 | |||
| No information available, not orderable | ||||
| 046 | DA00000605 | |||
| Holding Plate | ||||
| 047 | DA00000915 | 3.60 | 4.36 | |
| Rivet 8 | ||||
| 048 | 671007007 | 1.20 | 1.45 | |
| Washer Spring | ||||
| 049 | DA00000832 | 1.00 | 1.21 | |
| Flange Bolt | ||||
| 050 | DA00000562 | 1.20 | 1.45 | |
| Mounting Plate | ||||
| 051 | 671001460 | 3.60 | 4.36 | |
| Hexagon lock nut M5 | ||||
| 052 | 671005011 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 053 | DA00000864 | |||
| Screw M6x12 | ||||
| 054 | 671002019 | 1.20 | 1.45 | |
| Wheel cover cap | ||||
| 067 | DA00000536 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 068 | DA00000537 | |||
| No information available, not orderable | ||||
| 069 | DA00000538 | |||
| Rear wheel | ||||
| 070 | 671020300 | 22.00 | 26.62 | |
| Gear ring 8 Pm4602S3C A | ||||
| 071 | DA00000602 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 072 | DA00000603 | |||
| Wheel cover | ||||
| 073 | DA00000606 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 074 | DA00000538 | |||
| Spring retaining ring | ||||
| 075 | DA00000612 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 076 | 671144602 | |||
| Tap bolt M5X14Mm A | ||||
| 077 | DA00000912 | 1.00 | 1.21 | |
| Handle DLM460Z A | ||||
| 078 | DA00001174 | 6.00 | 7.26 | |
| Handle sleeve | ||||
| 079 | 671001029 | 8.40 | 10.16 | |
| Hexagon lock nut M5 | ||||
| 080 | 671005011 | 1.20 | 1.45 | |
| Screw M6x12 | ||||
| 081 | 671002019 | 1.20 | 1.45 | |
| Height Adjustment Plate DLM461 A | ||||
| 082 | 459361-9 | 4.80 | 5.81 | |
| Flange nut | ||||
| 083 | DA00000543 | 1.00 | 1.21 | |
| Mower Deck | ||||
| 084 | 671001517 | 161.70 | 195.66 | |
| Extension spring | ||||
| 085 | 671011125 | 1.20 | 1.45 | |
| Flange Bolt | ||||
| 086 | DA00000562 | 1.20 | 1.45 | |
| Mounting bracket l makita blue | ||||
| 087 | 671001180 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 088 | DA00000537 | |||
| Flange nut | ||||
| 089 | DA00000543 | 1.00 | 1.21 | |
| Clamp for protective cover | ||||
| 090 | 671009017 | 1.20 | 1.45 | |
| Reinforcement bracket | ||||
| 091 | 671001518 | 4.80 | 5.81 | |
| Spring | ||||
| 092 | 671011101 | 1.20 | 1.45 | |
| Mounting bracket r makita blue | ||||
| 093 | 671001179 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 094 | 671800104 | |||
| Nut | ||||
| 095 | DA00000549 | 1.00 | 1.21 | |
| Linking arm 528Mm PM4600S A | ||||
| 096 | 671001440 | 14.30 | 17.30 | |
| Mounting washer | ||||
| 097 | 671001353 | 2.40 | 2.90 | |
| Grass catch cover | ||||
| 098 | 671468001 | 15.40 | 18.63 | |
| Grass bag bracket | ||||
| 099 | 671001443 | 18.70 | 22.63 | |
| Rivet 4mm | ||||
| 100 | DA00000025 | 1.00 | 1.21 | |
| Shaft plate Dlm380 A | ||||
| 101 | DA00000335 | 1.00 | 1.21 | |
| Parker St5x12 | ||||
| 102 | DA00000888 | 1.00 | 1.21 | |
| Parker CK 5X16Mm Em461S A | ||||
| 103 | 671105502 | 1.00 | 1.21 | |
| Top Cover | ||||
| 104 | 671467001 | 16.50 | 19.96 | |
| Grass catcher handle | ||||
| 105 | 671454001 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 106 | 671001418 | |||
| Nut | ||||
| 107 | DA00000563 | 1.00 | 1.21 | |
| Knob | ||||
| 108 | DA00000564 | 1.20 | 1.45 | |
| Rivet 8 | ||||
| 109 | 671007007 | 1.20 | 1.45 | |
| Lock bolt M8X35mm PM-462C P | ||||
| 110 | DA00000839 | 1.20 | 1.45 | |
| Throttle cable holder Plm4630 A | ||||
| 111 | 671611001 | 1.20 | 1.45 | |
| Push bar "below" | ||||
| 112 | 671001606 | 22.00 | 26.62 | |
| Nut | ||||
| 113 | DA00000563 | 1.00 | 1.21 | |
| Knob | ||||
| 114 | DA00000564 | 1.20 | 1.45 | |
| Lock Ring Bent A DLM460 | ||||
| 115 | DA00000924 | 1.00 | 1.21 | |
| Truss head screw | ||||
| 116 | DA00000569 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 117 | DA00000577 | |||
| Cable guide Plm4120N * | ||||
| 118 | DA00000579 | 2.40 | 2.90 | |
| Flat washer | ||||
| 119 | DA00000574 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 120 | DA00000864 | |||
| No information available, not orderable | ||||
| 121 | DA00000575 | |||
| Throttle cable holder Plm4630 A | ||||
| 122 | 671611001 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 123 | 671006082 | |||
| No longer available, no replacement | ||||
| 124 | DA00000978 | |||
| Flat washer | ||||
| 125 | DA00000574 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 126 | DA00000864 | |||
| No information available, not orderable | ||||
| 127 | DA00000575 | |||
| No information available, not orderable | ||||
| 128 | DA00000575 | |||
| Cable mounting plate Plm4120N A | ||||
| 129 | DA00000573 | 1.20 | 1.45 | |
| Control cable set PLM5113N2 | ||||
| 130 | DA00000977 | 8.40 | 10.16 | |
| Cable set "drive" | ||||
| 131 | 671001113 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 132 | DA00000577 | |||
| No longer available, no replacement | ||||
| 149 | 671002001 | |||
| Mounting washer | ||||
| 150 | 671001524 | 2.40 | 2.90 | |
| Clutch lever | ||||
| 151 | DA00000961 | 8.40 | 10.16 | |
| Drive lever Pm-4621N A | ||||
| 152 | DA00000964 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 153 | DA00000537 | |||
| No longer available, no replacement | ||||
| 154 | 671003012 | |||
| Mounting plate | ||||
| 155 | 671010830 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 156 | DA00000603 | |||
| Pressure Plate | ||||
| 157 | 671317001 | 1.20 | 1.45 | |
| Spring | ||||
| 158 | 671011005 | 2.40 | 2.90 | |
| Attachment button | ||||
| 159 | 671316004 | 1.20 | 1.45 | |
| MULCHPLUG | ||||
| 160 | 671660001 | 8.00 | 9.68 | |
