Here you will find all available parts and drawings of the 'Makita PLM4621'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

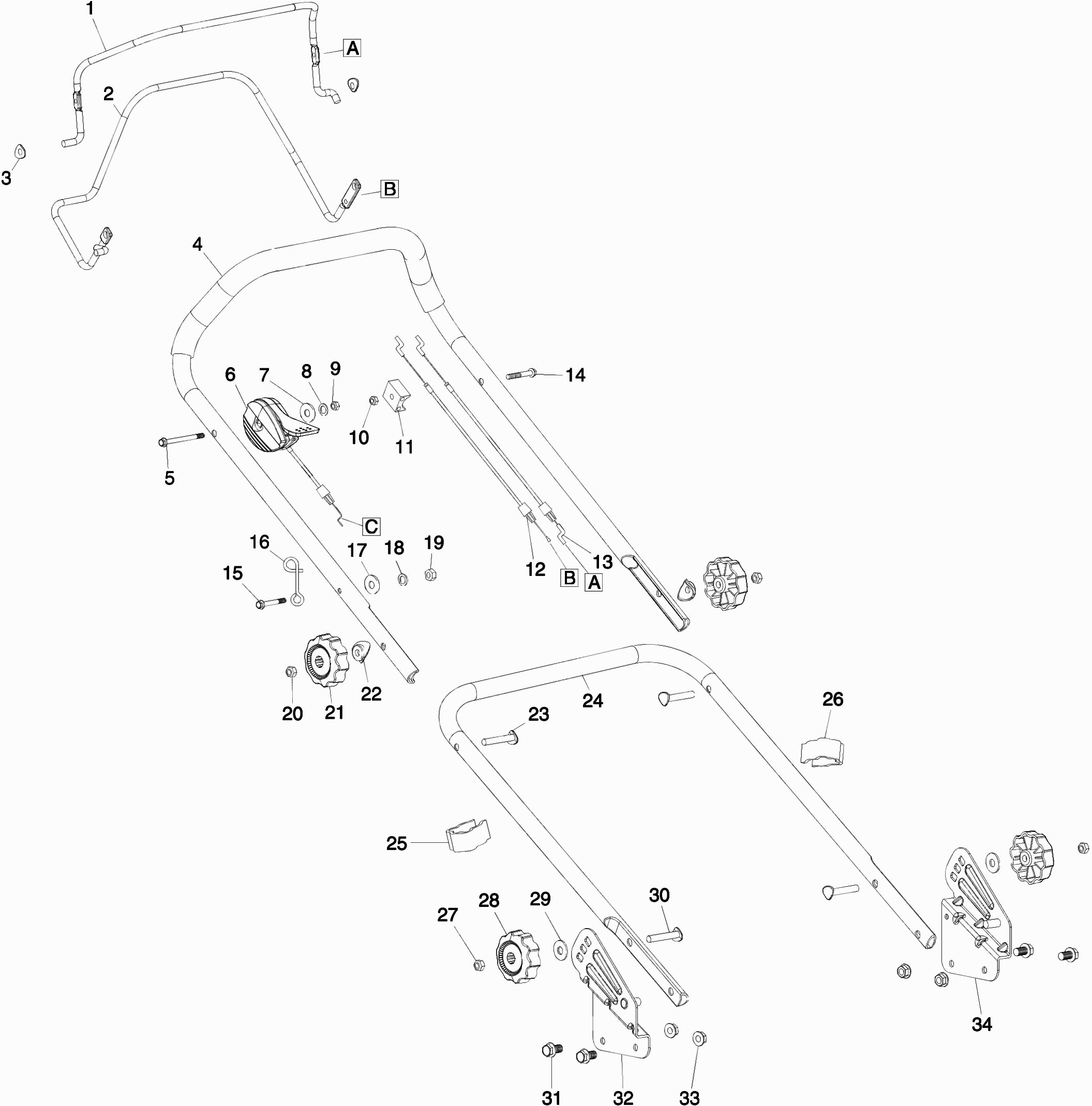

Technical drawing of model Makita PLM4621
Spare parts list of model Makita PLM4621
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Clutch lever | ||||
| 001 | DA00000961 | 8.40 | 10.16 | |
| Blade bolt Pm-462C A | ||||
| 001 | DA00000528 | 2.40 | 2.90 | |
| Drive lever Pm-4621N A | ||||
| 002 | DA00000964 | 9.60 | 11.62 | |
| Rivet | ||||
| 002 | 671010730 | 2.40 | 2.90 | |
| Mounting washer | ||||
| 003 | 671001524 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 004 | 671002001 | |||
| No information available, not orderable | ||||
| 005 | 671007046 | |||
| No information available, not orderable | ||||
| 006 | 671090002 | |||
| Hex Bolt M6x8mm | ||||
| 007 | 671003005 | 1.20 | 1.45 | |
| Flat washer | ||||
| 007 | DA00000574 | 1.00 | 1.21 | |
| Pulley, tension transm. 45 | ||||
| 008 | 671004002 | 13.20 | 15.97 | |
| V-belt 752mm | ||||
| 009 | 671002043 | 11.00 | 13.31 | |
| Screw M5X16 | ||||
| 010 | 671001037 | 1.00 | 1.21 | |
| Hexagon lock nut M8 | ||||
| 011 | 671005008 | 1.20 | 1.45 | |
| Cable mounting plate Plm4120N A | ||||
| 011 | DA00000573 | 1.20 | 1.45 | |
| Control cable set PLM5113N2 | ||||
| 012 | DA00000977 | 8.40 | 10.16 | |
| Cable set "drive" | ||||
| 013 | 671001113 | 28.60 | 34.61 | |
| Special screw M8x17x35 | ||||
| 013 | 671003044 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 014 | DA00000577 | |||
| Screw M8x60x17 | ||||
| 015 | 671003024 | 4.80 | 5.81 | |
| Cable guide Plm4120N * | ||||
| 016 | DA00000579 | 2.40 | 2.90 | |
| Rivet 8 | ||||
| 017 | 671007007 | 1.20 | 1.45 | |
| Flat washer | ||||
| 017 | DA00000574 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | DA00000864 | |||
| Wheel cover 7" | ||||
| 019 | 671001176 | 8.40 | 10.16 | |
| Hexagon nut M8 | ||||
| 020 | 671005028 | 1.20 | 1.45 | |
| Nut | ||||
| 020 | DA00000563 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 021 | 211129-9 | 8.40 | 10.16 | |
| Knob | ||||
| 021 | DA00000564 | 1.20 | 1.45 | |
| Wheel 7" | ||||
| 022 | 671020150 | 20.90 | 25.29 | |
| Bearing Pedestal | ||||
| 023 | 671418001 | 2.40 | 2.90 | |
| Truss head screw | ||||
| 023 | DA00000569 | 2.40 | 2.90 | |
| Push bar "below" | ||||
| 024 | 671001606 | 22.00 | 26.62 | |
| Puller m6x45 | ||||
| 024 | 671002028 | 1.20 | 1.45 | |
| Baffle | ||||
| 025 | 671659001 | 14.30 | 17.30 | |
| Bearing Pedestal | ||||
| 026 | 671445001 | 2.40 | 2.90 | |
| Nut | ||||
| 027 | DA00000563 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 028 | 671001786 | 22.00 | 26.62 | |
| Knob | ||||
| 028 | DA00000564 | 1.20 | 1.45 | |
| Extension spring | ||||
| 029 | 671011125 | 1.20 | 1.45 | |
| Rivet 8 | ||||
| 029 | 671007007 | 1.20 | 1.45 | |
| Wheel cover cap | ||||
| 030 | DA00000536 | 3.60 | 4.36 | |
| Rear wheel | ||||
| 031 | 671020300 | 22.00 | 26.62 | |
| Flange Bolt | ||||
| 031 | DA00000562 | 1.20 | 1.45 | |
| Mounting bracket l makita blue | ||||
| 032 | 671001180 | 9.60 | 11.62 | |
| Gear ring 8 Pm4602S3C A | ||||
| 032 | DA00000602 | 7.20 | 8.71 | |
| Parker screw 4x16 | ||||
| 033 | 671001005 | 1.20 | 1.45 | |
| Mounting bracket r makita blue | ||||
| 034 | 671001179 | 14.30 | 17.30 | |
| Linking arm 528Mm PM4600S A | ||||
| 035 | 671001440 | 14.30 | 17.30 | |
| Mower Deck | ||||
| 036 | 671001517 | 161.70 | 195.66 | |
| Mounting plate | ||||
| 036 | 671010830 | 2.40 | 2.90 | |
| Grass catch cover | ||||
| 037 | 671468001 | 15.40 | 18.63 | |
| Flange nut | ||||
| 038 | DA00000543 | 1.00 | 1.21 | |
| Screw M6x12 | ||||
| 039 | 671002019 | 1.20 | 1.45 | |
| Clamp for protective cover | ||||
| 039 | 671009017 | 1.20 | 1.45 | |
| Reinforcement bracket | ||||
| 040 | 671001518 | 4.80 | 5.81 | |
| Spring retaining ring | ||||
| 040 | 671090020 | 1.20 | 1.45 | |
| Spring | ||||
| 041 | 671011101 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 042 | DA00000537 | |||
| Bearing Housing | ||||
| 043 | DA00000610 | 4.80 | 5.81 | |
| Mower Deck | ||||
| 044 | 671001517 | 161.70 | 195.66 | |
| Baffle | ||||
| 045 | 671659001 | 14.30 | 17.30 | |
| Mounting Ring Wheel Axle Plm4120N A | ||||
| 045 | DA00000542 | 1.20 | 1.45 | |
| Parker St4.2x10 | ||||
| 046 | DA00000911 | 1.00 | 1.21 | |
| Screw M6x12 | ||||
| 047 | 671002019 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 048 | 671001521 | |||
| Mounting Plate | ||||
| 049 | 671001460 | 3.60 | 4.36 | |
| Flange nut | ||||
| 049 | DA00000543 | 1.00 | 1.21 | |
| Rivet 8 | ||||
| 050 | 671007007 | 1.20 | 1.45 | |
| Lock washer A | ||||
| 050 | DA00000576 | 1.00 | 1.21 | |
| Washer Spring | ||||
| 051 | DA00000832 | 1.00 | 1.21 | |
| Screw M8x60x17 | ||||
| 052 | 671003024 | 4.80 | 5.81 | |
| Screw m5x12 | ||||
| 053 | 671002029 | 1.20 | 1.45 | |
| Bolt | ||||
| 053 | DA00000586 | 1.20 | 1.45 | |
| Handle DLM460Z A | ||||
| 054 | DA00001174 | 6.00 | 7.26 | |
| Bolt "spec" | ||||
| 054 | DA00000617 | 1.20 | 1.45 | |
| Pulley, tension transm. 45 | ||||
| 055 | 671004002 | 13.20 | 15.97 | |
| Hexagon lock nut M5 | ||||
| 055 | 671005011 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 056 | DA00000598 | |||
| V-belt 752mm | ||||
| 057 | 671002043 | 11.00 | 13.31 | |
| Mounting bracket l makita blue | ||||
| 058 | 671001180 | 9.60 | 11.62 | |
| Screw M6x12 | ||||
| 059 | 671002019 | 1.20 | 1.45 | |
| Clamp for protective cover | ||||
| 059 | 671009017 | 1.20 | 1.45 | |
| Reinforcement bracket | ||||
| 060 | 671001518 | 4.80 | 5.81 | |
| Hexagon lock nut M5 | ||||
| 060 | 671005011 | 1.20 | 1.45 | |
| Mounting Plate | ||||
| 061 | 671001460 | 3.60 | 4.36 | |
| Spring | ||||
| 061 | 671011101 | 1.20 | 1.45 | |
| Mounting bracket r makita blue | ||||
| 062 | 671001179 | 14.30 | 17.30 | |
| Holding Plate | ||||
| 062 | DA00000915 | 3.60 | 4.36 | |
| Flange Bolt | ||||
| 063 | DA00000562 | 1.20 | 1.45 | |
| Mounting plate | ||||
| 064 | 671010830 | 2.40 | 2.90 | |
| Washer Spring | ||||
| 064 | DA00000832 | 1.00 | 1.21 | |
| Rivet 8 | ||||
| 065 | 671007007 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 066 | 671317001 | 1.20 | 1.45 | |
| Torsion Spring | ||||
| 067 | 671011180 | 2.40 | 2.90 | |
| Spring | ||||
| 067 | 671011005 | 2.40 | 2.90 | |
| Attachment button | ||||
| 068 | 671316004 | 1.20 | 1.45 | |
| MULCHPLUG | ||||
| 069 | 671660001 | 8.00 | 9.68 | |
| Screw M5X16 | ||||
| 069 | 671001037 | 1.00 | 1.21 | |
| Drive lever Pm-4621N A | ||||
| 070 | DA00000964 | 9.60 | 11.62 | |
| Hexagon lock nut M8 | ||||
| 070 | 671005008 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 071 | 671090002 | |||
| Mounting washer | ||||
| 072 | 671001524 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 073 | 671002001 | |||
| Hexagon bolt M6x35 | ||||
| 074 | 922356-0 | 1.20 | 1.45 | |
| CIRKELMES 460X55X4MM | ||||
| 074-1 | DA00001274 | 11.00 | 13.31 | |
| Cable set "drive" | ||||
| 075 | 671001113 | 28.60 | 34.61 | |
| Rivet | ||||
| 075 | 671010730 | 2.40 | 2.90 | |
| Cable "motor brake" | ||||
| 076 | 671001123 | 8.40 | 10.16 | |
| Blade bolt Pm-462C A | ||||
| 076 | DA00000528 | 2.40 | 2.90 | |
| Wheel cover cap | ||||
| 077 | DA00000536 | 3.60 | 4.36 | |
| Cable mounting plate Plm4120N A | ||||
| 077 | DA00000573 | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 078 | 164060000K | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 079 | DA00000538 | |||
| Rear wheel | ||||
| 080 | 671020300 | 22.00 | 26.62 | |
| No longer available, no replacement | ||||
| 081 | DA00000978 | |||
| Bolt M6x50mm | ||||
| 082 | 671006059 | 1.20 | 1.45 | |
| Cable guide Plm4120N * | ||||
| 083 | DA00000579 | 2.40 | 2.90 | |
| Wheel cover | ||||
| 084 | DA00000606 | 2.40 | 2.90 | |
| Nut | ||||
| 084 | DA00000563 | 1.00 | 1.21 | |
| Knob | ||||
| 085 | DA00000564 | 1.20 | 1.45 | |
| Tap bolt M5X14Mm A | ||||
| 086 | DA00000912 | 1.00 | 1.21 | |
| Truss head screw | ||||
| 087 | DA00000569 | 2.40 | 2.90 | |
| Handle sleeve DLM460 A | ||||
| 088 | DA00001058 | 3.60 | 4.36 | |
| Cable Guide | ||||
| 088 | 671178001 | 1.00 | 1.21 | |
| Hexagon lock nut M5 | ||||
| 089 | 671005011 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 090 | DA00000880 | |||
| Grass catcher handle | ||||
| 091 | 671454001 | 3.60 | 4.36 | |
| Top Cover | ||||
| 092 | 671467001 | 16.50 | 19.96 | |
| Grass catch cover | ||||
| 093 | 671468001 | 15.40 | 18.63 | |
| Grass bag bracket | ||||
| 094 | 671001443 | 18.70 | 22.63 | |
| Bearing | ||||
| 094 | DA00001029 | 3.60 | 4.36 | |
| Bearing Housing | ||||
| 095 | DA00000610 | 4.80 | 5.81 | |
| Rivet 4mm | ||||
| 095 | DA00000025 | 1.00 | 1.21 | |
| Shaft plate Dlm380 A | ||||
| 096 | DA00000335 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 096 | DA00000612 | 1.00 | 1.21 | |
| Screw M6x12 | ||||
| 097 | 671002019 | 1.20 | 1.45 | |
| Parker CK 5X16Mm Em461S A | ||||
| 097 | 671105502 | 1.00 | 1.21 | |
| Mounting Ring Wheel Axle Plm4120N A | ||||
| 098 | DA00000542 | 1.20 | 1.45 | |
| Parker St5x12 | ||||
| 098 | DA00000888 | 1.00 | 1.21 | |
| Mounting washer | ||||
| 099 | 671001353 | 2.40 | 2.90 | |
| Flange nut | ||||
| 099 | DA00000543 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 100 | 671001418 | |||
| Torsion Spring | ||||
| 101 | 671011180 | 2.40 | 2.90 | |
| Nut | ||||
| 101 | DA00000549 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 102 | DA00001154 | |||
| Nut | ||||
| 103 | DA00000549 | 1.00 | 1.21 | |
| Wheel cover 7" | ||||
| 104 | 671001176 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 105 | DA00000537 | |||
| No information available, not orderable | ||||
| 106 | DA00000538 | |||
| Wheel 7" | ||||
| 107 | 671020150 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 108 | DA00000538 | |||
| Spindle Ass'y | ||||
| 109 | 671001786 | 22.00 | 26.62 | |
| Nut | ||||
| 110 | DA00000549 | 1.00 | 1.21 | |
| Bearing Pedestal | ||||
| 111 | 671445001 | 2.40 | 2.90 | |
| Bearing Pedestal | ||||
| 112 | 671418001 | 2.40 | 2.90 | |
| Puller m6x45 | ||||
| 113 | 671002028 | 1.20 | 1.45 | |
| Extension spring | ||||
| 114 | 671011125 | 1.20 | 1.45 | |
| Grass catcher handle | ||||
| 115 | 671454001 | 3.60 | 4.36 | |
| Top Cover | ||||
| 116 | 671467001 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 117 | DA00000326 | |||
| Grass bag bracket | ||||
| 118 | 671001443 | 18.70 | 22.63 | |
| Rivet 4mm | ||||
| 119 | DA00000025 | 1.00 | 1.21 | |
| Rivet 4mm | ||||
| 119-1 | DA00000025 | 1.00 | 1.21 | |
| Parker St5x12 | ||||
| 120 | DA00000888 | 1.00 | 1.21 | |
| Shaft plate Dlm380 A | ||||
| 121 | DA00000335 | 1.00 | 1.21 | |
| Parker St5x12 | ||||
| 122 | DA00000888 | 1.00 | 1.21 | |
| Mounting washer | ||||
| 123 | 671001353 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 124 | 671001418 | |||
| MULCHPLUG | ||||
| 125 | 671660001 | 8.00 | 9.68 | |
| Attachment button | ||||
| 126 | 671316004 | 1.20 | 1.45 | |
| Spring | ||||
| 127 | 671011005 | 2.40 | 2.90 | |
| Pressure Plate | ||||
| 128 | 671317001 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 129 | DA00000603 | |||
