Here you will find all available parts and drawings of the 'Makita PF0800'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

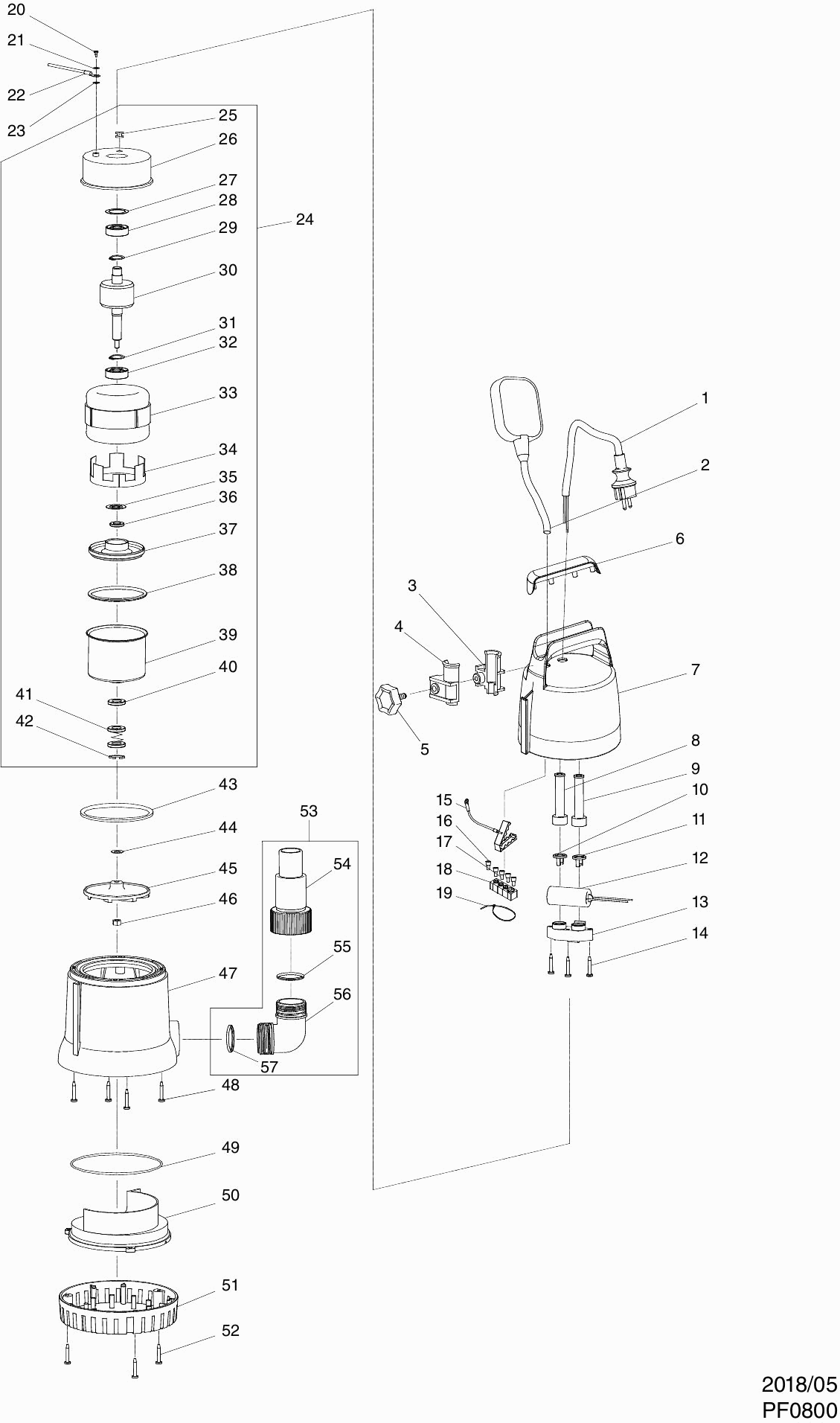

Technical drawing of model Makita PF0800
Spare parts list of model Makita PF0800
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 609025435 | |||
| Netsnoer 3X1,0 10Mtr P | ||||
| 001-1 | JH00000123 | 39.78 | 48.13 | |
| Float PF1110 A | ||||
| 002 | JH00000126 | 9.98 | 12.08 | |
| Float PF1110 A | ||||
| 002-1 | JH00000126 | 9.98 | 12.08 | |
| Strain relief PF0800/1010 | ||||
| 003 | 609026210 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 003-1 | JH00000078 | |||
| Strain relief PF0800/1010 | ||||
| 004 | 609026211 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 004-1 | JH00000079 | |||
| Met.schr. M5x16mm PF0800/1010 | ||||
| 005-1 | 609026212 | 0.83 | 1.00 | |
| Motor house PF0800/1010 | ||||
| 007-1 | 609026219 | 11.82 | 14.30 | |
| Motorhuis PF0800/1010 P | ||||
| 007-1 | JH00000040 | 11.24 | 13.60 | |
| Cable grommet 8.5mm | ||||
| 008 | 609024588 | 1.02 | 1.23 | |
| Kabeltule 8,5Mm Ep1680 | ||||
| 008-1 | JH00000110 | 0.83 | 1.00 | |
| Cable grommet 8.5mm | ||||
| 009 | 609024588 | 1.02 | 1.23 | |
| Kabeltule 8,5Mm Ep1680 | ||||
| 009-1 | JH00000110 | 0.83 | 1.00 | |
| Strain Relief Ep1680 | ||||
| 010 | 609024590 | 0.83 | 1.00 | |
| Strain Relief Ep1680 | ||||
| 011 | 609024590 | 0.83 | 1.00 | |
| Capacitor 16uf PF1110 | ||||
| 012-2 | JH00000045 | 8.21 | 9.93 | |
| Strain Relief Plate Ep1680 | ||||
| 013 | 609024592 | 0.83 | 1.00 | |
| Parker Ep1680S | ||||
| 014 | 609024593 | 0.83 | 1.00 | |
| Earth Plate PF0800/1010 | ||||
| 015 | 609024628 | 0.83 | 1.00 | |
| Cable Lug 5.5SD PF1110 | ||||
| 016 | 609024629 | 0.83 | 1.00 | |
| Cable Lug 2SD PF1110 | ||||
| 017 | 609024630 | 0.83 | 1.00 | |
| Cover cap PF0800/1010 | ||||
| 018 | 609024631 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 018-1 | JH00000116 | |||
| Traction band | ||||
| 019 | 609024632 | 0.83 | 1.00 | |
| Metal screw M4x8mm PF1110 | ||||
| 020 | 609024601 | 0.83 | 1.00 | |
| Lock washer 4mm PF1110 | ||||
| 021 | 609024596 | 0.83 | 1.00 | |
| Grounding wire PF1110 | ||||
| 022 | JH00000004 | 0.83 | 1.00 | |
| Grounding wire PF1110 | ||||
| 022-1 | JH00000004 | 0.83 | 1.00 | |
| Serrated washer 4mm PF1110 | ||||
| 023 | 609024600 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 023-1 | JH00000082 | |||
| No information available, not orderable | ||||
| 024-1 | JH00000065 | |||
| Cable Grommet 10mm PF1110 | ||||
| 025 | 609024595 | 0.83 | 1.00 | |
| Motor Housing Cover PF1110 | ||||
| 026 | 609024594 | 6.41 | 7.76 | |
| Lock washer 25mm PF1110 | ||||
| 027 | 609024602 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 028 | 609024603 | |||
| Armature PF0800 | ||||
| 030-1 | JH00000048 | 23.04 | 27.88 | |
| No information available, not orderable | ||||
| 032 | 609024603 | |||
| Field | ||||
| 033-1 | JH00000049 | 38.75 | 46.89 | |
| Field | ||||
| 033-2 | JH00000049 | 38.75 | 46.89 | |
| Field Ring PF0800/1010 | ||||
| 034 | 609024679 | 1.00 | 1.21 | |
| Field Ring PF1110 | ||||
| 034-1 | 609024667 | 1.00 | 1.21 | |
| Spacer ring PF1110 | ||||
| 035 | 609024607 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 036 | 609024608 | |||
| Pakkingring PF1110 | ||||
| 036-1 | JH00000111 | 0.83 | 1.00 | |
| Bearing housing PF1110 | ||||
| 037 | 609024609 | 3.44 | 4.16 | |
| Bearing housing PF1110 | ||||
| 037-1 | 609024609 | 3.44 | 4.16 | |
| O-ring PF1110 | ||||
| 038 | 609024610 | 0.83 | 1.00 | |
| O-ring PF1110 | ||||
| 038-1 | JH00000112 | 0.83 | 1.00 | |
| Fan housing PF0800 | ||||
| 039 | 609024680 | 10.52 | 12.73 | |
| No longer available, no replacement | ||||
| 040 | 609024608 | |||
| Pakkingring PF1110 | ||||
| 040-1 | JH00000111 | 0.83 | 1.00 | |
| Mechanical seal | ||||
| 041 | 609024633 | 4.45 | 5.38 | |
| Pakking Ep1680S | ||||
| 041-1 | JH00000127 | 4.24 | 5.13 | |
| Retaining ring Ep1680 | ||||
| 042 | 609024634 | 0.83 | 1.00 | |
| O-ring 89x5.2mm | ||||
| 043 | 609024612 | 0.98 | 1.19 | |
| O-Ring 89X5,2Mm Ep1680 | ||||
| 043-1 | JH00000113 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 609024613 | |||
| Fan PF0800 | ||||
| 045-1 | JH00000050 | 3.44 | 4.16 | |
| Nut Ep1680 | ||||
| 046 | 609024615 | 0.83 | 1.00 | |
| Pump shell PF0800/1010 | ||||
| 047 | 609024682 | 13.82 | 16.72 | |
| Steel ball 6 | ||||
| 047C10 | 216030-3 | 0.83 | 1.00 | |
| Tap 4x28mm stainless steel PF0800/1010 | ||||
| 048 | 609024620 | 0.83 | 1.00 | |
| O-ring PF0800/1010 | ||||
| 049 | 609024621 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 049-1 | JH00000114 | |||
| Lower house PF0800 | ||||
| 050 | 609024622 | 3.12 | 3.78 | |
| Waterwheel PF0800 | ||||
| 051 | 609024623 | 2.71 | 3.28 | |
| Pointed Screw 4x24mm rvs PF0800 | ||||
| 052 | 609024624 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 053 | JH00000005 | |||
| No information available, not orderable | ||||
| 054 | 609024627 | |||
| O-ring PF1110 | ||||
| 055 | 609024625 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 055-1 | JH00000115 | |||
| Elbow piece Ep1500Ds | ||||
| 056 | 609024691 | 3.22 | 3.90 | |
| O-ring PF1110 | ||||
| 057 | 609024625 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 057-1 | JH00000115 | |||
